Model LG M2350D-PR – Common Parts & Diagrams

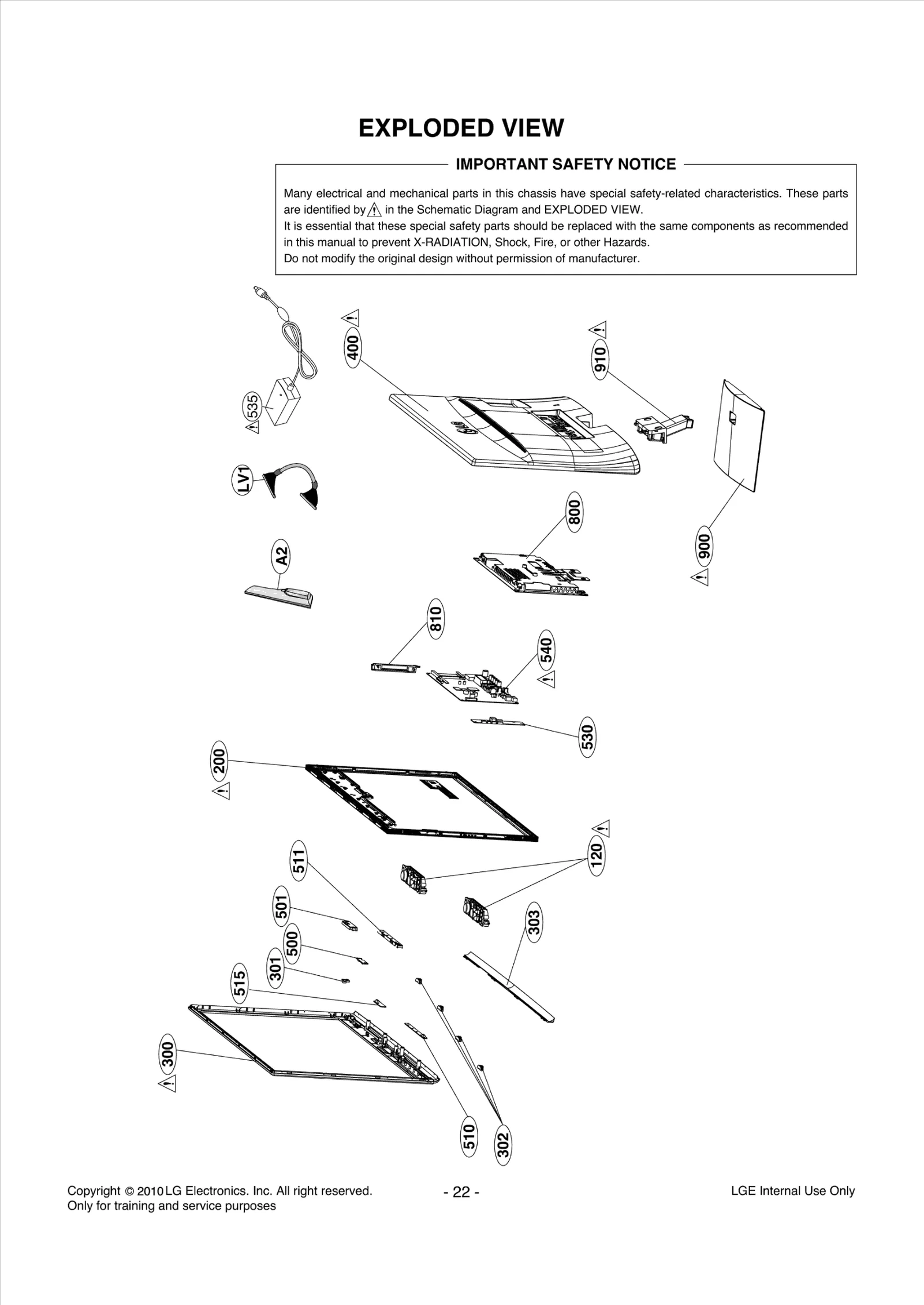

Diagram 0
Diagram 1
Common parts from model LG M2350D-PR
120
Speaker,Full Range LGE EAB62088507 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61931201 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61747801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ61747802 Contact Us For Availability
300
Cabinet Assembly LGE ABJ73187705 Contact Us For Availability
301
Lens LGE MFB62212902 Contact Us For Availability
302
Bracket LGE MAZ62567102 Contact Us For Availability
303
Decor LGE MCR63408802 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ81429205 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR72446602 Contact Us For Availability
501
Bracket LGE MAZ62606802 Contact Us For Availability
510
PCB Assembly LGE EBR72446301 Contact Us For Availability
511
Bracket LGE MAZ62604302 Contact Us For Availability
515
PCB Assembly,Sub LGE EBR72638201 Contact Us For Availability
530
Hand Insert PCB Assembly LGE EBR72446003 Contact Us For Availability
535
Adapters LGE EAY61231403 Contact Us For Availability
540
BPR Total Assembly LGE EBU61145304 Contact Us For Availability
540
BPR Total Assembly LGE EBU61145307 Contact Us For Availability
800
Frame Assembly LGE ADV73506202 Contact Us For Availability
810
Cover LGE MCK63315002 Contact Us For Availability
900
Base Assembly LGE AAN73350304 Contact Us For Availability
910
Base Assembly LGE AAN73350002 Contact Us For Availability
A1
Power Cord,Detach LGE 6410VEH008F Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915217 Contact Us For Availability
A3
Cable,Assembly LGE EAD57734003 Contact Us For Availability
A4
Holder LGE MEG61874302 Contact Us For Availability
A21
Cover,Rear LGE MCK62976201 Contact Us For Availability
AR102
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR310
Resistor,Array LGE EBC39283301 Contact Us For Availability
C101
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C104
Capacitor,Ceramic,Ch LGE 0CK222DK56A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C112
Capacitor,Ceramic,Chip LGE EAE61103401 Contact Us For Availability
C114
Capacitor,AL,Chip LGE EAE62301701 Contact Us For Availability
C123
Capacitor,Ceramic,Chip LGE EAE60663801 Contact Us For Availability
C227
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C254
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C409
Capacitor,Ceramic,Chip LGE EAE32246001 Contact Us For Availability
C413
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C509
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C603
CAPACITOR,FIXED ELEC LGE 0CE106WFKDC Contact Us For Availability
C605
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C613
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C624
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C703
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C715
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C719
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE 0CC391CK41A Contact Us For Availability
C735
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C742
Capacitor,Ceramic,Chip LGE 0CK475FHG6A Contact Us For Availability
C801
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C802
Capacitor,Ceramic,Chip LGE EAE42868301 Contact Us For Availability
C809
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C813
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C817
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C826
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C829
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C831
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C842
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C843
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C845
Capacitor,AL,Chip LGE EAE61423901 Contact Us For Availability
C851
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C855
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C857
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C868
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C882
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C883
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C984
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
CA1
Harness,Single LGE EAD58345811 Contact Us For Availability
CA2
Harness,Single LGE EAD61169601 Contact Us For Availability
CA4
Cable,FFC LGE EAD61486402 Contact Us For Availability
CA5
Harness,Single LGE EAD60732907 Contact Us For Availability
D100
Diode,Schottky LGE EAH30471203 Contact Us For Availability
D100
Diode,Schottky LGE EAH61112701 Contact Us For Availability
D607
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D802
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
IC100
IC,LED Driver LGE EAN60866801 Contact Us For Availability
IC100
Display SOC,Digital TV LGE EAN60351702 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN61327101 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN55718402 Contact Us For Availability
IC101
IC,Serial Flash Memory LGE EAN60970401 Contact Us For Availability
IC101
IC,Capacitive Touch Sensor LGE EAN60738604 Contact Us For Availability
IC101
Receiver Module LGE EAV60894703 Contact Us For Availability
IC103
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC103
IC,NAND Flash Memory LGE EAN55688101 Contact Us For Availability
IC104
IC,EEPROM LGE EAN60771501 Contact Us For Availability
IC104
IC,EEPROM LGE EAN61086701 Contact Us For Availability
IC106
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC106
IC,EEPROM LGE EAN62344701 Contact Us For Availability
IC106
IC,EEPROM LGE EAN61925801 Contact Us For Availability
IC300
IC,DDR2 SDRAM LGE EAN55706101 Contact Us For Availability
IC300
IC,DDR2 SDRAM LGE EAN60763003 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN55705501 Contact Us For Availability
IC301
IC,DDR2 SDRAM LGE EAN55705502 Contact Us For Availability
IC400
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC400
IC,EEPROM LGE 0IMMRAL014E Contact Us For Availability
IC400
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC500
IC,STANDARD LOGIC LGE 0ISTLPH062A Contact Us For Availability
IC501
IC,CMOS LGE 0ISTLPH003B Contact Us For Availability
IC502
IC,CMOS LGE 0ITO742440D Contact Us For Availability
IC601
IC,OP Amplifier LGE EAN61129902 Contact Us For Availability
IC700
IC,Audio Amplifier LGE EAN60969602 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN60724701 Contact Us For Availability
IC702
IC,Microcontrollers LGE EAN61465801 Contact Us For Availability
IC703
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC803
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC809
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC809
IC,Voltage Regulator LGE EAN60994801 Contact Us For Availability
IC810
IC,LDO Voltage Regulator LGE EAN54428201 Contact Us For Availability
IC901
IC,Gate LGE 0ILNRON009B Contact Us For Availability
JK401
Jack,Phone LGE EAG60841807 Contact Us For Availability
JK402
Jack,Fiber Optic LGE EAG37842001 Contact Us For Availability
JK403
Connector,USB LGE EAG59068702 Contact Us For Availability
JK601
Connector,DSUB LGE EAG61491201 Contact Us For Availability
JK602
Jack,Scart LGE EAG60841502 Contact Us For Availability
JK700
Jack,Phone LGE EAG60841803 Contact Us For Availability
JK700
Jack,Phone LGE EAG60841806 Contact Us For Availability
JK800
Jack,DC Power LGE EAG35306604 Contact Us For Availability
JK801
Jack,RCA LGE EAG60968205 Contact Us For Availability
L100
Inductor,Wire Wound,Chip LGE EAP61007301 Contact Us For Availability
L802
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L805
Inductor,Wire Wound,Chip LGE EAP36703101 Contact Us For Availability
L806
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L808
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L904
Filter,Bead LGE EAM58113401 Contact Us For Availability
LD106
LED,Chip LGE EAV61472201 Contact Us For Availability
LV1
Cable,FFC LGE EAD61170807 Contact Us For Availability
P100
Connector,Wafer LGE EAG58732906 Contact Us For Availability
P104
Connector,Wafer LGE EAG62611101 Contact Us For Availability
P400
Connector,DSUB LGE 6630TGA004Q Contact Us For Availability
P400
Connector,DSUB LGE 6630TGA004R Contact Us For Availability
P401
Connector,DSUB LGE 6630G00001E Contact Us For Availability
P500
Socket,PCI LGE EAG41860102 Contact Us For Availability
P700
Connector,Wafer LGE EAG61091601 Contact Us For Availability
P1006
Connector,Wafer LGE 6630V90141B Contact Us For Availability
Q101
FET LGE EBK42767801 Contact Us For Availability
Q500
TRANSISTOR,BIPOLARS LGE 0TRIY80001A Contact Us For Availability
Q501
FET LGE EBK38029201 Contact Us For Availability
Q604
TR,Bipolar LGE 0TR102009AM Contact Us For Availability
Q702
TRANSISTOR LGE 0TR150400BA Contact Us For Availability
Q802
FET LGE EBK60752501 Contact Us For Availability
Q1006
FET LGE EBK60697001 Contact Us For Availability
Q1006
FET,Array LGE 0TFFC80055C Contact Us For Availability
R106
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R106
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R110
Resistor,Chip LGE 0RJ1003D477 Contact Us For Availability
R113
Resistor,Chip LGE 0RH1602D422 Contact Us For Availability
R118
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R120
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R121
Resistor,Chip LGE 0RJ0100J488 Contact Us For Availability
R132
Resistor,Chip LGE 0RH5603D622 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R227
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R251
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R284
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R325
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R412
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R415
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R603
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R607
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R629
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R630
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R642
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R646
Resistor,Chip LGE 0RJ6202D677 Contact Us For Availability
R674
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R677
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R701
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R710
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R715
RESISTOR,METAL GLAZE LGE 0RJ0471D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R734
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R735
RESISTOR CHIP 220K 1/10W 5 D. LGE 0RH2203D622 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R756
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R776
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R806
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R813
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R822
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R826
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R827
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R832
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R836
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R838
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R847
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R849
Resistor,Chip LGE 0RJ8201D477 Contact Us For Availability
R876
Resistor,Chip LGE 0RJ3300C478 Contact Us For Availability
R903
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R906
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R917
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
TU900
Tuner,Analog/Digital LGE EBL60859901 Contact Us For Availability
× ![]()
Login and Registration Form
