Model LG M1917A-SM – Common Parts & Diagrams

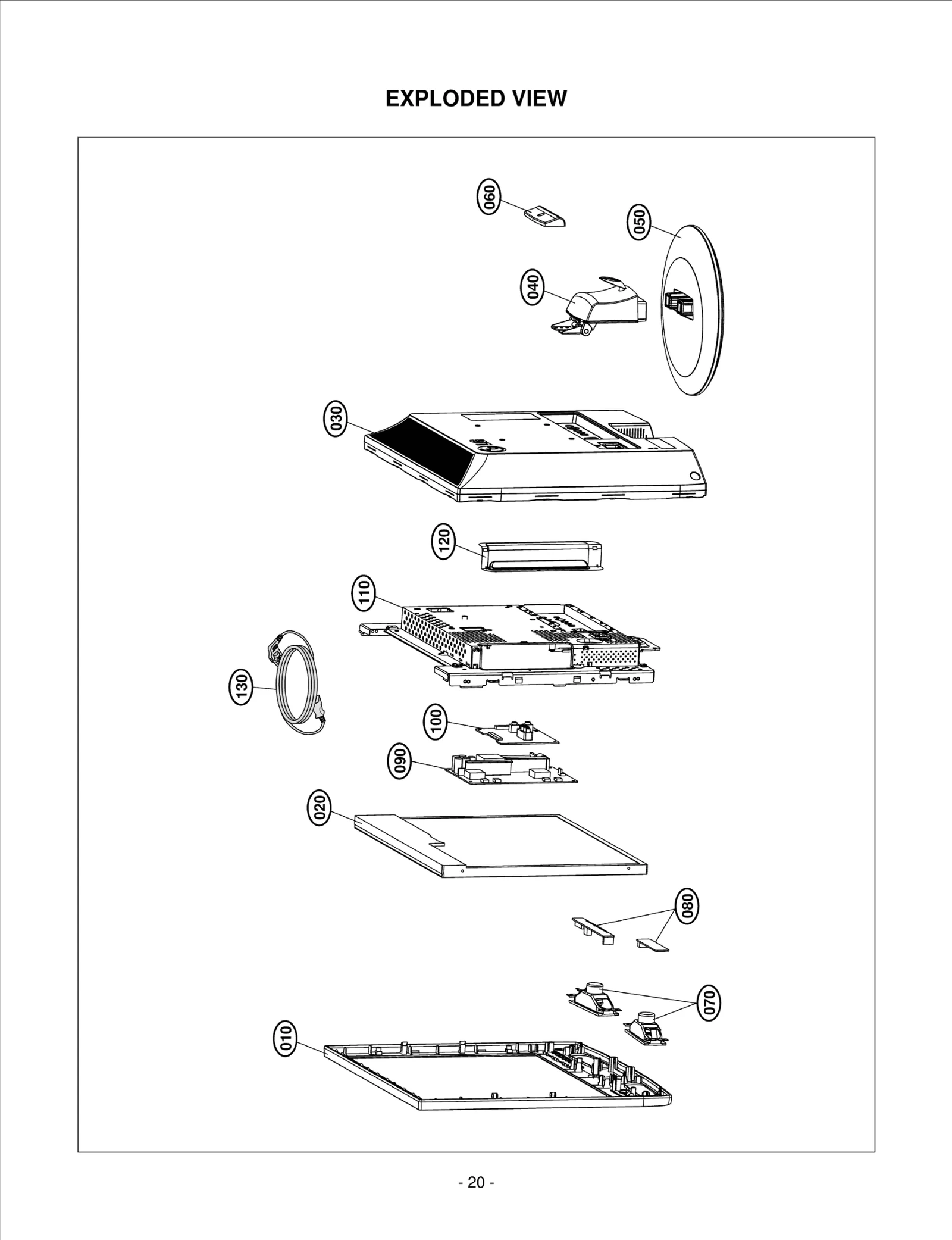

Diagram 0
Diagram 1
Common parts from model LG M1917A-SM
0
Printing Part Assemb LGE 3871910017C Contact Us For Availability
0
FLUX LGE 7245TZZ009A Contact Us For Availability
0
Screw,Taptite LGE FAB30007508 Contact Us For Availability
0
Screw,Taptite LGE FAB30011010 Contact Us For Availability
0
Screw,Taptite LGE FAB30012907 Contact Us For Availability
0
S/W Package LGE 3171TZ1040Q Contact Us For Availability
0
Packing LGE 3920900004A Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006N Contact Us For Availability
0
Screw,Taptite LGE FAB30013603 Contact Us For Availability
0
Cover Assembly LGE 35519K0022A Contact Us For Availability
0
Card LGE 3840TRL076P Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038R Contact Us For Availability
0
SOCKET(CIRC),POWER LGE 6620K00017B Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900036E Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900035C Contact Us For Availability
0
REMOTE CONTROLLER LGE 6710T00022P Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
Cover Assembly LGE 35519K0026A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012W Contact Us For Availability
0
Screw,Taptite LGE FAB30013206 Contact Us For Availability
0
Taptite Screw LGE FAB30021203 Contact Us For Availability
0
Bag LGE 38809P0013S Contact Us For Availability
0
Box LGE 3890900061D Contact Us For Availability
0
Screw,Taptite LGE FAB30018404 Contact Us For Availability
0
LEAD SET LGE 5240T0F006C Contact Us For Availability
0
Screw,Taptite LGE FAB30005101 Contact Us For Availability
0
Screw,Taptite LGE FAB30009404 Contact Us For Availability
0
Screw Assembly LGE FAB30009501 Contact Us For Availability
0
Screw,Taptite LGE FAB30011006 Contact Us For Availability
0
Screw,Taptite LGE FAB30016301 Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP336A Contact Us For Availability
030
Cover Assembly LGE 3809900104C Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK274A Contact Us For Availability
050
Base Assembly LGE 3043TKK275B Contact Us For Availability
060
COVER LGE 35509K0010A Contact Us For Availability
070
Speaker,Fullrange LGE EAB30829301 Contact Us For Availability
080
PCB Assembly,Sub LGE 68719ST034B Contact Us For Availability
090
PWB(PCB) ASSEMBLY,PO LGE 6871TPT318A Contact Us For Availability
100
Main Total Assembly LGE 33139L9007C Contact Us For Availability
110
Plate Assembly LGE 49519S0011P Contact Us For Availability
120
METAL LGE 49509K0003A Contact Us For Availability
A1
Cable,Assembly LGE 68509A0004H Contact Us For Availability
C113
Capacitor,Ceramic,Chip LGE 0CH5220K416 Contact Us For Availability
C114
Capacitor,Ceramic,Chip LGE 0CH5470K416 Contact Us For Availability
C116
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C144
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C146
Capacitor,AL,Radial LGE 0CE108EH618 Contact Us For Availability
C156
LGE 0CH6680K416 LGE 0CH6680K416 Contact Us For Availability
C158
Capacitor,AL,Chip LGE 0CE105SK6DC Contact Us For Availability
C189
CAPACITOR,FIXED CERA LGE 0CC271CK41A Contact Us For Availability
C201
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C204
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C220
CAPACITOR,FIXED ELEC LGE 0CE337SC6D8 Contact Us For Availability
C227
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C237
Capacitor,Ceramic,Chip LGE 0CH5102K416 Contact Us For Availability
C240
CAPACITOR,CHIP[CERAM LGE 0CH3474H946 Contact Us For Availability
C305
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6151K416 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH2472K516 Contact Us For Availability
C319
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CH2334F566 Contact Us For Availability
C370
Capacitor,Ceramic,Chip LGE 0CH3223K516 Contact Us For Availability
C383
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C385
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C392
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C405
Capacitor,AL,Radial LGE 0CE477ED610 Contact Us For Availability
C410
CAPACITOR,FIXED ELEC LGE 0CE226WF6DC Contact Us For Availability
C413
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C420
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C709
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C748
Capacitor,AL,Radial LGE 0CE226EK610 Contact Us For Availability
C3030
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C3046
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C3070
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C3086
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C3091
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C3101
CAPACITOR,FIXED CERA LGE 0CC270CK41A Contact Us For Availability
C3102
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
D701
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D702
DIODE,SWITCHING LGE 0DSKE00248A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
J103
CONNECTOR ASSEMBLY LGE 6631900042B Contact Us For Availability
L116
INDUCTOR,CHIP LGE 0LCML00020C Contact Us For Availability
L204
COIL,CHOKE LGE 61409B0002A Contact Us For Availability
L206
Filter,Bead LGE 6210TCE0014 Contact Us For Availability
L704
Inductor,Multilayer,Chip LGE 0LC0562001A Contact Us For Availability
L712
COIL CHOKE 2.4MH CS-580 LGE 150-985B Contact Us For Availability
L731
INDUCTOR,CHIP LGE 0LC1020101A Contact Us For Availability
LED552
LED LGE 0DLBE0048AA Contact Us For Availability
Q109
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q115
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q203
FET LGE 0TFRH80001A Contact Us For Availability
Q302
KTA1270-TP-Y (KTA562TM) 1527 LGE 0TR127009AA Contact Us For Availability
Q303
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q702
TRANSISTOR LGE 0TR388109AA Contact Us For Availability
R103
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R115
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R145
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R146
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R150
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R156
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R208
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R215
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R248
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R316
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R321
RESISTOR CHIP 10 1/10W 5 C.R/ LGE 0RH0102D622 Contact Us For Availability
R325
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R329
RESISTOR CHIP 220K 1/10W 5 D. LGE 0RH2203D622 Contact Us For Availability
R332
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R332
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R334
Resistor,Chip LGE 0RH1004D422 Contact Us For Availability
R335
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R347
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R372
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R376
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R378
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R384
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R393
Resistor,Chip LGE 0RH4300D622 Contact Us For Availability
R394
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R397
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R410
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R508
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R741
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R770
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R772
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R773
RESISTOR,METAL GLAZE LGE 0RJ3000D677 Contact Us For Availability
R776
RESISTOR,FIXED SMALL LGE 0RX0202K665 Contact Us For Availability
R1011
RESISTOR,METAL GLAZE LGE 0RJ1300D477 Contact Us For Availability
R1012
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R1026
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R1047
RESISTOR CHIP 100K 1/10W 5 D. LGE 0RH1003D622 Contact Us For Availability
R1048
Resistor,Chip LGE 0RH1801D622 Contact Us For Availability
R1070
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R3015
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
SW505
SWITCH LGE 140-058E Contact Us For Availability
SW551
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
U101
IC,PERIPHERALS LGE 0IPRP00639A Contact Us For Availability
U106
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U112
IC,STANDARD LOGIC LGE 0ISTL00031A Contact Us For Availability
U301
IC,PERIPHERALS LGE 0IPRP00641C Contact Us For Availability
U302
IC,MEMORIES LGE 0IMMRSG036D Contact Us For Availability
U303
SOCKET(CIRC),IC LGE 6620F00017A Contact Us For Availability
U401
IC,Voltage Regulator LGE 0IKE780800J Contact Us For Availability
U402
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U403
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U405
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U501
REMOTE CONTROLLER RE LGE 6712SCA232A Contact Us For Availability
U701
FILTER(CIRC),SAW LGE 6200VQS001F Contact Us For Availability
U702
FILTER(CIRC),SAW LGE 6200QL3003C Contact Us For Availability
U704
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
X301
Crystal LGE 6202TST003G Contact Us For Availability
ZD201
Diode,Zener LGE 0DZ120009CF Contact Us For Availability
ZD704
DIODE,ZENERS LGE 0DZRM00448A Contact Us For Availability
× ![]()
