Model LG M173WA-BM – Common Parts & Diagrams

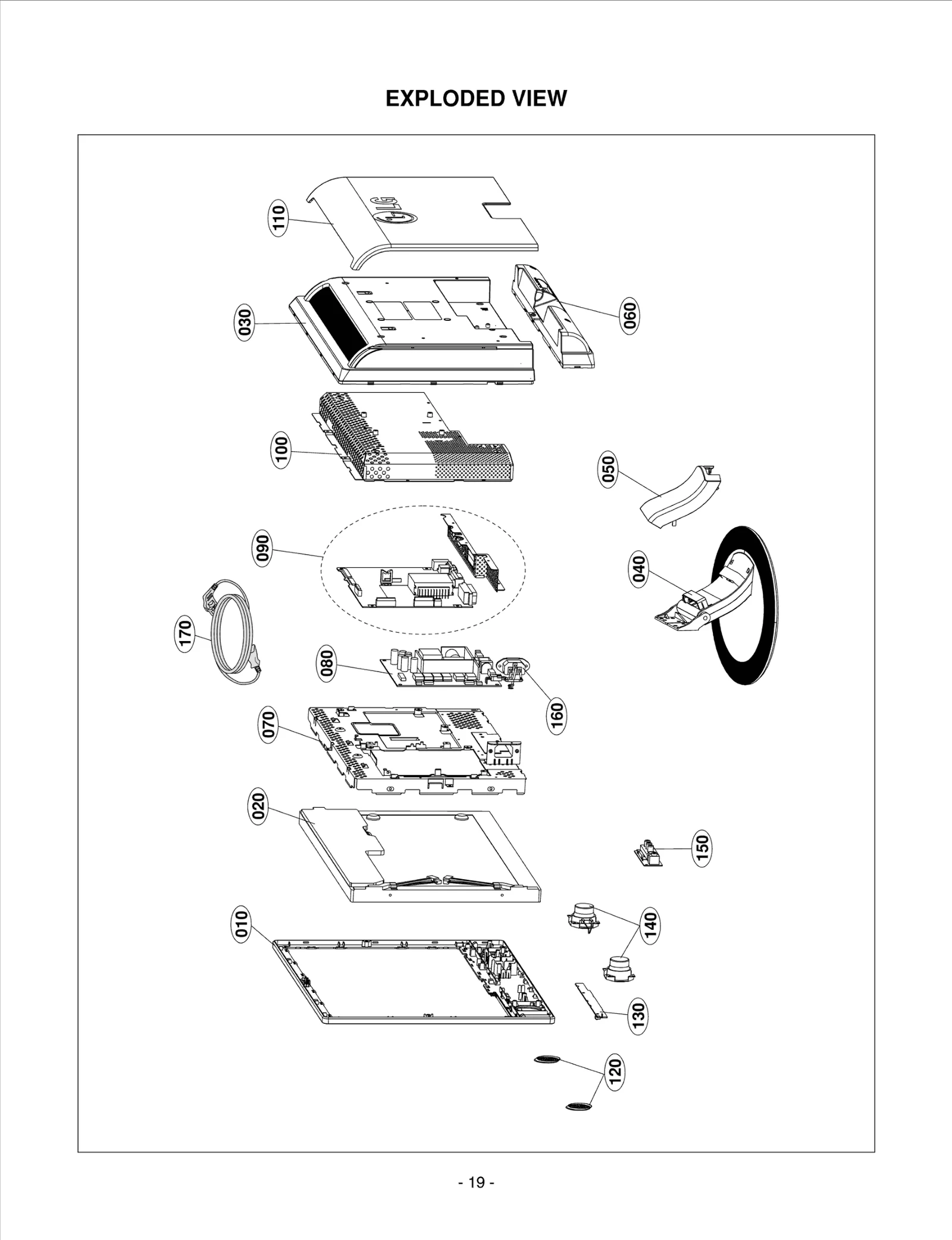

Diagram 0
Diagram 1
Common parts from model LG M173WA-BM
0
CARTON PLATE LGE 3918TKK038L Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006S Contact Us For Availability
0
REMOTE CONTROLLER LGE 6710T00003G Contact Us For Availability
0
Screw Assembly LGE FAB30009501 Contact Us For Availability
0
Screw,Taptite LGE FAB30013203 Contact Us For Availability
0
Screw,Taptite LGE FAB30013604 Contact Us For Availability
0
Screw,Taptite LGE FAB30018403 Contact Us For Availability
0
Card LGE 3840TRL076D Contact Us For Availability
0
Bag LGE 38809P0013S Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11016C Contact Us For Availability
0
Harness,Single LGE 6631T20023J Contact Us For Availability
0
PRINTING PART ASSEMB LGE 3871TZL335C Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006N Contact Us For Availability
0
Screw,Taptite LGE FAB30012907 Contact Us For Availability
0
Packing LGE 3920TKE316A Contact Us For Availability
0
Harness,Single LGE 6631T20028T Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007C Contact Us For Availability
0
Screw,Taptite LGE FAB30010103 Contact Us For Availability
0
Screw,Taptite LGE FAB30014103 Contact Us For Availability
0
Harness,Single LGE 5240T0F006B Contact Us For Availability
0
JACK,RCA LGE 6612J00042A Contact Us For Availability
0
Screw,Taptite LGE FAB30010106 Contact Us For Availability
0
Box LGE 3890TSE750G Contact Us For Availability
0
Box LGE 3890TSE982C Contact Us For Availability
0
Screw,Taptite LGE FAB30011001 Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP138A Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809TKL088M Contact Us For Availability
040
Base Assembly LGE 3043TKK206B Contact Us For Availability
050
Cover LGE 3550TKK705A Contact Us For Availability
060
COVER LGE 3550TKK699C Contact Us For Availability
070
METAL ASSEMBLY LGE 4951TKS177A Contact Us For Availability
080
PWB(PCB) ASSEMBLY,PO LGE 6871TPT280H Contact Us For Availability
090
MAIN TOTAL ASSEMBLY LGE 3313TL7111A Contact Us For Availability
100
SHIELD ASSEMBLY LGE 4815TKK041A Contact Us For Availability
110
Cover LGE 3550TKK697A Contact Us For Availability
120
Cover LGE 3550TKS127A Contact Us For Availability
130
PWB(PCB) ASSEMBLY,SU LGE 6871TST749A Contact Us For Availability
140
Speaker Module LGE EAB31789901 Contact Us For Availability
150
PCB Assembly,Video LGE 6871TVT380B Contact Us For Availability
160
SOCKET(CIRC),POWER LGE 6620K00003H Contact Us For Availability
BA803
Filter,Bead LGE 6210TCE002D Contact Us For Availability
C119
LGE 0CH6680K416 LGE 0CH6680K416 Contact Us For Availability
C135
CAPACITOR,FIXED ELEC LGE 0CE476WC6DC Contact Us For Availability
C140
CAPACITOR,CHIP[CERAM LGE 0CH3474H946 Contact Us For Availability
C144
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6471K416 Contact Us For Availability
C220
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C227
Capacitor,AL,Chip LGE 0CH8476H691 Contact Us For Availability
C231
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C233
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C404
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C430
CAPACITOR,CHIP[AL. E LGE 0CH8106F691 Contact Us For Availability
C613
CAPACITOR,FIXED ELEC LGE 0CE475WJ6DC Contact Us For Availability
C632
CAPACITOR,FIXED CERA LGE 0CK334CF94A Contact Us For Availability
C647
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C653
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C660
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6220K416 Contact Us For Availability
C801
Capacitor,Ceramic,Ch LGE 0CH2273K516 Contact Us For Availability
C845
Capacitor,Ceramic,Chip LGE 0CK392CK56A Contact Us For Availability
C846
Capacitor,Ceramic,Chip LGE 0CK393CK56A Contact Us For Availability
C901
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C922
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C924
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C925
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C925
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C936
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C939
Capacitor,AL,Radial LGE 0CE107EH638 Contact Us For Availability
C941
Capacitor,AL,Chip LGE 0CZZTAT002B Contact Us For Availability
C958
Capacitor,AL,Radial LGE 0CE226EK610 Contact Us For Availability
C966
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C968
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C977
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
D106
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D903
DIODE,ZENER LGE 0DZ330009DF Contact Us For Availability
J101
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
J102
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J103
Jack,Phone LGE 6612F00001B Contact Us For Availability
J105
Connector,Wafer LGE 6602T12004L Contact Us For Availability
J404
Connector,Wafer LGE 6630VF00520 Contact Us For Availability
J501
Connector,Wafer LGE 6602T12005C Contact Us For Availability
J701
Jack,Phone LGE 6612F00006A Contact Us For Availability
J702
Jack,Complex LGE 6612J00062H Contact Us For Availability
J803
Jack,RCA LGE 6612J10003Q Contact Us For Availability
J804
Jack,RCA LGE 6612J10002C Contact Us For Availability
L101
FILTER(CIRC),EMC LGE 6210TCE001Y Contact Us For Availability
L204
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L701
Filter,Bead LGE 6210TCE001H Contact Us For Availability
L801
Filter,Bead LGE 6210TCE001D Contact Us For Availability
L802
INDUCTOR,CHIP LGE 0LC1020101A Contact Us For Availability
L901
COIL CHOKE 2.4MH CS-580 LGE 150-985B Contact Us For Availability
LED901
LED LGE 0DLBE0048AA Contact Us For Availability
Q102
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
Q604
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q608
IC,KEC LGE 0IKE702900G Contact Us For Availability
Q611
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q801
TRANSISTOR LGE 0TR388109AA Contact Us For Availability
Q802
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R129
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R132
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R142
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R146
RESISTOR CHIP 470K 1/10W 5 D. LGE 0RH4703D622 Contact Us For Availability
R205
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R209
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R230
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R410
RESISTOR,CHIP LGE 0RH2700D422 Contact Us For Availability
R426
Resistor,Chip LGE 0RH2701D622 Contact Us For Availability
R483
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R497
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R501
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R609
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R611
Resistor,Chip LGE 0RH2000D422 Contact Us For Availability
R637
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R699
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R802
RESISTOR CHIP 6.8K 1/10W 5 D. LGE 0RH6801D622 Contact Us For Availability
R809
RESISTOR CHIP 3.3K 1/10W 5 D. LGE 0RH3301D622 Contact Us For Availability
R818
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R821
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R824
RESISTOR CHIP LGE 0RH3000D622 Contact Us For Availability
R826
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
R845
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R847
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R851
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R875
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R879
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R916
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R918
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R924
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R926
Resistor,Wire Wound LGE 0RB0470K607 Contact Us For Availability
R945
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R4005
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
RA408
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
SW503
SWITCH LGE 140-058E Contact Us For Availability
TU802
TUNER LGE 6700VS0003D Contact Us For Availability
U101
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U103
IC,ROHM LGE 0IRH765700B Contact Us For Availability
U104
IC KEC KIA78L05BP(TA)3 KCN20A8 LGE 0IKE780500P Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPTI036B Contact Us For Availability
U202
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
U204
IC,MEMORIES LGE 0IMMRHY051B Contact Us For Availability
U402
IC,PERIPHERALS LGE 0IPRPGN011E Contact Us For Availability
U403
SOCKET(CIRC),IC LGE 6620F00017A Contact Us For Availability
U404
IC,MEMORIES LGE 0IMMRSG036D Contact Us For Availability
U407
IC,STANDARD LOGIC LGE 0ISTLFA058A Contact Us For Availability
U501
PRE-AMP LGE 6726VV0006D Contact Us For Availability
U601
IC,PERIPHERALS LGE 0IPRPMN003C Contact Us For Availability
U801
FILTER(CIRC),SAW LGE 6200QL3002J Contact Us For Availability
U803
IC,STANDARD LOGIC LGE 0ISTL00026A Contact Us For Availability
U804
IC,PERIPHERALS LGE 0IPRPM3002D Contact Us For Availability
U908
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U909
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U909
IC,POWER MANAGEMENT LGE 0IPMGSG018D Contact Us For Availability
U912
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U913
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U914
IC,SAMSUNG ELECTRONICS LGE 0ISS780800J Contact Us For Availability
U916
IC,LDO Voltage Regulator LGE 0IPMGKE041A Contact Us For Availability
U919
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
X401
CRYSTAL LGE 6202TST001A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ120009CF Contact Us For Availability
× ![]()
