Model Whirlpool M170W MICROWAVE – Common Parts & Diagrams

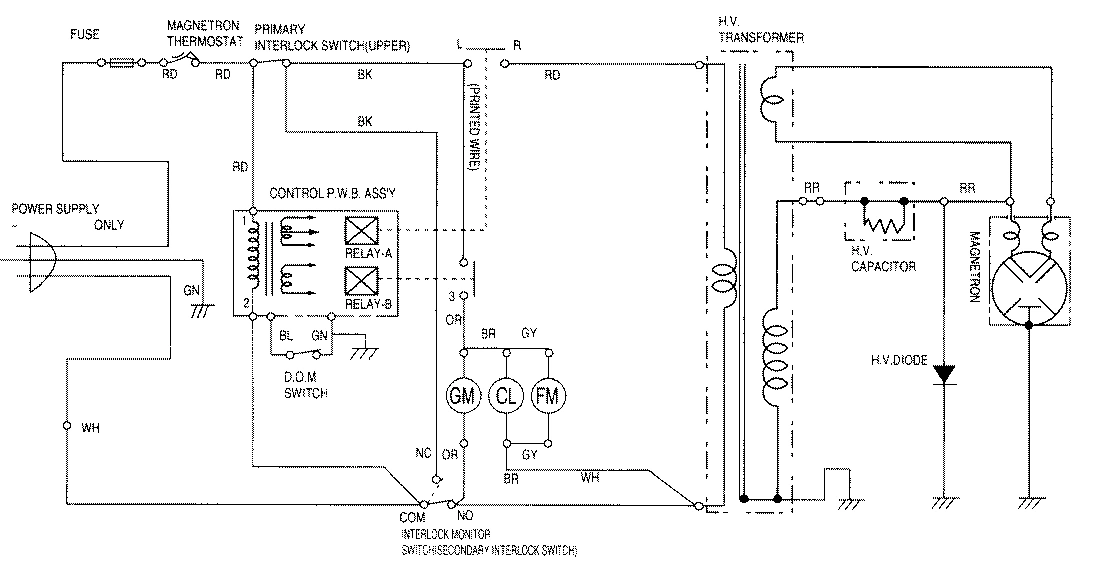

04 - WIRING INFORMATION

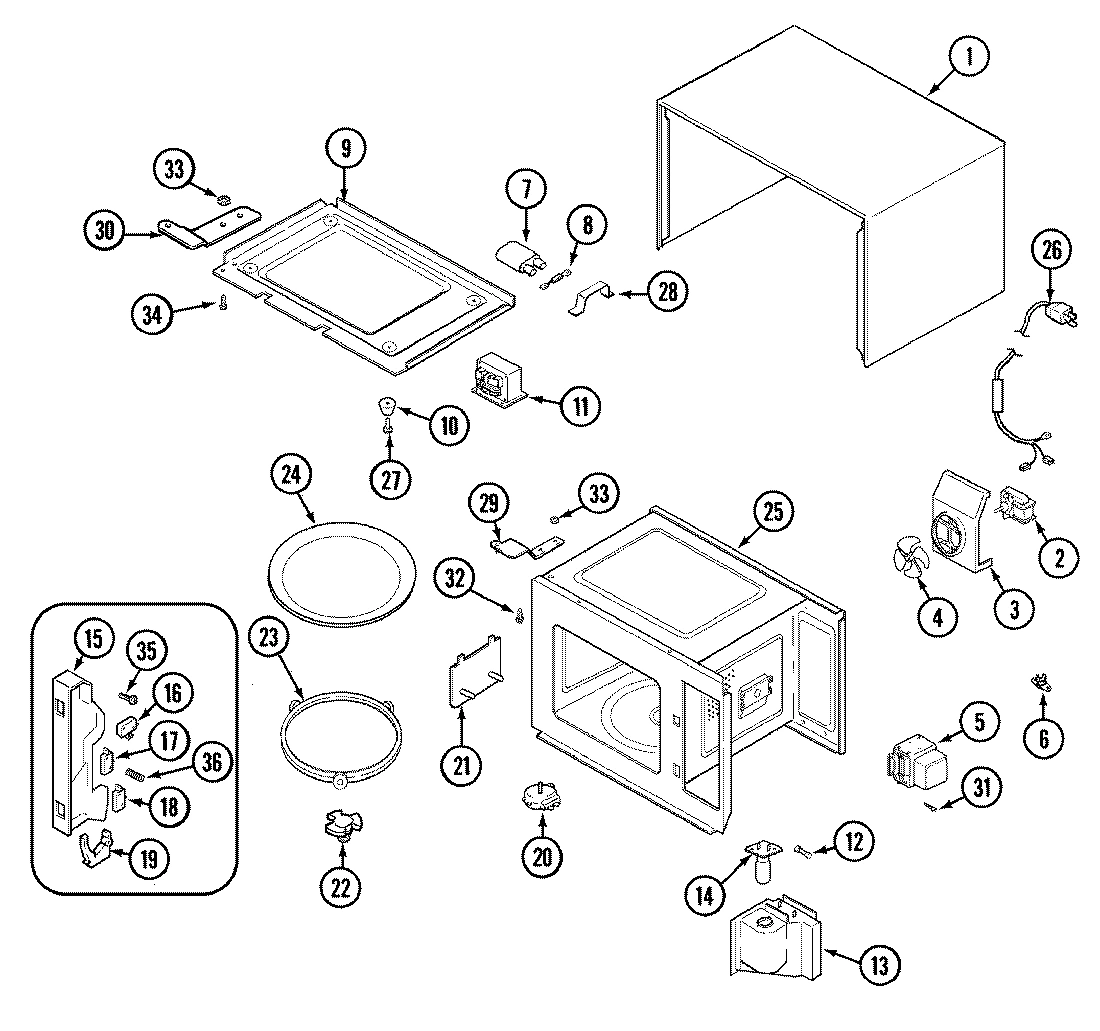

01 - CABINET-BASE-CAVITY

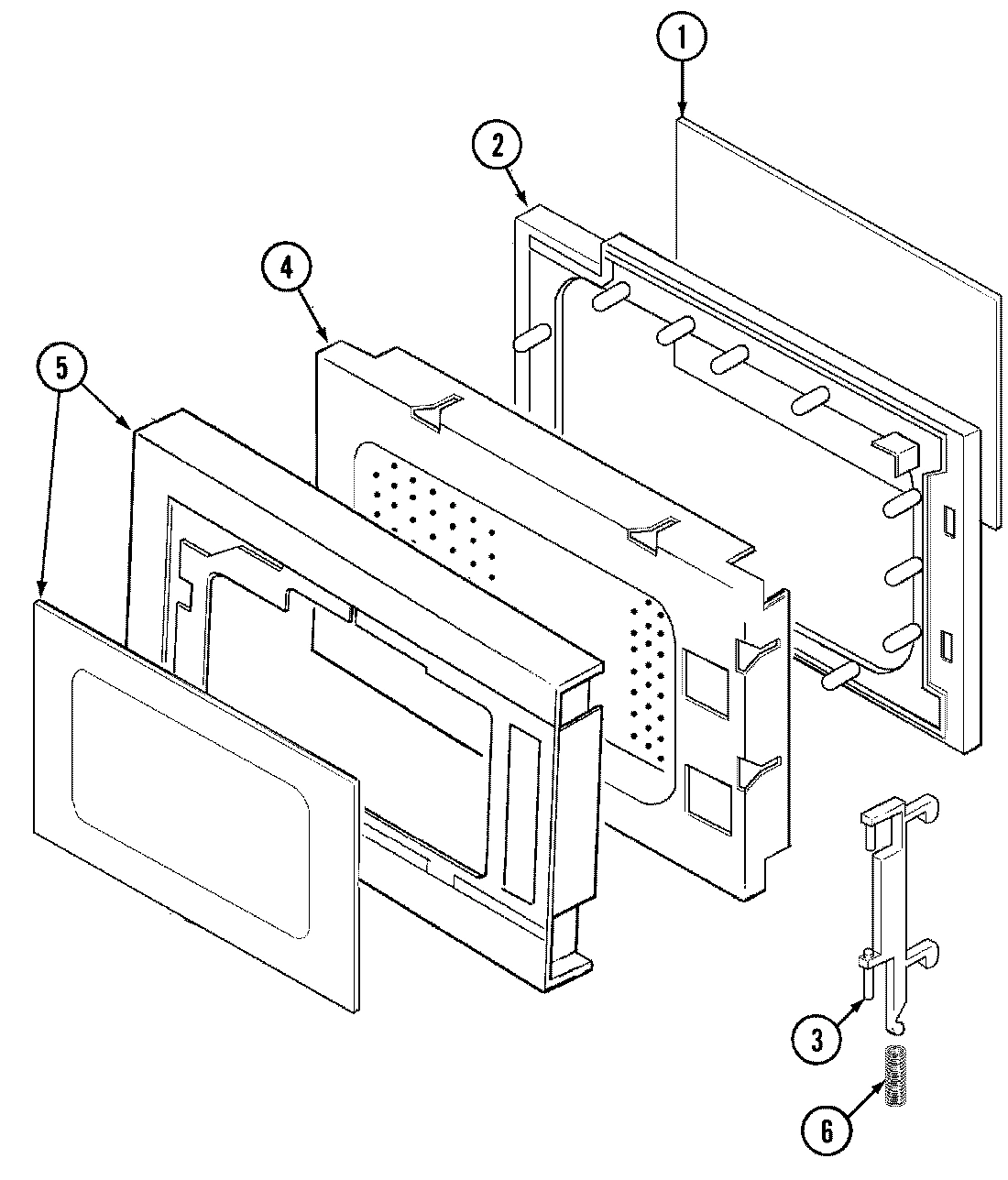

03 - DOOR

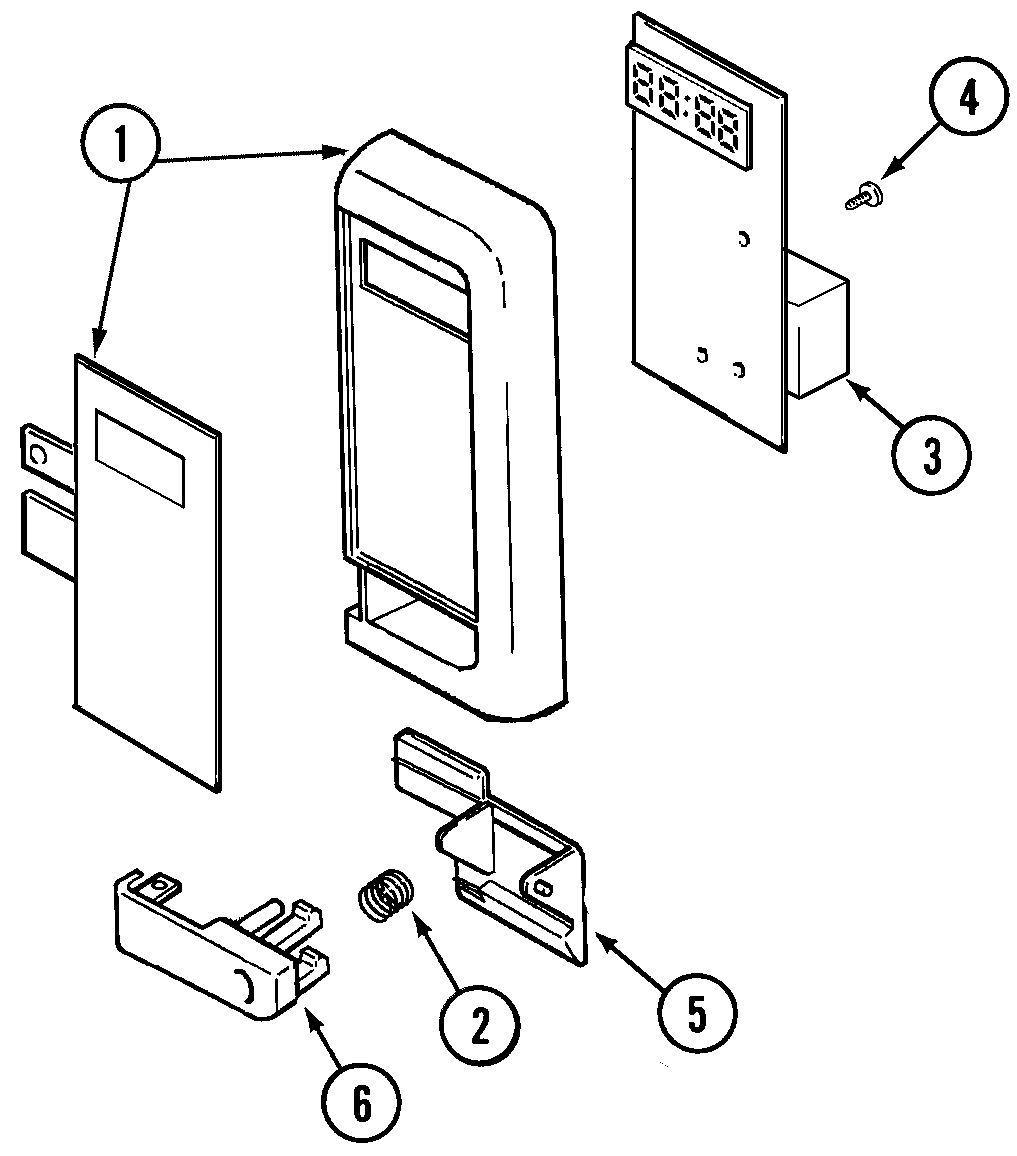

02 - CONTROL PANEL
Common parts from model Whirlpool M170W MICROWAVE
1
WRAPPER, CABINET (WHT) WPL 56001023 Contact Us For Availability
1
SCREEN, DOOR (INNER) WPL 56001012 Contact Us For Availability
1
CONTROL TRIM & SWITCH ASSY-WHT WPL 56001253 Contact Us For Availability
2
MOTOR, FAN WPL 56001024 Contact Us For Availability
2
SCREW WPL 715485 Contact Us For Availability
2
CHOKE, DOOR WPL 56001013 Contact Us For Availability
2
SPRING, BUTTON WPL 56001011 Contact Us For Availability
3
COVER, MOTOR WPL 56001025 Contact Us For Availability
3
STRIKE, DOOR WPL 56001014 Contact Us For Availability
3
BOARD, CONTROL WPL 56001007 Contact Us For Availability
4
FAN, BLADE WPL 56001026 Contact Us For Availability
4
WELD, DOOR (WHT) WPL 56001015 Contact Us For Availability
5
MAGNETRON WPL 56001027 Contact Us For Availability
5
DOOR FRAME & WINDOW ASSY (WHT) WPL 56001247 Contact Us For Availability
5
LEVER, DOOR WPL 56001008 Contact Us For Availability
6
THERMOSTAT WPL 56001028 Contact Us For Availability
6
SCREW WPL 711005 Contact Us For Availability
6
SPRING, STRIKE WPL 56001021 Contact Us For Availability
6
BUTTON, DOOR RELEASE (WHT) WPL 56001009 Contact Us For Availability
8
HARNESS, WIRE WPL 56001053 Contact Us For Availability
9
BASE WPL 56001031 Contact Us For Availability
9
MANUAL, USE & CARE WPL 16008417 Contact Us For Availability
10
FOOT, BASE WPL 56001032 Contact Us For Availability
10
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
11
TRANSFORMER (HV) WPL 56001033 Contact Us For Availability
12
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
13
GUIDE, AIR WPL 56001052 Contact Us For Availability
14
BULB/ SOCKET ASSY WPL 56001034 Contact Us For Availability
15
INTERLOCK WPL 56001035 Contact Us For Availability
17
SWITCH, SECONDARY WPL 56001037 Contact Us For Availability
19
PUSH, LEVER WPL 56001038 Contact Us For Availability
20
MOTOR, TURNTABLE WPL 56001039 Contact Us For Availability
21
COVER, GUIDE WPL 56001040 Contact Us For Availability
22
COUPLER, MOTOR WPL 56001041 Contact Us For Availability
23
GUIDE, ROLLER ASSY. WPL 56001042 Contact Us For Availability
25
CAVITY WPL 56001044 Contact Us For Availability
26
SCREW WPL 4020491 Contact Us For Availability
26
CORD, POWER WPL 56001045 Contact Us For Availability
27
FIXTURE, FOOT WPL 56001046 Contact Us For Availability
28
HOLDER, CAPACITOR WPL 56001047 Contact Us For Availability
29
HINGE (UPPR) WPL 56001048 Contact Us For Availability
30
HINGE (LWR) WPL 56001049 Contact Us For Availability
32
BOLT, HINGE WPL 56001050 Contact Us For Availability
33
NUT, HINGE WPL 56001051 Contact Us For Availability
36
SPRING, LOCK WPL 56001054 Contact Us For Availability
37
LABEL, COOK CODE WPL 56001274 Contact Us For Availability
× ![]()
