Model Whirlpool M168W MICROWAVE – Common Parts & Diagrams

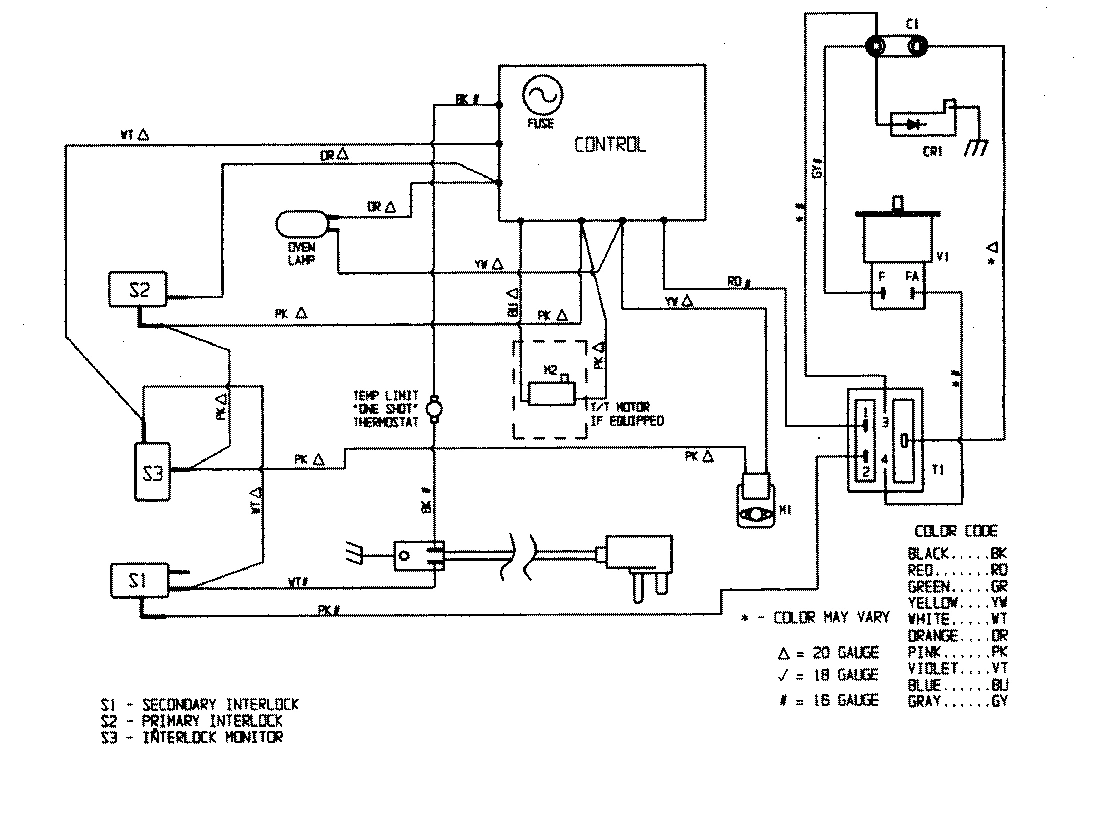

04 - WIRING INFORMTION

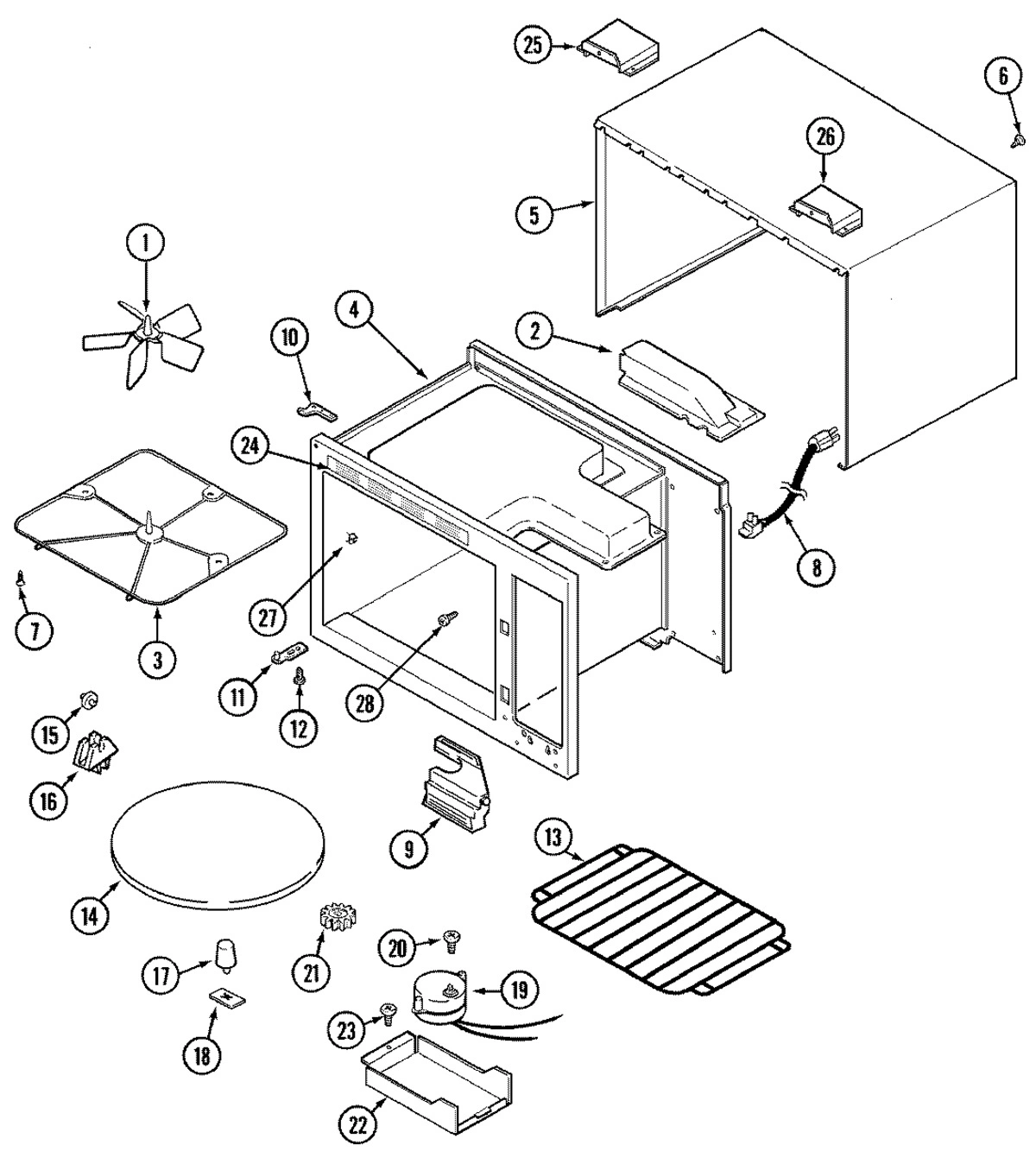

01 - BODY

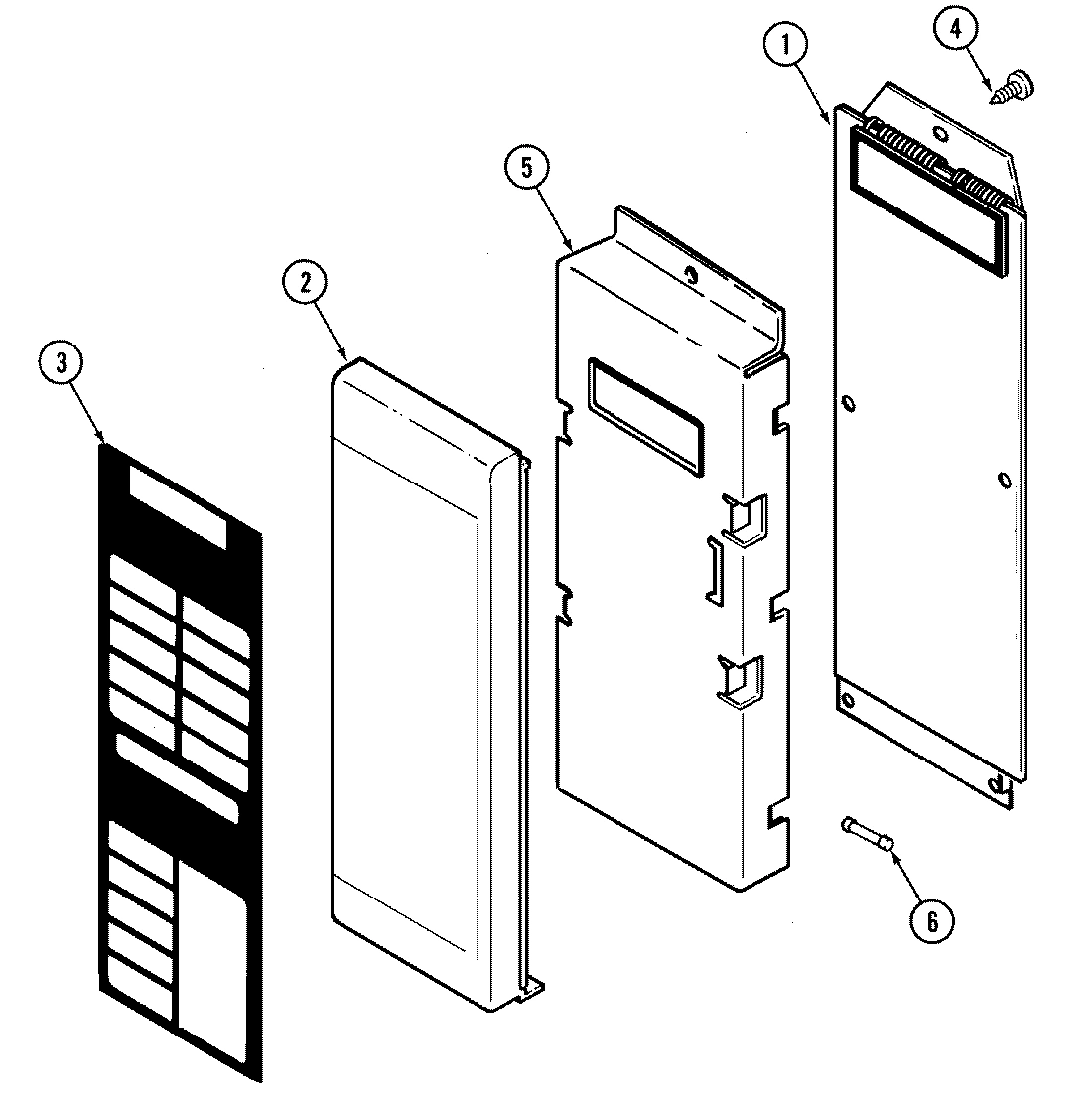

02 - CONTROL PANEL

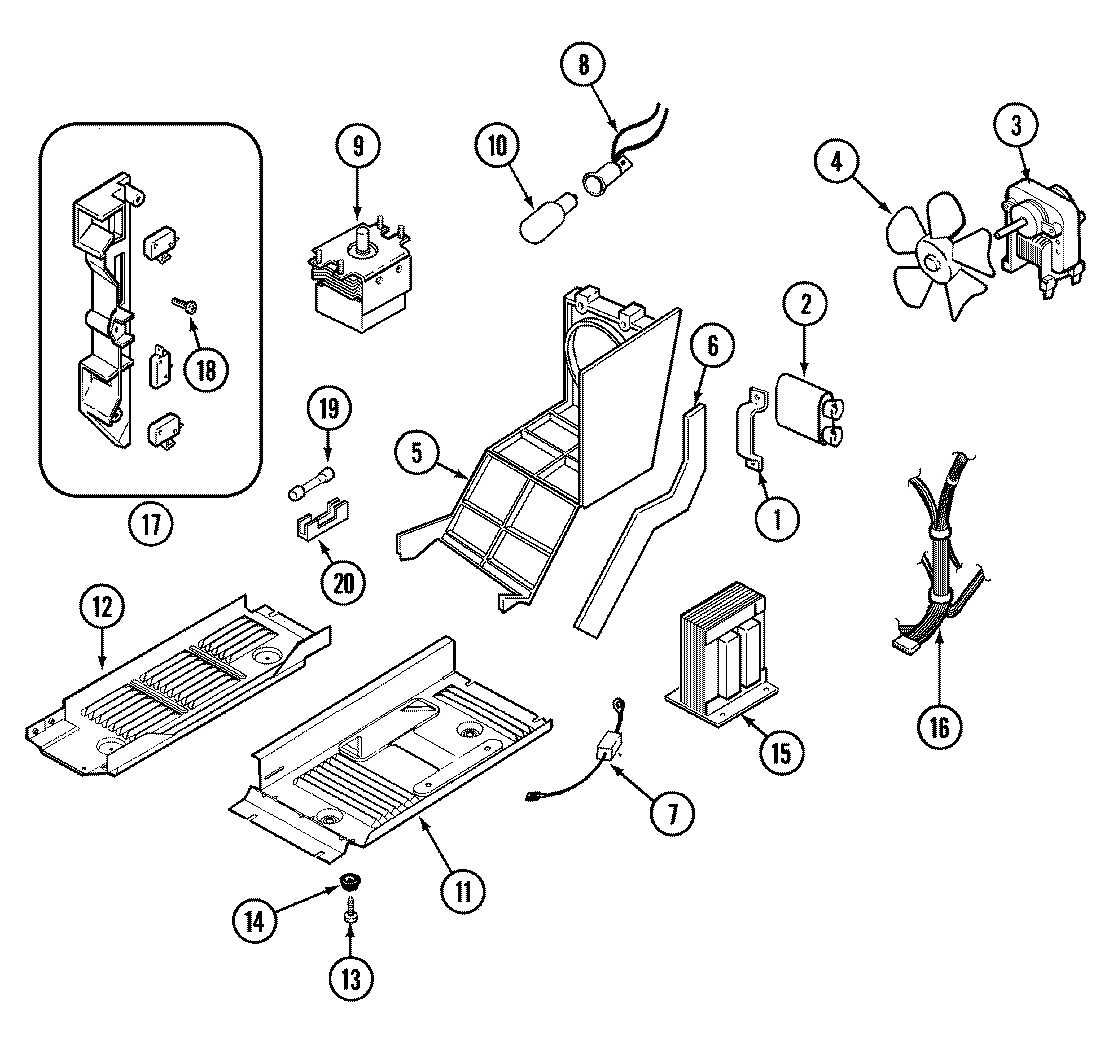

03 - INTERNAL CONTROLS
Common parts from model Whirlpool M168W MICROWAVE
1
BLADE, STIRRER WPL 51001048 Contact Us For Availability
1
BOARD, CONTROL WPL 51001053 Contact Us For Availability
1
BOARD, CONTROL (W/OUT FUSE) WPL 51001336 Contact Us For Availability
1
BRACKET, CAPACITOR WPL 02030175 Contact Us For Availability
2
DUCT, STIRRER WPL 51001027 Contact Us For Availability
2
BAFFLE, STIRRER DUCT WPL 51001210 Contact Us For Availability
2
TRIM, CONTROL (WHT) WPL 51001164 Contact Us For Availability
2
CAPACITOR (900 WATT) WPL 51001056 Contact Us For Availability
3
COVER, STIRRER WPL 51001028 Contact Us For Availability
3
SWITCH, CONTROL (WHT) WPL 51001247 Contact Us For Availability
3
MOTOR, FAN WPL 51001050 Contact Us For Availability
3
SCREW WPL 51001101 Contact Us For Availability
4
CAVITY (WHT) WPL 51001206 Contact Us For Availability
4
BLADE, FAN WPL 51001051 Contact Us For Availability
5
WRAPPER, CABINET (WHT) WPL 51001251 Contact Us For Availability
5
BRACKET, CONTROL WPL 51001116 Contact Us For Availability
5
SCREW WPL 51001094 Contact Us For Availability
5
BRACKET, FAN WPL 51001138 Contact Us For Availability
6
TAPE, FOAM WPL 05140007 Contact Us For Availability
6
TAPE, FOAM 94`` WPL 8270P07360 Contact Us For Availability
7
CLIP WPL Y03110050 Contact Us For Availability
7
MANUAL, USE & CARE WPL 51001248 Contact Us For Availability
7
DIODE ASSY. WPL Y04010219 Contact Us For Availability
8
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
8
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
8
BAFFLE, BULB WPL 51001030 Contact Us For Availability
8
RECEPTACLE, BULB WPL 51001095 Contact Us For Availability
9
BUTTON, DOOR RELEASE (WHT) WPL 51001163 Contact Us For Availability
9
MAGNETRON (900 WATT) WPL 51001063 Contact Us For Availability
10
HINGE, DOOR (UPPER) WPL 51001035 Contact Us For Availability
10
BULB, LIGHT WPL Y01060024 Contact Us For Availability
11
SCREW WPL 03020030 Contact Us For Availability
11
HINGE, DOOR (LOWER) WPL 51001047 Contact Us For Availability
11
CHANNEL, BASE (RT) WPL 51001207 Contact Us For Availability
12
BAFFLE, AIR (LT) WPL 51001058 Contact Us For Availability
12
CHANNEL, BASE (LT) WPL 51001172 Contact Us For Availability
13
SCREW WPL 51001241 Contact Us For Availability
14
TRAY, TURNTABLE WPL 51001121 Contact Us For Availability
14
FOOT, BASE WPL Y02230008 Contact Us For Availability
15
RACK, WIRE WPL 51001124 Contact Us For Availability
15
ROLLER WPL 02210011 Contact Us For Availability
15
SCREW WPL 03010094 Contact Us For Availability
15
TRANSFORMER (900 WATT) WPL 51001062 Contact Us For Availability
16
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
16
HARNESS, WIRE (MAIN) WPL 51001180 Contact Us For Availability
17
PIN, PIVOT WPL Y03070041 Contact Us For Availability
17
INTERLOCK ASSY. WPL 51001245 Contact Us For Availability
18
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
18
SCREW WPL 51001217 Contact Us For Availability
19
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
19
FUSE, THERMAL (W/WIRES) WPL 51001253 Contact Us For Availability
20
SCREW WPL 03010151 Contact Us For Availability
20
CLIP WPL Y03110078 Contact Us For Availability
21
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
21
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
22
COVER, TURNTABLE MOTOR WPL 51001122 Contact Us For Availability
23
SCREW WPL Y03020076 Contact Us For Availability
24
LABEL, COOKING GUIDE WPL 51001252 Contact Us For Availability
25
SCREW, 8A X 1/4 WPL 03020083 Contact Us For Availability
25
DUCT, EXHAUST WPL 51001090 Contact Us For Availability
26
BRACKET, TRIM MTG. WPL 51001091 Contact Us For Availability
27
SUPPORT, RACK WPL 02010031 Contact Us For Availability
29
BUSHING WPL Y03140008 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001259 Contact Us For Availability
× ![]()
