Model Whirlpool M167W MICROWAVE – Common Parts & Diagrams

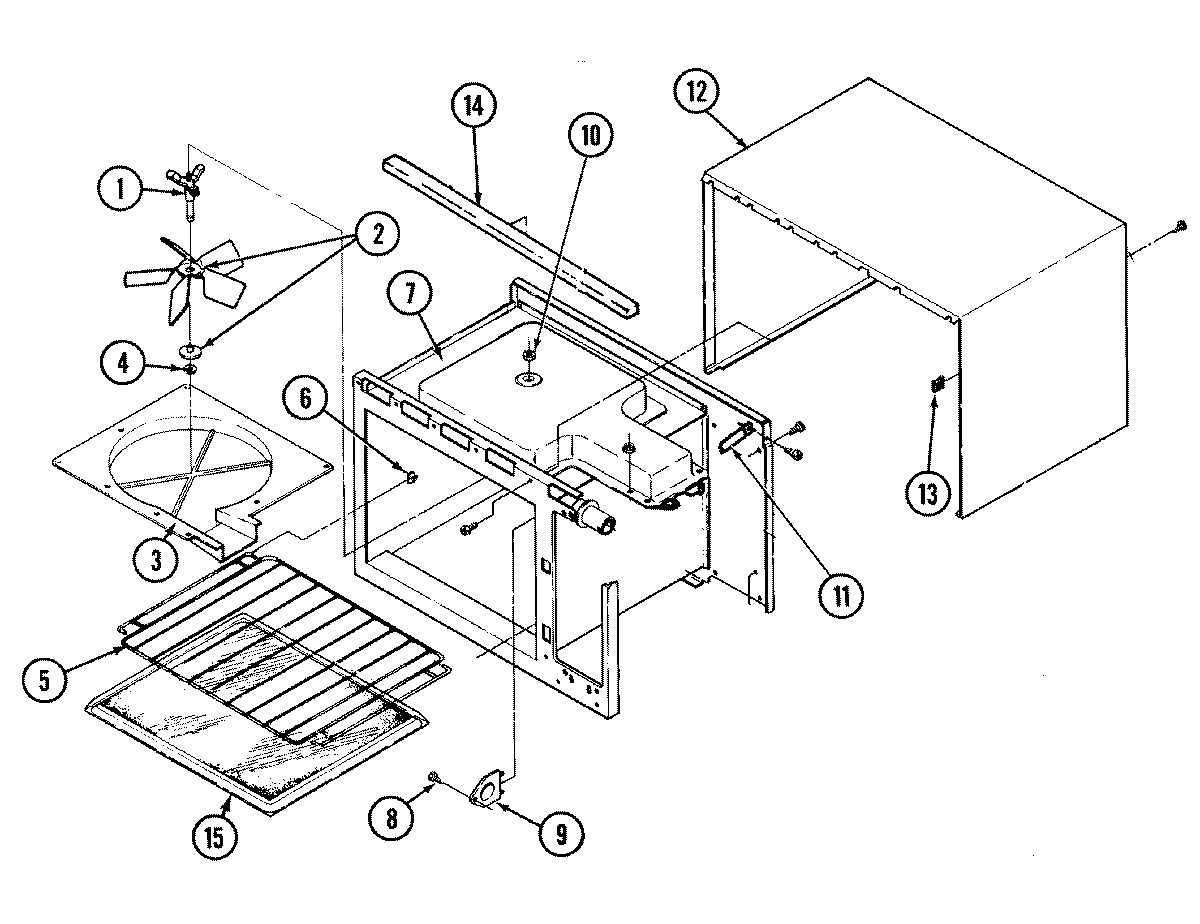

01 - BASE

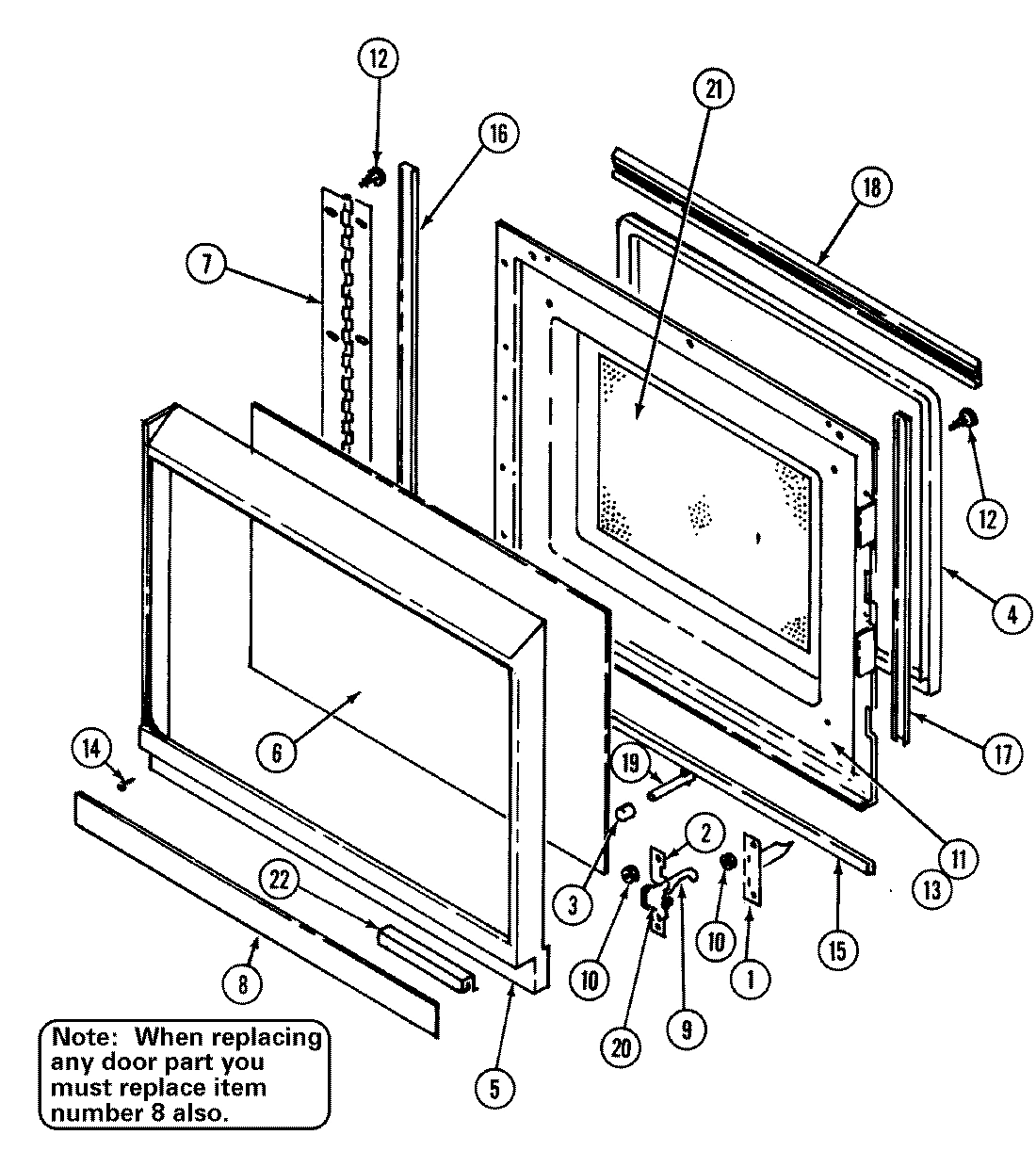

03 - DOOR (UPPER)

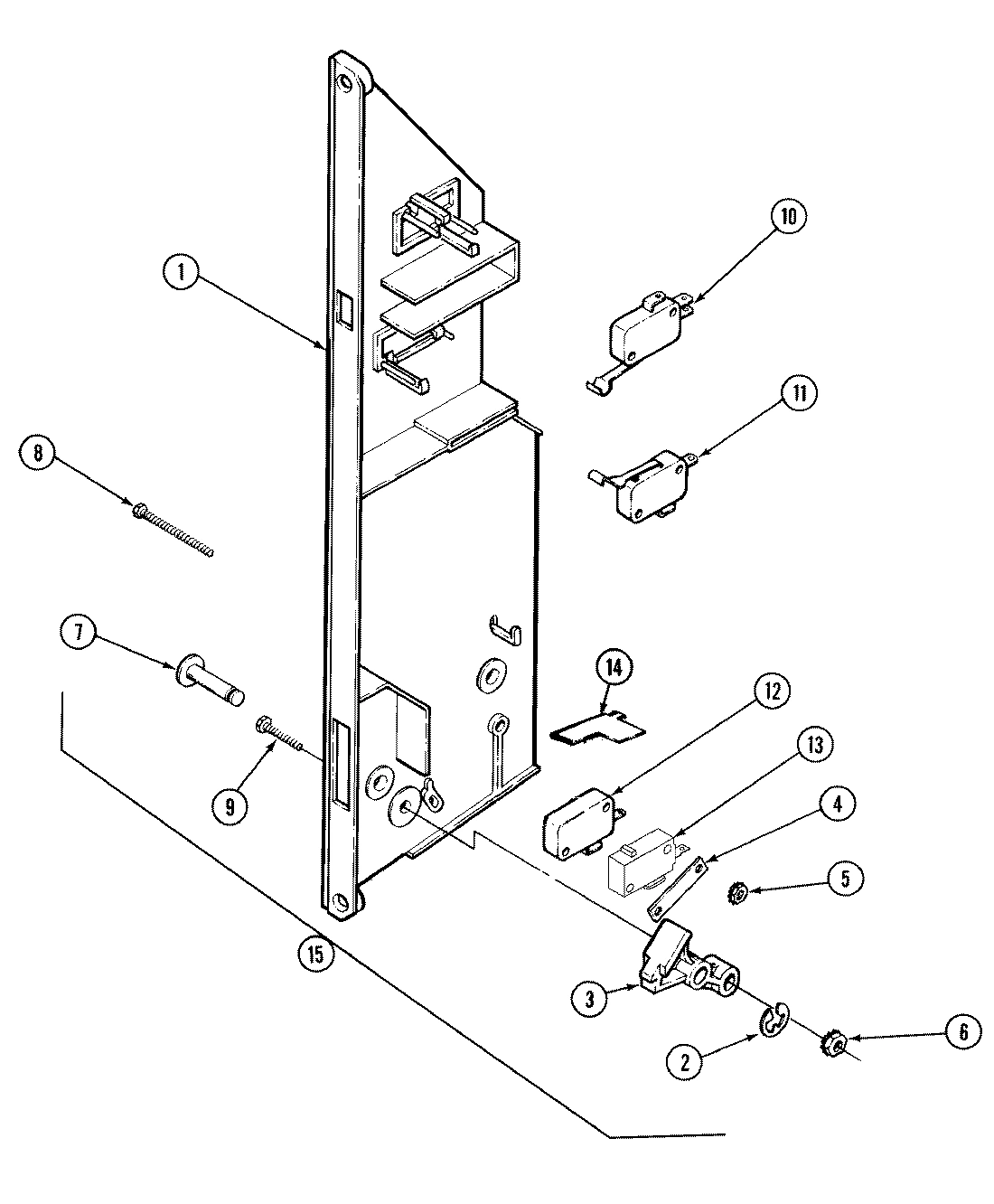

04 - INTERLOCK SWITCHES (UPPER)

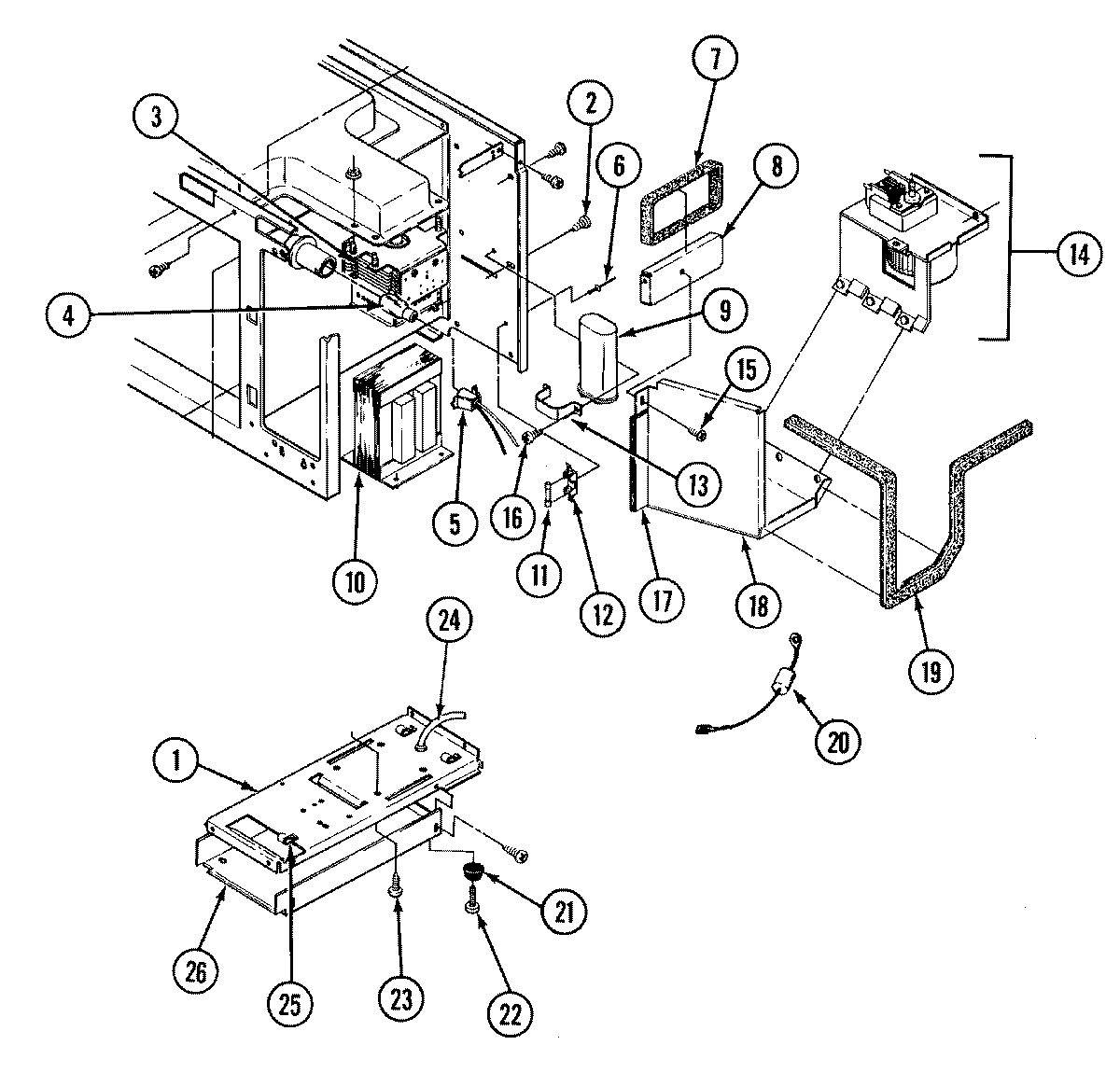

05 - INTERNAL CONTROLS (UPPER)

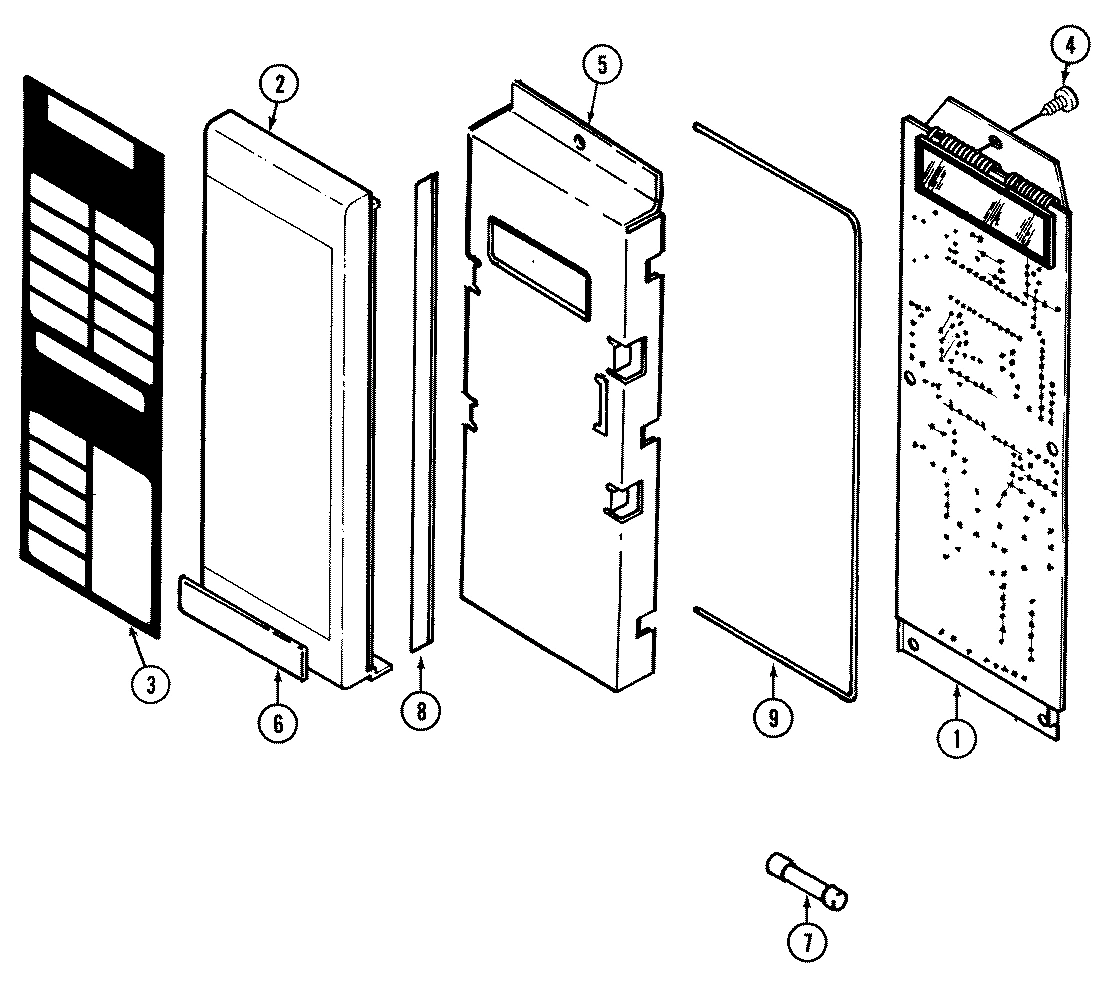

02 - CONTROL PANEL (UPPER)
Common parts from model Whirlpool M167W MICROWAVE
1
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
1
BOARD, CONTROL WPL 01210107 Contact Us For Availability
2
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
INSERT, WHITE WPL 02100259 Contact Us For Availability
3
COVER, STIRRER WPL Y02300045 Contact Us For Availability
3
BUMPER WPL Y02100135 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
MAGNETRON WPL 01040004 Contact Us For Availability
3
SWITCH PANEL WPL 02060376 Contact Us For Availability
4
CLIP, STIRRER WPL 03110066 Contact Us For Availability
4
CHOKE, FILLER (WHT) WPL Y02100080 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
LIGHT, OVEN WPL 01060029 Contact Us For Availability
4
SCREW WPL 03020041 Contact Us For Availability
4
SCREW (TOP) WPL Y03010147 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
FRAME, DOOR(W) WPL 04021590 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
5
BRACKET, CONTROL WPL Y02030173 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
GLASS, DOOR (W) WPL 02220116 Contact Us For Availability
6
INSERT, CONTROL/DOOR WPL Y02100196 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
7
CAVITY WPL 04021553 Contact Us For Availability
7
HINGE, DOOR WPL 02200016 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
8
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
9
LENS, BULB WPL Y02400007 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
9
CAPACITOR WPL Y01020023 Contact Us For Availability
9
CHANNEL, CONTROL WPL 02090021 Contact Us For Availability
10
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
10
MANUAL, USE & CARE WPL Y06010320 Contact Us For Availability
11
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
11
PANEL, INNER DOOR WPL 04021461 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
12
CLIP WPL Y03110050 Contact Us For Availability
12
CABINET (WHITE) WPL 02140065 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
CLIP, FUSE WPL ARI3810A98 Contact Us For Availability
13
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
13
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
BRACKET WPL 02030123 Contact Us For Availability
14
TRIM, BLACK WPL 02100258 Contact Us For Availability
14
TRIM, WHITE WPL 02100261 Contact Us For Availability
14
LEVER, INTERLOCK SWITCH WPL Y02180016 Contact Us For Availability
14
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
14
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
14
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
14
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
14
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
15
SCREW WPL 03010098 Contact Us For Availability
15
SHELF, BOTTOM (PLASTIC) WPL Y02280041 Contact Us For Availability
15
TRAY WPL Y02280047 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
15
SWITCH, INTERLOCK ASSY. WPL 04021546 Contact Us For Availability
16
LABEL, COOK CODE (W) WPL 02240827 Contact Us For Availability
16
SCREW WPL Y03020076 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
17
TAPE, FOAM WPL 02310071 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
18
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
19
TAPE, FOAM WPL 02310070 Contact Us For Availability
20
SCREW WPL Y03010113 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
20
DIODE WPL Y04010206 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
21
FOOT, BASE WPL Y02230008 Contact Us For Availability
22
EXTRUSION, HANDLE (WHT) WPL 02120166 Contact Us For Availability
23
SCREW WPL 03010094 Contact Us For Availability
24
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
25
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
26
COVER, COMP MNTG WPL 02300020 Contact Us For Availability
27
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
28
WIRE HARNESS WPL 04010271 Contact Us For Availability
29
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
29
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
