Model Whirlpool M15E-9P MICROWAVE – Common Parts & Diagrams

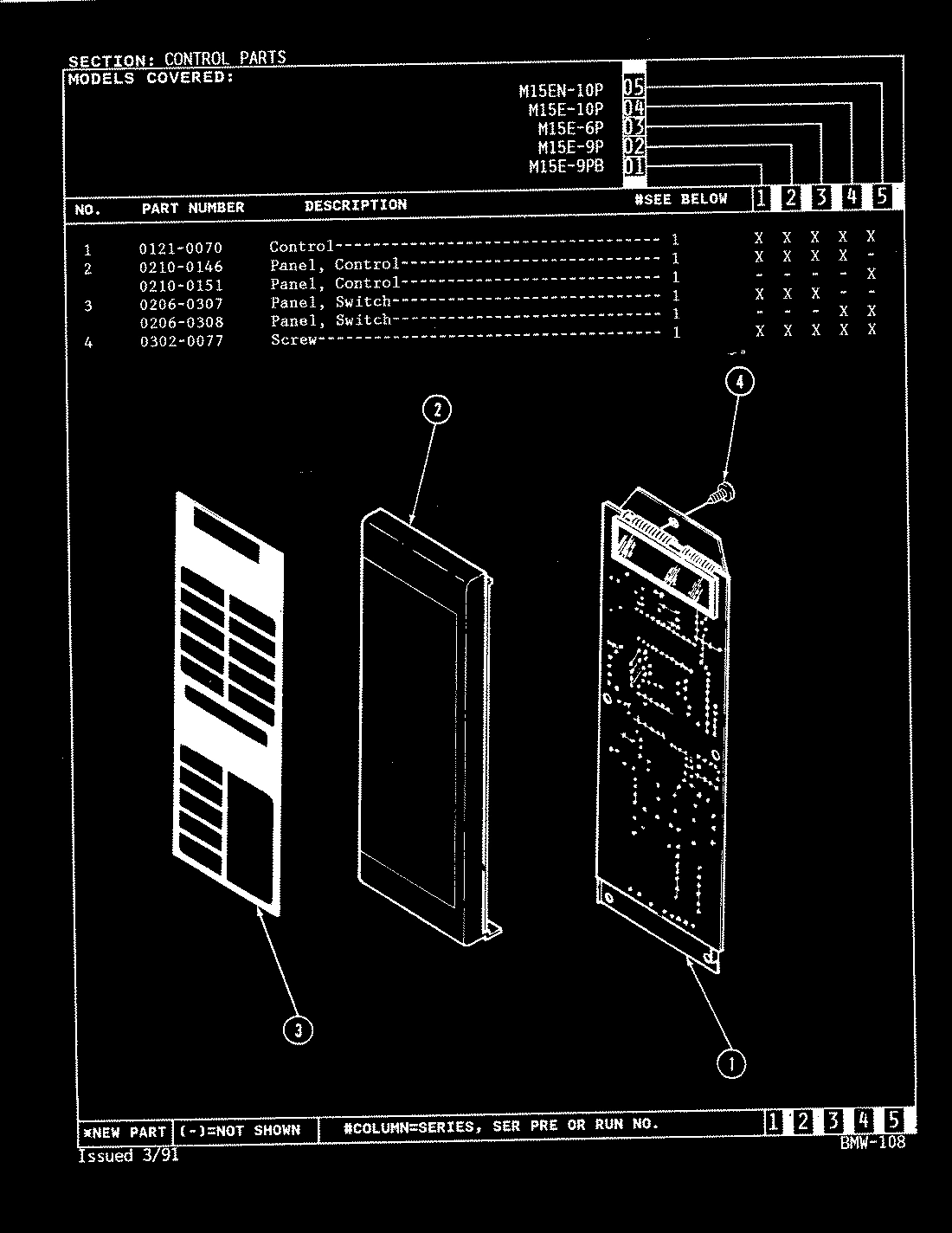

02 - CONTROL PANEL
01 - BASE & CAVITY

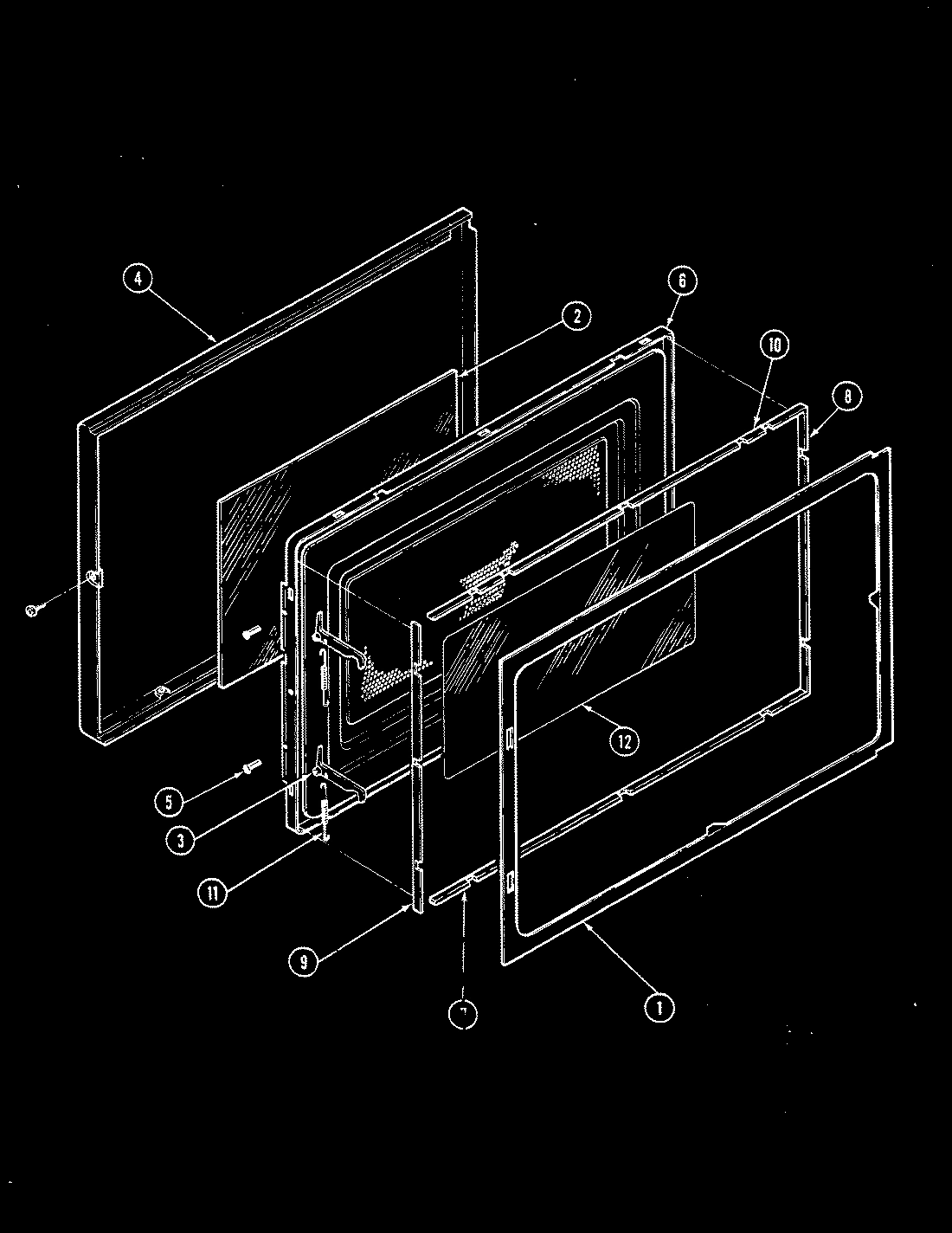

03 - DOORS
Common parts from model Whirlpool M15E-9P MICROWAVE
1
BOARD, CONTROL WPL Y01210070 Contact Us For Availability
1
STIRRER ASSEMBLY WPL 04021042 Contact Us For Availability
1
BLOWER ASSEMBLY WPL 04021090 Contact Us For Availability
1
CHOKE, FILLER WPL 02100141 Contact Us For Availability
2
PANEL, CONTROL WPL 02100146 Contact Us For Availability
2
BRACKET WPL Y02030136 Contact Us For Availability
2
GLASS, DOOR WPL 02220114 Contact Us For Availability
2
GLASS, DOOR WPL Y02220099 Contact Us For Availability
3
SWITCH, PANEL WPL 02060307 Contact Us For Availability
3
BRACKET WPL 02030123 Contact Us For Availability
3
LATCH, PAWL WPL 02190062 Contact Us For Availability
4
CABINET WPL 02140067 Contact Us For Availability
4
CABINET WPL 02140068 Contact Us For Availability
4
CABINET WPL 02140071 Contact Us For Availability
4
PANEL, DOOR OUTER WPL 02100176 Contact Us For Availability
5
PIN, LATCH PAWL WPL Y03070040 Contact Us For Availability
6
CAVITY WPL 04021270 Contact Us For Availability
6
CAVITY WPL 04021271 Contact Us For Availability
6
CAVITY WPL 04021391 Contact Us For Availability
6
PLATE, DOOR CHOKE ASSY WPL 04021263 Contact Us For Availability
7
CHANNEL BASE, LEFT WPL 02090010 Contact Us For Availability
7
FILLER CHOKE WPL 02100162 Contact Us For Availability
8
CHANNEL BASE, RIGHT WPL 02090011 Contact Us For Availability
8
SEAL HINGE WPL Y02120160 Contact Us For Availability
9
CLIP, CANOE WPL 03110061 Contact Us For Availability
9
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
9
SEAL, LATCH WPL Y02120159 Contact Us For Availability
10
HOLDER, FUSE WPL Y01100044 Contact Us For Availability
10
SEAL, TOP WPL Y02120161 Contact Us For Availability
11
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
11
SPRING WPL 03180032 Contact Us For Availability
12
CORD WPL 01080053 Contact Us For Availability
12
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
12
COVER, AIR INTAKE WPL 02300040 Contact Us For Availability
12
WINDOW, POLY WPL 02220097 Contact Us For Availability
13
COVER WPL Y02300032 Contact Us For Availability
14
COVER, MAGNETRON WPL 02300034 Contact Us For Availability
14
COVER, LAMP WPL Y02300049 Contact Us For Availability
15
COVER, STIRRER WPL Y02300029 Contact Us For Availability
16
DIODE ASSY. WPL Y04010219 Contact Us For Availability
17
DUCT WPL 02170123 Contact Us For Availability
18
DUCT STIRRER AIR WPL 02170133 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
20
GASKET WPL 02310157 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
HINGE ASSY, LOWER WPL 04021343 Contact Us For Availability
22
JACK, PROBE WPL 01170008 Contact Us For Availability
22
PROBE, JACK WPL 01170010 Contact Us For Availability
22
BRACKET, HINGE (UPPER) WPL 04021344 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040005 Contact Us For Availability
25
MOTOR, BLOWER WPL 01110020 Contact Us For Availability
26
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
27
PROBE, TEMP. WPL 01220006 Contact Us For Availability
28
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
29
RECEPTACLE, BULB WPL Y01100040 Contact Us For Availability
30
INTERLOCK ASSY WPL 04021482 Contact Us For Availability
30
UPPER SWITCHES WPL Y01140076 Contact Us For Availability
30
LOWER SWITCH WPL Y01140077 Contact Us For Availability
31
FUSE, THERMAL WPL 01050007 Contact Us For Availability
31
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
31
CLIP WPL Y03110078 Contact Us For Availability
32
SWITCH, TEMP LIMIT C.S.A. WPL 01180012 Contact Us For Availability
32
1/4X1/4 X 18`` WPL 8270P00360 Contact Us For Availability
32
1/2X1/2X18 FOAM TAPE WPL 8270P00560 Contact Us For Availability
32
1/2X1/2X36 FOAM TAPE WPL 8270P00660 Contact Us For Availability
33
TRANSFORMER WPL 01130034 Contact Us For Availability
33
TRANSFORMER, PLATE FILAMENT WPL Y01130030 Contact Us For Availability
34
SHELF WPL Y02280016 Contact Us For Availability
34
TRAY, MICROWAVE WPL Y02280039 Contact Us For Availability
35
WHEEL, BLOWER WPL Y01110017 Contact Us For Availability
36
SCREW WPL 03020077 Contact Us For Availability
36
TRIM, TOP VENT WPL 02100170 Contact Us For Availability
36
TRIM, BOTTOM WPL 02100171 Contact Us For Availability
36
BRACKET WPL 02130003 Contact Us For Availability
36
BRACKET, MOUNTING WPL 02130004 Contact Us For Availability
36
WINDOW WPL 02220084 Contact Us For Availability
36
WIRING HARNESS WPL 04010218 Contact Us For Availability
36
WIRE HARNESS WPL 04010236 Contact Us For Availability
36
WIRE HARNESS WPL 04010237 Contact Us For Availability
36
WIRE, LEAD HV WPL 04060538 Contact Us For Availability
36
WIRE, LEAD HV WPL 04060539 Contact Us For Availability
36
MANUAL, USE & CARE WPL Y06010269 Contact Us For Availability
36
MANUAL, USE & CARE WPL Y06010270 Contact Us For Availability
36
MANUAL, USE & CARE WPL Y06010271 Contact Us For Availability
36
MANUAL, USE & CARE WPL Y06010273 Contact Us For Availability
× ![]()
