Model Whirlpool M15B-7P-W1 MICROWAVE – Common Parts & Diagrams

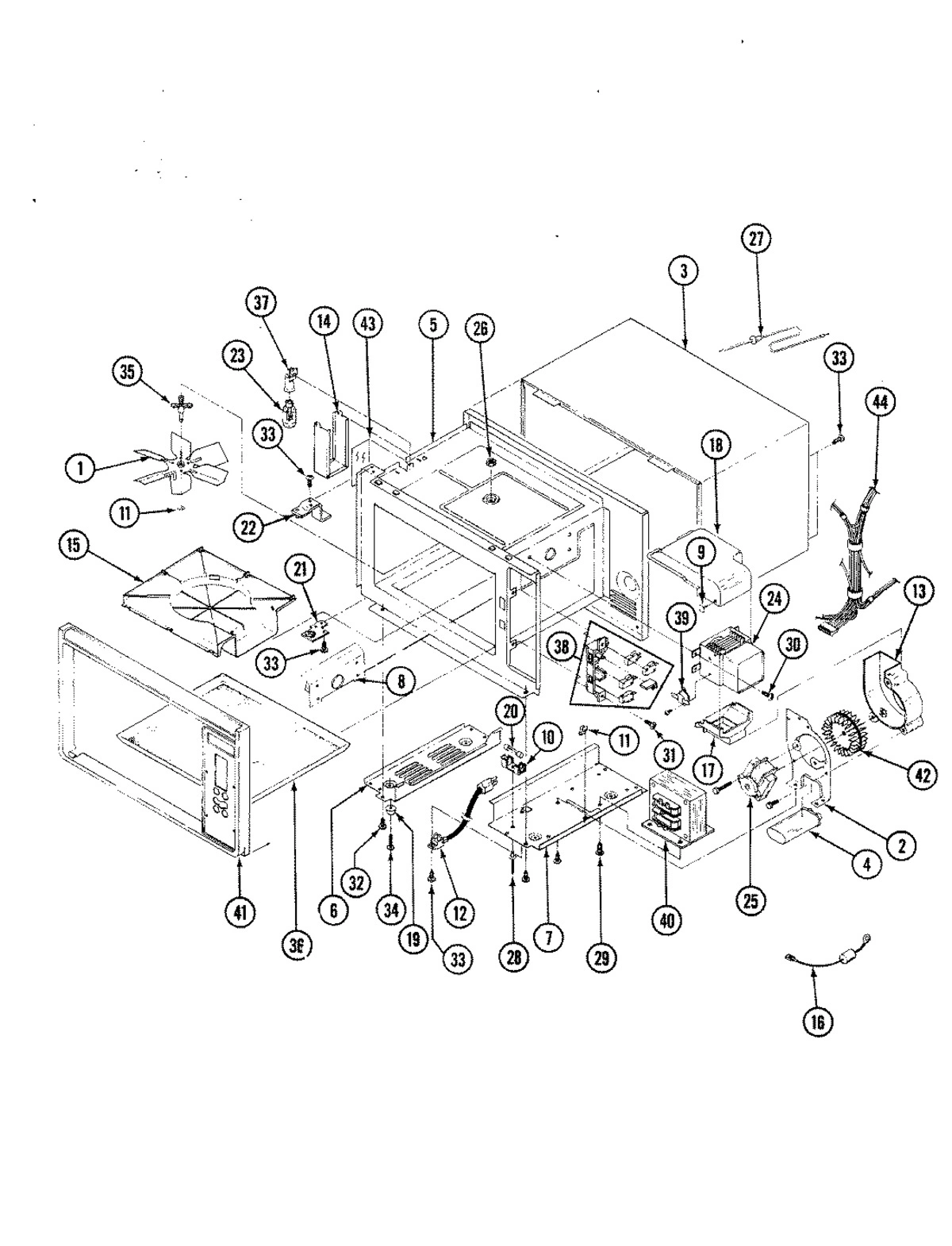

01 - BASE\CAVITY & COOLING SYSTEM

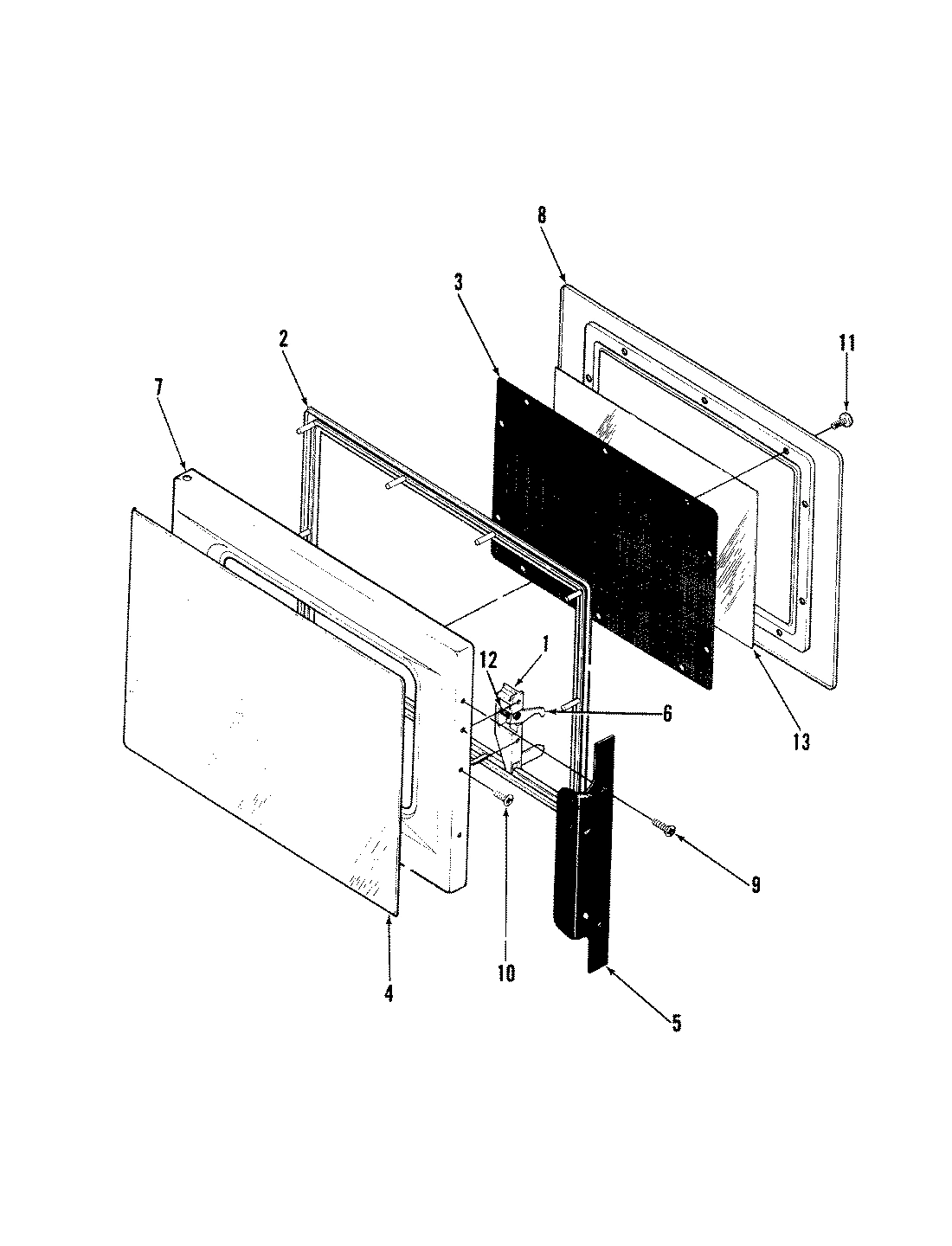

03 - DOOR

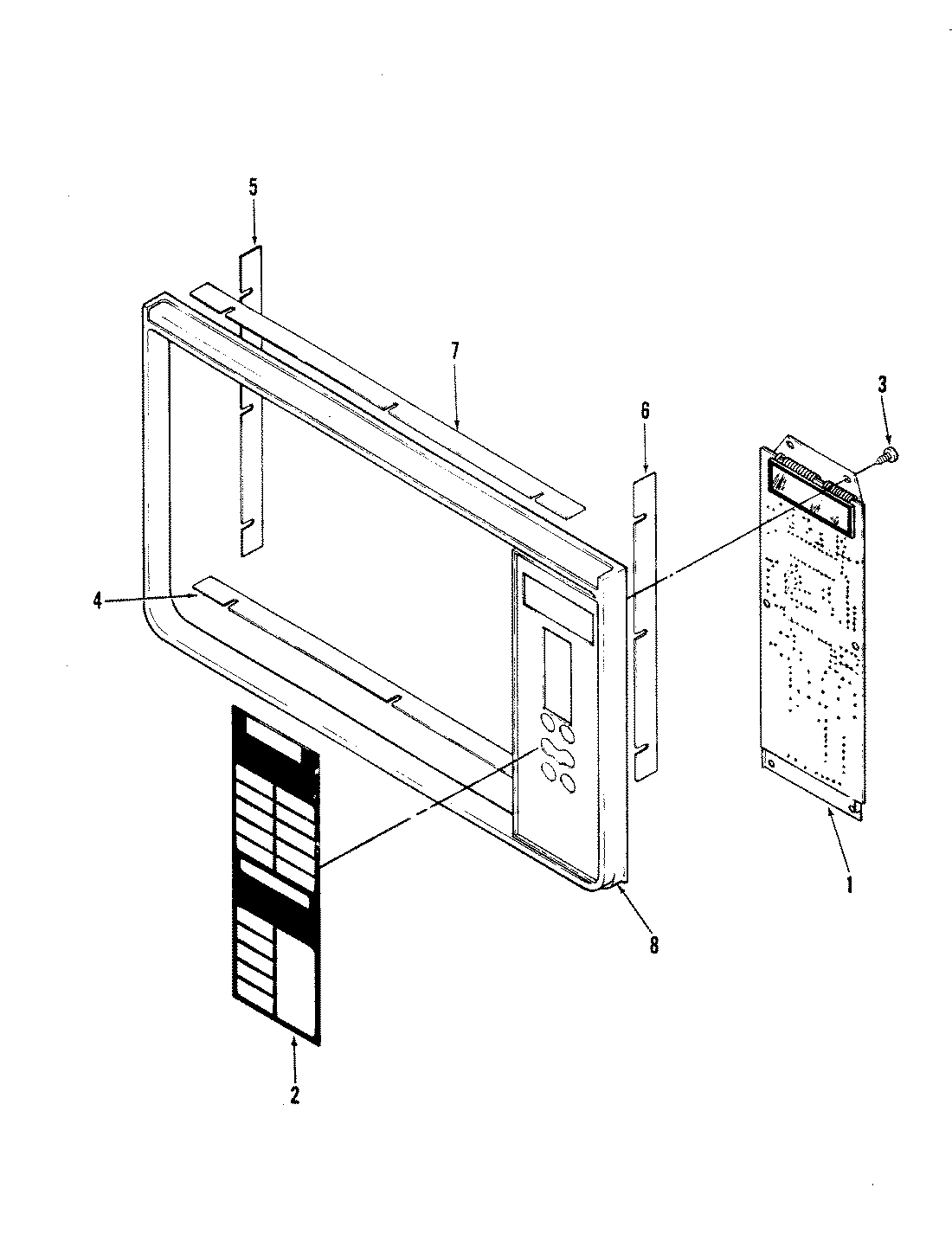

02 - CONTROL PANEL
Common parts from model Whirlpool M15B-7P-W1 MICROWAVE
1
STIRRER ASSEMBLY WPL 04021042 Contact Us For Availability
1
BLOWER ASSEMBLY WPL 04021090 Contact Us For Availability
1
BRACKET, DR LATCH WPL 02030150 Contact Us For Availability
1
BOARD, CONTROL (NO DSP) WPL 01210034 Contact Us For Availability
2
BUSHING, STIRRER WPL 02360046 Contact Us For Availability
2
BUSHING WPL 03140018 Contact Us For Availability
2
BUSHING WPL 03140019 Contact Us For Availability
2
BRACKET WPL Y02030136 Contact Us For Availability
2
CHOKE FILLER WPL 02030163 Contact Us For Availability
2
SWITCH, OVERLAY WPL 02060287 Contact Us For Availability
3
CABINET WPL 02140053 Contact Us For Availability
3
WINDOW, PERF. WPL 02040066 Contact Us For Availability
3
SCREW WPL 03020041 Contact Us For Availability
4
WINDOW, OUTER WPL 02300033 Contact Us For Availability
4
SEAL WPL 02120133 Contact Us For Availability
5
CAVITY WPL 04021366 Contact Us For Availability
5
HANDLE, DOOR WPL 02100117 Contact Us For Availability
5
SEAL WPL 02120134 Contact Us For Availability
6
CHANNEL WPL 02090005 Contact Us For Availability
6
LATCH, DOOR NLA IN PROCESS WPL 02190061 Contact Us For Availability
6
SEAL WPL 02120139 Contact Us For Availability
7
CHANNEL - RIGHT WPL 02090006 Contact Us For Availability
7
PIN LATCH LINKAGE WPL 03070029 Contact Us For Availability
7
PANEL WPL 04021027 Contact Us For Availability
7
SEAL WPL 02120132 Contact Us For Availability
8
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
8
TRIM WPL 02100137 Contact Us For Availability
8
INNER DOOR PANEL WPL 02040087 Contact Us For Availability
9
CLIP, CANOE WPL 03110061 Contact Us For Availability
9
SCREW, DOOR HANDLE WPL 03020090 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
11
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
11
DOOR SEAL WPL 02120136 Contact Us For Availability
11
SEAL WPL 02120140 Contact Us For Availability
11
SCREW, No.8B SQ. DR. WPL 03010148 Contact Us For Availability
12
CORD WPL 01080053 Contact Us For Availability
12
COVER, AIR INTAKE WPL 02300040 Contact Us For Availability
12
SPRING, DOOR LATCH WPL 03180033 Contact Us For Availability
12
+ DBLE TAPE 36`` WPL Y05080027 Contact Us For Availability
13
COVER WPL Y02300032 Contact Us For Availability
13
WINDOW WPL 02220087 Contact Us For Availability
14
COVER, MAGNETRON WPL 02300034 Contact Us For Availability
14
COVER WPL Y02300031 Contact Us For Availability
15
COVER, STIRRER WPL Y02300029 Contact Us For Availability
16
DIODE WPL Y04010206 Contact Us For Availability
17
DUCT WPL 02170123 Contact Us For Availability
18
DUCT WPL 02170124 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
20
GASKET WPL 02310157 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
HINGE ASSEMBLY WPL 04021036 Contact Us For Availability
22
JACK, PROBE WPL 01170008 Contact Us For Availability
22
HINGE ASSEMBLY WPL 04021035 Contact Us For Availability
23
BULB, LIGHT WPL Y01060024 Contact Us For Availability
24
MAGNETRON WPL 01040005 Contact Us For Availability
25
MOTOR, BLOWER WPL 01110020 Contact Us For Availability
25
PROBE JACK NUT WPL 03050035 Contact Us For Availability
26
PLATE, POPCORN WPL 02040094 Contact Us For Availability
26
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
27
PROBE, TEMP. WPL 01220006 Contact Us For Availability
28
RIVET, POP WPL Y03060004 Contact Us For Availability
29
SCREW WPL 03010094 Contact Us For Availability
30
SCREW WPL 03010098 Contact Us For Availability
31
SCREW WPL 03010142 Contact Us For Availability
32
SCREW WPL 03010143 Contact Us For Availability
33
SCREW WPL 03020030 Contact Us For Availability
34
SCREW WPL 03020077 Contact Us For Availability
35
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
36
SHELF WPL Y02280016 Contact Us For Availability
36
TRAY, MICROWAVE WPL Y02280039 Contact Us For Availability
37
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
37
RECEPTACLE, BULB WPL Y01100040 Contact Us For Availability
38
INTERLOCK SWITCH WPL 01140052 Contact Us For Availability
39
1/4X1/4 X 18`` WPL 8270P00360 Contact Us For Availability
39
1/2X1/2X18 FOAM TAPE WPL 8270P00560 Contact Us For Availability
39
1/2X1/2X36 FOAM TAPE WPL 8270P00660 Contact Us For Availability
39
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
40
TRANSFORMER WPL 01130027 Contact Us For Availability
42
WHEEL, BLOWER WPL Y01110017 Contact Us For Availability
43
WINDOW WPL 02220084 Contact Us For Availability
44
WIRE HARNESS WPL 04010184 Contact Us For Availability
44
WIRE, H.V. LEAD WPL 04060521 Contact Us For Availability
44
WIRE, H.V. LEAD WPL 04060522 Contact Us For Availability
44
WIRE, H.V. LEAD WPL 04060523 Contact Us For Availability
× ![]()
