Model Whirlpool M15A-10P MICROWAVE – Common Parts & Diagrams

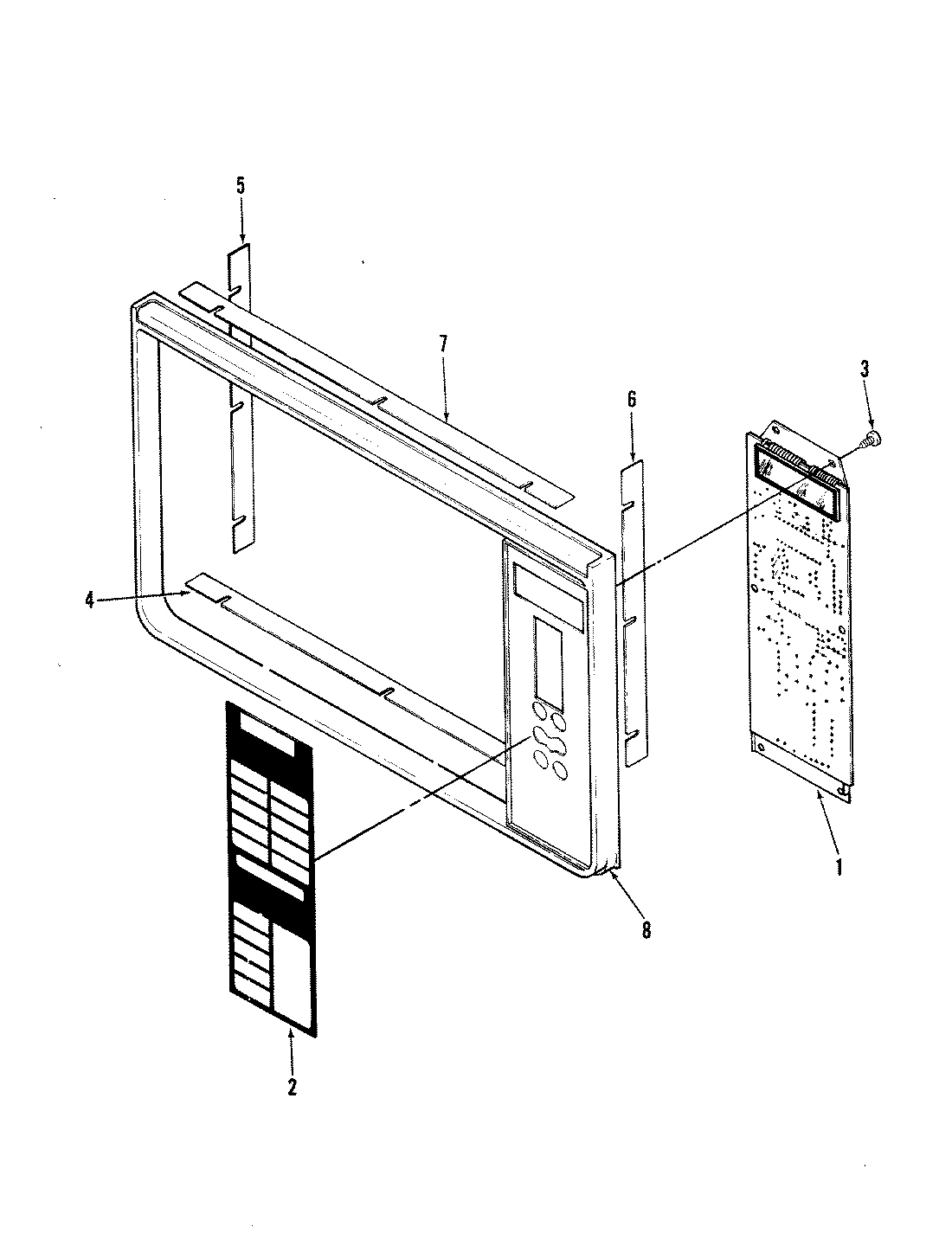

02 - CONTROL PANEL

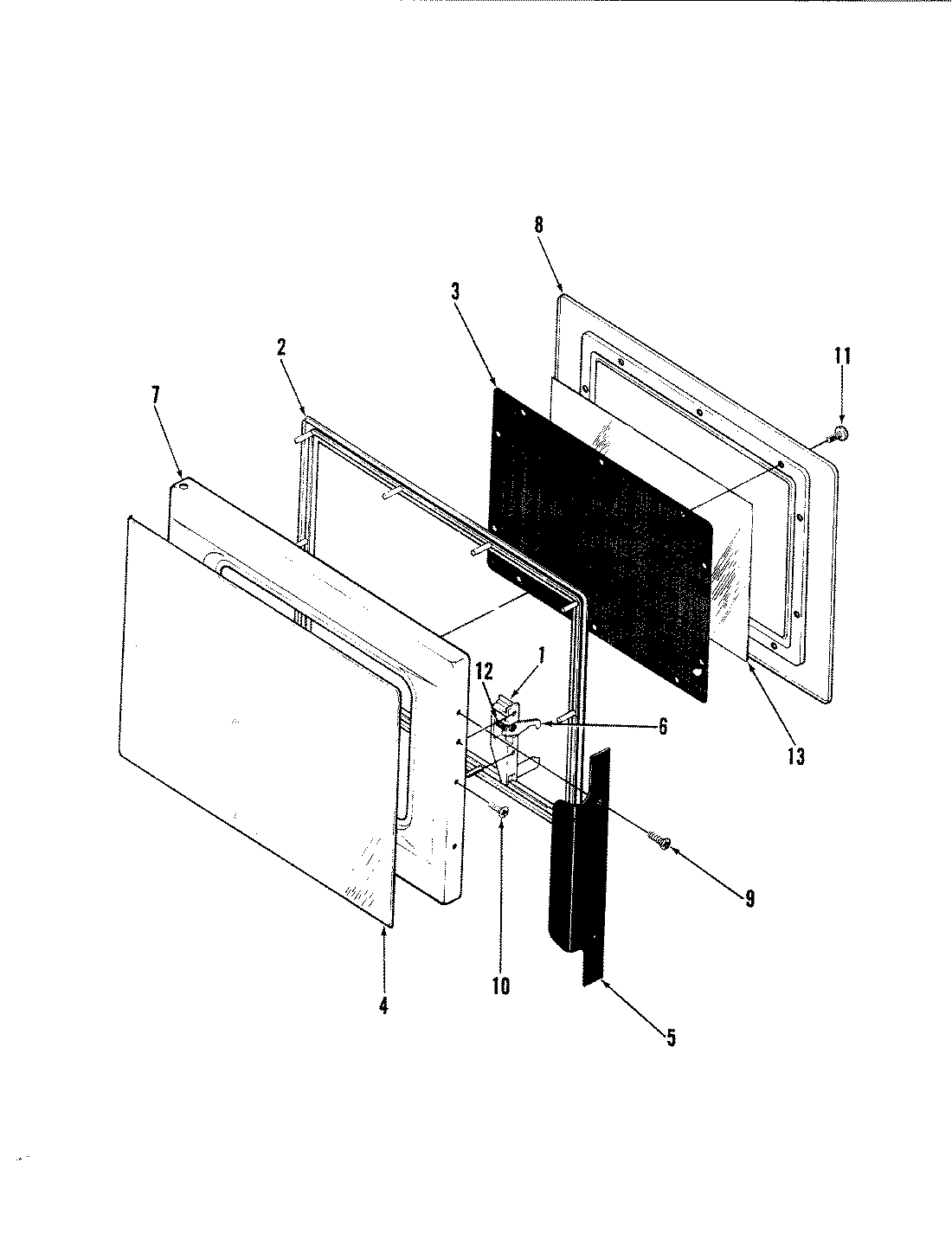

03 - DOOR

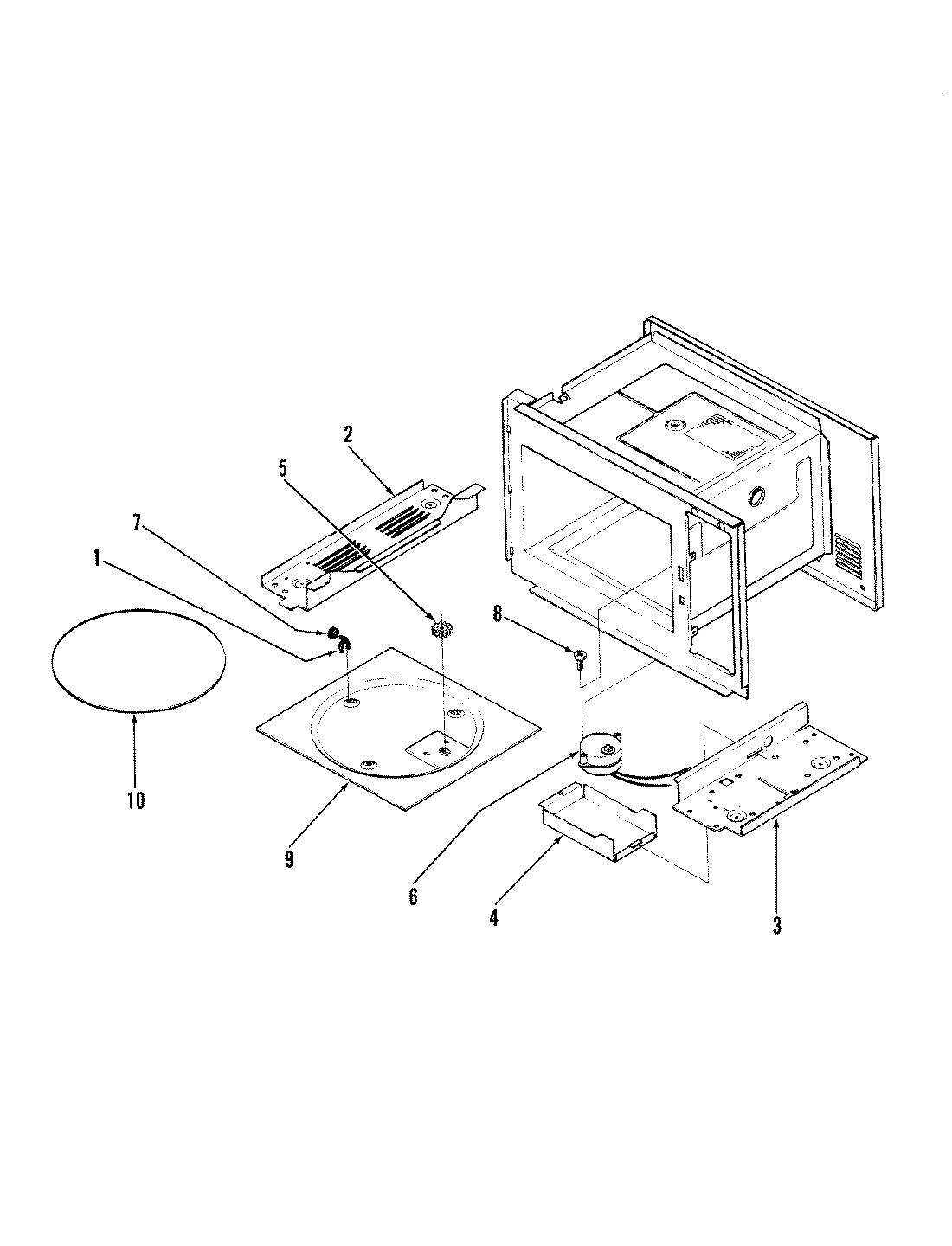

04 - TURNTABLE

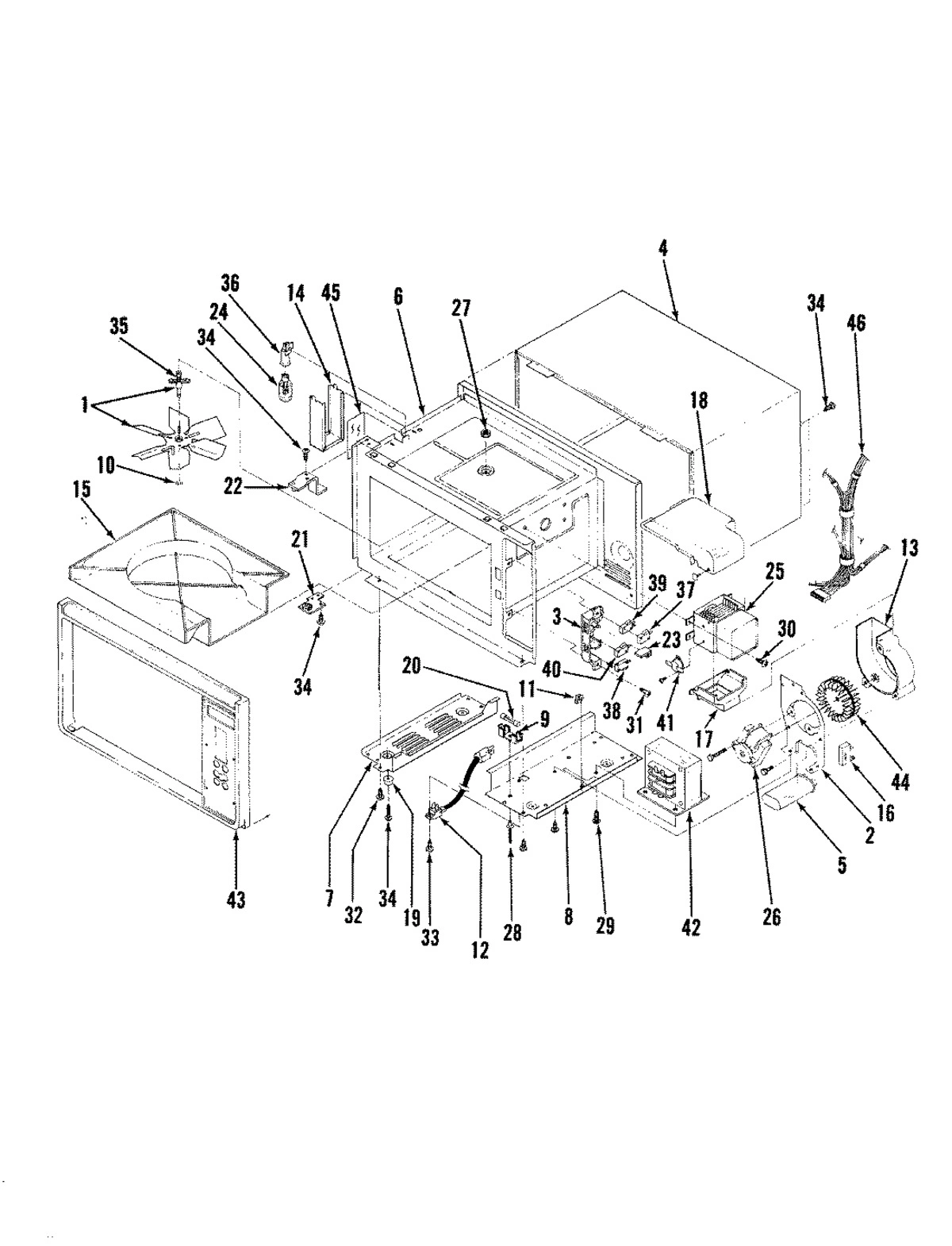

01 - BASE & CAVITY
Common parts from model Whirlpool M15A-10P MICROWAVE
1
BOARD, CONTROL WPL 01210032 Contact Us For Availability
1
BRACKET WPL 02030138 Contact Us For Availability
1
BEARING WPL Y02440001 Contact Us For Availability
1
STIRRER ASSEMBLY WPL 04021042 Contact Us For Availability
2
SWITCH, OVERLAY WPL 02060277 Contact Us For Availability
2
CHOKE FILLER WPL 02100100 Contact Us For Availability
2
BUSHING WPL Y03140008 Contact Us For Availability
2
BRACKET WPL Y02030136 Contact Us For Availability
3
WINDOW, PERF. WPL 02040066 Contact Us For Availability
3
CHANNEL WPL 02090008 Contact Us For Availability
3
BRACKET, SWITCH WPL 02030131 Contact Us For Availability
3
BUSHING, STIRRER WPL 02360046 Contact Us For Availability
3
WAVEGUIDE BUMPER WPL 03120021 Contact Us For Availability
3
BUSHING WPL 03140018 Contact Us For Availability
3
BUSHING WPL 03140019 Contact Us For Availability
4
SEAL WPL 02120133 Contact Us For Availability
4
WINDOW, OUTER WPL 02300033 Contact Us For Availability
4
COVER, MOTOR TURNTAB WPL 02300043 Contact Us For Availability
4
CABINET WPL 02140053 Contact Us For Availability
5
SEAL WPL 02120134 Contact Us For Availability
5
HANDLE WPL 02100109 Contact Us For Availability
5
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
6
SEAL WPL 02120139 Contact Us For Availability
6
LATCH, DOOR WPL 02190057 Contact Us For Availability
6
MOTOR, TURNTABLE WPL 01110024 Contact Us For Availability
6
CAVITY, OVEN WPL 04021150 Contact Us For Availability
7
SEAL WPL 02120132 Contact Us For Availability
7
PANEL WPL 04021027 Contact Us For Availability
7
CHANNEL WPL 02090005 Contact Us For Availability
7
ROLLER WPL 02210010 Contact Us For Availability
8
PLATE, DOOR SEAL WPL 02040064 Contact Us For Availability
8
CHANNEL - RIGHT WPL 02090006 Contact Us For Availability
8
MAGNETRON RADIATOR WPL 02090007 Contact Us For Availability
8
CLIP, CANOE WPL 03110061 Contact Us For Availability
9
SCREW WPL 03010066 Contact Us For Availability
9
SHELF, TURNTABLE WPL 02280025 Contact Us For Availability
9
CLIP, GROUND WPL 03110062 Contact Us For Availability
10
SCREW WPL Y03010118 Contact Us For Availability
10
TURNTABLE, ASSY WPL 02460002 Contact Us For Availability
10
CLIP, STIRRER WPL Y03110055 Contact Us For Availability
11
DOOR SEAL WPL 02120136 Contact Us For Availability
11
SEAL WPL 02120140 Contact Us For Availability
11
SCREW, No.8B SQ. DR. WPL 03010148 Contact Us For Availability
11
CLIP WPL 03110060 Contact Us For Availability
12
SPRING, DOOR LATCH WPL 03180029 Contact Us For Availability
12
+ DBLE TAPE 36`` WPL Y05080027 Contact Us For Availability
12
CORD WPL 01080053 Contact Us For Availability
12
COVER, AIR INTAKE WPL 02300040 Contact Us For Availability
13
WINDOW WPL 02220086 Contact Us For Availability
13
COVER WPL Y02300032 Contact Us For Availability
14
COVER, MAGNETRON WPL 02300034 Contact Us For Availability
14
COVER WPL Y02300031 Contact Us For Availability
15
COVER, STIRRER WPL Y02300029 Contact Us For Availability
16
DIODE WPL Y04010200 Contact Us For Availability
17
DUCT WPL 02170123 Contact Us For Availability
18
DUCT WPL 02170124 Contact Us For Availability
19
FOOT, BASE WPL Y02230008 Contact Us For Availability
20
GASKET WPL 02310157 Contact Us For Availability
20
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
21
HINGE ASSEMBLY WPL 04021036 Contact Us For Availability
22
JACK, PROBE WPL 01170008 Contact Us For Availability
22
HINGE ASSEMBLY WPL 04021035 Contact Us For Availability
23
LEVER, SWITCH WPL 02180012 Contact Us For Availability
24
BULB, LIGHT WPL Y01060024 Contact Us For Availability
25
MAGNETRON WPL 01040005 Contact Us For Availability
26
MOTOR, BLOWER WPL 01110020 Contact Us For Availability
26
PROBE JACK NUT WPL 03050035 Contact Us For Availability
27
PROBE, TEMP. WPL 01220006 Contact Us For Availability
27
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
28
RIVET, POP WPL Y03060004 Contact Us For Availability
29
SCREW WPL 03010094 Contact Us For Availability
30
SCREW WPL 03010098 Contact Us For Availability
31
SCREW WPL 03020142 Contact Us For Availability
32
SCREW WPL 03010143 Contact Us For Availability
33
SCREW WPL 03020030 Contact Us For Availability
34
SCREW WPL 03020077 Contact Us For Availability
35
SHAFT, STIRRER WPL 02360045 Contact Us For Availability
36
INTERLOCK SWITCH WPL 01140052 Contact Us For Availability
36
PROBE JACK LOCKNUT WPL 03030011 Contact Us For Availability
36
RECEPTACLE, BULB WPL Y01100040 Contact Us For Availability
37
SWITCH WPL 01140051 Contact Us For Availability
38
SWITCH WPL Y01140049 Contact Us For Availability
39
SWITCH WPL 01140050 Contact Us For Availability
40
SWITCH WPL 01140048 Contact Us For Availability
41
1/4X1/4 X 18`` WPL 8270P00360 Contact Us For Availability
41
1/2X1/2X18 FOAM TAPE WPL 8270P00560 Contact Us For Availability
41
1/2X1/2X36 FOAM TAPE WPL 8270P00660 Contact Us For Availability
41
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
42
TRANSFORMER WPL 01130027 Contact Us For Availability
43
TRIM WPL 02100110 Contact Us For Availability
44
WHEEL, BLOWER WPL Y01110017 Contact Us For Availability
45
WINDOW WPL 02220084 Contact Us For Availability
46
WIRE HARNESS WPL 04010193 Contact Us For Availability
46
WIRE, H.V. LEAD WPL 04060521 Contact Us For Availability
46
WIRE, H.V. LEAD WPL 04060522 Contact Us For Availability
46
WIRE, H.V. LEAD WPL 04060523 Contact Us For Availability
× ![]()
