Model LG M1510S-BN – Common Parts & Diagrams

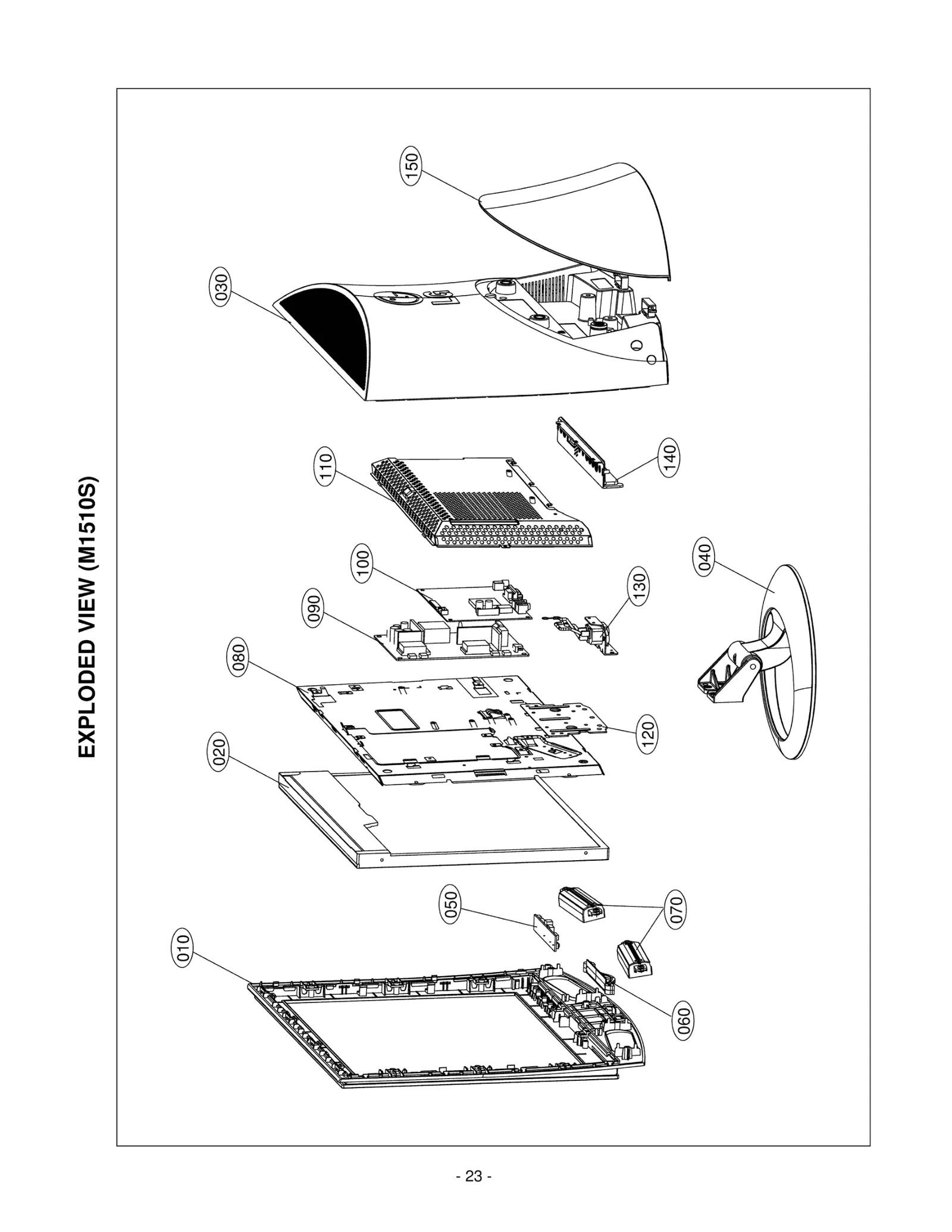

Diagram 0
Diagram 1
Common parts from model LG M1510S-BN
0
CONNECTOR ASSEMBLY LGE 6631T11012R Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006L Contact Us For Availability
0
CORD,A/V LGE 6852TAZ006F Contact Us For Availability
0
Screw Assembly LGE FAB30009501 Contact Us For Availability
0
Screw,Taptite LGE FAB30010105 Contact Us For Availability
0
Screw,Taptite LGE FAB30011001 Contact Us For Availability
0
Screw,Taptite LGE FAB30012907 Contact Us For Availability
0
Screw,Taptite LGE FAB30013209 Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1571C Contact Us For Availability
0
BOX LGE 3890TSE921E Contact Us For Availability
0
Screw,Taptite LGE FAB30007504 Contact Us For Availability
0
Screw,Taptite LGE FAB30018101 Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038C Contact Us For Availability
0
Screw,Taptite LGE FAB30007505 Contact Us For Availability
0
Box LGE 3890TSE750G Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
Screw,Taptite LGE FAB30013206 Contact Us For Availability
0
Screw,Taptite LGE FAB30018403 Contact Us For Availability
0
Screw,Taptite LGE FAB30013603 Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
PACKING LGE 3920TKE328A Contact Us For Availability
0
Card LGE 3840TRL073Z Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006X Contact Us For Availability
0
Screw,Taptite LGE FAB30013205 Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FLP156B Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809TKL095L Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK219N Contact Us For Availability
050
PWB(PCB) ASSEMBLY,SU LGE 6871TSTB02D Contact Us For Availability
060
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA47D Contact Us For Availability
070
Speaker Module LGE EAB31789201 Contact Us For Availability
080
METAL ASSEMBLY LGE 4951TKS188C Contact Us For Availability
090
PWB(PCB) ASSEMBLY,PO LGE 6871TPT308B Contact Us For Availability
100
MAIN TOTAL ASSEMBLY LGE 3313T15110G Contact Us For Availability
110
METAL LGE 4950TKA093A Contact Us For Availability
120
METAL LGE 4950TKA095A Contact Us For Availability
130
Drawing,Assembly LGE 6620K00003N Contact Us For Availability
140
COVER ASSEMBLY LGE 3551TKK559K Contact Us For Availability
150
COVER LGE 3550TKK737D Contact Us For Availability
C504
CAPACITOR,AL.ELECTRO LGE 0CE106EK638 Contact Us For Availability
C608
CAPACITOR,CHIP[CERAM LGE 0CH3334K946 Contact Us For Availability
C612
CAPACITOR,FIXED CERA LGE 0CK562CK51A Contact Us For Availability
C615
Capacitor,Ceramic,Chip LGE 0CH2473K516 Contact Us For Availability
C617
Capacitor,Ceramic,Chip LGE 0CH3224K946 Contact Us For Availability
C619
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C621
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C628
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C643
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE108ED618 Contact Us For Availability
C648
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C652
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C721
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C764
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C835
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C837
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C922
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
D702
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J601
JACK,PHONE LGE 6612F00001C Contact Us For Availability
J602
JACK,PHONE LGE 6612F00001D Contact Us For Availability
J703
CONNECTOR (CIRC),D-S LGE 6630G15E215 Contact Us For Availability
J704
Connector,Wafer LGE 6630VF00520 Contact Us For Availability
J708
Connector,Wafer LGE 6602T12004L Contact Us For Availability
J903
Connector,Wafer LGE 6602T12005E Contact Us For Availability
J905
Connector,Wafer LGE 6630VK09004 Contact Us For Availability
L603
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L607
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L609
COIL,CHOKE LGE 6140TBZ049B Contact Us For Availability
LED912
LED LGE 0DLBE0048AA Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q505
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R536
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R611
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R618
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R646
RESISTOR,METAL GLAZE LGE 0RJ1203D677 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R775
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R781
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R811
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R913
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R914
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R956
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
SW912
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPGN016B Contact Us For Availability
U501
IC,DRAWING LGE 0IZZTSZ750D Contact Us For Availability
U502
IC,EEPROM LGE EAN30296801 Contact Us For Availability
U601
IC,Tone LGE 0ISG744900B Contact Us For Availability
U602
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
U604
IC,PERIPHERALS LGE 0IPRP00008A Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U803
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U804
IC KEC KIA78L05BP(TA)3 KCN20A8 LGE 0IKE780500P Contact Us For Availability
U805
IC,SAMSUNG ELECTRONICS LGE 0ISS780800J Contact Us For Availability
U950
IC,PERIPHERALS LGE 0IPRPCR001A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
× ![]()
