Model Whirlpool M140 MICROWAVE – Common Parts & Diagrams

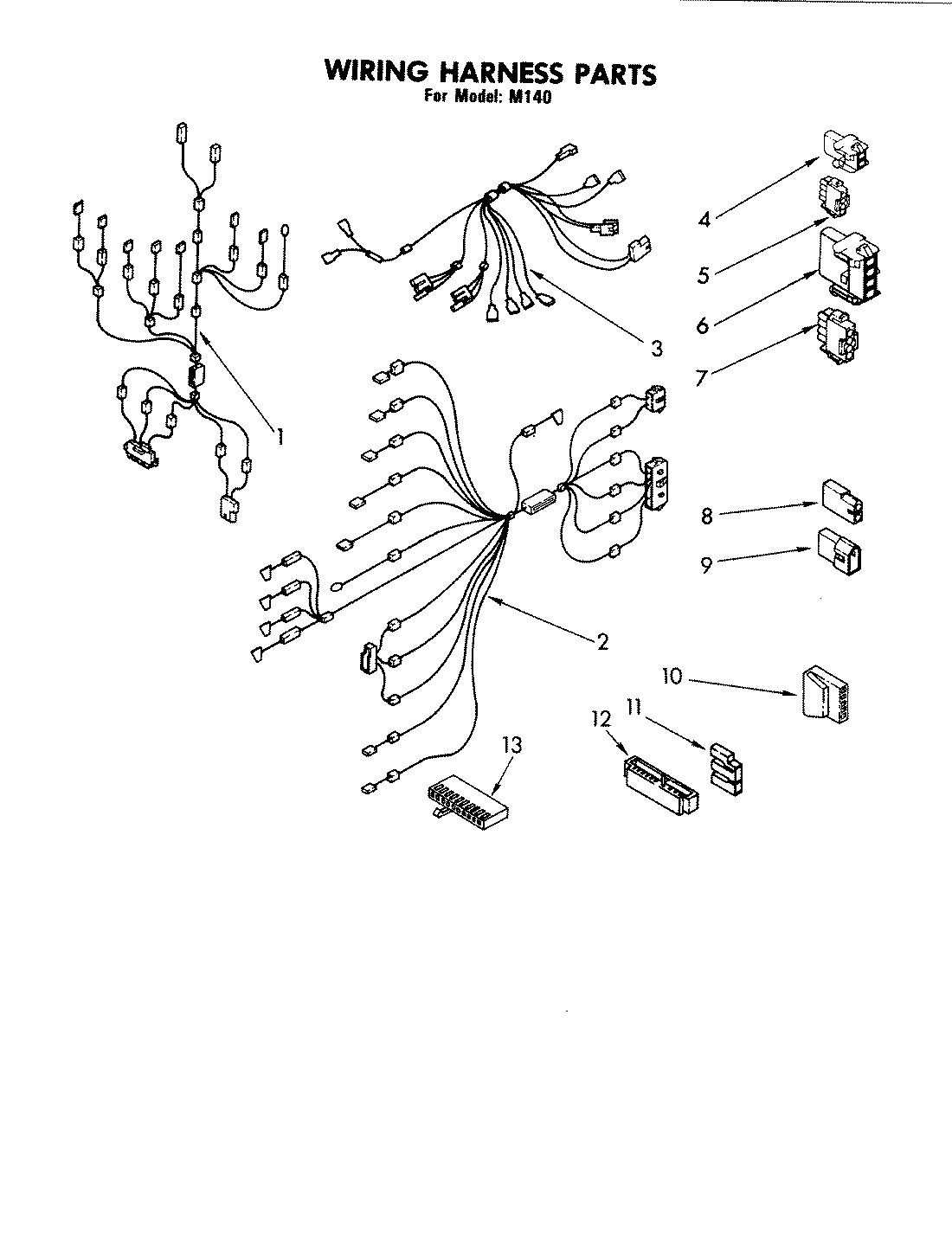

04 - WIRING HARNESS

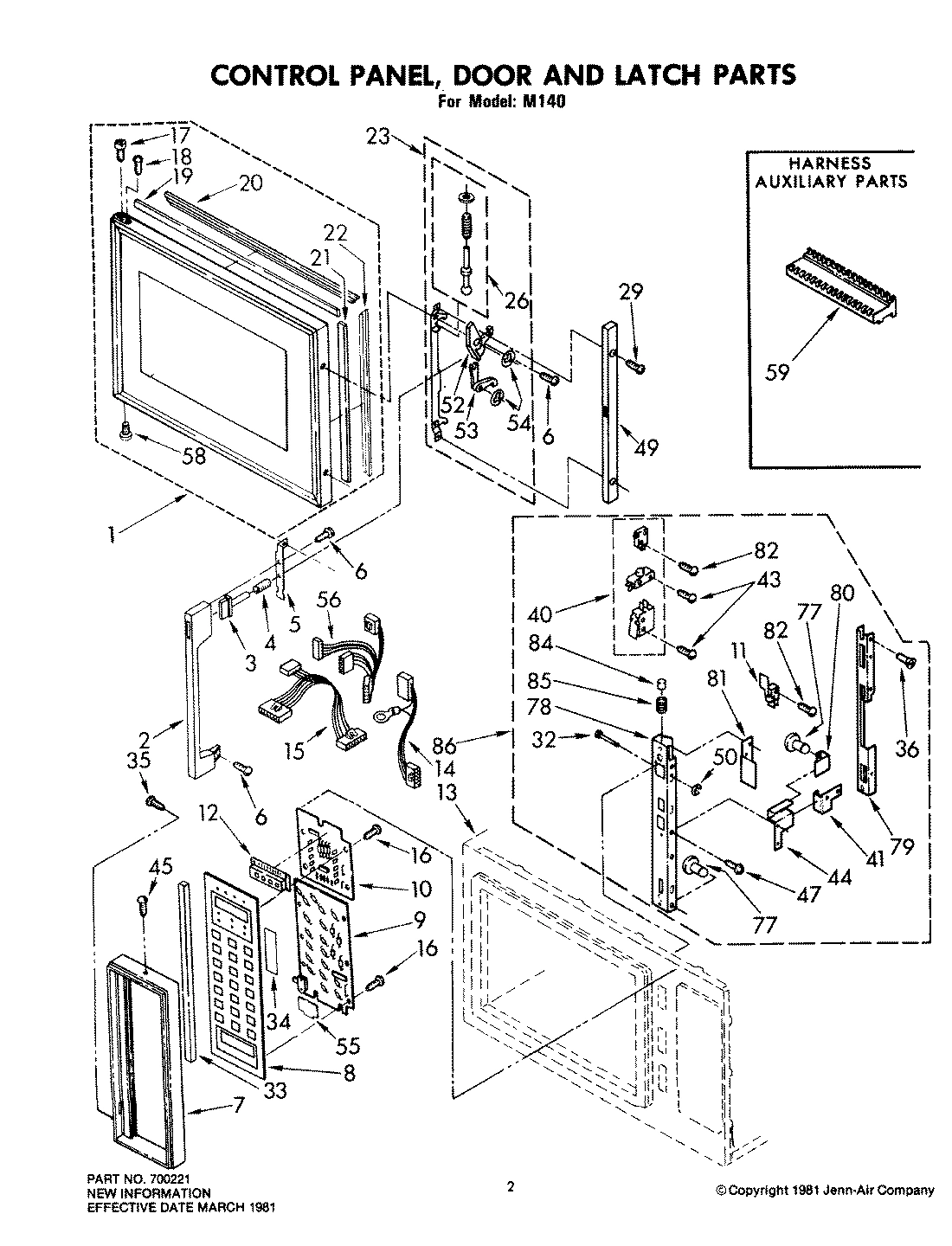

02 - CONTROL PANEL, DOOR & LATCH

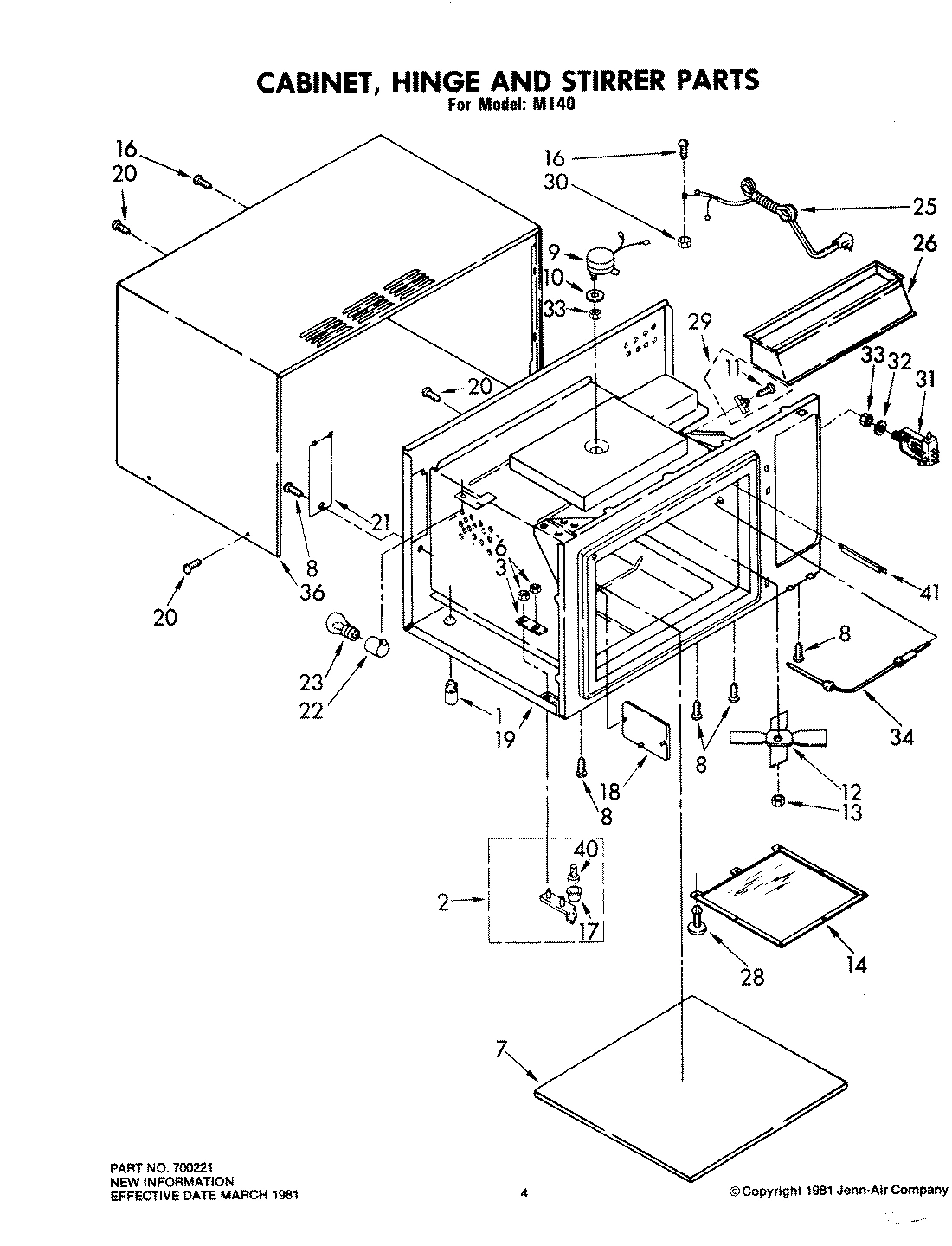

01 - CABINET ASSEMBLY

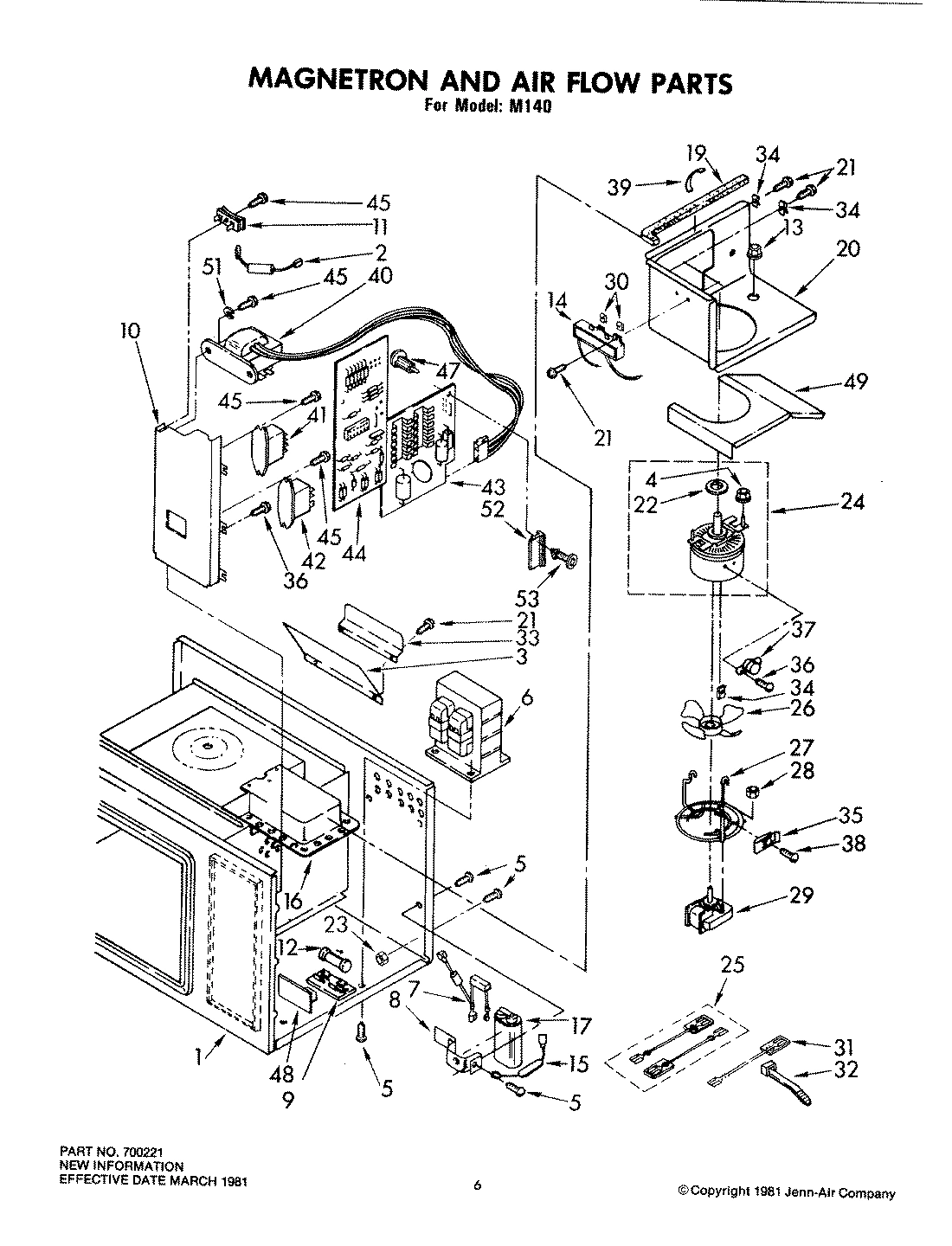

03 - MAGNETRON ASSEMBLY
Common parts from model Whirlpool M140 MICROWAVE
1
HARNESS,MAIN WPL 701101 Contact Us For Availability
1
DOOR WPL 701150 Contact Us For Availability
1
FOOT WPL 700983 Contact Us For Availability
2
HARNESS WPL 701106 Contact Us For Availability
2
HANDLE WPL 701043 Contact Us For Availability
2
TOP HINGE WPL 701118 Contact Us For Availability
2
BOTTOM HINGE WPL 701119 Contact Us For Availability
2
RESISTOR WPL 701116 Contact Us For Availability
3
HARNESS WPL 701102 Contact Us For Availability
3
BUTTON WPL 701045 Contact Us For Availability
3
PLATE WPL 700978 Contact Us For Availability
3
DEFLECTOR WPL 700995 Contact Us For Availability
4
CAP WPL 701113 Contact Us For Availability
4
SPRING WPL 701060 Contact Us For Availability
4
NUT WPL 701075 Contact Us For Availability
5
PLUG WPL 701111 Contact Us For Availability
5
BRACKET WPL 701044 Contact Us For Availability
5
SCREW WPL 700971 Contact Us For Availability
6
CAP WPL 701114 Contact Us For Availability
6
SCREW WPL 701063 Contact Us For Availability
6
TRANSFORMER WPL 700998 Contact Us For Availability
7
PLUG WPL 701112 Contact Us For Availability
7
FRAME WPL 701037 Contact Us For Availability
7
BASE WPL 701013 Contact Us For Availability
7
RECTIFIER WPL 701117 Contact Us For Availability
8
RECEPTACLE WPL 701140 Contact Us For Availability
8
PANEL WPL 701151 Contact Us For Availability
8
SCREW WPL 700969 Contact Us For Availability
8
BRACKET WPL 701007 Contact Us For Availability
9
PLUG, TERMINAL WPL 701141 Contact Us For Availability
9
P.C. BOARD TOUCH PANEL WPL 701137 Contact Us For Availability
9
MOTOR STIR WPL 701157 Contact Us For Availability
9
FUSE BLOCK WPL 701034 Contact Us For Availability
10
HOUSING WPL 701133 Contact Us For Availability
10
DISPALY ASSEMBLY L.E.D. WPL 701138 Contact Us For Availability
10
WASHER WPL 701158 Contact Us For Availability
10
BRACKET WPL 701040 Contact Us For Availability
11
INSULATOR WPL 701073 Contact Us For Availability
11
SWITCH WPL 701055 Contact Us For Availability
11
BLOCK WPL 701115 Contact Us For Availability
12
HOUSING WPL 701024 Contact Us For Availability
12
CLOCK WPL 701135 Contact Us For Availability
12
STIRRER WPL 701039 Contact Us For Availability
12
FUSE, 250V 20A WPL 701035 Contact Us For Availability
13
HOUSING WPL 701005 Contact Us For Availability
13
NUT HEX WPL 700988 Contact Us For Availability
13
BUSHING WPL 701003 Contact Us For Availability
14
HARNESS WPL 701072 Contact Us For Availability
14
COVER WPL 701019 Contact Us For Availability
14
RELAY WPL 701025 Contact Us For Availability
14
RELAY WPL 701036 Contact Us For Availability
15
HARNESS WPL 701070 Contact Us For Availability
15
VARISTOR WPL 701120 Contact Us For Availability
16
SCREW WPL 701089 Contact Us For Availability
16
NOT REQUIRED PART OR SEE NOTE GUIDE, WAVE WPL W10124350 Contact Us For Availability
17
SCREW WPL 700981 Contact Us For Availability
17
BUSHING WPL 701026 Contact Us For Availability
17
CAPACITOR WPL 701093 Contact Us For Availability
17
CAPACITOR WPL 701097 Contact Us For Availability
18
SCREW WPL 700982 Contact Us For Availability
18
COVER WPL 700976 Contact Us For Availability
19
SEAL WPL 700985 Contact Us For Availability
19
SEAL WPL 700994 Contact Us For Availability
20
RETAINER WPL 700986 Contact Us For Availability
20
SCREW WPL 700999 Contact Us For Availability
20
DUCT WPL 700979 Contact Us For Availability
21
SEAL WPL 700984 Contact Us For Availability
21
COVER WPL 700975 Contact Us For Availability
21
SCREW WPL 700966 Contact Us For Availability
22
RETAINER WPL 700987 Contact Us For Availability
22
SOCKET WPL 700977 Contact Us For Availability
22
GASKET WPL 701000 Contact Us For Availability
23
LATCH WPL 701123 Contact Us For Availability
23
NUT HEX WPL 701022 Contact Us For Availability
24
MAGNETRON WPL 701074 Contact Us For Availability
24
MAGNETRON WPL 701154 Contact Us For Availability
25
CORD WPL 701107 Contact Us For Availability
25
WIRE KIT WPL 700973 Contact Us For Availability
26
PLUNGER-LATCH WPL 701152 Contact Us For Availability
26
BAFFLE WPL 701020 Contact Us For Availability
26
FAN BLADE WPL 700980 Contact Us For Availability
27
MOUNT WPL 701092 Contact Us For Availability
28
NUT WPL 701155 Contact Us For Availability
29
SCREW WPL 701064 Contact Us For Availability
29
FUSE WPL Y701015 Contact Us For Availability
29
MOTOR WPL 701066 Contact Us For Availability
29
MOTOR WPL 701108 Contact Us For Availability
30
CLIP WPL 701146 Contact Us For Availability
31
JACK WPL 701028 Contact Us For Availability
31
WIRE WPL 701011 Contact Us For Availability
32
PIN WPL 700990 Contact Us For Availability
32
WASHER WPL 701033 Contact Us For Availability
32
TIE WPL 701016 Contact Us For Availability
33
GASKET WPL 701023 Contact Us For Availability
33
NUT WPL Y701032 Contact Us For Availability
33
DEFLECTOR WPL 701001 Contact Us For Availability
34
FILM WPL 701069 Contact Us For Availability
34
PROBE & PLUG WPL Y701160 Contact Us For Availability
34
CLIP WPL 701126 Contact Us For Availability
35
SCREW WPL 701014 Contact Us For Availability
35
FASTENER WPL 701009 Contact Us For Availability
36
SCREW WPL 701010 Contact Us For Availability
36
SCREW WPL 700965 Contact Us For Availability
36
WRAPPER WPL 701161 Contact Us For Availability
37
THERMOSTAT WPL 700989 Contact Us For Availability
38
SCREW WPL 701156 Contact Us For Availability
39
CLIP WPL 701148 Contact Us For Availability
40
SWITCH KIT WPL 701153 Contact Us For Availability
40
PIN WPL 701008 Contact Us For Availability
40
TRANSFORMER WPL 701132 Contact Us For Availability
41
INSULATOR WPL 700992 Contact Us For Availability
41
PAINT WPL 700972 Contact Us For Availability
41
COVER WPL 701018 Contact Us For Availability
41
SEALER, SILASTIC (3 OZ.) WPL 701129 Contact Us For Availability
41
ADHESIVE, LOCTITE (1/3 OZ) WPL 701130 Contact Us For Availability
41
RELAY WPL 701085 Contact Us For Availability
41
RELAY WPL 701087 Contact Us For Availability
42
RELAY WPL Y701086 Contact Us For Availability
42
RELAY WPL Y701088 Contact Us For Availability
43
SCREW WPL 701147 Contact Us For Availability
43
POWER SUPPLY WPL 701139 Contact Us For Availability
44
BRACKET WPL 701054 Contact Us For Availability
44
MIC-COMPUTER WPL 701136 Contact Us For Availability
45
SCREW WPL 701125 Contact Us For Availability
47
SCREW WPL 701098 Contact Us For Availability
47
SPACER WPL 701110 Contact Us For Availability
48
SHIELD WPL 701091 Contact Us For Availability
49
CAP WPL 701049 Contact Us For Availability
49
SHIELD WPL 701094 Contact Us For Availability
50
RING WPL 700991 Contact Us For Availability
51
LOCKWASHER WPL 700963 Contact Us For Availability
52
CAM, LATCH WPL 701046 Contact Us For Availability
52
SHIELD WPL 701096 Contact Us For Availability
53
LEVER WPL 701047 Contact Us For Availability
53
FASTENER WPL 701095 Contact Us For Availability
54
RING WPL 701090 Contact Us For Availability
55
SHIELD WPL 701083 Contact Us For Availability
56
HARNESS WPL 701071 Contact Us For Availability
59
CONNECTOR WPL 701079 Contact Us For Availability
59
CONNECTOR WPL 701080 Contact Us For Availability
59
CONNECTOR WPL 701081 Contact Us For Availability
59
CONNECTOR WPL 701082 Contact Us For Availability
77
RIVET WPL 701109 Contact Us For Availability
80
BARRIER WPL 701078 Contact Us For Availability
81
INSULATOR WPL 701056 Contact Us For Availability
82
SCREW WPL 701065 Contact Us For Availability
84
DAMPER WPL 701048 Contact Us For Availability
85
SPRING WPL 701061 Contact Us For Availability
86
INTERLOCK WPL 701121 Contact Us For Availability
× ![]()
