Model Whirlpool M130 MICROWAVE – Common Parts & Diagrams

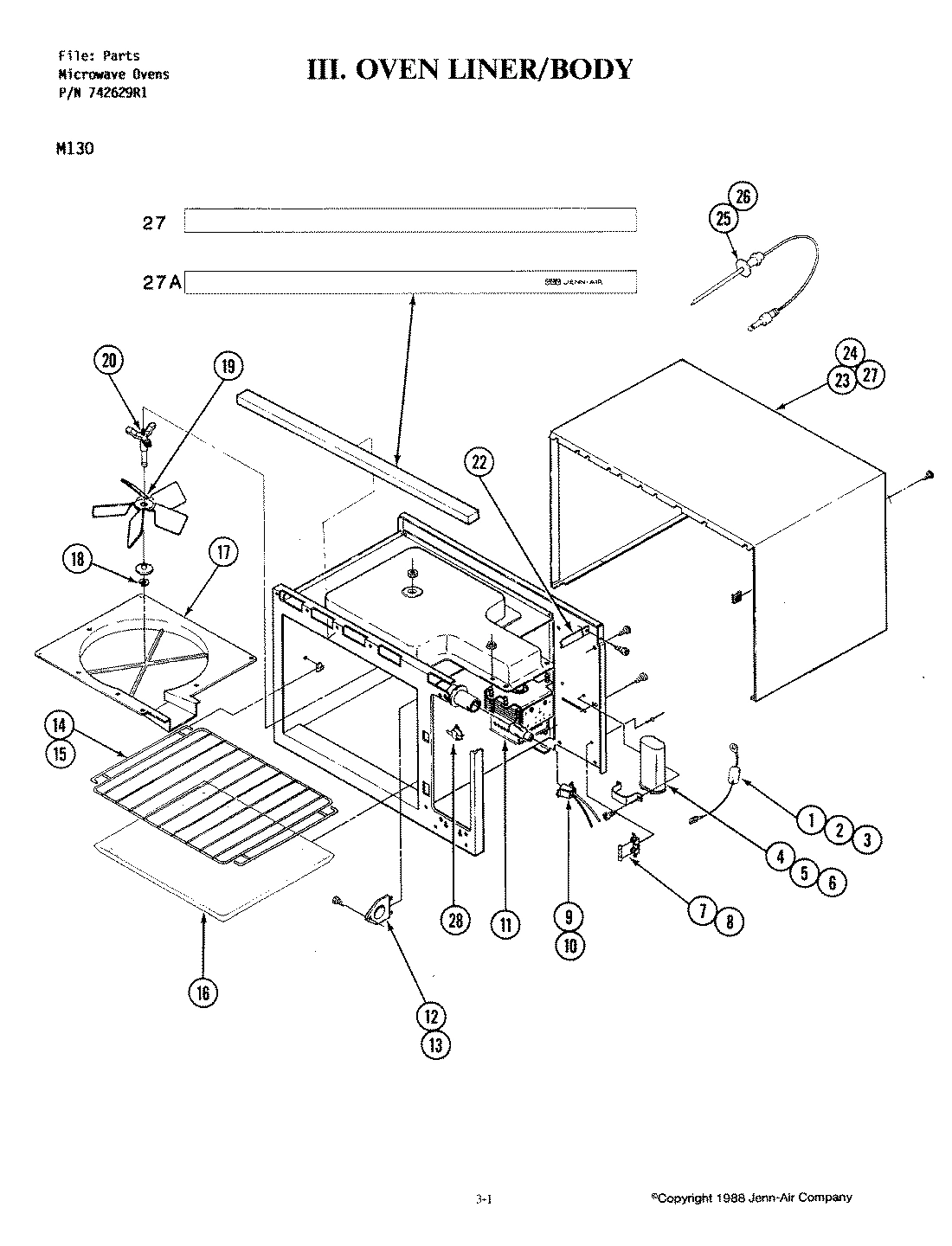

05 - OVEN LINER-BODY

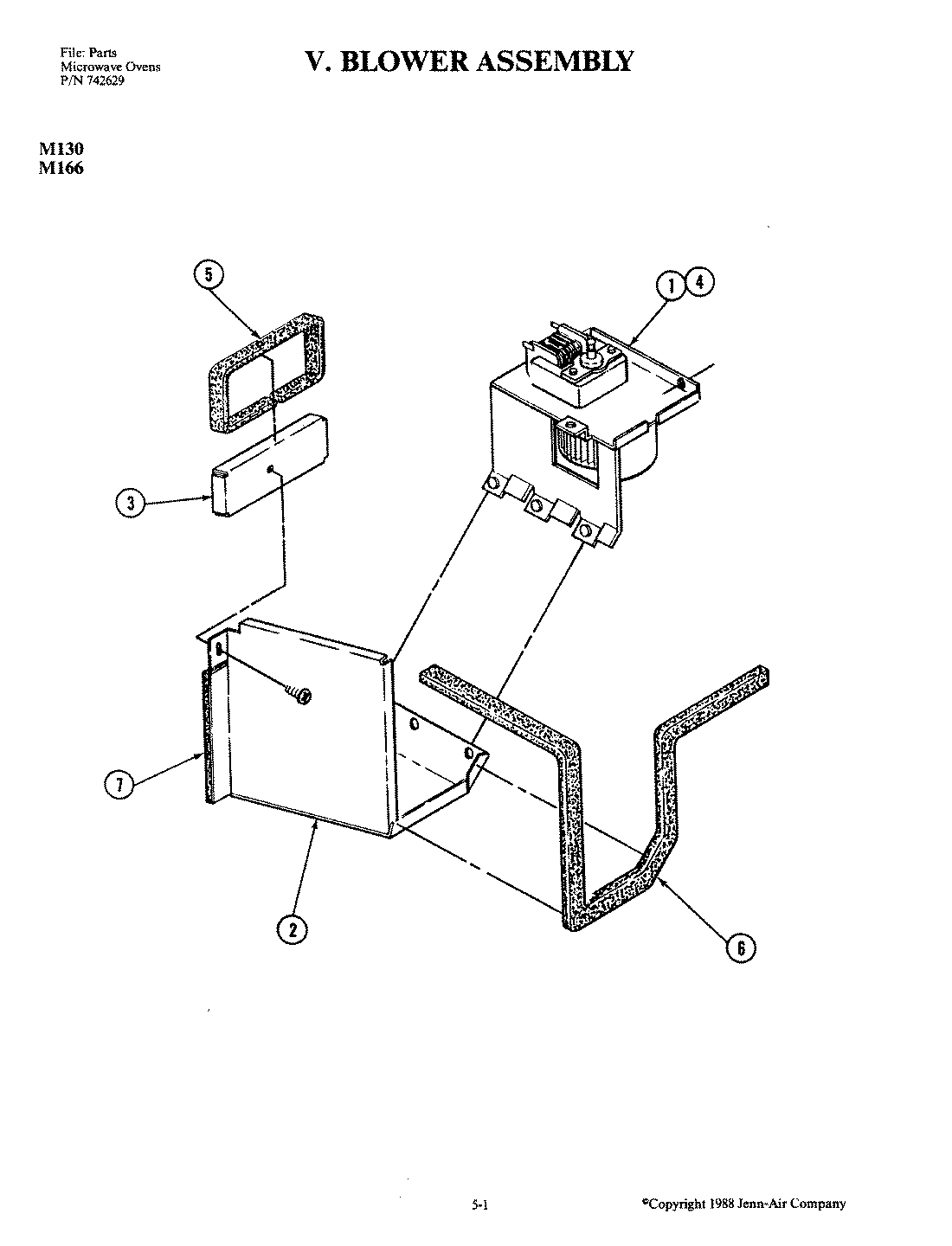

01 - BLOWER ASSEMBLY

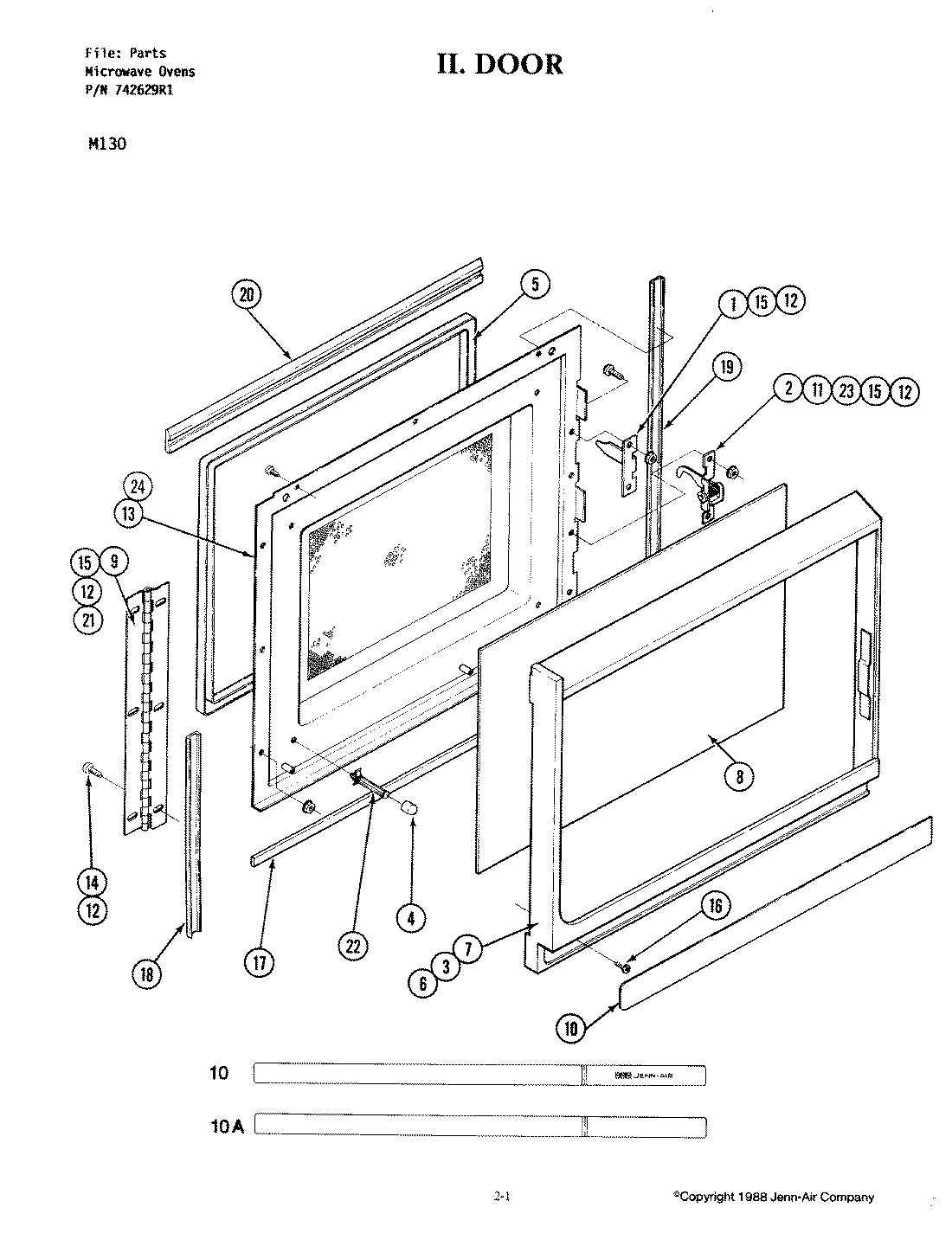

03 - DOOR
02 - CONTROL PANEL

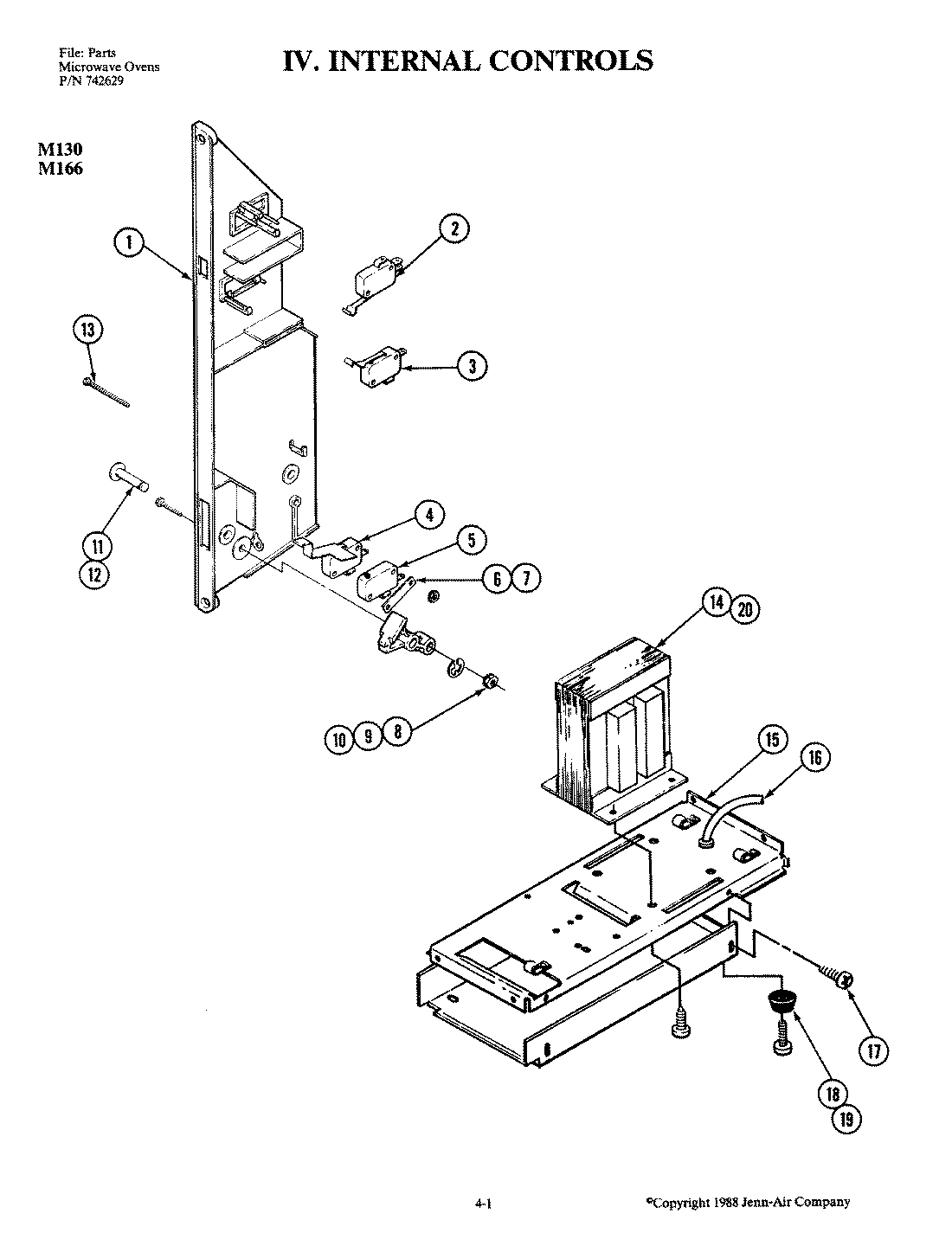

04 - INTERNAL CONTROLS
Common parts from model Whirlpool M130 MICROWAVE
1
DIODE WPL 790162 Contact Us For Availability
1
BLOWER ASSEMBLY WPL 790155 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL 790110 Contact Us For Availability
1
BRACKET, CONTROL PANEL-UPPER WPL 790100 Contact Us For Availability
1
BRACKET, INTERLOCK WPL 790135 Contact Us For Availability
2
SCREW WPL 790163 Contact Us For Availability
2
DUCT ASSEMBLY, MAGNETRON WPL 790156 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL 790111 Contact Us For Availability
2
BRACKET, CONTROL PANEL-LOWER WPL 790101 Contact Us For Availability
2
SWITCH, SECONDARY INTERLOCK WPL 790136 Contact Us For Availability
3
SUPPORT, DUCT MAGNETRON WPL 790157 Contact Us For Availability
3
BRACKET, DOOR TRIM WPL 790112 Contact Us For Availability
3
CONTROL WPL 790102 Contact Us For Availability
3
SWITCH, MONITOR INTERLOCK WPL 790137 Contact Us For Availability
4
CAPACITOR WPL 790164 Contact Us For Availability
4
SCREW WPL 790158 Contact Us For Availability
4
BUMPER WPL Y790113 Contact Us For Availability
4
FRAME, CONTROL PANEL WPL 790103 Contact Us For Availability
4
SWITCH, PRIMARY INTERLOCK WPL 790138 Contact Us For Availability
5
BRACKET WPL 790165 Contact Us For Availability
5
TAPE, FOAM WPL 790159 Contact Us For Availability
5
CHOKE-FILLER WPL Y790114 Contact Us For Availability
5
INSERT (NO LOGO) WPL 02100105 Contact Us For Availability
5
INSERT (LOGO) WPL 790104 Contact Us For Availability
5
SWITCH, LOGIC INTERLOCK WPL 790139 Contact Us For Availability
6
SCREW WPL 790166 Contact Us For Availability
6
TAPE, FOAM WPL 790160 Contact Us For Availability
6
EXTRUSION, HANDLE WPL 790115 Contact Us For Availability
6
SCREW WPL 790106 Contact Us For Availability
6
INSULATOR, SWITCH WPL 790140 Contact Us For Availability
7
CLIP, FUSE WPL 790167 Contact Us For Availability
7
TAPE, FOAM WPL 790161 Contact Us For Availability
7
FRAME-DOOR WPL 790116 Contact Us For Availability
7
SCREW WPL 790107 Contact Us For Availability
7
NUT WPL 790141 Contact Us For Availability
8
NUT WPL 790142 Contact Us For Availability
8
FUSE WPL 790168 Contact Us For Availability
8
GLASS, DOOR WPL 790117 Contact Us For Availability
8
SCREW WPL 03020041 Contact Us For Availability
9
SOCKET, LAMP WPL 790169 Contact Us For Availability
9
HINGE-DOOR WPL Y790118 Contact Us For Availability
9
CLIP-RETAINER WPL 790143 Contact Us For Availability
10
LAMP WPL 790170 Contact Us For Availability
10
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
10
LATCH, DOOR INTERLOCK WPL 790144 Contact Us For Availability
11
MAGNETRON WPL 790171 Contact Us For Availability
11
LATCH-DOOR WPL 790120 Contact Us For Availability
11
PIN, LEVER & PIVOT LATCH WPL 790145 Contact Us For Availability
12
LENS, LAMP WPL 790172 Contact Us For Availability
12
NUT WPL 790121 Contact Us For Availability
12
SCREW WPL 790146 Contact Us For Availability
13
PANEL-INNER WPL 790122 Contact Us For Availability
13
SCREW WPL 790147 Contact Us For Availability
14
RACK, OVEN WPL 790174 Contact Us For Availability
14
SCREW WPL 790123 Contact Us For Availability
14
TRANSFORMER WPL 790148 Contact Us For Availability
15
SUPPORT, RACK WPL 790175 Contact Us For Availability
15
SCREW WPL 790124 Contact Us For Availability
15
PLATE, COMPONENT MOUNTING WPL 790149 Contact Us For Availability
16
SHELF, GLASS WPL 790176 Contact Us For Availability
16
SCREW WPL 790125 Contact Us For Availability
16
CORD-POWER WPL 790150 Contact Us For Availability
17
COVER, STIRRER WPL 790092 Contact Us For Availability
17
CLIP WPL Y03110050 Contact Us For Availability
17
SEAL-BOTTOM WPL 790126 Contact Us For Availability
17
SCREW WPL 790151 Contact Us For Availability
18
CLIP, STIRRER WPL 790093 Contact Us For Availability
18
SEAL, HINGE SIDE WPL 790127 Contact Us For Availability
18
FOOT-BASE WPL 790152 Contact Us For Availability
19
BLADE, BUSHING ASSEMBLY WPL 790094 Contact Us For Availability
19
SEAL, LATCH SIDE WPL 790128 Contact Us For Availability
19
SCREW WPL 790153 Contact Us For Availability
20
SHAFT, STIRRER WPL 790095 Contact Us For Availability
20
SEAL, TOP WPL 790129 Contact Us For Availability
21
NUT, SHAFT STIRRER WPL 790096 Contact Us For Availability
21
SHIM, DOOR HINGE WPL 790130 Contact Us For Availability
22
BRACE, SUPPORT (UPPER) WPL 790097 Contact Us For Availability
22
SPACER, DOOR WINDOW WPL 790131 Contact Us For Availability
23
CABINET WPL 790098 Contact Us For Availability
23
SPRING, DOOR LATCH WPL 790132 Contact Us For Availability
23
TAPE (DOUBLE-SIDED) WPL 790133 Contact Us For Availability
24
CLIP, CABINET WPL 790099 Contact Us For Availability
24
WINDOW, POLYESTER WPL 790134 Contact Us For Availability
25
PROBE, TEMP WPL 790177 Contact Us For Availability
26
JACK, PROBE WPL 790178 Contact Us For Availability
27
TRIM, TOP (LOGO) WPL 02100177 Contact Us For Availability
27
TRIM, TOP (NO LOGO) WPL 790180 Contact Us For Availability
28
SWITCH, TEMPERATURE LIMIT WPL Y01180008 Contact Us For Availability
× ![]()
