Model Whirlpool M125B2 MICROWAVE – Common Parts & Diagrams

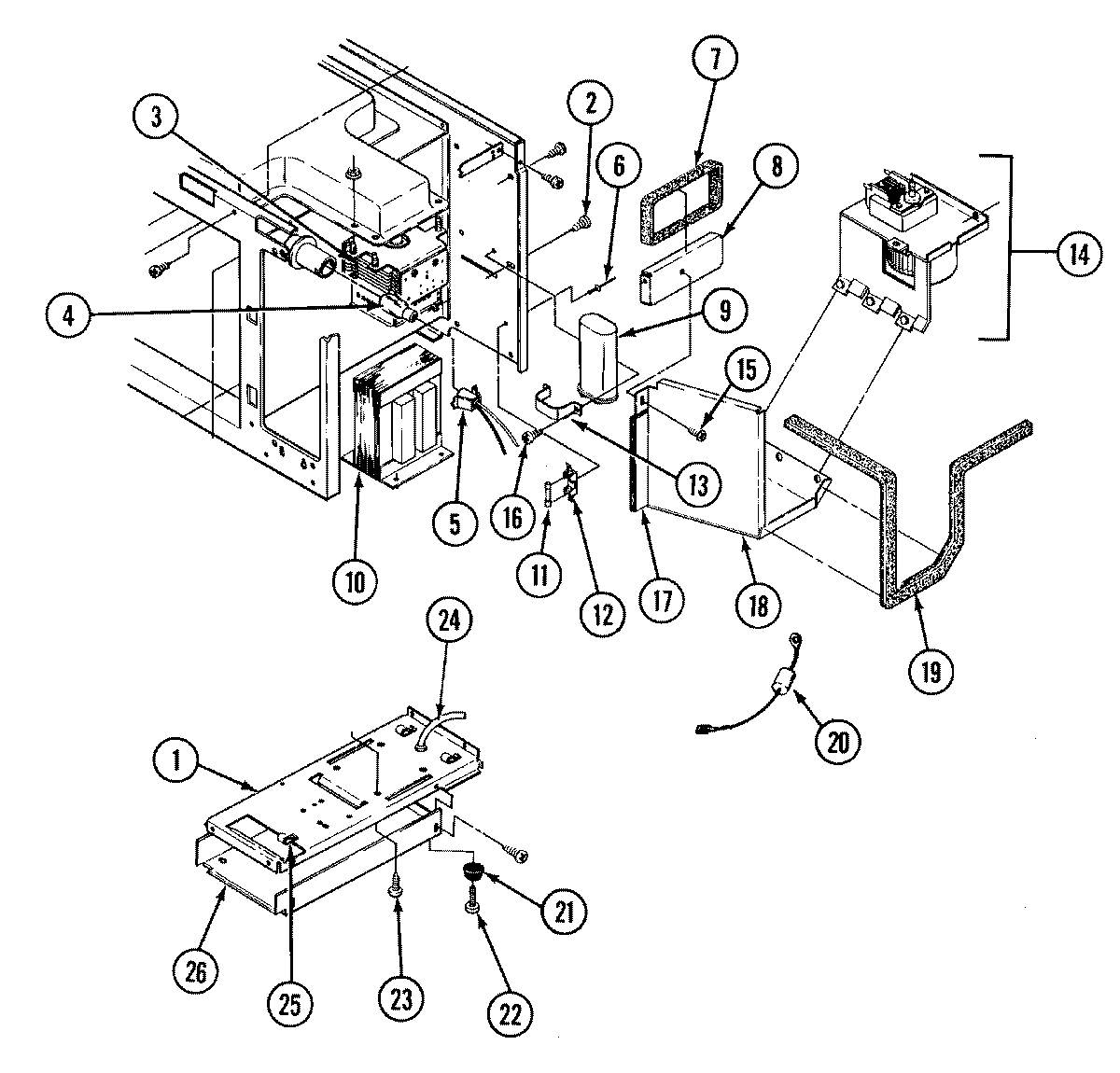

05 - INTERNAL CONTROLS

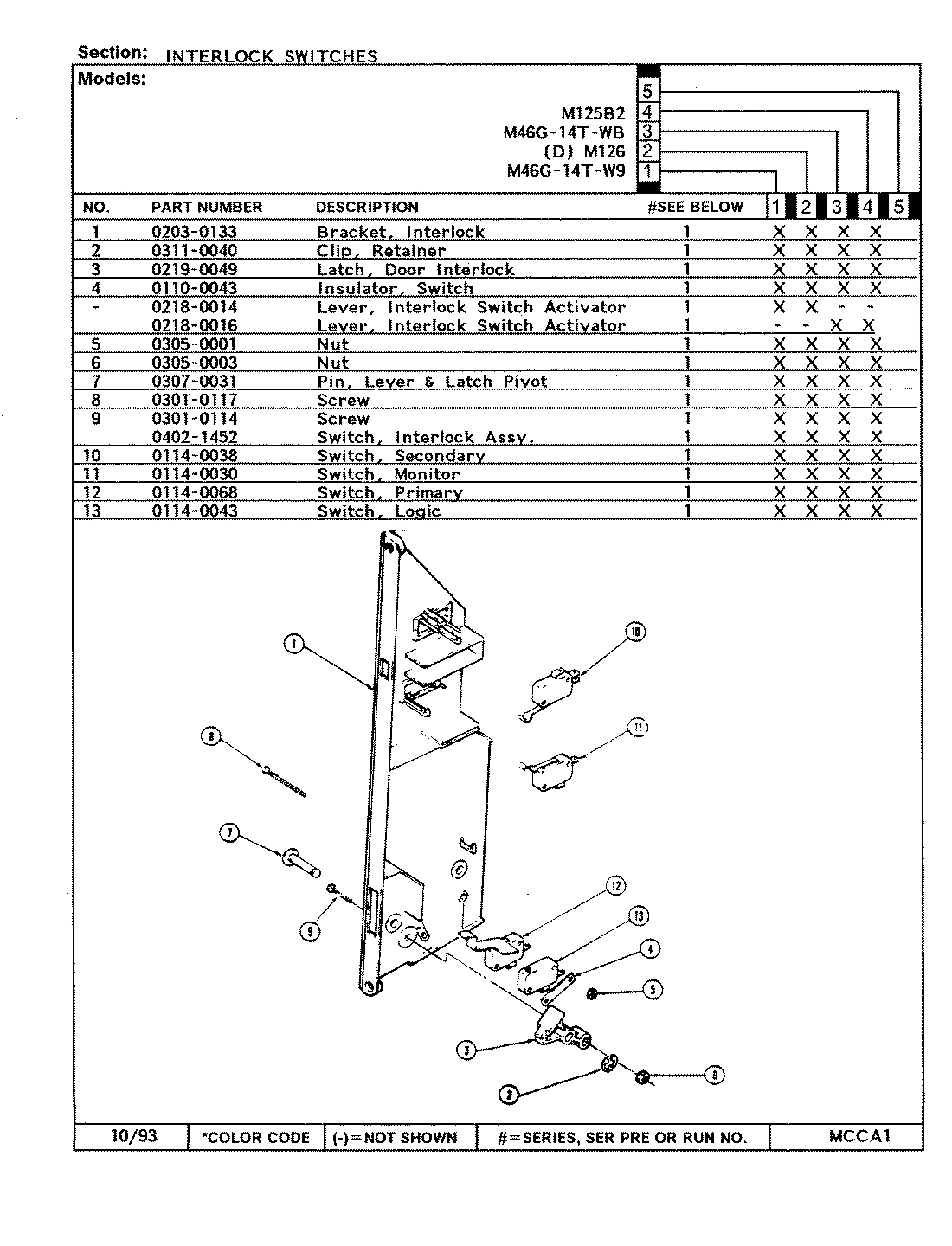

04 - INTERLOCK SWITCHES

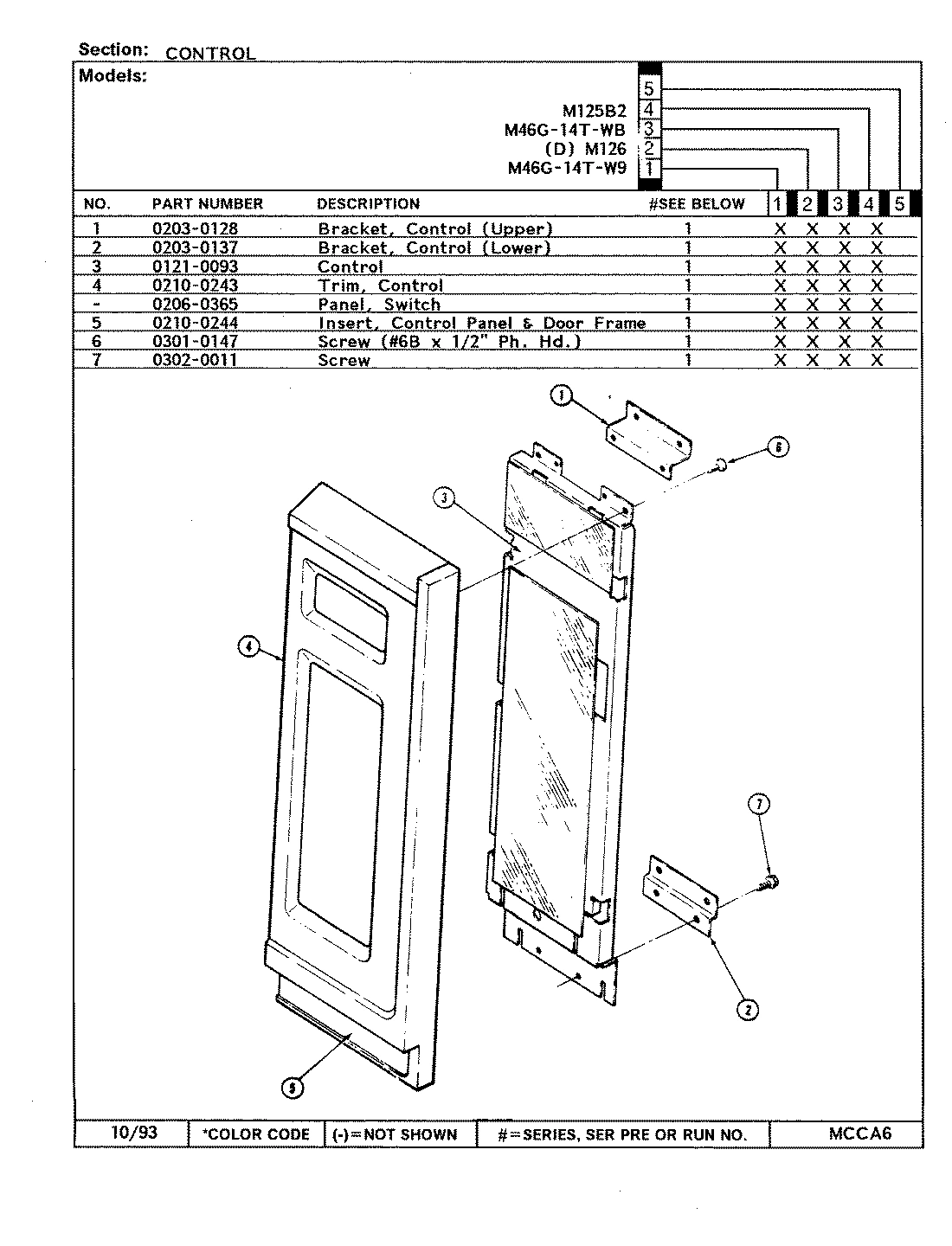

02 - CONTROL PANEL

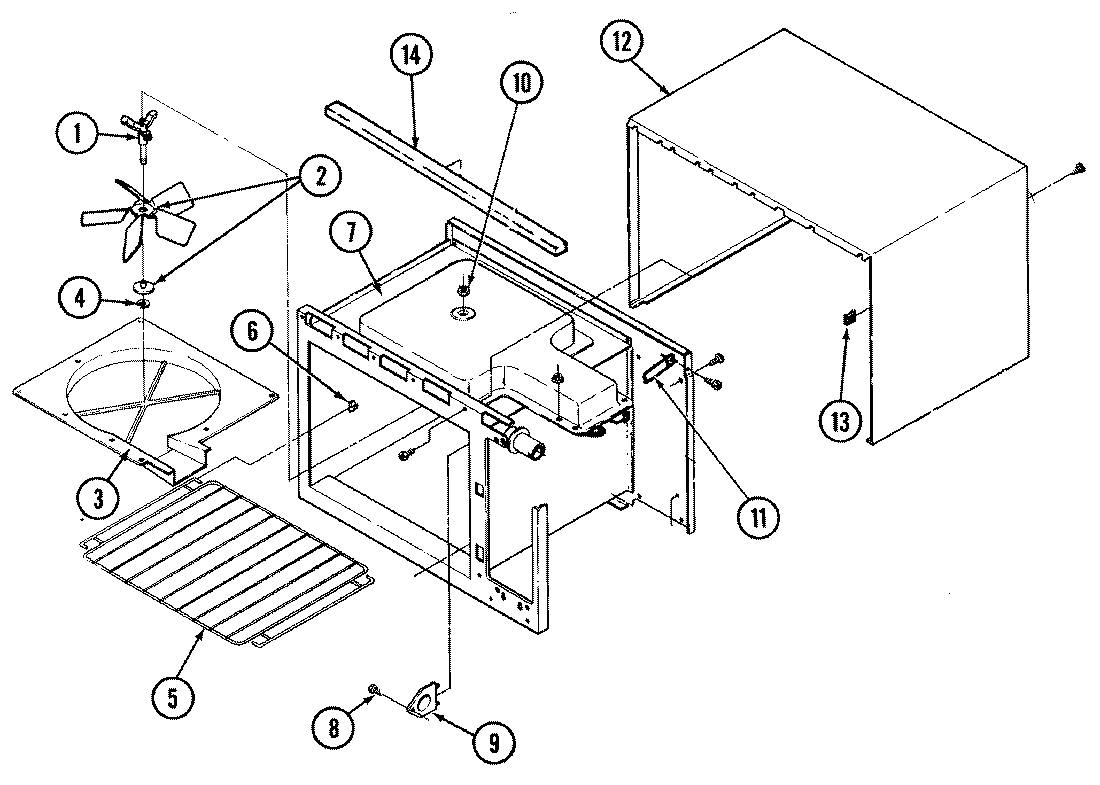

01 - BASE

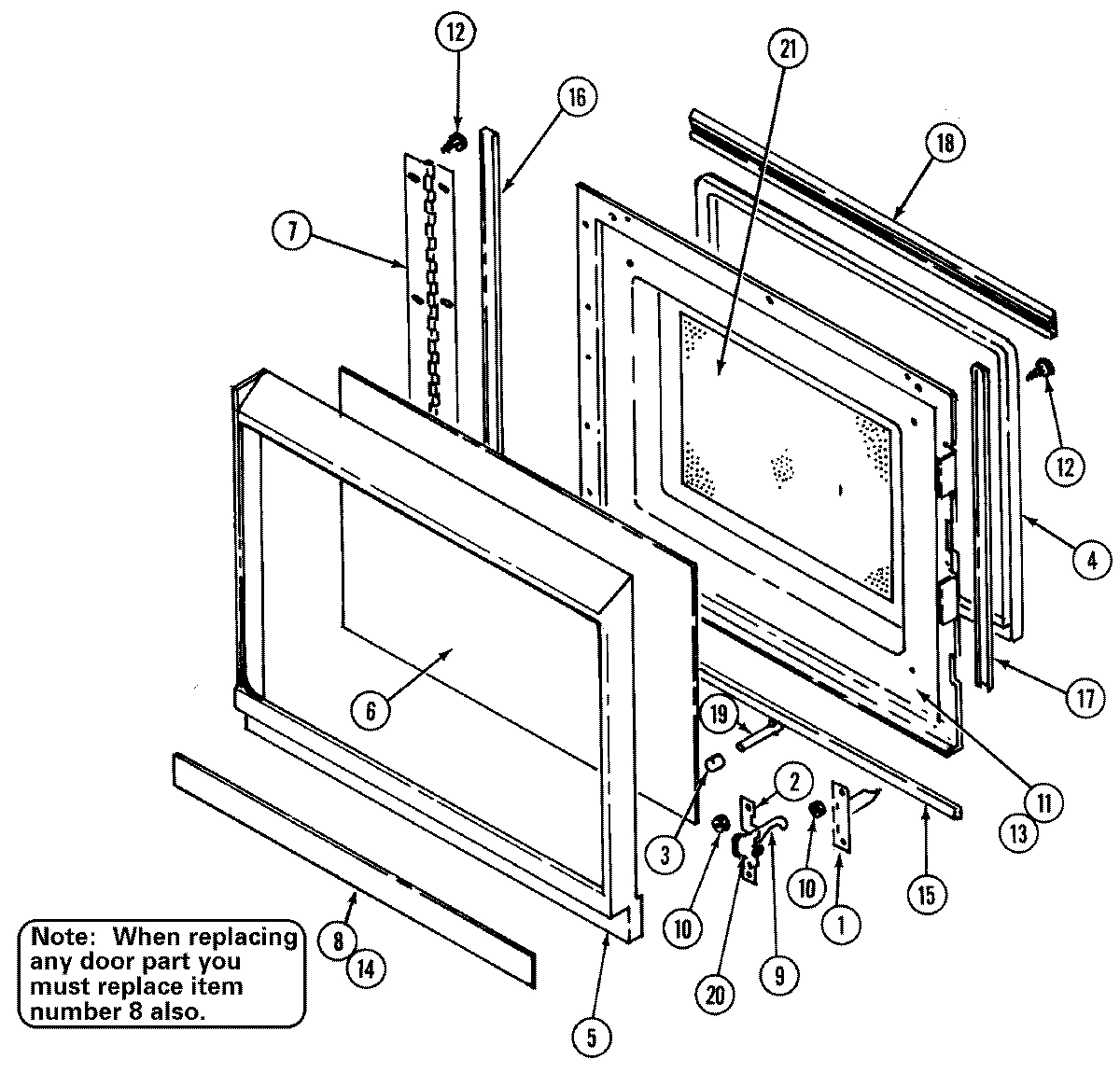

03 - DOOR

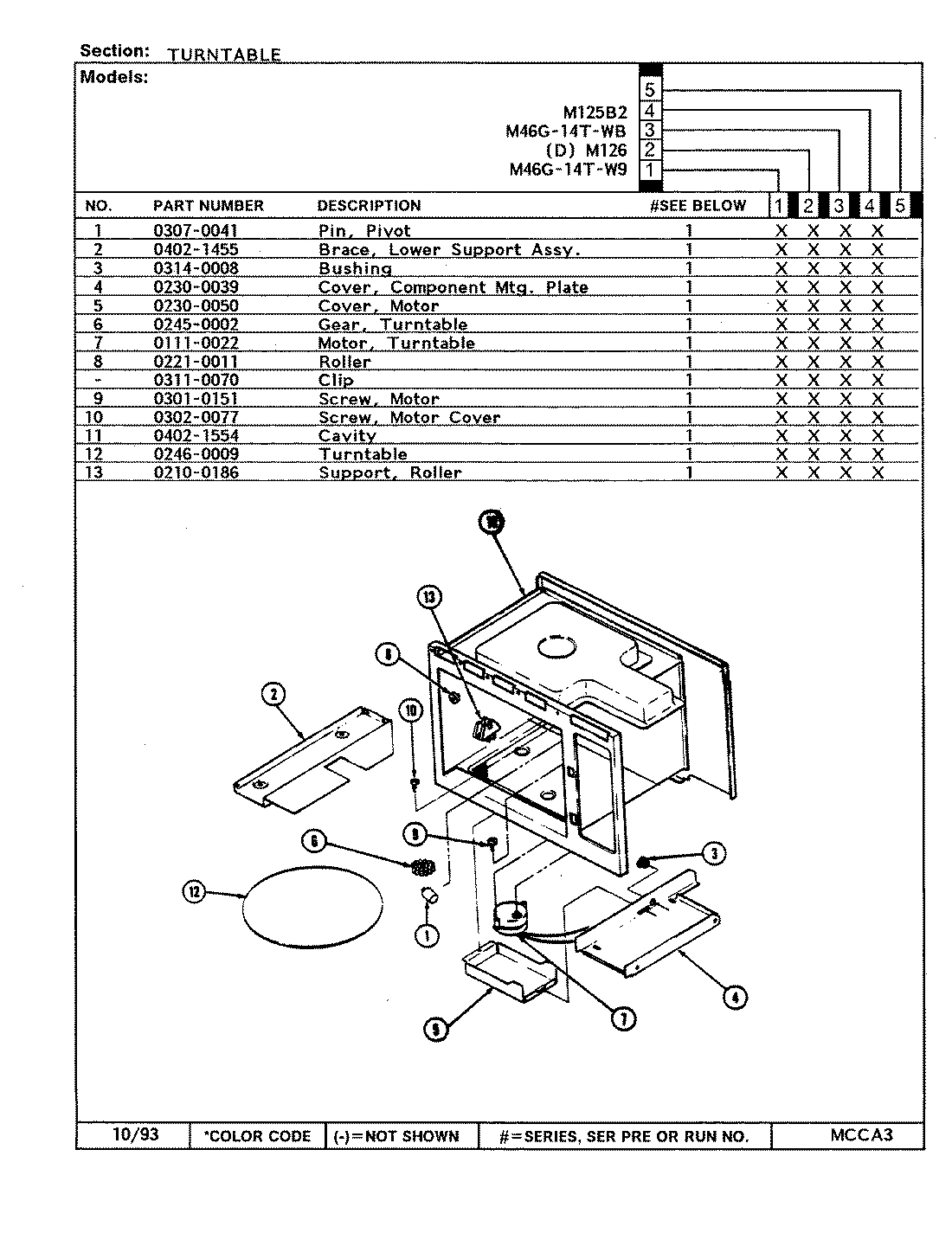

06 - TURNTABLE
Common parts from model Whirlpool M125B2 MICROWAVE
1
PLATE, COMPONENT MOUNTING WPL Y02040101 Contact Us For Availability
1
BRACKET, INTERLOCK WPL Y02030133 Contact Us For Availability
1
BRACKET, CONTROL PANEL-UPPER WPL 02030128 Contact Us For Availability
1
SHAFT, STIRRER WPL 02360058 Contact Us For Availability
1
ACTIVATOR, MONITOR WPL Y02030117 Contact Us For Availability
1
PIN, PIVOT WPL Y03070041 Contact Us For Availability
2
CLIP, RETAINER WPL 03110040 Contact Us For Availability
2
BRACKET, CONTROL PANEL-LOWER WPL 02030137 Contact Us For Availability
2
BLADE, BUSHING ASSEMBLY WPL 04021190 Contact Us For Availability
2
BRACKET, DOOR LATCH WPL Y02030116 Contact Us For Availability
2
BRACE, LOWER SUPPORT WPL 04021455 Contact Us For Availability
3
MAGNETRON WPL 01040004 Contact Us For Availability
3
LATCH, DOOR INTERLOCK WPL 02190049 Contact Us For Availability
3
BOARD, CONTROL WPL 01210093 Contact Us For Availability
3
COVER, STIRRER WPL Y02300045 Contact Us For Availability
3
BUSHING WPL Y03140008 Contact Us For Availability
4
BULB, LIGHT WPL Y01060024 Contact Us For Availability
4
COVER, MTG PLATE WPL 02300039 Contact Us For Availability
4
INSULATOR, SWITCH WPL Y01100043 Contact Us For Availability
4
SWITCH, PANEL WPL 02060365 Contact Us For Availability
4
FRAME, CONTROL PANEL WPL 02100243 Contact Us For Availability
4
CLIP WPL Y03110050 Contact Us For Availability
5
RECEPTACLE, LIGHT WPL 01100045 Contact Us For Availability
5
NUT WPL Y03050001 Contact Us For Availability
5
RACK, OVEN WPL Y02410004 Contact Us For Availability
5
DOOR TRIM ASSEMBLY WPL 04021543 Contact Us For Availability
5
COVER, MOTOR TURNTABLE WPL Y02300050 Contact Us For Availability
6
NUT WPL 03050003 Contact Us For Availability
6
SCREW (TOP) WPL Y03010147 Contact Us For Availability
6
SUPPORT, RACK WPL 02010031 Contact Us For Availability
6
EXTRUSION, HANDLE (BLK) WPL 02120151 Contact Us For Availability
6
GLASS, DOOR WPL Y02220096 Contact Us For Availability
6
GEAR, TURNTABLE WPL Y02450002 Contact Us For Availability
7
TAPE, FOAM WPL 02310109 Contact Us For Availability
7
PIN, LEVER & PIVOT LATCH WPL Y03070031 Contact Us For Availability
7
SCREW WPL 03020011 Contact Us For Availability
7
COVER, FRONT EDGE WPL 02300057 Contact Us For Availability
7
HINGE, DOOR WPL Y02200017 Contact Us For Availability
7
MOTOR, TURNTABLE WPL 01110022 Contact Us For Availability
8
SUPPORT, DUCT MAGNETRON WPL Y02170111 Contact Us For Availability
8
SCREW WPL 03010098 Contact Us For Availability
8
SCREW WPL 03010117 Contact Us For Availability
8
INSERT, CONTROL/DOOR WPL 02100244 Contact Us For Availability
8
ROLLER WPL 02210011 Contact Us For Availability
8
CLIP - PUSH ON WPL Y03110070 Contact Us For Availability
9
RESISTOR, BLEEDER WPL 01010008 Contact Us For Availability
9
CAPACITOR WPL Y01020023 Contact Us For Availability
9
SCREW WPL 03010114 Contact Us For Availability
9
SWITCH, INTERLOCK ASSY WPL 04021452 Contact Us For Availability
9
LENS, BULB WPL Y02400007 Contact Us For Availability
9
LATCH, DOOR WPL 02190056 Contact Us For Availability
9
SCREW WPL 03010151 Contact Us For Availability
10
TRANSFORMER, H.V. WPL 01130028 Contact Us For Availability
10
SWITCH, SECONDARY INTERLOCK WPL Y01140038 Contact Us For Availability
10
NUT, SHAFT STIRRER WPL 03050007 Contact Us For Availability
10
SCREW WPL 03020077 Contact Us For Availability
11
FUSE 15A 125V WPL Y01050005 Contact Us For Availability
11
SWITCH, MONITOR INTERLOCK WPL Y01140030 Contact Us For Availability
11
CAVITY WPL 04021554 Contact Us For Availability
11
BRACE, UPPER RIGHT SUPPORT WPL 02020020 Contact Us For Availability
11
PANEL, INNER DOOR (BLK) WPL 04021377 Contact Us For Availability
12
CLIP, STIRRER WPL 03110066 Contact Us For Availability
12
SWITCH, PRIMARY INTERLOCK WPL 01140068 Contact Us For Availability
12
WRAPPER WPL Y02140042 Contact Us For Availability
12
SCREW, 6-32 X 3/8 PH BLACK WPL Y03010157 Contact Us For Availability
12
TURNTABLE WPL Y02460009 Contact Us For Availability
13
BRACKET WPL 02030123 Contact Us For Availability
13
SWITCH, LOGIC INTERLOCK WPL Y01140043 Contact Us For Availability
13
CLIP, CABINET (RT) WPL 03110027 Contact Us For Availability
13
CLIP, CABINET (LT) WPL 03110046 Contact Us For Availability
13
SCREW WPL Y03010118 Contact Us For Availability
13
SUPPORT, ROLLER WPL Y02100186 Contact Us For Availability
14
MOTOR, BLOWER WPL 01110029 Contact Us For Availability
14
BLOWER ASSEMBLY WPL 04021191 Contact Us For Availability
14
WHEEL, BLOWER WPL Y01110016 Contact Us For Availability
14
BRACKET, BLOWER SUPPORT WPL Y02030144 Contact Us For Availability
14
HOUSING, BLOWER WPL Y02170119 Contact Us For Availability
14
TRIM, INTAKE WPL 02100241 Contact Us For Availability
15
MANUAL, USE & CARE WPL Y06010311 Contact Us For Availability
15
SEAL, BOTTOM WPL 02120114 Contact Us For Availability
16
SCREW WPL Y03020076 Contact Us For Availability
16
SEAL, HINGE SIDE WPL Y02120121 Contact Us For Availability
17
TAPE, FOAM WPL 02310071 Contact Us For Availability
17
SEAL, LATCH SIDE WPL Y02120122 Contact Us For Availability
18
DUCT ASSEMBLY, MAGNETRON WPL Y04020842 Contact Us For Availability
18
SEAL, TOP WPL 02120153 Contact Us For Availability
18
SHIM WPL Y03120064 Contact Us For Availability
19
TAPE, FOAM WPL 02310070 Contact Us For Availability
19
SPACER, DOOR WINDOW WPL Y03120069 Contact Us For Availability
20
DIODE WPL Y04010206 Contact Us For Availability
20
SPRING, DOOR LATCH WPL Y03180023 Contact Us For Availability
21
FOOT, BASE WPL 02230012 Contact Us For Availability
21
TRIM, DOOR WPL 02100242 Contact Us For Availability
21
WINDOW, POLYESTER WPL Y02220073 Contact Us For Availability
22
NOT REQUIRED PART OR SEE NOTE NOTE: WHEN REPL WPL W10124350 Contact Us For Availability
23
SCREW WPL 03010094 Contact Us For Availability
24
CORD, POWER (WHT) WPL 01080055 Contact Us For Availability
25
CLIP, WIRE HARNESS WPL 03110022 Contact Us For Availability
26
SWITCH, TEMP LIMIT WPL 01180010 Contact Us For Availability
26
WIRE HARNESS WPL 04010253 Contact Us For Availability
26
HV LEAD WIRE (8 ``) WPL Y04060532 Contact Us For Availability
26
HV LEAD WIRE (16``) WPL Y04060535 Contact Us For Availability
× ![]()
