Model Whirlpool M124 MICROWAVE – Common Parts & Diagrams
02 - BODY

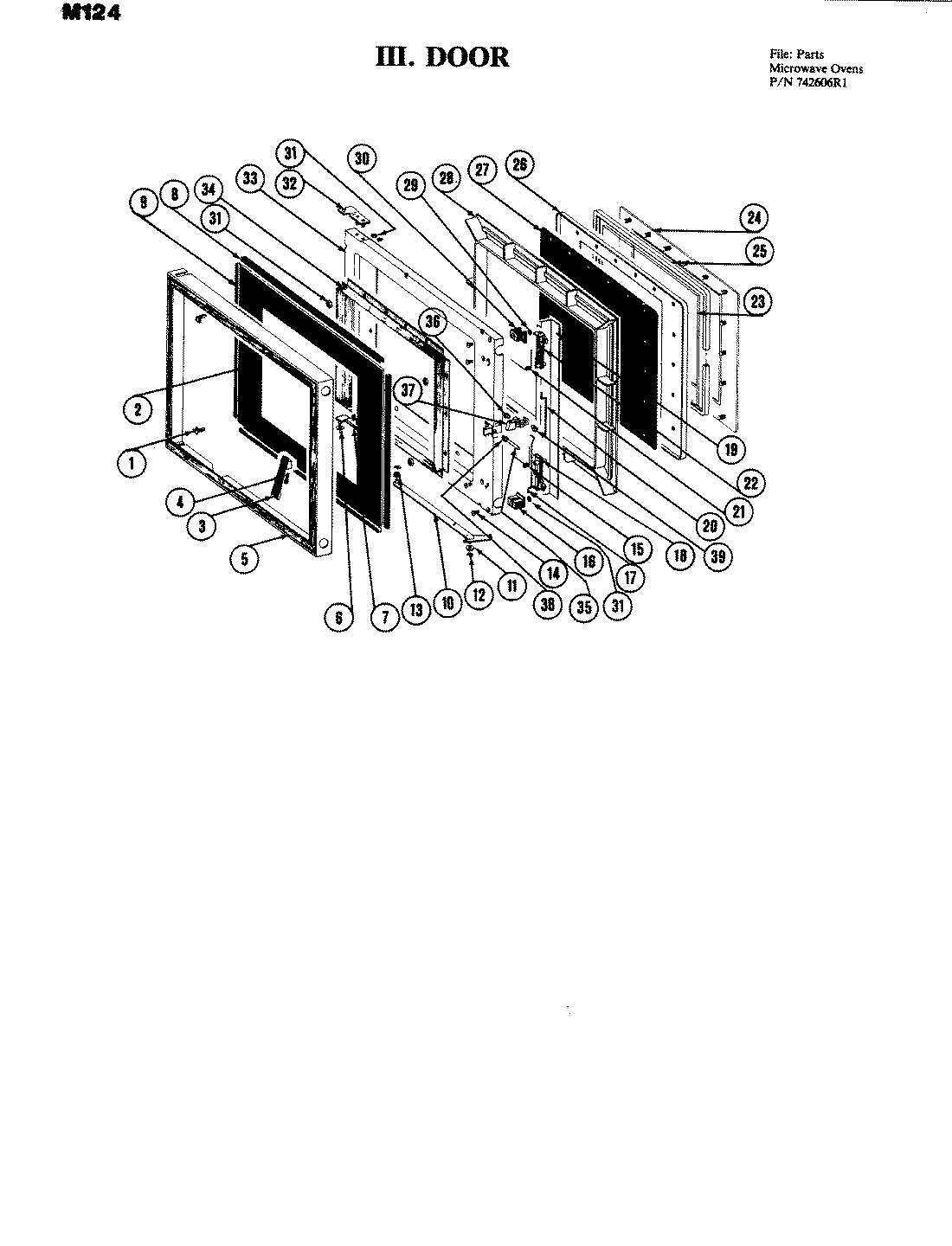

04 - DOOR

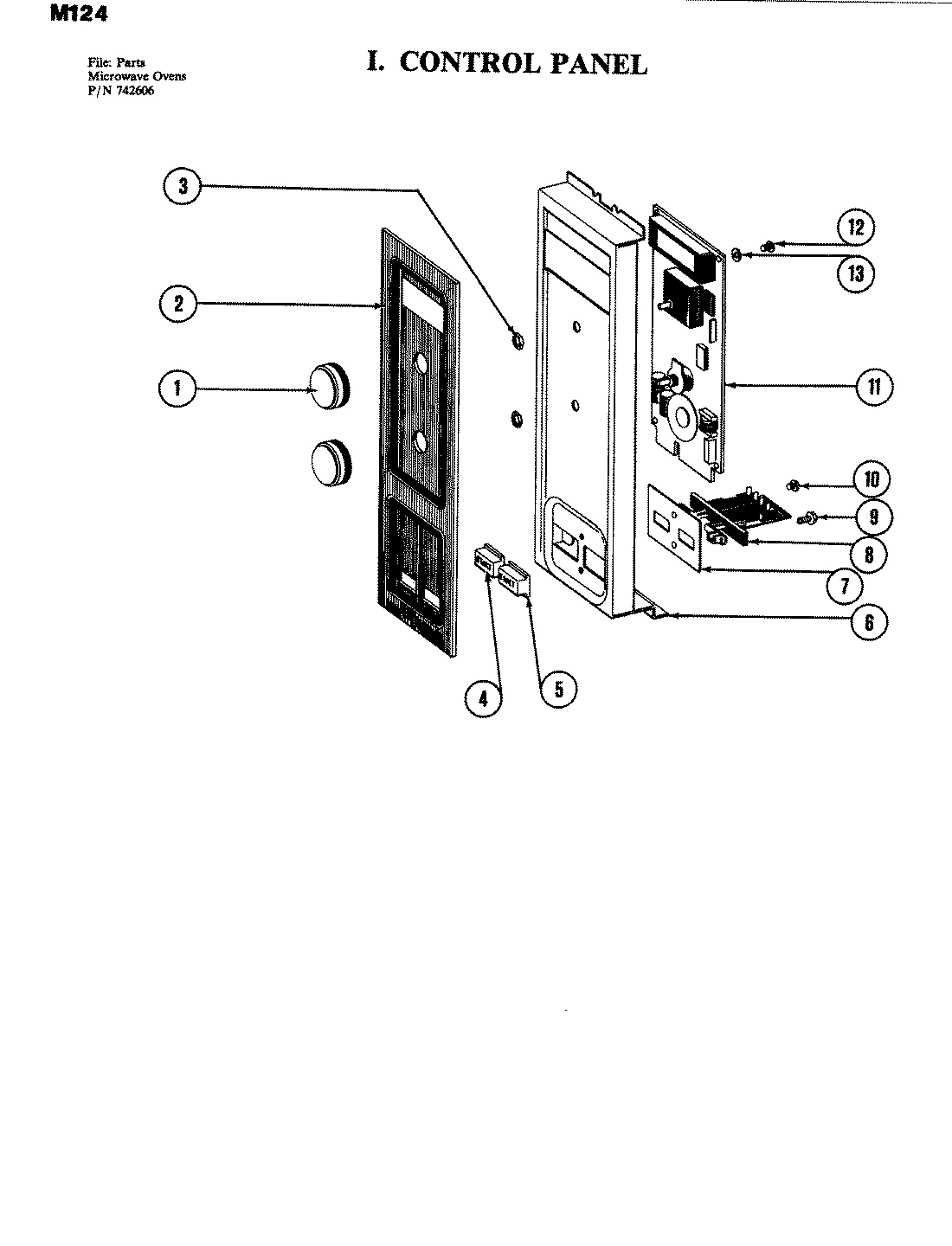

03 - CONTROL PANEL

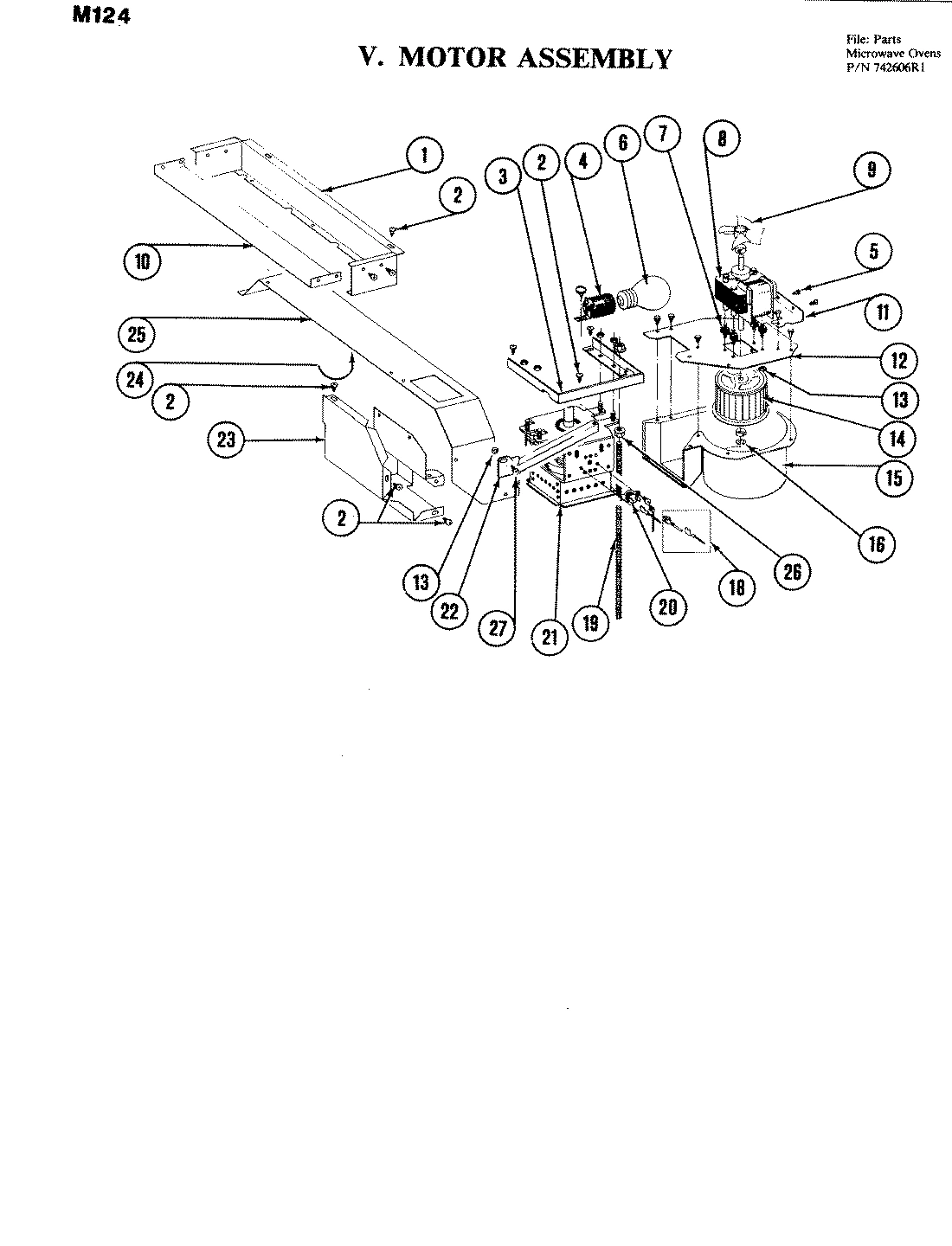

06 - MOTOR ASSEMBLY

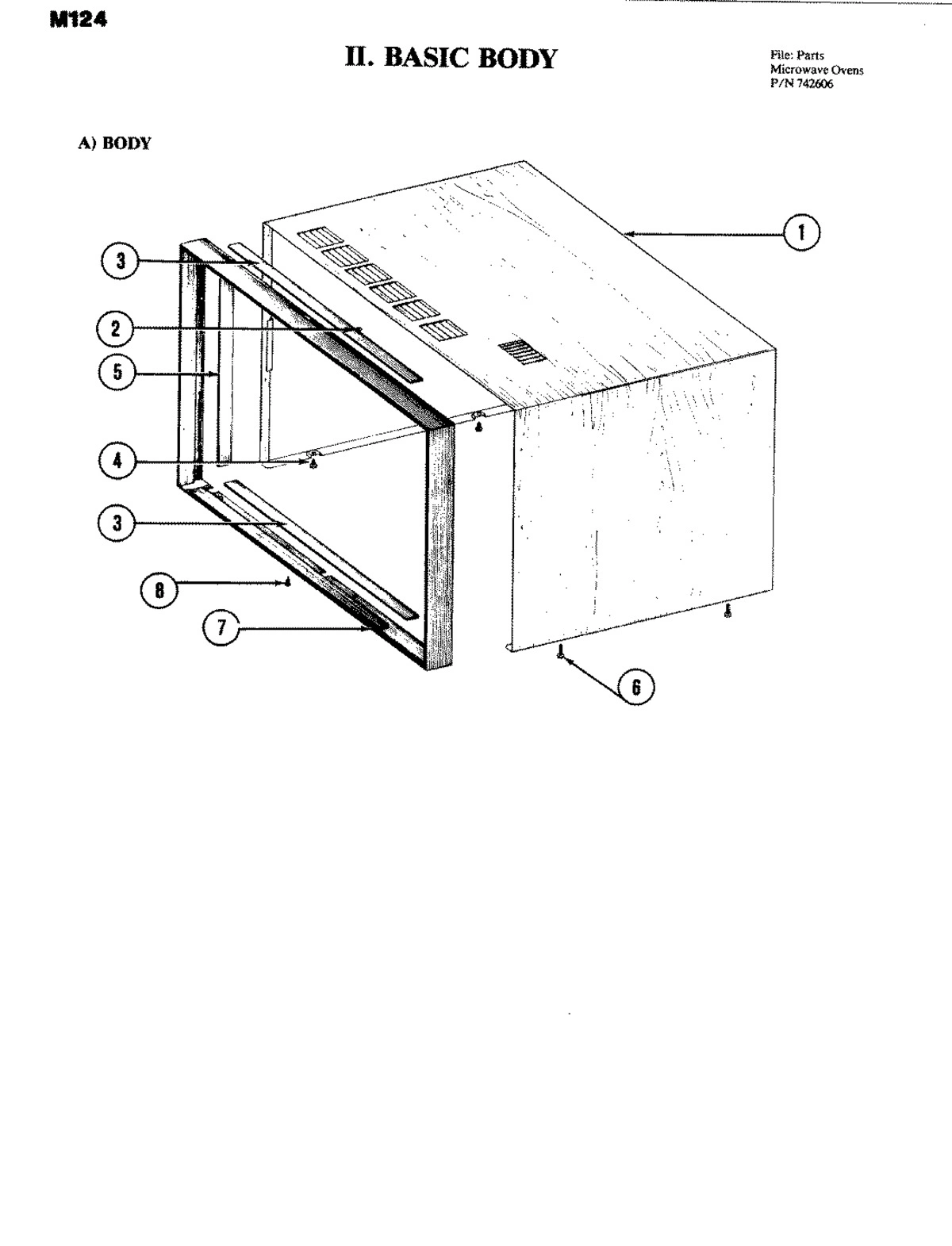

01 - BODY

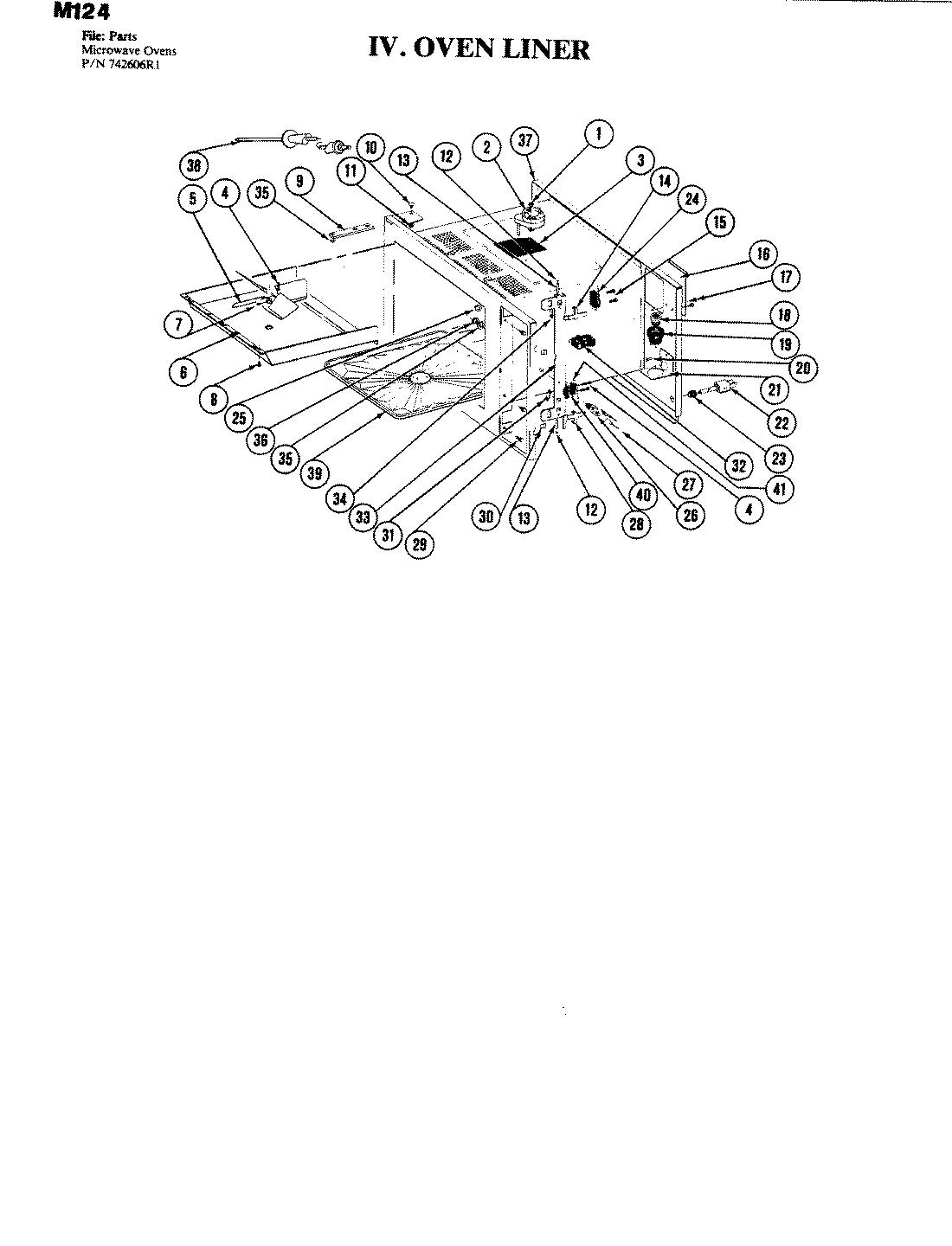

05 - LINER
Common parts from model Whirlpool M124 MICROWAVE
1
WASHER WPL 766166 Contact Us For Availability
1
CLIP WPL 766052 Contact Us For Availability
1
KNOB WPL 766165 Contact Us For Availability
1
EXHAUST BAFFLE WPL 766017 Contact Us For Availability
1
WRAP, CABINET WPL 766008 Contact Us For Availability
1
NUT 4-40 WPL 766091 Contact Us For Availability
2
POWER TRANSFORMER WPL 766167 Contact Us For Availability
2
OUTER GLASS WPL 766049 Contact Us For Availability
2
CONTROL PANEL WPL 766163 Contact Us For Availability
2
SCREW WPL 766010 Contact Us For Availability
2
STIRRER MOTOR WPL 766092 Contact Us For Availability
3
SCREW WPL 766029 Contact Us For Availability
3
HANDLE, LATCH WPL 766046 Contact Us For Availability
3
SUPPORT BRACKET WPL 766098 Contact Us For Availability
3
GASKET WPL 766011 Contact Us For Availability
3
SCREEN, MOTOR WPL 766093 Contact Us For Availability
4
WASHER WPL 766028 Contact Us For Availability
4
SCREW WPL 766036 Contact Us For Availability
4
BUTTON, START WPL 766160 Contact Us For Availability
4
RECEPTACLE, LIGHT WPL 766094 Contact Us For Availability
4
SCREW WPL 766123 Contact Us For Availability
5
NUT WPL 766120 Contact Us For Availability
5
DOOR FRAME WPL 766048 Contact Us For Availability
5
BUTTON, RESET WPL 766164 Contact Us For Availability
5
SCREW WPL 766101 Contact Us For Availability
5
GASKET WPL 766012 Contact Us For Availability
5
STIRRER BLADE WPL 766135 Contact Us For Availability
6
SCREW WPL 766121 Contact Us For Availability
6
BRACKET, CONTROL WPL 766161 Contact Us For Availability
6
COVER WPL 766086 Contact Us For Availability
7
CLAMP WPL 766099 Contact Us For Availability
7
BRACKET, DOOR HINGE WPL 766055 Contact Us For Availability
7
INTRUSION BARRIER WPL 766157 Contact Us For Availability
7
BUSHING WPL 766104 Contact Us For Availability
7
CABINET TRIM WPL 766009 Contact Us For Availability
7
SET SCREW WPL 766136 Contact Us For Availability
8
NUT WPL 766031 Contact Us For Availability
8
GASKET, TOP & BOTTOM WPL 766050 Contact Us For Availability
8
SWITCH, START & RESET WPL 766162 Contact Us For Availability
8
TRANSMOTOR WPL 766103 Contact Us For Availability
8
SCREW WPL 766014 Contact Us For Availability
8
RIVET WPL 766132 Contact Us For Availability
9
GASKET, L.H. & R.H. WPL 766051 Contact Us For Availability
9
BLADE WPL 766102 Contact Us For Availability
9
HINGE WPL 766088 Contact Us For Availability
10
BRACKET WPL 766030 Contact Us For Availability
10
DOOR ARM LINK WPL 766080 Contact Us For Availability
10
SCREW WPL 766158 Contact Us For Availability
10
BRACKET, BAFFLE WPL 766144 Contact Us For Availability
10
SCREW WPL 766090 Contact Us For Availability
11
BLOCK, TERMINAL WPL 766039 Contact Us For Availability
11
BUSHING WPL 766081 Contact Us For Availability
11
MICROPROCESSOR, BOARD WPL 766159 Contact Us For Availability
11
BLOWER HOUSING BRACKET WPL 766110 Contact Us For Availability
11
NUT SUPPORT ROD WPL 766089 Contact Us For Availability
12
SCREW WPL 766022 Contact Us For Availability
12
E RING WPL 766082 Contact Us For Availability
12
COVER, HOUSING WPL 766105 Contact Us For Availability
12
E RING WPL 766127 Contact Us For Availability
13
BUSHING WPL 766083 Contact Us For Availability
13
NUT 8-32 WPL 766076 Contact Us For Availability
13
WASHER WPL 766005 Contact Us For Availability
13
PIN WPL 766129 Contact Us For Availability
14
SCREW WPL 766150 Contact Us For Availability
14
SCREW 8-32 WPL 766079 Contact Us For Availability
14
BLOWER WHEEL WPL 766107 Contact Us For Availability
14
ACTUATOR LEVER WPL 766125 Contact Us For Availability
15
BASE ASSEMBLY WPL 766020 Contact Us For Availability
15
SPRING, UPPER WPL 766069 Contact Us For Availability
15
BLOWER HOUSING WPL 766109 Contact Us For Availability
15
SCREW WPL 766095 Contact Us For Availability
16
BUMPER CUSHION WPL 766045 Contact Us For Availability
16
E RING WPL 766108 Contact Us For Availability
16
COVER WPL 766142 Contact Us For Availability
17
DOOR ARM GUIDE WPL 766021 Contact Us For Availability
17
LINK, LOWER WPL 766074 Contact Us For Availability
17
SCREW WPL 766140 Contact Us For Availability
17
SCREW WPL 766019 Contact Us For Availability
18
INSULATOR WPL 766151 Contact Us For Availability
18
DOOR LATCH WPL 766075 Contact Us For Availability
18
FUSE WPL 766026 Contact Us For Availability
19
DOOR LATCH COVER WPL 766077 Contact Us For Availability
19
SUPPORT ROD WPL 766141 Contact Us For Availability
19
FUSE HOLDER WPL 766115 Contact Us For Availability
20
RECTIFIER WPL 766042 Contact Us For Availability
20
LINK, UPPER WPL 766067 Contact Us For Availability
20
THERMOSTAT WPL 766139 Contact Us For Availability
20
RIVET WPL 766116 Contact Us For Availability
21
SPRING, LOWER WPL 766068 Contact Us For Availability
21
MAGNETRON WPL 766097 Contact Us For Availability
21
SUPPORT WPL 766100 Contact Us For Availability
22
SCREW WPL 766143 Contact Us For Availability
22
DOOR LATCH, UPPER WPL 766065 Contact Us For Availability
22
BRACE WPL 766111 Contact Us For Availability
22
CORD, POWER WPL 766066 Contact Us For Availability
23
GLASS, INNER WPL 766062 Contact Us For Availability
23
EXHAUST DUCT WPL 766015 Contact Us For Availability
23
STRAIN RELIEF WPL 766130 Contact Us For Availability
24
POWER RELAY WPL 766037 Contact Us For Availability
24
RETAINER WPL 766064 Contact Us For Availability
24
SECONDARY DOOR SWITCH WPL 766124 Contact Us For Availability
25
CAPACITOR WPL 766033 Contact Us For Availability
25
GASKET WPL 766063 Contact Us For Availability
25
EXHAUST DUCT-UPPER WPL 766018 Contact Us For Availability
25
NUT WPL 766156 Contact Us For Availability
26
INTRUSION BARRIER PLATE WPL 766168 Contact Us For Availability
26
DOOR SEAL PLATE WPL 766061 Contact Us For Availability
26
TURN TRAY JACK WPL 766113 Contact Us For Availability
27
VARISTOR WPL 766038 Contact Us For Availability
27
DOOR SCREEN WPL 766060 Contact Us For Availability
27
MAIN WIRE HARNESS WPL 766147 Contact Us For Availability
27
MAIN WIRE HARNESS CONTROL WPL 766148 Contact Us For Availability
28
TRANSFORMER, CONTROLLER WPL 766025 Contact Us For Availability
28
DOOR CHOKE FRAME WPL 766059 Contact Us For Availability
28
ACTUATOR LEVER WPL 766126 Contact Us For Availability
29
SCREW WPL 766003 Contact Us For Availability
29
TRIAC ASSEMBLY WPL 766035 Contact Us For Availability
30
SCREW WPL 766149 Contact Us For Availability
30
DOOR LATCH GUIDE WPL 766078 Contact Us For Availability
30
BRACKET WPL 766112 Contact Us For Availability
31
PLATE SWITCH NUT WPL 766044 Contact Us For Availability
31
NUT 10-32 WPL 766058 Contact Us For Availability
32
HINGE BRACKET, UPPER WPL 766057 Contact Us For Availability
32
RECEPTACLE CONNECTOR WPL 766118 Contact Us For Availability
33
DOOR, INNER WPL 766056 Contact Us For Availability
33
BRACKET, PLATE SWITCH WPL 766128 Contact Us For Availability
34
RETAINER WPL 766053 Contact Us For Availability
34
PLATE SWITCH NUT WPL 766131 Contact Us For Availability
35
WASHER WPL 766054 Contact Us For Availability
35
PIVOT PIN WPL 766073 Contact Us For Availability
36
PIVOT BUSHING WPL 766070 Contact Us For Availability
36
NUT WPL 766134 Contact Us For Availability
37
LINK PIVOT WPL 766072 Contact Us For Availability
37
NOT REQUIRED PART OR SEE NOTE OVEN CAVITY NOT WPL W10124350 Contact Us For Availability
38
BEARING WPL 766071 Contact Us For Availability
38
PROBE, TEMPERATURE WPL 766154 Contact Us For Availability
39
COOKING TRAY WPL 766085 Contact Us For Availability
40
DOOR LIGHT SWITCH WPL 766023 Contact Us For Availability
41
SAFETY SWITCH WPL 766024 Contact Us For Availability
× ![]()
