Model LG LZ-H080GBA2.ENWALEU – Common Parts & Diagrams

Common parts from model LG LZ-H080GBA2.ENWALEU

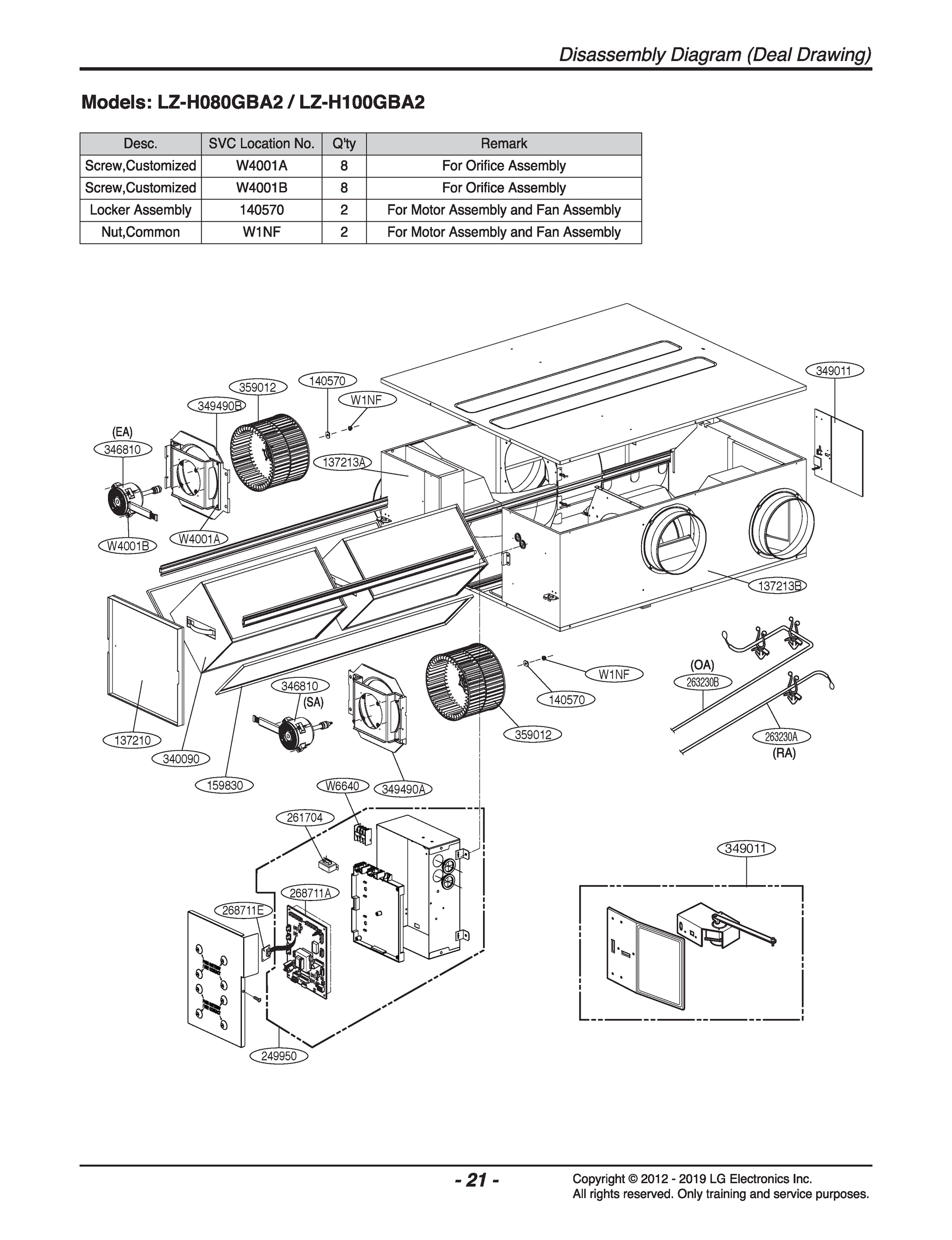

DIAGRAM 1

Print

• This Diagram
• All Diagrams

137210

Panel Assembly,Front Backorder LGE 3721A20196A View Details $64.69

View on Model

137213A

Panel Assembly,Side LGE 3721A20195E Contact Us For Availability

View on Model

137213B

Panel Assembly,Side LGE 3721A20194Q Contact Us For Availability

View on Model

140570

4A01405C LG Assembly Locker Backorder LGE 4A01405C View Details $3.21

View on Model

159830

Filter Assembly,Air Cleaner Backorder LGE 5231A30003B View Details $41.90

View on Model

249950

Case Assembly,Control LGE ABQ30986513 Contact Us For Availability

View on Model

261704

Transformer,Reactor Backorder LGE 5874FR2112G View Details $32.26

View on Model

263230A

Thermistor,NTC LGE 6323A30004J Contact Us For Availability

View on Model

263230A

Thermistor Assembly,NTC LGE EBG61106811 Contact Us For Availability

View on Model

263230B

THERMISTOR ASSEMBLY,NTC Backorder LGE EBG61106812 View Details $10.15

View on Model

263230B

Thermistor,NTC LGE 6323A30004K Contact Us For Availability

View on Model

268711A

PCB Assembly,Main Backorder LGE EBR60786404 View Details $208.42

View on Model

268711E

PCB Assembly,Sub LGE EBR61146309 Contact Us For Availability

View on Model

340090

Exchanger Assembly Backorder LGE ADM34380902 View Details $308.93

View on Model

346810

Motor Assembly,DC,Indoor LGE 4681A20169C Contact Us For Availability

View on Model

349011

DAMPER ASSEMBLY Backorder LGE 4901A20002A View Details $79.45

View on Model

349490A

Orifice Assembly LGE 4949A20006H Contact Us For Availability

View on Model

349490B

Orifice Assembly LGE 4949A20006G Contact Us For Availability

View on Model

359012

FAN ASSEMBLY,BLOWER Backorder LGE 5901A30005B View Details $41.90

View on Model

W1NF

4H00947C LG Air Conditioner Common Nut Backorder LGE 4H00947C View Details $3.64

View on Model

W4001A

Screw,Customized LGE 4A00637D Contact Us For Availability

View on Model

W4001B

4H00006A LG Air Conditioner Customized Screw Backorder LGE 4H00006A View Details $3.64

View on Model

W6640

Connector,Terminal Block Backorder LGE 6640A90001U View Details $7.41

View on Model

×
