Model LG LXC143BRMK1 TTW – Common Parts & Diagrams

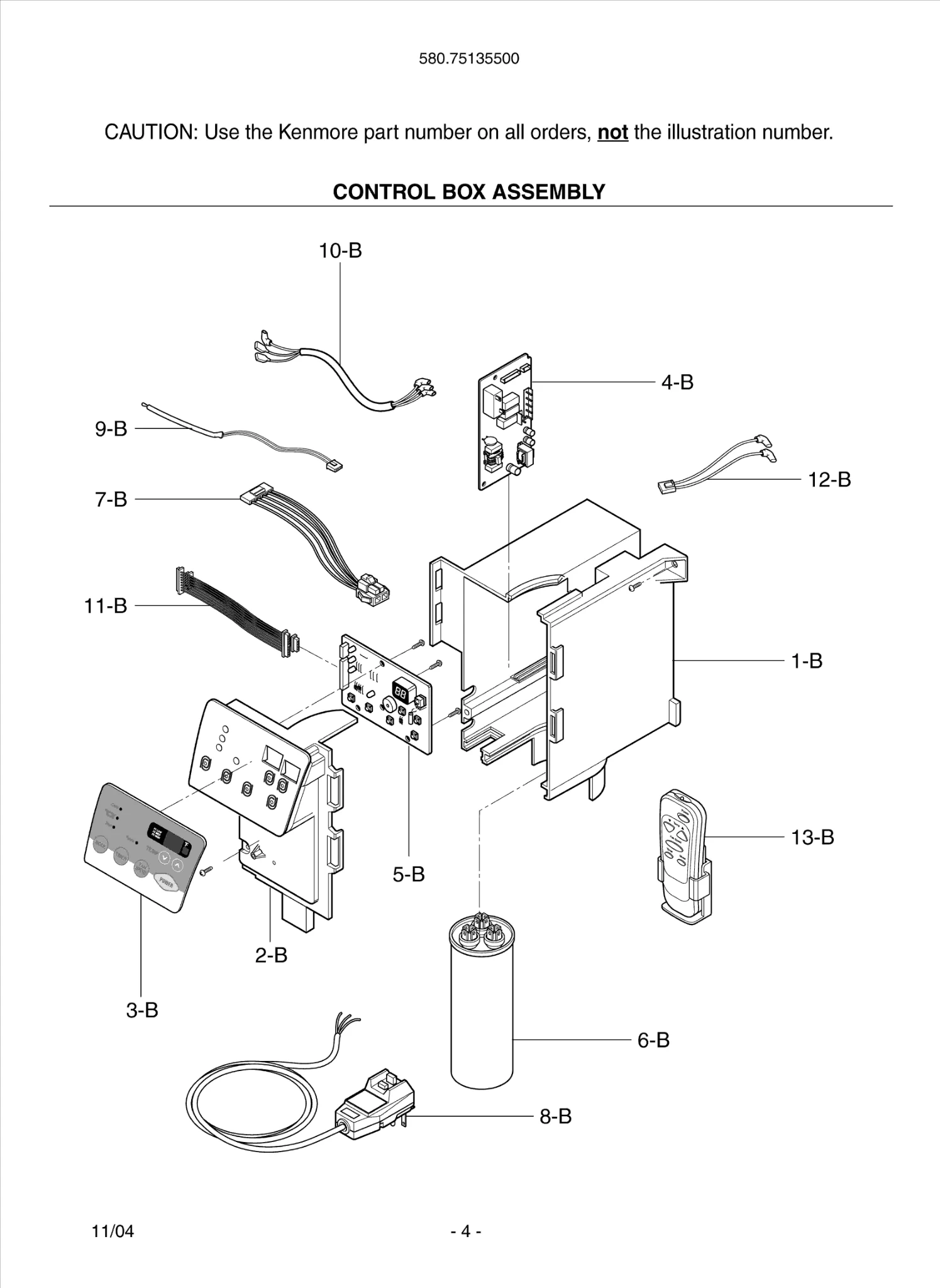

1-B
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20080A Contact Us For Availability
View on Model
1-C
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071G Contact Us For Availability
View on Model

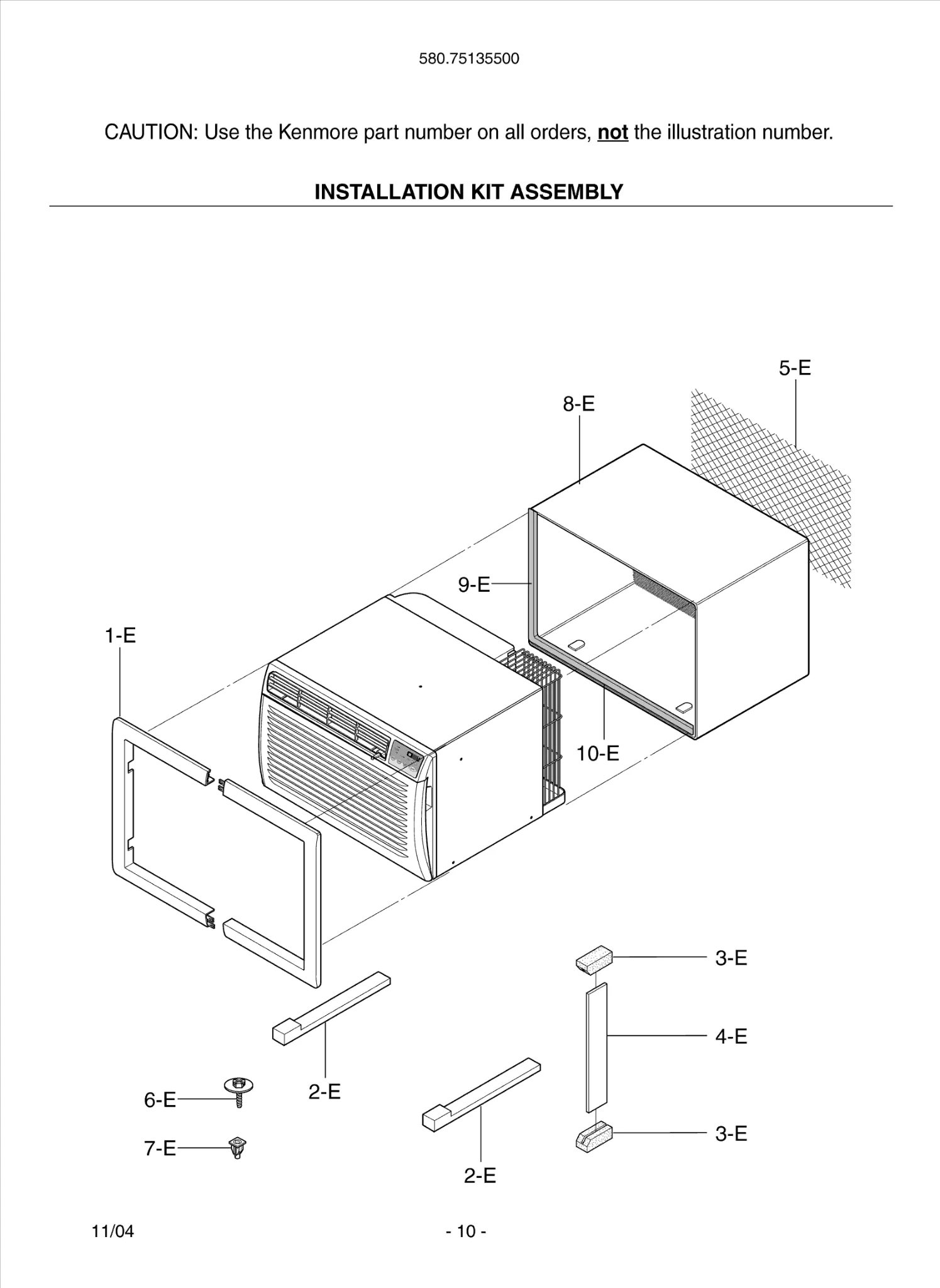

1-E
FRAME
FRAME LGE 3210A20075A Contact Us For Availability
View on Model
2-B
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20251A Contact Us For Availability
View on Model

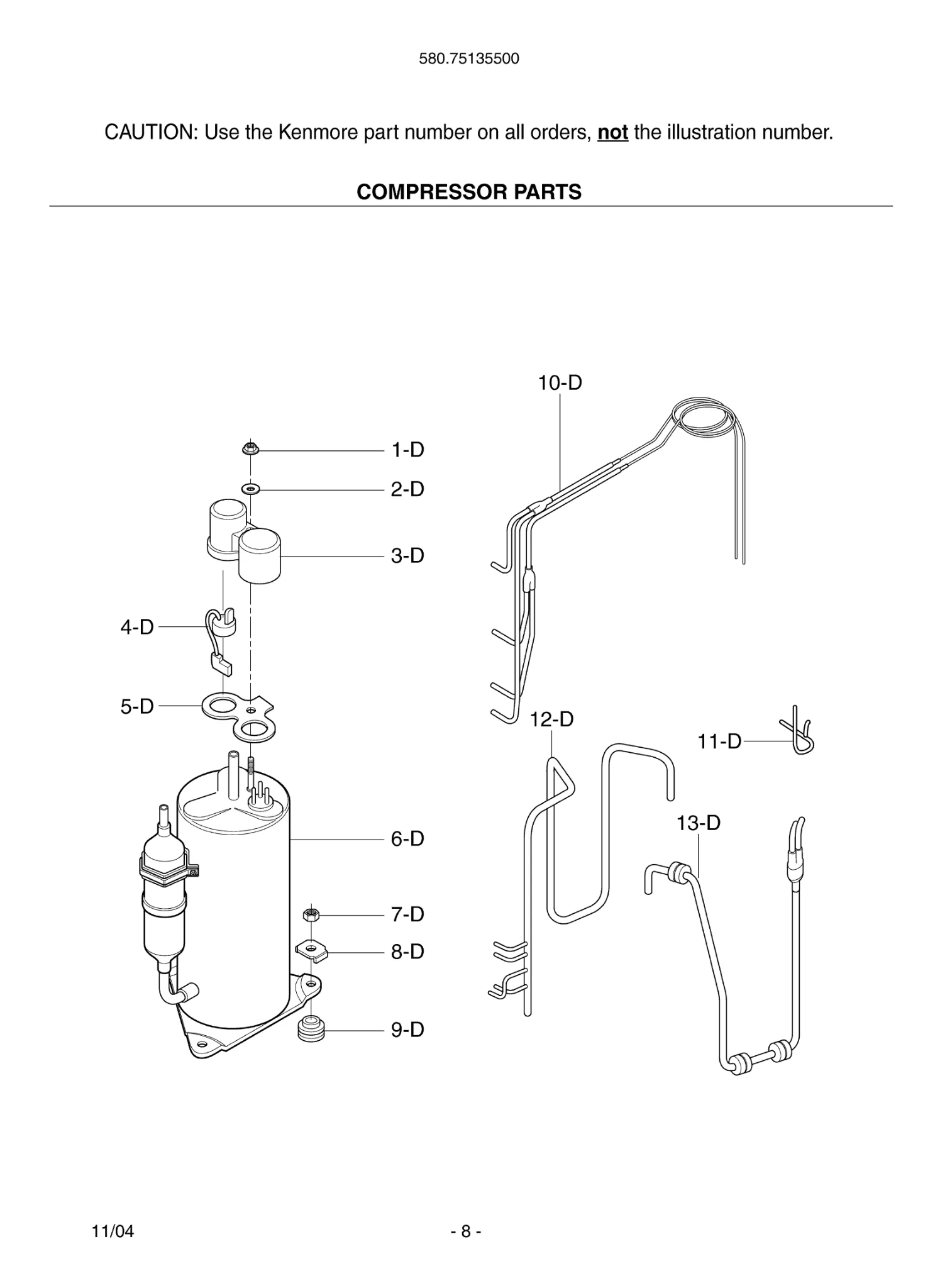

2-D
GASKET-NUT <GA-0711HCR/0712HCM
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
View on Model
3-B
ESCUTCHEON
ESCUTCHEON LGE 3831A10037A Contact Us For Availability
View on Model
3-D
COVER,TERMINAL
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
View on Model
3-E
INSULATION,PE
INSULATION,PE LGE 5410A20069A Contact Us For Availability
View on Model
4-E
SHEET (MECH),VINYL
SHEET (MECH),VINYL LGE 3858A20001A Contact Us For Availability
View on Model
5-B
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20448A Contact Us For Availability
View on Model
5-C
GRILLE,REAR
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
View on Model
6-B
CAPACITOR SH
CAPACITOR SH LGE 6120AR2194B Contact Us For Availability
View on Model
6-C
GRILLE,REAR
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
View on Model
6-D
COMPRESSOR SET
COMPRESSOR SET LGE 2520UMCK2CA Contact Us For Availability
View on Model
7-C
BASE ASSEMBLY,SINGLE
BASE ASSEMBLY,SINGLE LGE 3041A10046K Contact Us For Availability
View on Model
8-B
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048J Contact Us For Availability
View on Model
8-E
CABINET ASSEMBLY,SLEEVE
CABINET ASSEMBLY,SLEEVE LGE 3091A10028D Contact Us For Availability
View on Model
9-A
LABEL,ENERGY
LABEL,ENERGY LGE 3850A27070A Contact Us For Availability
View on Model
10-B
CONNECTOR ASSEMBLY
CONNECTOR ASSEMBLY LGE 6631A30027A Contact Us For Availability
View on Model
10-C
FAN "WC" CHASSIS LW-C1211/1011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
View on Model
10-D
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024B Contact Us For Availability
View on Model
10-E
INSULATION,PU
INSULATION,PU LGE 5410A20046Q Contact Us For Availability
View on Model
11-C
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20183H Contact Us For Availability
View on Model
12-C
AIR GUIDE
AIR GUIDE LGE 5238A20033A Contact Us For Availability
View on Model
13-B
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A90028T Contact Us For Availability
View on Model
13-D
TUBE ASSEMBLY,DISCHARGE SINGLE
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A21421B Contact Us For Availability
View on Model
