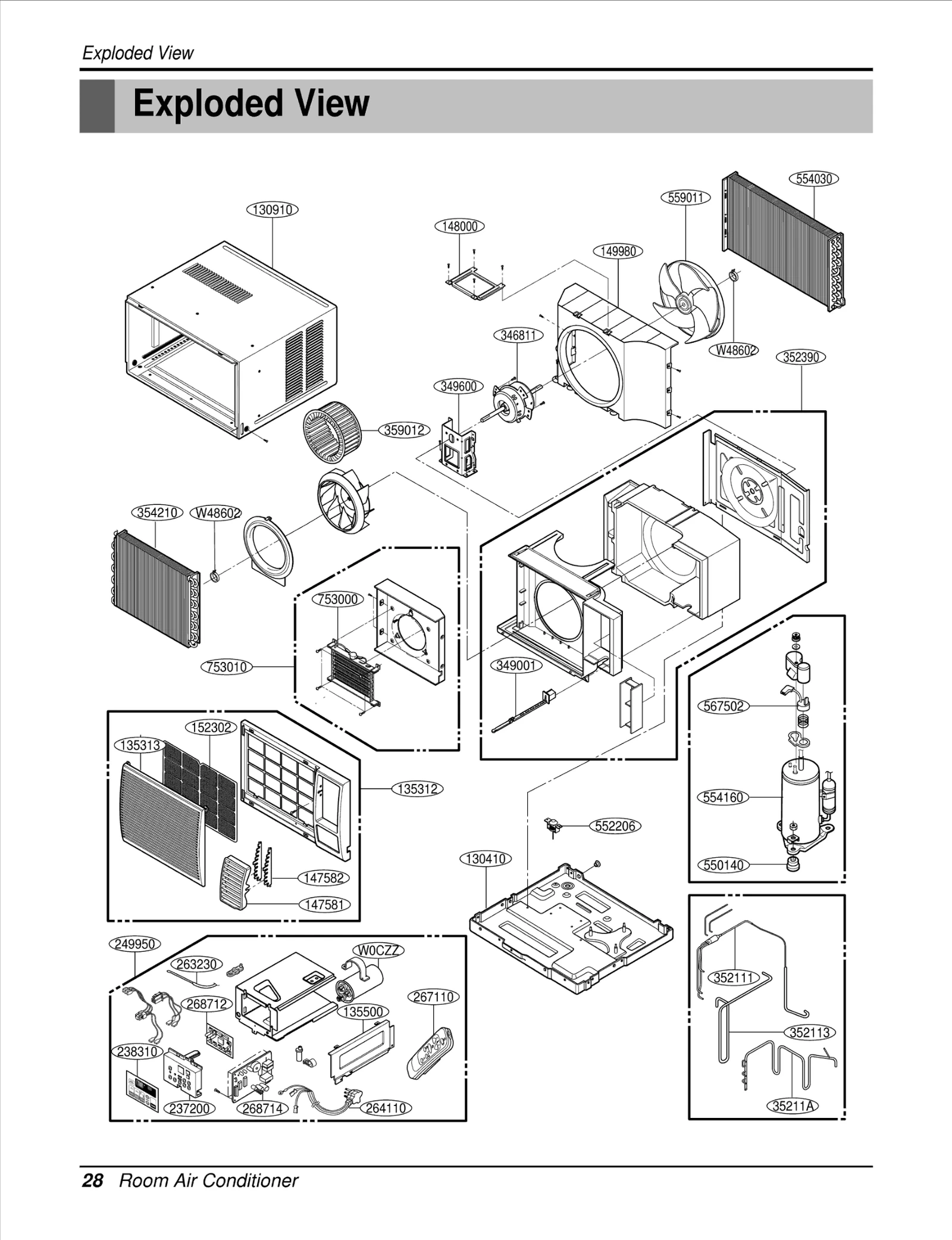

Model LG LWHD7000HR WINDOW – Common Parts & Diagrams

130910
CABINET ASSEMBLY,SINGLE
CABINET ASSEMBLY,SINGLE LGE 3091A10069B Contact Us For Availability
View on Model
135312
GRILLE ASSEMBLY,FRONT(SINGLE)
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A10128C Contact Us For Availability
View on Model
135313
GRILLE,INLET
GRILLE,INLET LGE 3530A10027A Contact Us For Availability
View on Model
147581
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A20002D Contact Us For Availability
View on Model
147582
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A30008A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10001A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20053A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20124A Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20392T Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048F Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,MAIN(DC)
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20189S Contact Us For Availability
View on Model
346811
MOTOR ASSY,SINGLE
MOTOR ASSY,SINGLE LGE 4681A20027A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960A20002A Contact Us For Availability
View on Model
352111
Tube,Connector
Tube,Connector LGE 5210AR3400A Contact Us For Availability
View on Model
352113
Tube Assembly,Discharge
Tube Assembly,Discharge LGE 5211A24036A Contact Us For Availability
View on Model
352390
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A30002N Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY
EVAPORATOR ASSY LGE 5421A20036C Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403A20024B Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE 2520UCDA026 Contact Us For Availability
View on Model
559011
FAN ASSEMBLY - AXIAL
FAN ASSEMBLY - AXIAL LGE 5900AR1167B Contact Us For Availability
View on Model
753010
HEATER ASSEMBLY,ELECTRIC
HEATER ASSEMBLY,ELECTRIC LGE 5301A20013A Contact Us For Availability
View on Model
