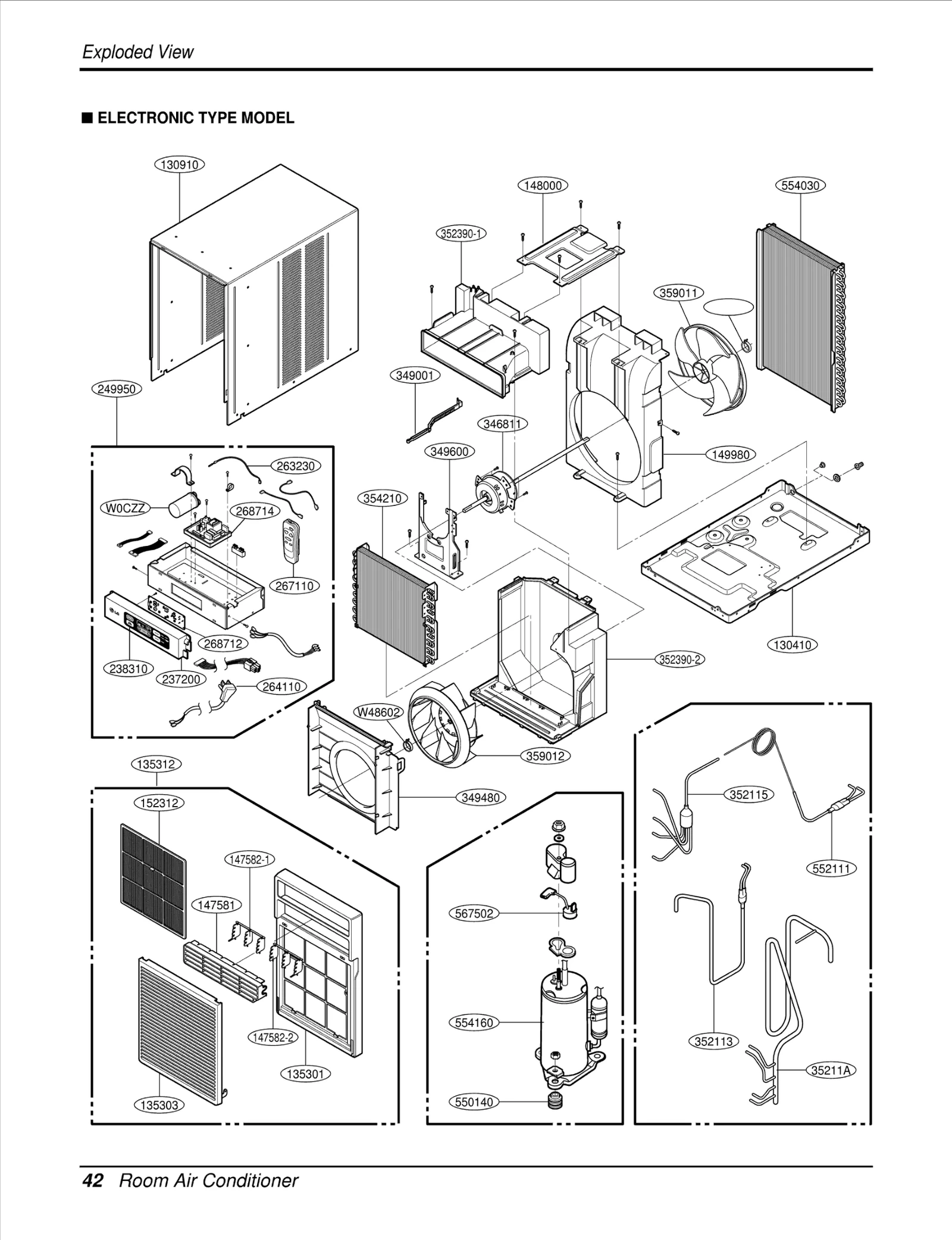

Model LG LWHD1000CR SLIDER CASEMENT – Common Parts & Diagrams

135301
GRILLE,FRONT
GRILLE,FRONT LGE 3530A20055A Contact Us For Availability
View on Model
135303
GRILLE,INLET
GRILLE,INLET LGE 3530A20056A Contact Us For Availability
View on Model
135312
GRILLE ASSEMBLY,FRONT(SINGLE)
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A20123A Contact Us For Availability
View on Model
147581
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A20032A Contact Us For Availability
View on Model
147582-1
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A20017A Contact Us For Availability
View on Model
147582-2
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A20017B Contact Us For Availability
View on Model
149980
Shroud
Shroud LGE 4998A10017A Contact Us For Availability
View on Model
152312
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20012A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20259A Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A20083B Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20370M Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20048W Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A01001C Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20442A Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20069C Contact Us For Availability
View on Model
349001
DAMPER,VENTILATION
DAMPER,VENTILATION LGE 4900A20006A Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A20012A Contact Us For Availability
View on Model
352115
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20575B Contact Us For Availability
View on Model
352390-1
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A20007A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20115A Contact Us For Availability
View on Model
359011
FAN,AXIAL
FAN,AXIAL LGE 5900A20026A Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A20019A Contact Us For Availability
View on Model
552111
TUBE ASSEMBLY,CAPILLARY
TUBE ASSEMBLY,CAPILLARY LGE 5211A20557H Contact Us For Availability
View on Model
554030
CONDENSER ASSEMBLY,FIRST
CONDENSER ASSEMBLY,FIRST LGE 5403A20082B Contact Us For Availability
View on Model
554160
COMPRESSOR SET,CHINA
COMPRESSOR SET,CHINA LGE 2520UCDK029 Contact Us For Availability
View on Model
W0CZZ
CAPACITOR
CAPACITOR LGE 6120AR2194P Contact Us For Availability
View on Model
