LG LWD3081ST Parts List

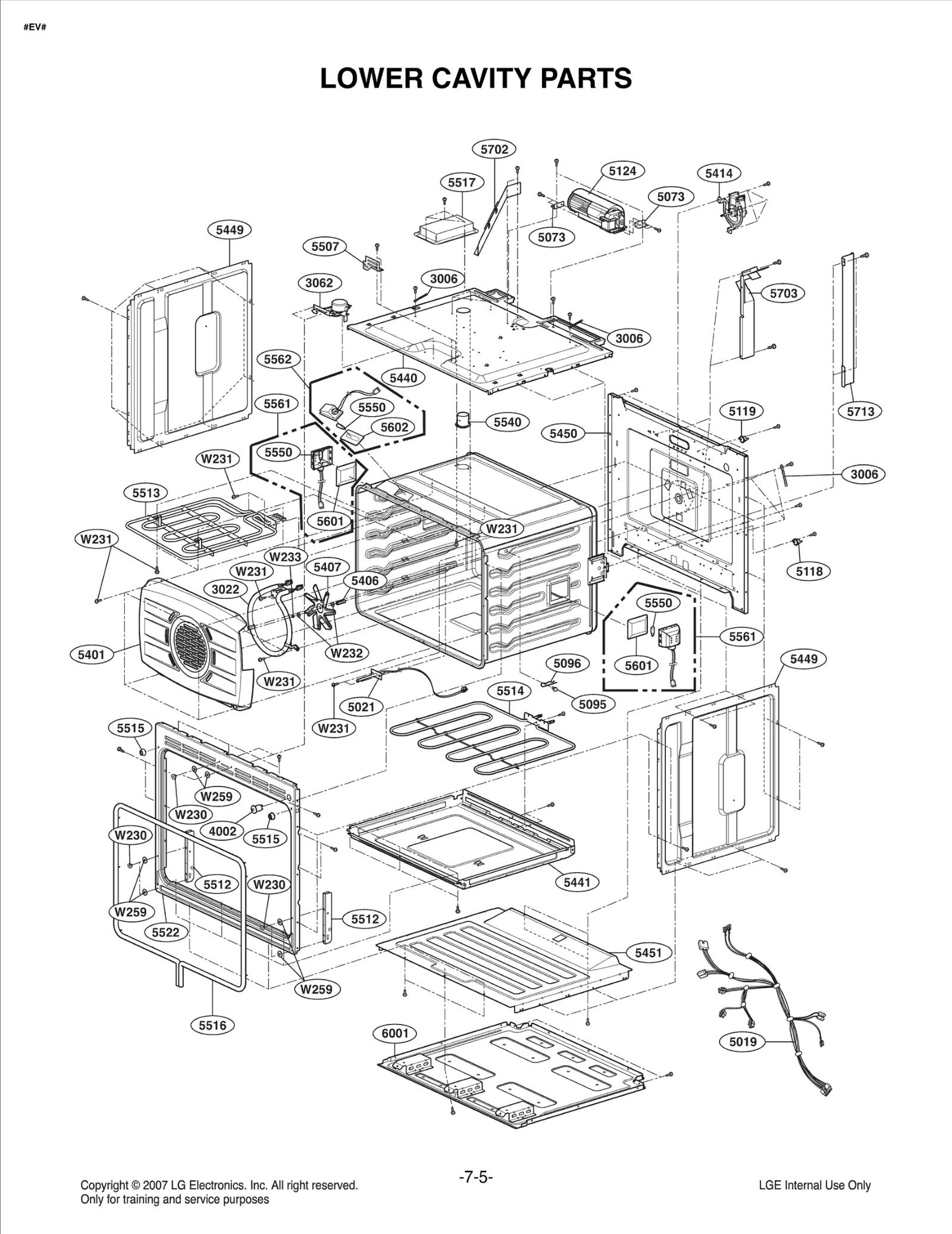

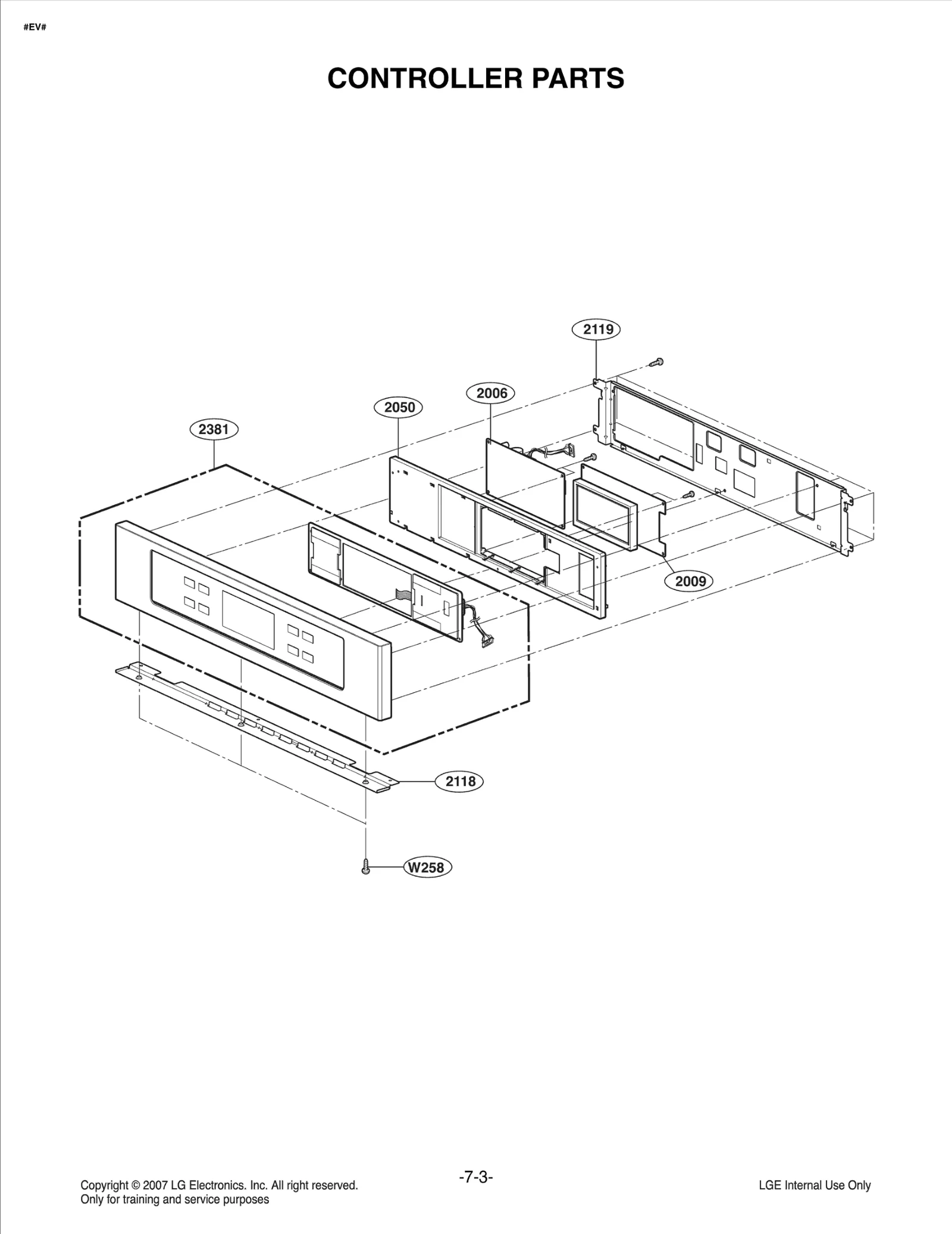

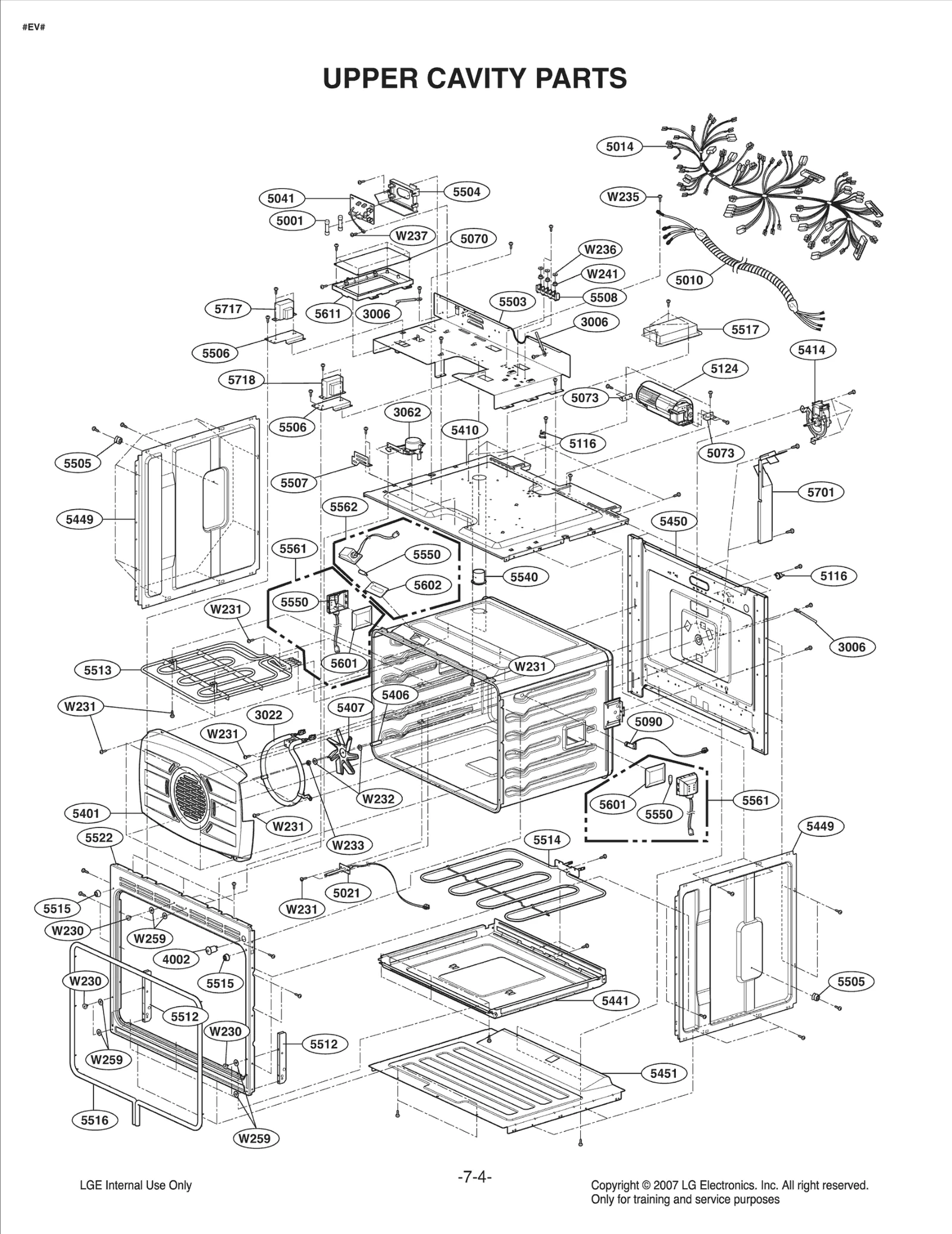

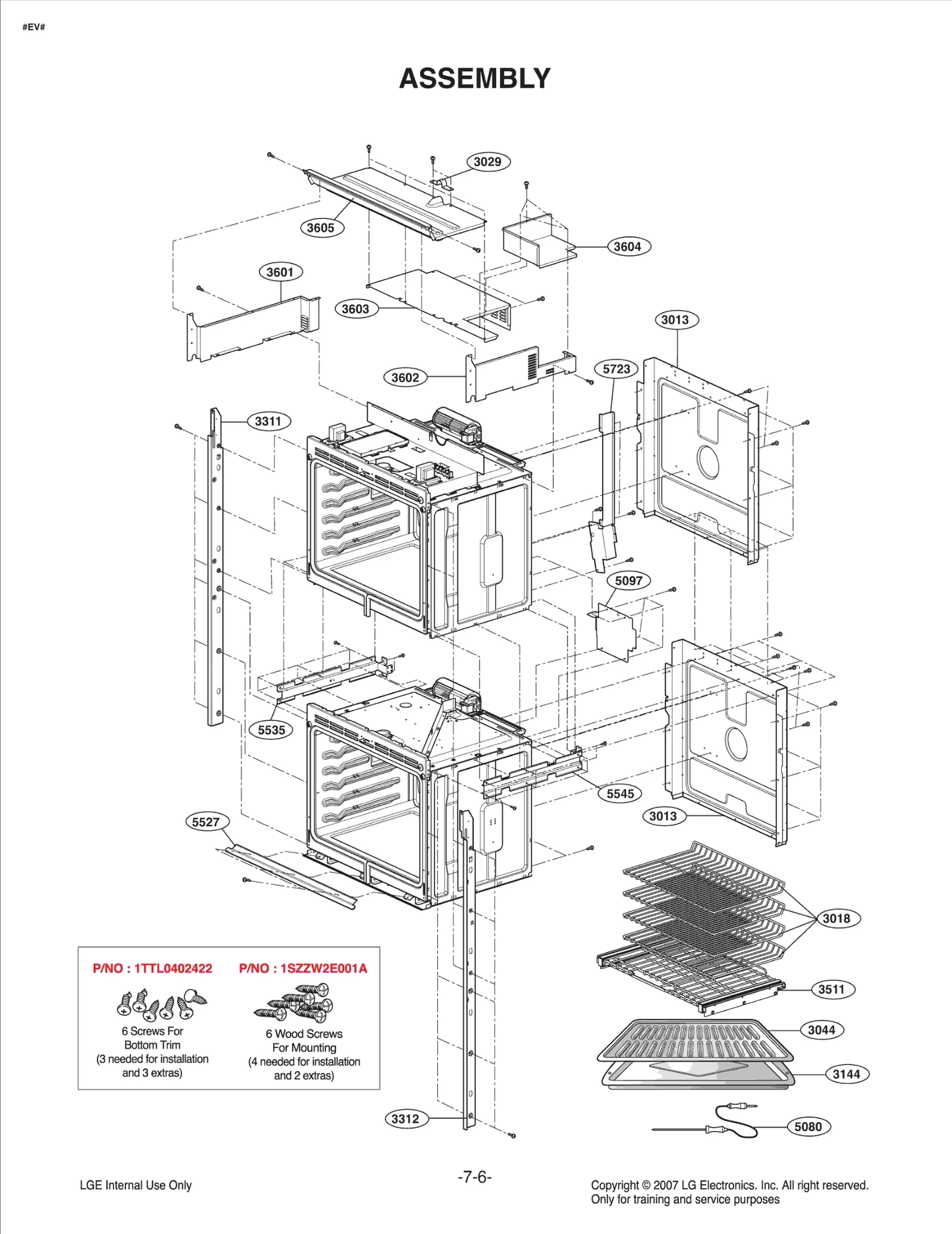

Model LG LWD3081ST – Common Parts & Diagrams

Common parts from model LG LWD3081ST

ADV34868803 LG Door Frame Assembly

ADV34868803 LG Door Frame Assembly Backorder LGE ADV34868803 $273.31

4890W1N005A LG Range Oven Door Inner Window G

4890W1N005A LG Range Oven Door Inner Window G Backorder LGE 4890W1N005A $155.06

MEB62494913 LG Range Door Handle

MEB62494913 LG Range Door Handle Backorder LGE MEB62494913 $115.42

Cover Assembly,Front

Cover Assembly,Front LGE ACQ56085401 Contact Us For Availability

5006841001A LG Protector Cap

5006841001A LG Protector Cap Backorder LGE 5006841001A $6.53

MCK40417601 LG Cover Inner

MCK40417601 LG Cover Inner Backorder LGE MCK40417601 $77.91

MCK47161201 LG Inner Cover

MCK47161201 LG Inner Cover Backorder LGE MCK47161201 $60.00

MJH55321601 LG Supporter

MJH55321601 LG Supporter Backorder LGE MJH55321601 $10.38

MAZ55266201 LG Mounting Bracket

MAZ55266201 LG Mounting Bracket Backorder LGE MAZ55266201 $32.69

AEH54055503 LG Hinge Assembly

AEH54055503 LG Hinge Assembly Backorder LGE AEH54055503 $93.34

PCB Assembly,Main

PCB Assembly,Main LGE EBR43296801 No Longer Available

4B72510F LG Wire Holder

4B72510F LG Wire Holder Backorder LGE 4B72510F $6.53

MAZ64603202 LG Hinge Bracket

MAZ64603202 LG Hinge Bracket Backorder LGE MAZ64603202 $25.49

MHL49207701 LG Shelf

MHL49207701 LG Shelf Backorder LGE MHL49207701 $94.50

Heater Assembly

Heater Assembly LGE AEG59306301 Contact Us For Availability

MAZ47162501 LG Bracket Mount

MAZ47162501 LG Bracket Mount Backorder LGE MAZ47162501 $10.38

MJS61849903 LG Metal Tray

MJS61849903 LG Metal Tray Backorder LGE MJS61849903 $94.17

EAU43957801 LG Wall Oven Synchronous AC Motor

EAU43957801 LG Wall Oven Synchronous AC Motor Backorder LGE EAU43957801 $97.77

MJS61850003 LG Metal Tray

MJS61850003 LG Metal Tray Backorder LGE MJS61850003 $105.02

MDX40418802 LG Grille

MDX40418802 LG Grille Backorder LGE MDX40418802 $87.62

MDX40418602 LG Grille

MDX40418602 LG Grille Backorder LGE MDX40418602 $87.62

AHT54382601 LG Shelf Assembly

AHT54382601 LG Shelf Assembly Backorder LGE AHT54382601 $365.04

MCK40423001 LG Cover Top

MCK40423001 LG Cover Top Backorder LGE MCK40423001 $47.84

MCK41754101 LG Top Cover

MCK41754101 LG Top Cover Backorder LGE MCK41754101 $47.84

MCK41753701 LG Cover Top

MCK41753701 LG Cover Top Backorder LGE MCK41753701 $68.33

MCK41754301 LG Top Cover

MCK41754301 LG Top Cover Backorder LGE MCK41754301 $32.69

MCK40423201 LG Top Cover

MCK40423201 LG Top Cover Backorder LGE MCK40423201 $68.33

6600R000082 LG Switch Tact

6600R000082 LG Switch Tact Backorder LGE 6600R000082 $41.60

3B74133K LG Microwave Oven Time Delay Fuse

3B74133K LG Microwave Oven Time Delay Fuse Backorder LGE 3B74133K $5.06

EAD51439104 LG Single Harness

EAD51439104 LG Single Harness Backorder LGE EAD51439104 $209.67

Harness,Single

Harness,Single LGE EAD51438703 Contact Us For Availability

EBG61305805 LG Oven Range Temperature Thermis

EBG61305805 LG Oven Range Temperature Thermis In Stock LGE EBG61305805 $72.96

Filter Assembly

Filter Assembly LGE EAM62952701 Contact Us For Availability

PCB Assembly,Sub

PCB Assembly,Sub LGE EBR43297001 Contact Us For Availability

EBD51431001 LG Range Oven Meat Probe Temperat

EBD51431001 LG Range Oven Meat Probe Temperat Backorder LGE EBD51431001 $72.79

EAG43128001 LG DC Power Jack

EAG43128001 LG DC Power Jack Backorder LGE EAG43128001 $87.62

MCK40416601 LG Vent Cover

MCK40416601 LG Vent Cover Backorder LGE MCK40416601 $25.49

EBG51439303 LG Range Oven Thermostat

EBG51439303 LG Range Oven Thermostat In Stock LGE EBG51439303 $35.96

6930W1A003D LG Microwave Oven High Limit Ther

6930W1A003D LG Microwave Oven High Limit Ther In Stock LGE 6930W1A003D $7.18

EBG51439304 LG Oven Range Thermostat

EBG51439304 LG Oven Range Thermostat Backorder LGE EBG51439304 $25.49

5901W1E002G LG Assembly Fan

5901W1E002G LG Assembly Fan Backorder LGE 5901W1E002G $185.63

4B73725E LG Ring

4B73725E LG Ring Backorder LGE 4B73725E $6.53

5900W1N004B LG Range Oven Convection Fan Blad

5900W1N004B LG Range Oven Convection Fan Blad Backorder LGE 5900W1N004B $25.49

4681W1N002B LG Oven Motor Housing

4681W1N002B LG Oven Motor Housing Backorder LGE 4681W1N002B $87.16

4980W1N013A LG Supporter

4980W1N013A LG Supporter Backorder LGE 4980W1N013A $6.53

6640000045A LG Range Terminal Block Connector

6640000045A LG Range Terminal Block Connector Backorder LGE 6640000045A $25.49

MEE41716802 LG Sheath Heater

MEE41716802 LG Sheath Heater Backorder LGE MEE41716802 $145.57

MEE41716502 LG Oven Range/Wall Heater Sheath

MEE41716502 LG Oven Range/Wall Heater Sheath Backorder LGE MEE41716502 $155.06

MFZ40418402 LG Gasket Packing

MFZ40418402 LG Gasket Packing Backorder LGE MFZ40418402 $97.77

MJZ41753802 LG Wall Oven Vent

MJZ41753802 LG Wall Oven Vent In Stock LGE MJZ41753802 $60.00

MJH40420202 LG Supporter

MJH40420202 LG Supporter Backorder LGE MJH40420202 $32.69

MJH40420201 LG Supporter

MJH40420201 LG Supporter Backorder LGE MJH40420201 $32.69

6912W3H001F LG Wall Oven Halogen Lamp

6912W3H001F LG Wall Oven Halogen Lamp Backorder LGE 6912W3H001F $60.00

EAQ43128702 LG Halogen Lamp Wall Oven

EAQ43128702 LG Halogen Lamp Wall Oven Backorder LGE EAQ43128702 $97.77

MJH41754001 LG Range PCB Supporter

MJH41754001 LG Range PCB Supporter Backorder LGE MJH41754001 $32.69

6170W1G037A LG Oven Microwave Power Transform

6170W1G037A LG Oven Microwave Power Transform Backorder LGE 6170W1G037A $97.69

EBJ42409101 LG Oven Range/Wall Power Transfor

EBJ42409101 LG Oven Range/Wall Power Transfor Backorder LGE EBJ42409101 $115.42

MAL41753601 LG Barrier

MAL41753601 LG Barrier Backorder LGE MAL41753601 $34.86

1WZZW3Z003B LG Washer Customized

1WZZW3Z003B LG Washer Customized Backorder LGE 1WZZW3Z003B $6.53

1WZZ81N001A LG Customized Electric Range Oven

1WZZ81N001A LG Customized Electric Range Oven Backorder LGE 1WZZ81N001A $6.53

1NHB0500032 LG Electric Range Oven Hexagon Nu

1NHB0500032 LG Electric Range Oven Hexagon Nu Backorder LGE 1NHB0500032 $6.53

1SBF0402618 LG Taptite Screw

1SBF0402618 LG Taptite Screw Backorder LGE 1SBF0402618 $6.53

1SZZW5N001F LG Refrigerator Screw Drawing

1SZZW5N001F LG Refrigerator Screw Drawing Backorder LGE 1SZZW5N001F $6.53

1SZZW5N001D LG Customized Screw

1SZZW5N001D LG Customized Screw Backorder LGE 1SZZW5N001D $6.53
