Model LG LWC101VDPA1 WINDOW – Common Parts & Diagrams
Diagram 0

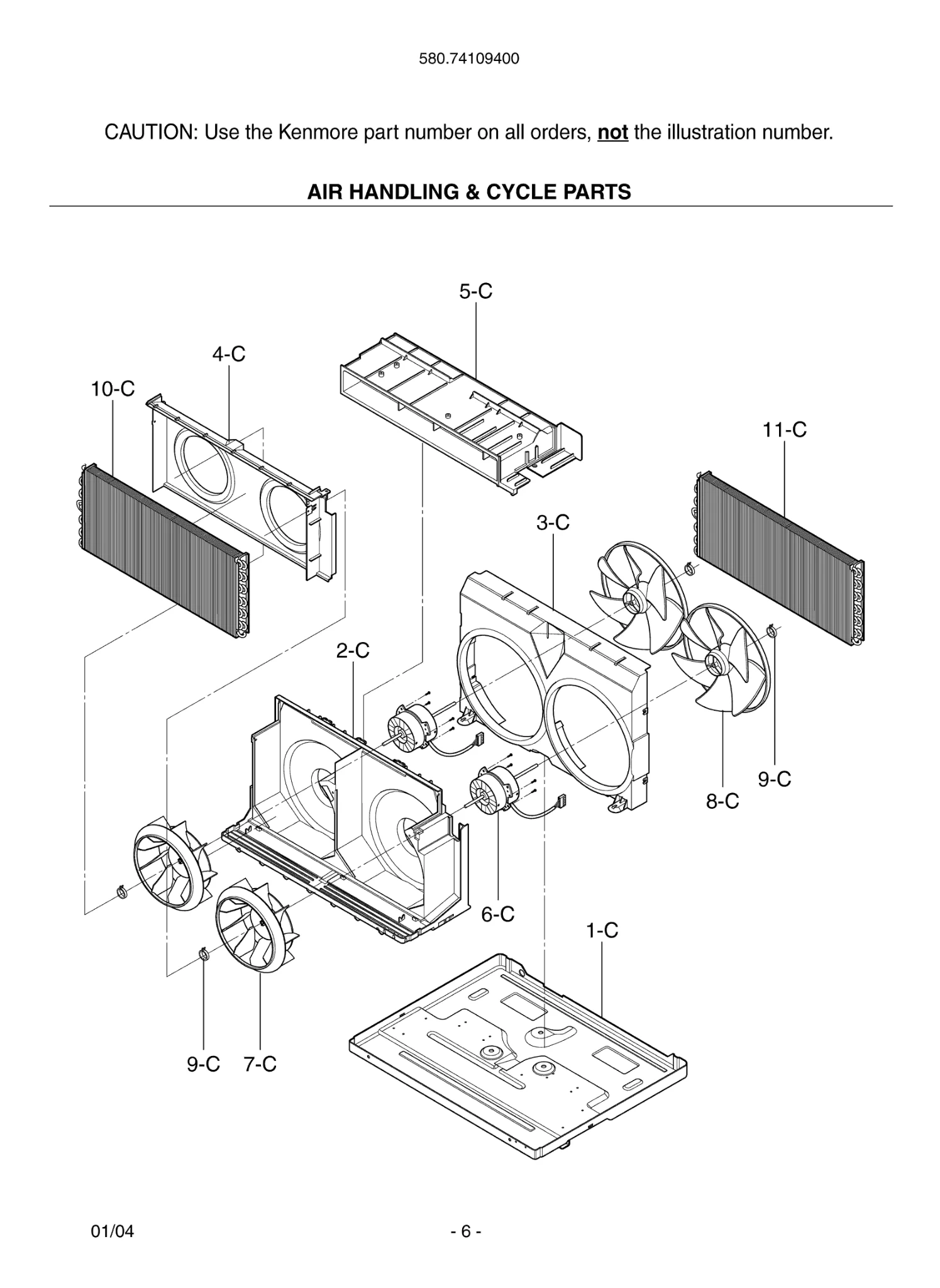

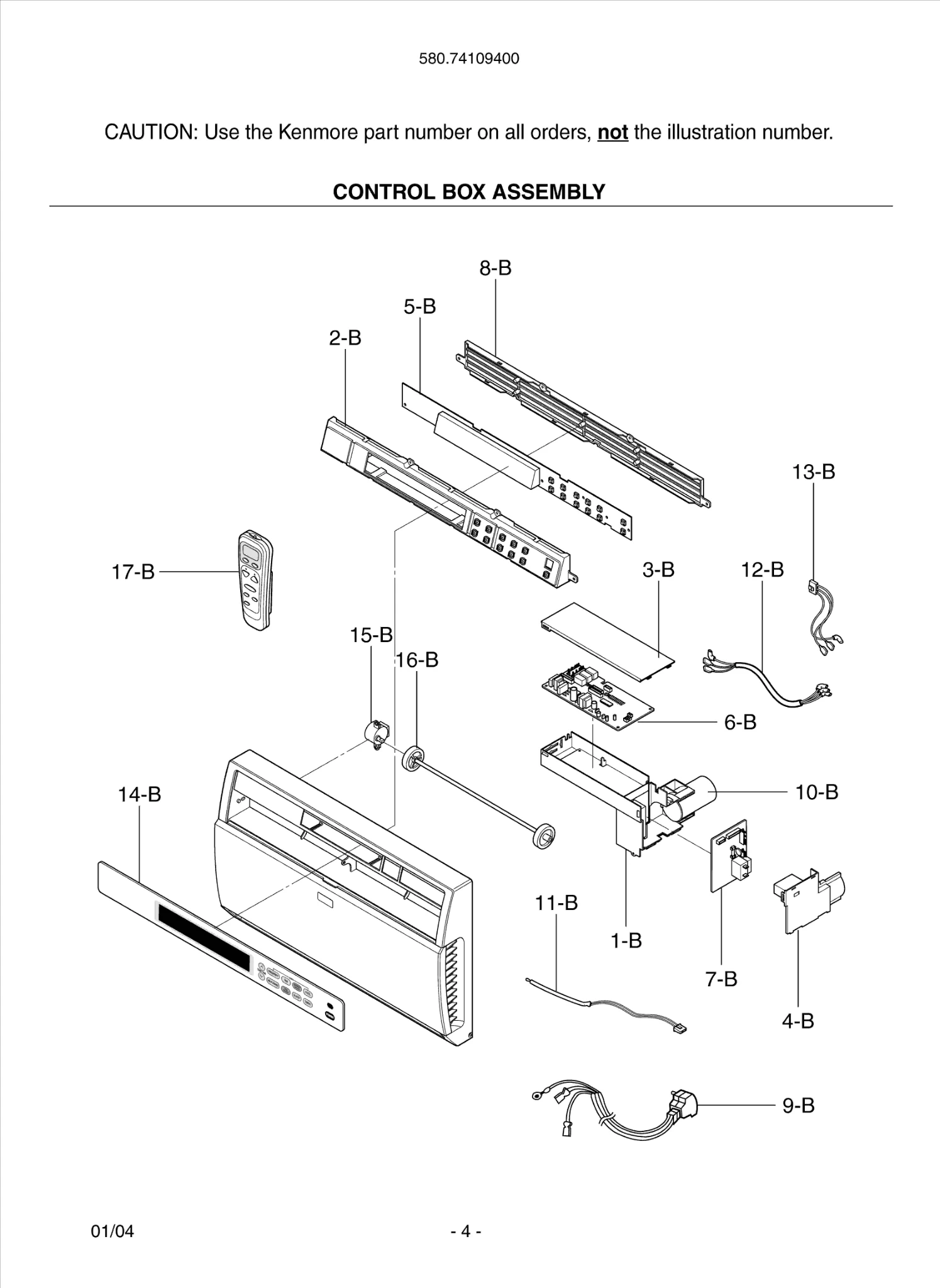

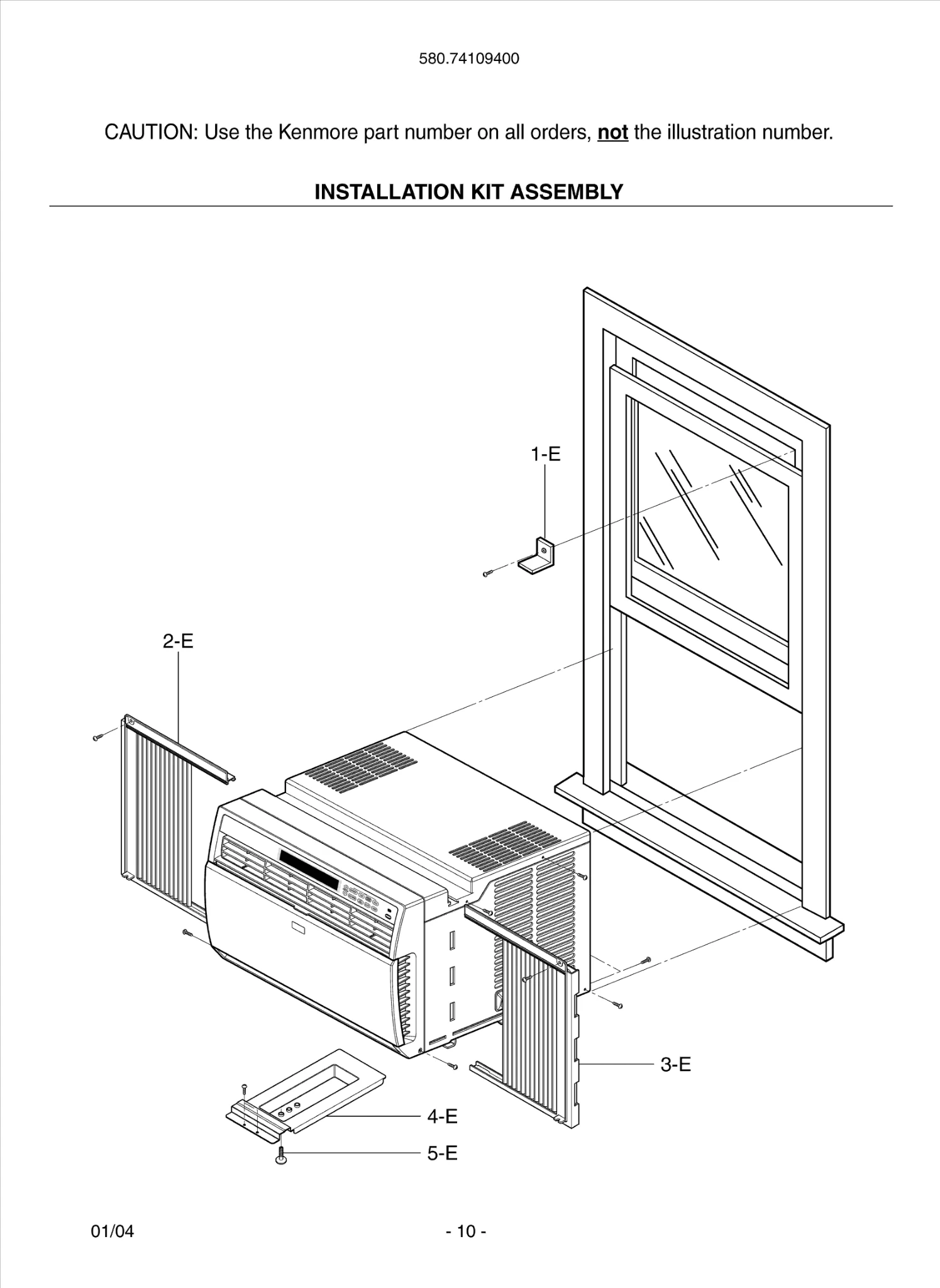

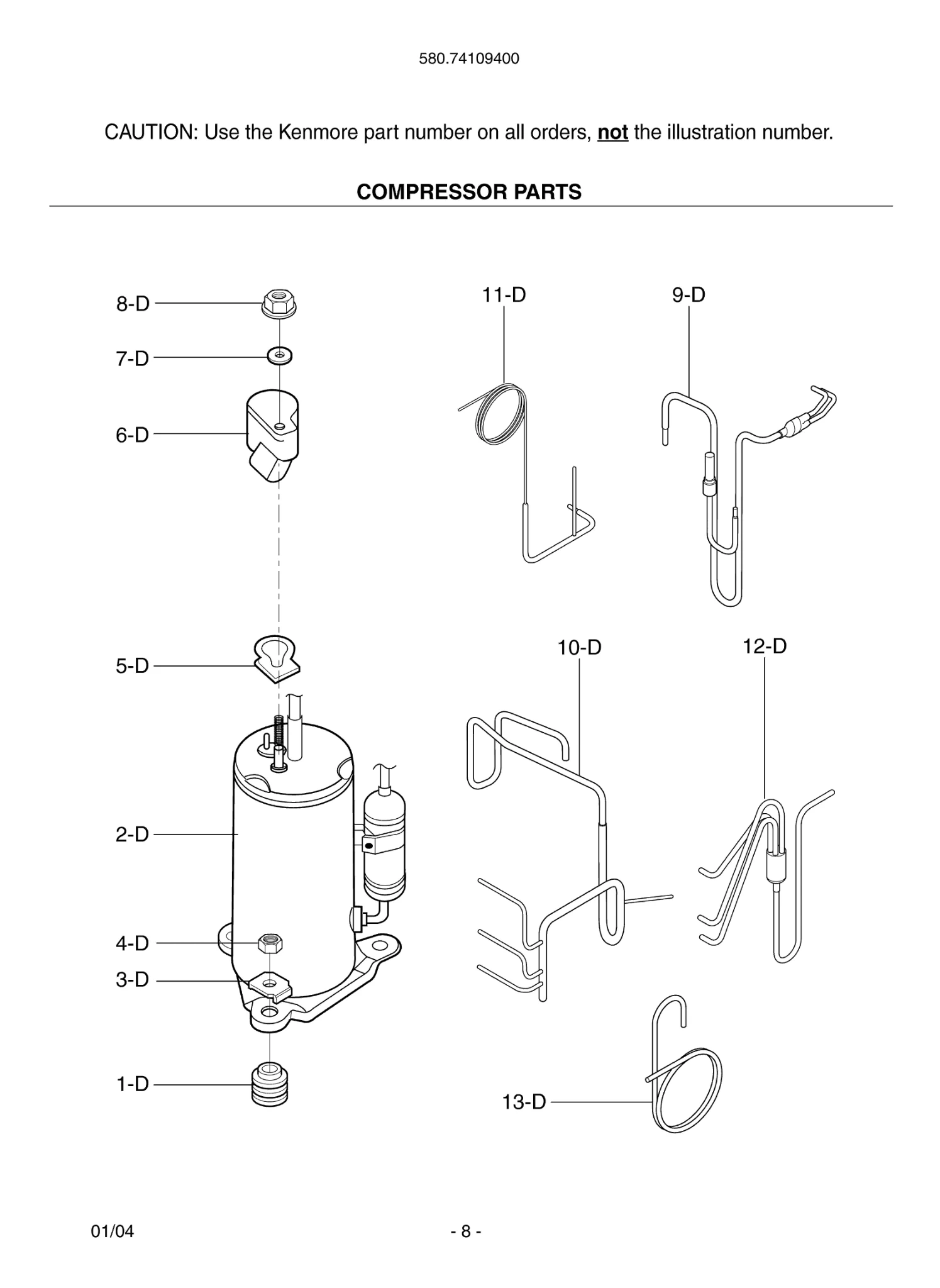

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG LWC101VDPA1 WINDOW
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20228Y Contact Us For Availability
130410
BASE ASSEMBLY,SINGLE LGE 3041A10053B Contact Us For Availability
130910
CABINET ASSEMBLY,SINGLE LGE 3091A10066A Contact Us For Availability
135301
GRILLE,FRONT LGE 3530A20103A Contact Us For Availability
135500
COVER LGE 3550A20283A Contact Us For Availability
135500
COVER LGE 3550A10098A Contact Us For Availability
135500
COVER,TERMINAL LGE 3550U-L005A Contact Us For Availability
135500
COVER LGE 3550A20281A Contact Us For Availability
135515
COVER ASSEMBLY,TOP(INDOOR) LGE 3551A20129A Contact Us For Availability
135803
DOOR LGE 3580A10001A Contact Us For Availability
144700
GEAR LGE 4470A20020A Contact Us For Availability
146811
MOTOR ASSEMBLY,STEP LGE 4681A20055P Contact Us For Availability
147581
LOUVER,HORIZONTAL LGE 4758A20067A Contact Us For Availability
147582
LOUVER,VERTICAL LGE 4758A20068B Contact Us For Availability
147582
LOUVER,VERTICAL LGE 4758A20068A Contact Us For Availability
149980
SHROUD ASSEMBLY LGE 4999A20003A Contact Us For Availability
152312
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20034A Contact Us For Availability
237202
PANEL,FRONT LGE 3720A10193A Contact Us For Availability
237202
PANEL,FRONT LGE 3720A20281A Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20099A Contact Us For Availability
249940
CONTROL BOX,SINGLE LGE 4994A10071A Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20042A Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A20053F Contact Us For Availability
268714
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20469A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20069Z Contact Us For Availability
349480
ORIFICE LGE 4948A10028A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A22034A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20388J Contact Us For Availability
352380
AIR GUIDE LGE 5238A00001A Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A20022A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A10026K Contact Us For Availability
359011
FAN,AXIAL LGE 5900A10014A Contact Us For Availability
359012
FAN,TURBO LGE 5900A10013A Contact Us For Availability
552102
TUBE,CAPILLARY BEND LGE 5210A22755B Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A21272A Contact Us For Availability
554030
CONDENSER ASSEMBLY,FIRST LGE 5403A20191A Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKAC2KA Contact Us For Availability
668713
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20468A Contact Us For Availability
731273
INSTALL PART ASSEMBLY,SINGLE LGE 3127A20083B Contact Us For Availability
738290
MANUAL LGE 3828A20307T Contact Us For Availability
738501
LABEL,ENERGY LGE 3850A21286N Contact Us For Availability
749590
CURTAIN ASSEMBLY LGE 4959A20002A Contact Us For Availability
749590
CURTAIN ASSEMBLY LGE 4959A20002B Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20007S Contact Us For Availability
W1BZZ
BOLT,DRAWING LGE 1BZZA30005A Contact Us For Availability
W1NHA
NUT.M8 D 8.0 M C 1 SM20C/FZ GA LGE 1NHA0801206 Contact Us For Availability
W1WZZ
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
W4986
GASKET LGE 4986U-L004A Contact Us For Availability
W6631
CONNECTOR ASSEMBLY LGE 6631A20121F Contact Us For Availability
W6631
CONNECTOR ASSEMBLY LGE 6877A20002J Contact Us For Availability
W49800
BRACKET LGE 4810A20277A Contact Us For Availability
× ![]()
