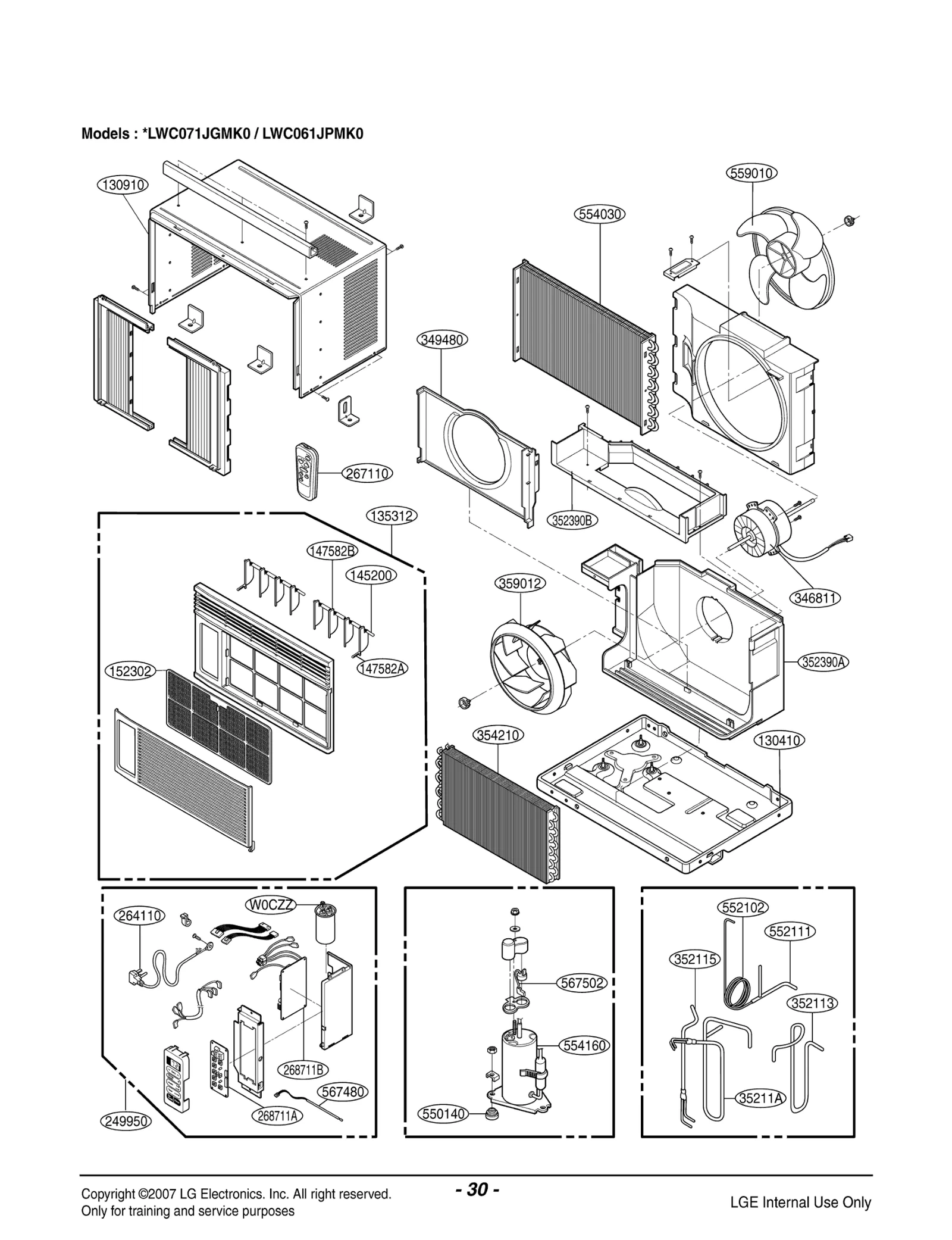

Model LG LW7000R WINDOW AC – Common Parts & Diagrams

35211A
TUBE ASSY,SUCTION SINGLE
TUBE ASSY,SUCTION SINGLE LGE 5211A10062C Contact Us For Availability
View on Model
130410
BASE ASSY,SINGLE
BASE ASSY,SINGLE LGE 3041A10011E Contact Us For Availability
View on Model
130910
CABINET ASSY,SINGLE
CABINET ASSY,SINGLE LGE 3091A10020A Contact Us For Availability
View on Model
135312
GRILLE ASSY,FRONT(SINGLE)
GRILLE ASSY,FRONT(SINGLE) LGE 3531AR1644T Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
147582B
VANE,VERTICAL
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5231AR2148G Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20127X Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A90024E Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20193B Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188L Contact Us For Availability
View on Model
346811
MOTOR ASSY,SINGLE
MOTOR ASSY,SINGLE LGE 4681A10002K Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A10007A Contact Us For Availability
View on Model
352390A
AIR GUIDE ASSY
AIR GUIDE ASSY LGE 5239A30003A Contact Us For Availability
View on Model
352390B
AIR GUIDE, UPPER
AIR GUIDE, UPPER LGE 5238A20004B Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A20016G Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A90032A Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A10005A Contact Us For Availability
View on Model
552102
TUBE,CAPILLARY BEND
TUBE,CAPILLARY BEND LGE 5210A30018F Contact Us For Availability
View on Model
552111
TUBE ASSY,CAPILLARY
TUBE ASSY,CAPILLARY LGE 5211AR3332S Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403A20009F Contact Us For Availability
View on Model
554030
Condenser Assembly,First
Condenser Assembly,First LGE 5403A90034A Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UAFC2BA Contact Us For Availability
View on Model
554160
COMPRESSOR SET,CHINA
COMPRESSOR SET,CHINA LGE 2520UCBA009 Contact Us For Availability
View on Model
559010
FAN,PROPELLER
FAN,PROPELLER LGE 5900A20017A Contact Us For Availability
View on Model
567480
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20001W Contact Us For Availability
View on Model
