  • LG LW5200R Parts List

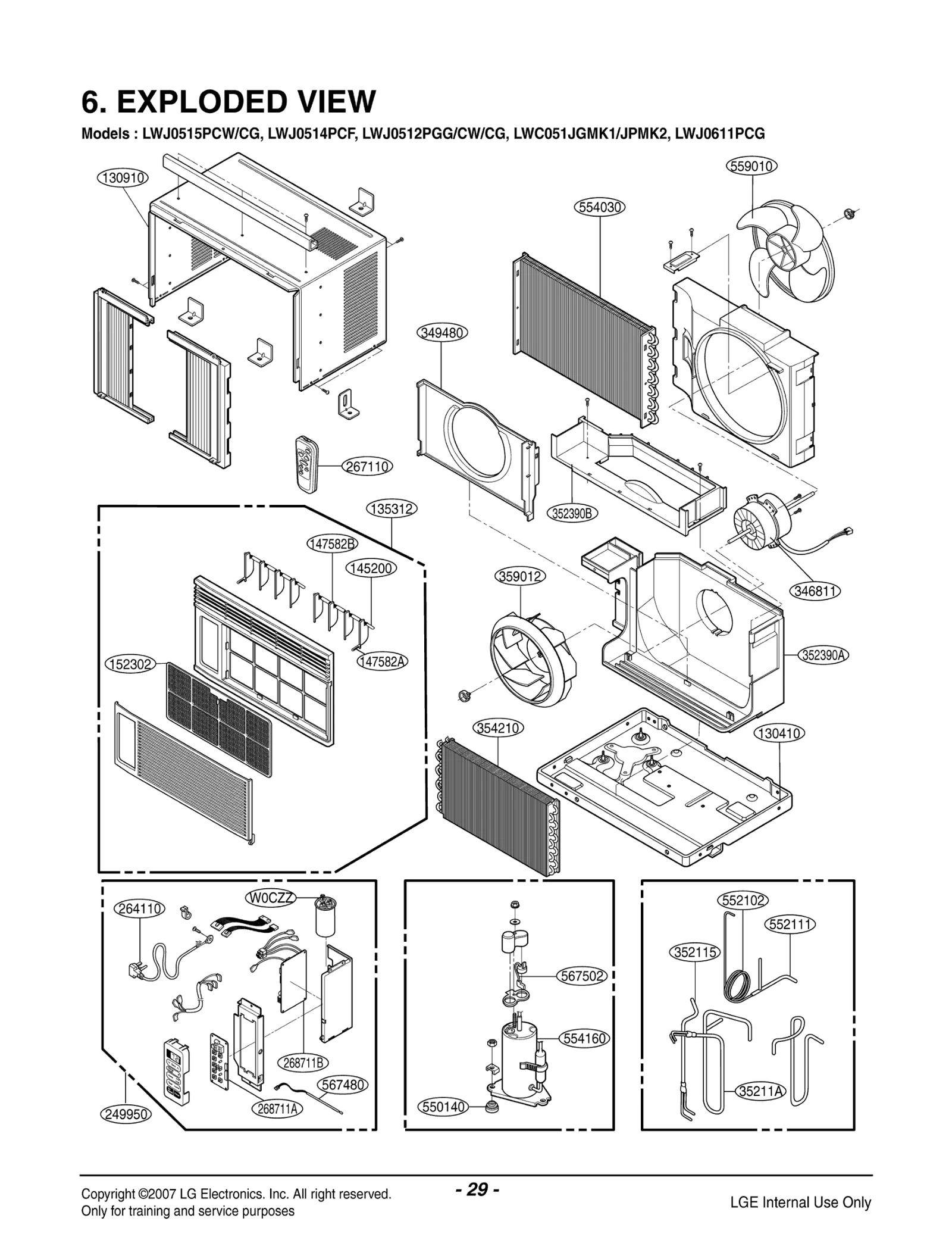

Model LG LW5200R WINDOW AC – Common Parts & Diagrams

35211A
TUBE ASSY,SUCTION SINGLE
TUBE ASSY,SUCTION SINGLE LGE 5211A10062A Contact Us For Availability
View on Model
130410
BASE ASSY,SINGLE
BASE ASSY,SINGLE LGE 3041A10011E Contact Us For Availability
View on Model
130910
CABINET ASSY,SINGLE
CABINET ASSY,SINGLE LGE 3091A10020D Contact Us For Availability
View on Model
135312
GRILLE ASSY,FRONT(SINGLE)
GRILLE ASSY,FRONT(SINGLE) LGE 3531AR1644T Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
147582B
VANE,VERTICAL
VANE,VERTICAL LGE 5990AR3190D Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5231AR2148G Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A20127H Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A90024E Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20193B Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20188L Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A10012L Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A10007A Contact Us For Availability
View on Model
352115
TUBE ASSY,EVAPORATOR IN
TUBE ASSY,EVAPORATOR IN LGE 5211A10063A Contact Us For Availability
View on Model
352390A
AIR GUIDE ASSY
AIR GUIDE ASSY LGE 5239A30003A Contact Us For Availability
View on Model
352390B
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A10005A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A10008B Contact Us For Availability
View on Model
359012
FAN,TURBO
FAN,TURBO LGE 5900A20005A Contact Us For Availability
View on Model
552102
TUBE,CAPILLARY BEND
TUBE,CAPILLARY BEND LGE 5210A30018H Contact Us For Availability
View on Model
552111
TUBE ASSEMBLY,CAPILLARY
TUBE ASSEMBLY,CAPILLARY LGE 5211AR3332V Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403AR6200C Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UABC2JA Contact Us For Availability
View on Model
559010
FAN,PROPELLER
FAN,PROPELLER LGE 5900A20017A Contact Us For Availability
View on Model
567480
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
567502
O.L.P
O.L.P LGE 6750U-L050A Contact Us For Availability
View on Model
W0CZZ
Capacitor,Unclassified
Capacitor,Unclassified LGE 0CZZA20003A Contact Us For Availability
View on Model
