Model LG LW2423HRSM.AT3AUSH 23,000 BTU Smart Wi-Fi Enabled Window Air Conditioner, Cooling & Heating – Common Parts & Diagrams

Common parts from model LG LW2423HRSM.AT3AUSH 23,000 BTU Smart Wi-Fi Enabled Window Air Conditioner, Cooling & Heating

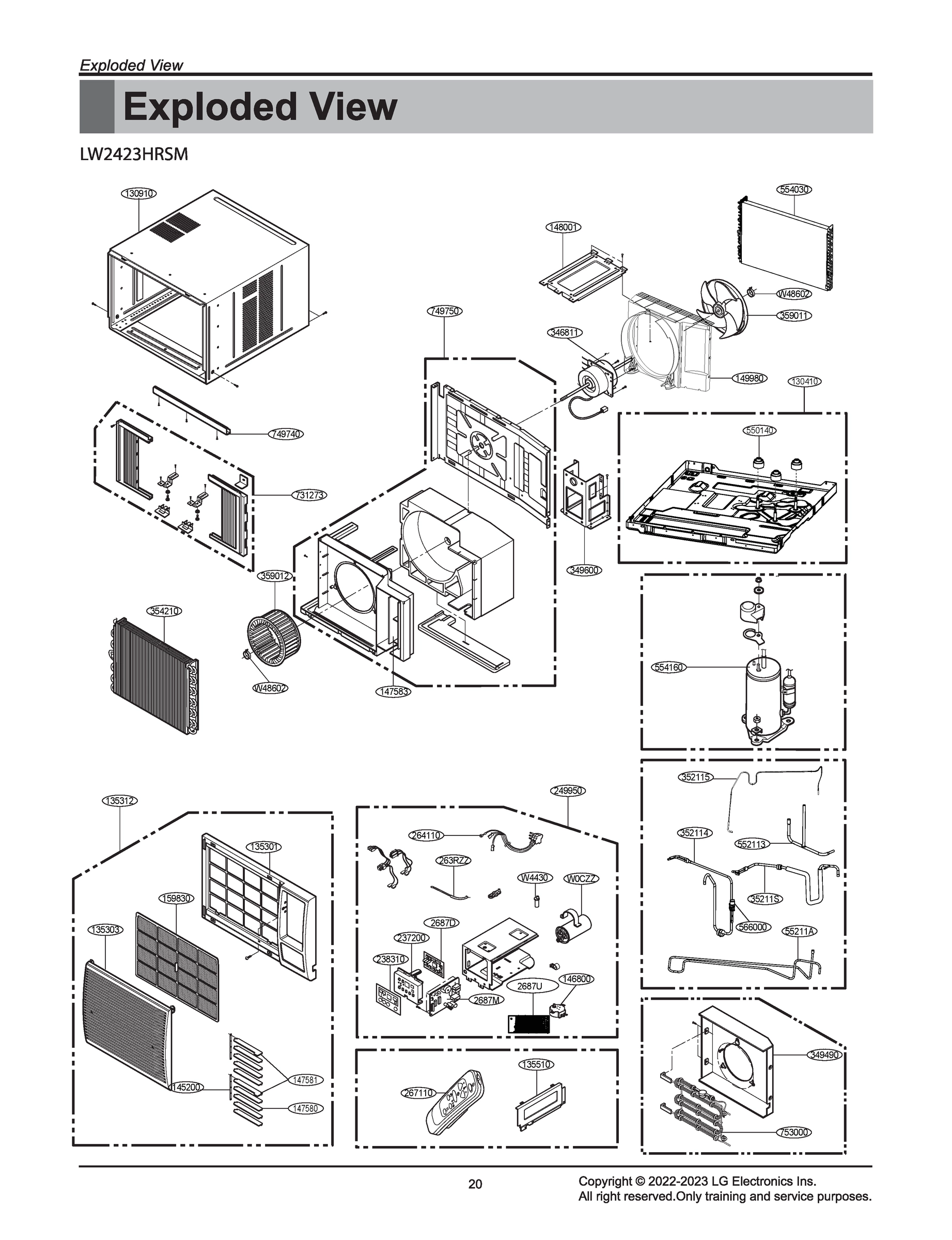

DIAGRAM 1

Print

• This Diagram
• All Diagrams

263RZZ

6323A20003S LG Air Conditioner Thermistor Ass Backorder LGE 6323A20003S View Details $8.52

View on Model

2687U

EBR85871801 LG WiFi PCB Assembly Backorder LGE EBR85871801 View Details $95.16

View on Model

145200

4520A30016B LG Air Conditioner Link Backorder LGE 4520A30016B View Details $3.64

View on Model

145200

Link LGE 4520A30016C Contact Us For Availability

View on Model

146800

2H01102J LG Air Conditioner Motor Backorder LGE 2H01102J View Details $19.35

View on Model

147580

4758AR7264U LG Air Conditioner Horizontal Lou In Stock LGE 4758AR7264U View Details $3.64

View on Model

147581

4758AR7278U LG Air Conditioner Horizontal Lou In Stock LGE 4758AR7278U View Details $3.64

View on Model

147583

Louver,Vertical LGE 4758AR6157E Contact Us For Availability

View on Model

148001

4800AR7271H LG Air Conditioner Support Assemb Backorder LGE 4800AR7271H View Details $15.11

View on Model

148001

Supporter LGE 4800AR7271J Contact Us For Availability

View on Model

149980

SHROUD Backorder LGE 4998A10027L View Details $37.13

View on Model

149980

Shroud LGE 4998A10027K Contact Us For Availability

View on Model

159830

5231AR6159G LG Air Conditioner Filter Assembl In Stock LGE 5231AR6159G View Details $19.35

View on Model

237200

MGC66370901 LG Air Conditioner Control Panel Backorder LGE MGC66370901 View Details $11.65

View on Model

238310

ESCUTCHEON Backorder LGE MDD63325102 View Details $11.65

View on Model

249950

Case Assembly,Control Backorder LGE ABQ74425119 View Details $189.01

View on Model

264110

Backorder LGE EAD63469524 View Details $137.59

View on Model

264110

EAD66043102 LG Power Cord Assembly Backorder LGE EAD66043102 View Details $121.27

View on Model

267110

AKB73016020 LG Remote Controller Assembly Backorder LGE AKB73016020 View Details $19.35

View on Model

346811

4681A20130E LG AC Motor Assembly Backorder LGE 4681A20130E View Details $356.98

View on Model

349490

MFX63022003 LG Air Conditioner Orifice Backorder LGE MFX63022003 View Details $23.81

View on Model

349490

Orifice Backorder LGE MFX63022004 View Details $28.39

View on Model

349600

Bracket,Motor LGE 4960A10006C Contact Us For Availability

View on Model

349600

Bracket,Motor LGE 4960A10006D Contact Us For Availability

View on Model

352114

Tube Assembly,Discharge LGE AJR73989109 Contact Us For Availability

View on Model

352115

TUBE ASSEMBLY,EVAPORATOR(IN) Backorder LGE AJR75723406 View Details $54.02

View on Model

354210

ADL73981504 LG Air Conditioner Evaporator Ass Backorder LGE ADL73981504 View Details $271.59

View on Model

354210

ADL73981506 LG Air Conditioner Evaporator Ass Backorder LGE ADL73981506 View Details $285.59

View on Model

359011

5900AR1508G LG Axial Fan Assembly Backorder LGE 5900AR1508G View Details $79.64

View on Model

359012

5834AR1599B LG Blower Fan Assembly Backorder LGE 5834AR1599B View Details $41.85

View on Model

359012

Fan Assembly,Blower LGE 5834AR1599J Contact Us For Availability

View on Model

550140

5014A20003A LG Compressor Damper Backorder LGE 5014A20003A View Details $5.63

View on Model

552113

AJR73972404 LG Air Conditioner Outer Condense Backorder LGE AJR73972404 View Details $15.11

View on Model

552113

Tube Assembly,Condenser(Out) LGE AJR73972405 Contact Us For Availability

View on Model

554030

ACG73747203 LG Air Conditioner Condenser Asse Backorder LGE ACG73747203 View Details $231.49

View on Model

554030

Condenser Assembly,First LGE ACG73747206 Contact Us For Availability

View on Model

554160

Compressor Set,China LGE TBZ38956001 Contact Us For Availability

View on Model

566000

EBF57874204 LG Air Conditioner Pressure Switc Backorder LGE EBF57874204 View Details $42.17

View on Model

731273

AET73371401 LG Air Conditioner Single Install Backorder LGE AET73371401 View Details $81.09

View on Model

731273

AET74151706 LG Window Curtain Set Backorder LGE AET74151706 View Details $106.37

View on Model

731273

Install Part Assembly,Set LGE AET74151722 Contact Us For Availability

View on Model

749740

MEA61972806 LG Air Conditioner Guide Backorder LGE MEA61972806 View Details $19.35

View on Model

749750

Guide Assembly,Air LGE AEC74677606 Contact Us For Availability

View on Model

753000

5300A20003A LG Electric Heater Backorder LGE 5300A20003A View Details $155.17

View on Model

753000

5300A20003V LG Air Conditioner Electric Heate In Stock LGE 5300A20003V View Details $129.18

View on Model

753000

Heater,Electric Backorder LGE 5300A20003X View Details $121.27

View on Model

W0CZZ

EAE42718003 LG Air Conditioner Film Capacitor Backorder LGE EAE42718003 View Details $74.27

View on Model

W4430

4520AR4339A LG Air Conditioner Cam Backorder LGE 4520AR4339A View Details $3.64

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.64

View on Model

W48602

MBU64446302 LG Air Conditioner Spring Clamp Backorder LGE MBU64446302 View Details $3.64

View on Model

×
