  • LG LW1804ER Parts List

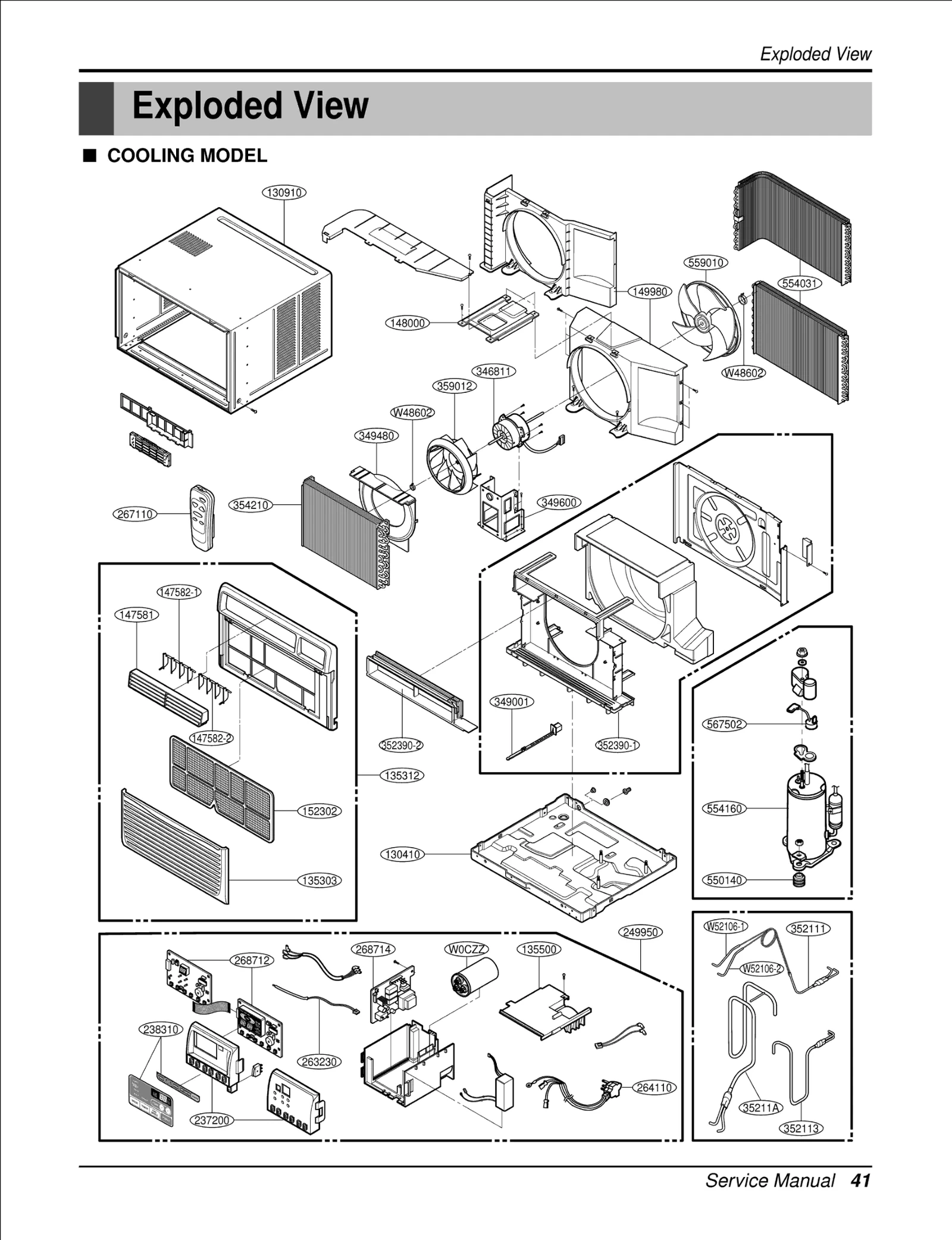

Model LG LW1804ER WINDOW – Common Parts & Diagrams

130910
CABINET ASSEMBLY,SINGLE
CABINET ASSEMBLY,SINGLE LGE 3091AR6057E Contact Us For Availability
View on Model
135303
GRILLE,INLET
GRILLE,INLET LGE 3530A10080A Contact Us For Availability
View on Model
135312
GRILLE ASSEMBLY,FRONT(SINGLE)
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A20095A Contact Us For Availability
View on Model
135500
COVER
COVER LGE 3550A30122A Contact Us For Availability
View on Model
147581
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A30022A Contact Us For Availability
View on Model
147582-1
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A20042A Contact Us For Availability
View on Model
147582-2
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A20042B Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10013A Contact Us For Availability
View on Model
152302
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20008A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A10110A Contact Us For Availability
View on Model
238310
LGE 3831A10020M
LGE 3831A10020M LGE 3831A10020M Contact Us For Availability
View on Model
249950
CONTROL BOX ASSEMBLY,SINGLE
CONTROL BOX ASSEMBLY,SINGLE LGE 4995A30010M Contact Us For Availability
View on Model
263230
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20004E Contact Us For Availability
View on Model
264110
POWER CORD ASSEMBLY
POWER CORD ASSEMBLY LGE 6411A20011K Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A90024G Contact Us For Availability
View on Model
268712
PCB Assembly,Main
PCB Assembly,Main LGE 6871A20323C Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20167L Contact Us For Availability
View on Model
346811
MOTOR ASSEMBLY,SINGLE
MOTOR ASSEMBLY,SINGLE LGE 4681A20011M Contact Us For Availability
View on Model
349001
DAMPER,VENTILATION
DAMPER,VENTILATION LGE 4900A20004A Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A30008A Contact Us For Availability
View on Model
349600
MOUNT,MOTOR
MOUNT,MOTOR LGE 4960AR2895B Contact Us For Availability
View on Model
352111
TUBE,CAPILLARY BEND
TUBE,CAPILLARY BEND LGE 5210A20492R Contact Us For Availability
View on Model
352390-1
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A20002A Contact Us For Availability
View on Model
352390-2
AIR GUIDE ASSEMBLY
AIR GUIDE ASSEMBLY LGE 5239A20003A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20091A Contact Us For Availability
View on Model
550140
BUSH ANTI VIBRATION QJ-COMP(96
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20062B Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UMKK2AA Contact Us For Availability
View on Model
559010
FAN ASSEMBLY,AXIAL
FAN ASSEMBLY,AXIAL LGE 5901A20010A Contact Us For Availability
View on Model
W52106-1
TUBE,FORMED
TUBE,FORMED LGE 5210A21099E Contact Us For Availability
View on Model
W52106-2
TUBE,FORMED
TUBE,FORMED LGE 5210A21099F Contact Us For Availability
View on Model
