Model LG LW1510ER AC – Common Parts & Diagrams

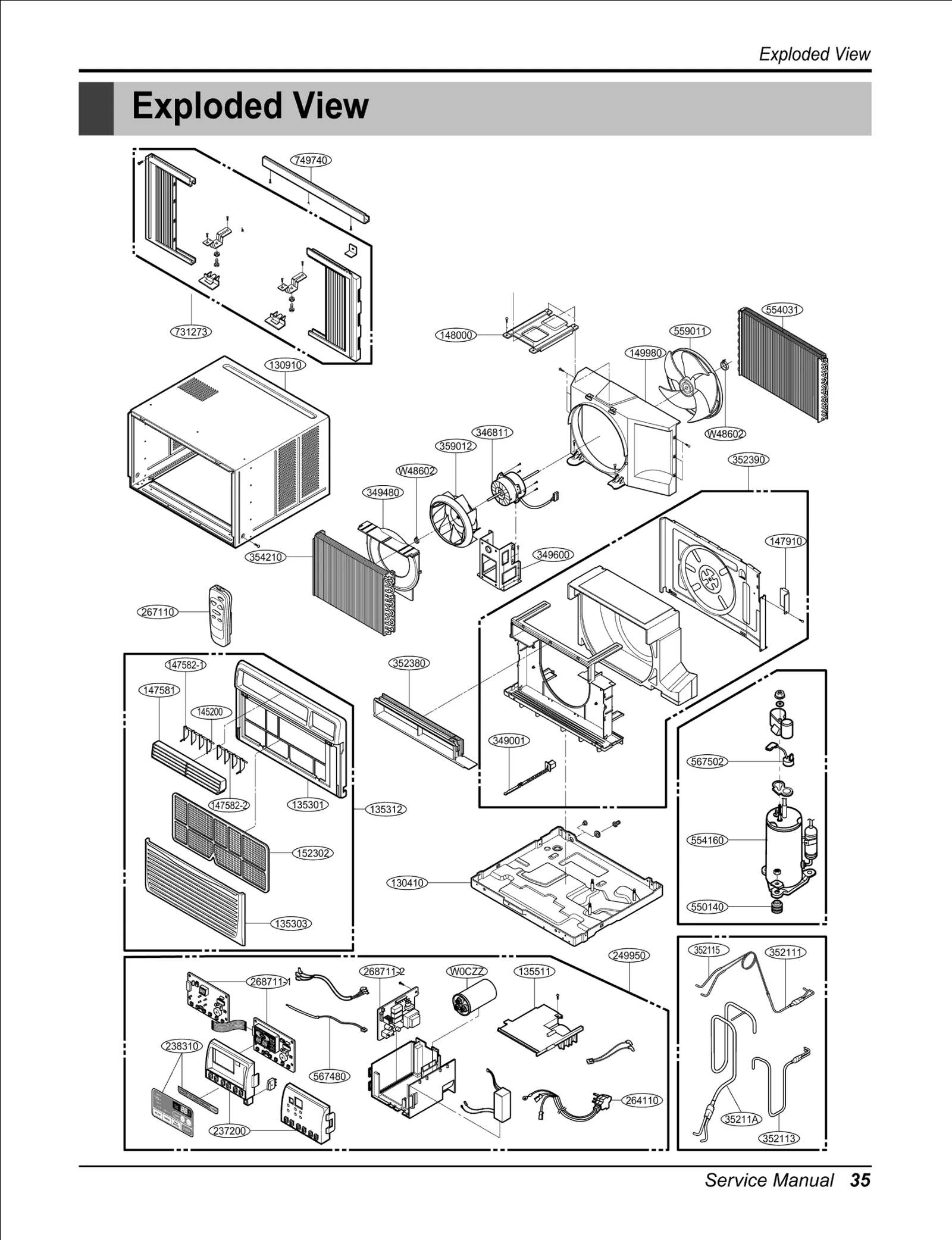

Diagram 0
Common parts from model LG LW1510ER AC
147581
LOUVER,HORIZONTAL LGE 4758A30047A Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A30050A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A30050B Contact Us For Availability
147910
BARRIER ASSEMBLY,SINGLE LGE 4791A20026A Contact Us For Availability
152302
Filter Assembly,Air Cleaner LGE 5231A20008D Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A10112A Contact Us For Availability
238310
ESCUTCHEON LGE 3831A10021M Contact Us For Availability
249950
Case Assembly,Control LGE ABQ35891914 Contact Us For Availability
268711-1
PWB(PCB) ASSEMBLY,DISPLAY(DC) LGE 6871A20604A Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR39283901 Contact Us For Availability
346811
Motor Assembly,AC,Indoor LGE 4681A23010B Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20004A Contact Us For Availability
349480
ORIFICE LGE 4948A30008A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960AR1596A Contact Us For Availability
352113
Tube Assembly,Discharge LGE AJR73025301 Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A20002A Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
554031
Condenser Assembly,First LGE ACG73044501 Contact Us For Availability
554160
Compressor Set,China LGE TBZ34782301 Contact Us For Availability
567480
THERMISTOR ASSEMBLY LGE 6323A20012C Contact Us For Availability
× ![]()
