Model LG LW1217ERSM.AT1AUSL 12,000 BTU Smart wi-fi Enabled Window Air Conditioner – Common Parts & Diagrams

Common parts from model LG LW1217ERSM.AT1AUSL 12,000 BTU Smart wi-fi Enabled Window Air Conditioner

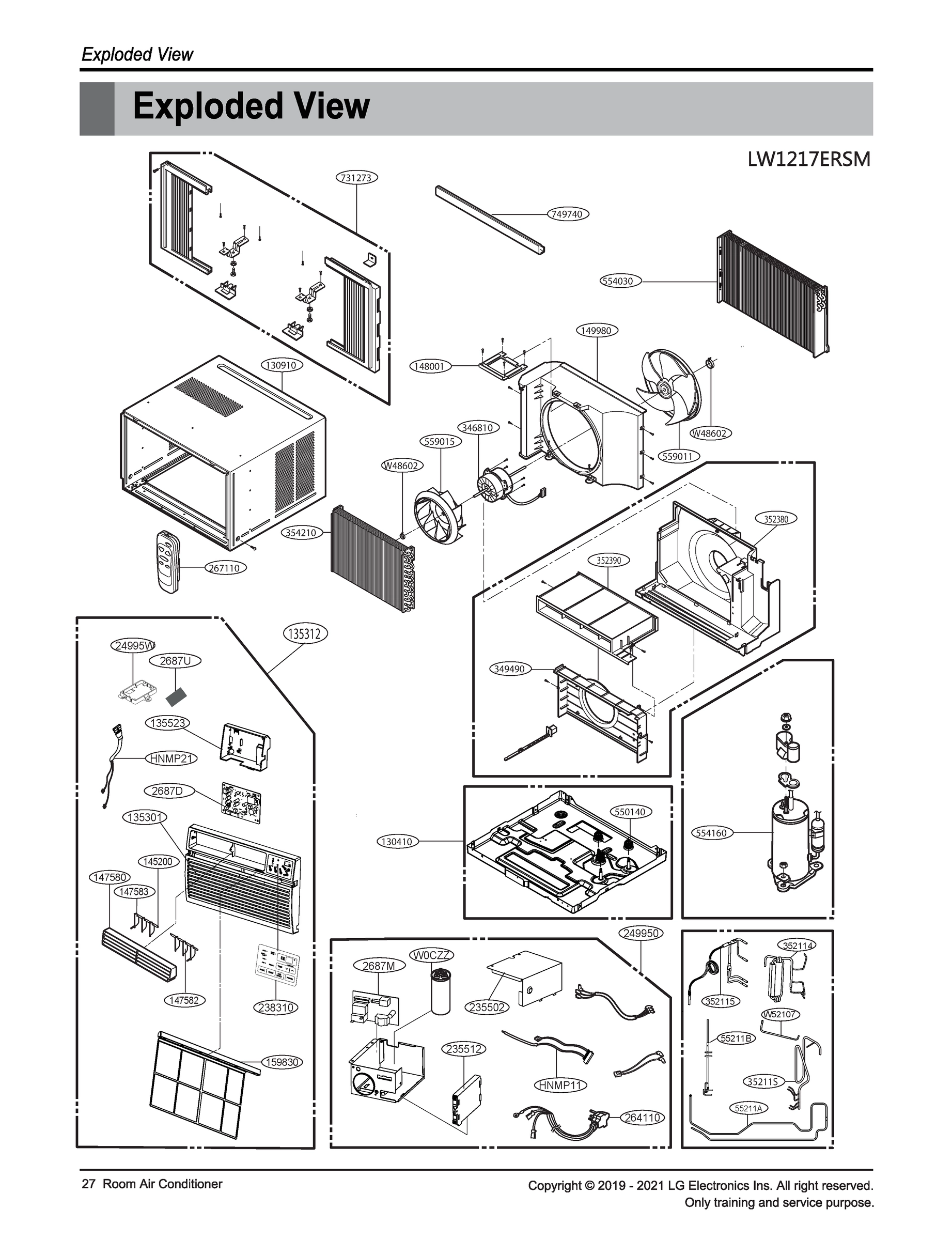

DIAGRAM 1

Print

• This Diagram
• All Diagrams

2687U

EBR85871801 LG WiFi PCB Assembly Backorder LGE EBR85871801 View Details $77.65

View on Model

55211A

Tube Assembly,Condenser(Out) LGE AJR75643903 Contact Us For Availability

View on Model

55211B

AJR75625301 LG Air Conditioner Outer Condense Backorder LGE AJR75625301 View Details $32.26

View on Model

55211B

Tube Assembly,Condenser(Out) LGE AJR75625303 Contact Us For Availability

View on Model

130410

AAN73030709 LG Air Conditioner Single Base As Backorder LGE AAN73030709 View Details $79.28

View on Model

130910

3091A10072H LG Air Conditioner Cabinet Assemb Backorder LGE 3091A10072H View Details $149.67

View on Model

135301

MDX63032504 LG Air Conditioner Front Grille Backorder LGE MDX63032504 View Details $46.99

View on Model

135312

AEB76289929 LG Air Conditioner Front Grille A Backorder LGE AEB76289929 View Details $105.51

View on Model

135523

MCK69433201 LG Air Conditioner Cover Backorder LGE MCK69433201 View Details $7.40

View on Model

135523

Cover LGE MCK69433203 Contact Us For Availability

View on Model

145200

4520A20007C LG Air Conditioner Link Backorder LGE 4520A20007C View Details $3.15

View on Model

147580

4758A20066D LG Air Conditioner Horizontal Lou Backorder LGE 4758A20066D View Details $13.15

View on Model

147582

4758A10009F LG Air Conditioner Vertical Louve Backorder LGE 4758A10009F View Details $3.15

View on Model

147583

4758A10009E LG Air Conditioner Vertical Louve Backorder LGE 4758A10009E View Details $3.15

View on Model

148001

4800A30002E LG Air Conditioner Support Bracke Backorder LGE 4800A30002E View Details $4.90

View on Model

149980

Shroud LGE 4998A10016J Contact Us For Availability

View on Model

159830

ADQ73953404 LG Air Conditioner Filter Cleaner Backorder LGE ADQ73953404 View Details $32.26

View on Model

235502

MCK69413201 LG Air Conditioner Cover Backorder LGE MCK69413201 View Details $7.40

View on Model

235502

Cover LGE MCK69413206 Contact Us For Availability

View on Model

235512

ACQ31027902 LG Display Cover Assembly Backorder LGE ACQ31027902 View Details $4.79

View on Model

238310

MDD62942306 LG Escutcheon Backorder LGE MDD62942306 View Details $10.15

View on Model

249950

Case Assembly,Control LGE ABQ30237905 Contact Us For Availability

View on Model

264110

Power Cord Assembly LGE EAD63469531 Contact Us For Availability

View on Model

264110

Power Cord Assembly LGE EAD66043109 Contact Us For Availability

View on Model

267110

AKB73016019 LG Remote Controller Assembly Backorder LGE AKB73016019 View Details $16.82

View on Model

346810

EAU61423711 LG AC Motor Assembly Backorder LGE EAU61423711 View Details $149.67

View on Model

349490

4948A10015D LG Air Conditioner Orifice Backorder LGE 4948A10015D View Details $20.70

View on Model

352114

AJR75584702 LG Air Conditioner Discharge Tube Backorder LGE AJR75584702 View Details $52.45

View on Model

352114

Tube Assembly,Discharge LGE AJR75584714 Contact Us For Availability

View on Model

352115

AJR76382501 LG Air Conditioner Evaporator Tub Backorder LGE AJR76382501 View Details $52.45

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR76382506 Contact Us For Availability

View on Model

352380

Guide,Air LGE 5238A20008L Contact Us For Availability

View on Model

352390

Duct Assembly LGE 5239A20004L Contact Us For Availability

View on Model

354210

5421A20099R LG Evaporator Assembly Backorder LGE 5421A20099R View Details $161.21

View on Model

354210

Evaporator Assembly,First LGE ADL76691815 Contact Us For Availability

View on Model

354210

Evaporator Assembly,First LGE ADL76691816 Contact Us For Availability

View on Model

550140

MCQ62508904 LG Compressor Damper Backorder LGE MCQ62508904 View Details $3.15

View on Model

554030

ACG72924215 LG Air Conditioner First Condense Backorder LGE ACG72924215 View Details $193.47

View on Model

554030

Condenser Assembly,First LGE ACG72924216 Contact Us For Availability

View on Model

554160

TBZ39173304 LG Compressor Set Backorder LGE TBZ39173304 View Details $340.08

View on Model

559011

5900A10009E LG Air Conditioner Axial Fan In Stock LGE 5900A10009E View Details $43.47

View on Model

559011

Fan,Axial LGE 5900A10009G Contact Us For Availability

View on Model

559015

MDG58298301 LG Turbo Fan Backorder LGE MDG58298301 View Details $20.70

View on Model

559015

MDG58298302 LG Air Conditioner Turbo Fan Backorder LGE MDG58298302 View Details $24.68

View on Model

731273

AET74151710 LG Air Conditioner Window A/C Cur Backorder LGE AET74151710 View Details $52.45

View on Model

731273

AET74151718 LG Window A/C Curtain Kit Backorder LGE AET74151718 View Details $46.99

View on Model

749740

4974AR3262S LG Air Conditioner Guide In Stock LGE 4974AR3262S View Details $16.82

View on Model

HNMP11

EAD63989002 LG Multi Harness Backorder LGE EAD63989002 View Details $16.82

View on Model

HNMP21

EAD63989001 LG Multi Harness Backorder LGE EAD63989001 View Details $13.15

View on Model

W0CZZ

0CZZA20001L LG Capacitor Film Box Backorder LGE 0CZZA20001L View Details $46.11

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.15

View on Model

W48602

MBU64446301 LG Air Conditioner Spring Clamp Backorder LGE MBU64446301 View Details $3.15

View on Model

W52107

MJU64871301 LG Air Conditioner Condenser Tube Backorder LGE MJU64871301 View Details $7.40

View on Model

W52107

Tube,Condenser LGE MJU64871310 Contact Us For Availability

View on Model

×
