Model LG LW1019IVSM.AC1AUSH 9,500 BTU DUAL Inverter Smart Wi-Fi Enabled Window Air Conditioner – Common Parts & Diagrams

Common parts from model LG LW1019IVSM.AC1AUSH 9,500 BTU DUAL Inverter Smart Wi-Fi Enabled Window Air Conditioner

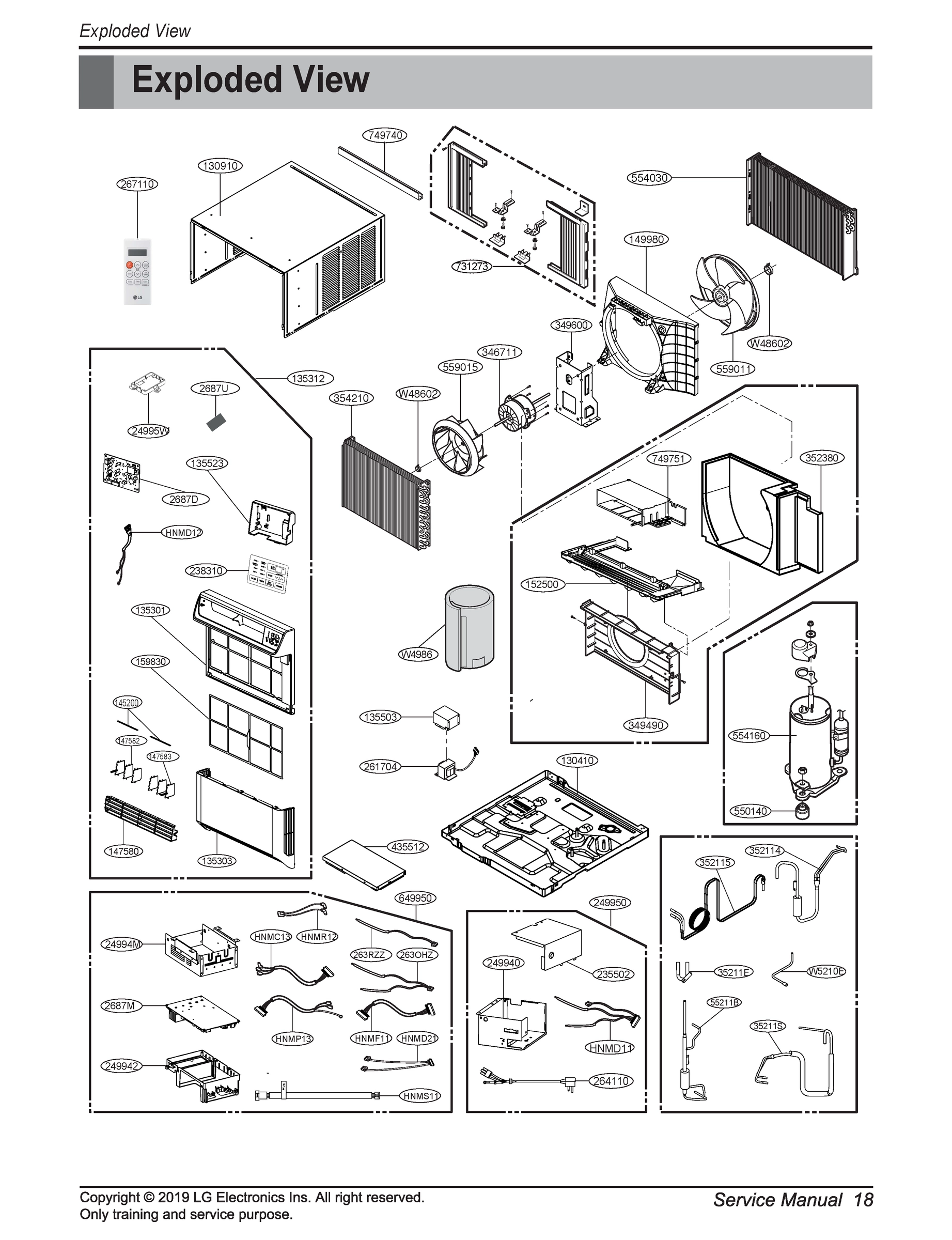

DIAGRAM 1

Print

• This Diagram
• All Diagrams

263OHZ

EBG61107024 LG Thermistor NTC Assembly Backorder LGE EBG61107024 View Details $23.81

View on Model

263RZZ

EBG61406003 LG Thermistor Temperature Sensor Backorder LGE EBG61406003 View Details $19.35

View on Model

35211E

AJR75023916 LG Air Conditioner Connector Tube Backorder LGE AJR75023916 View Details $8.52

View on Model

35211S

AJR77022501 LG Air Conditioner Suction Tube A Backorder LGE AJR77022501 View Details $30.97

View on Model

55211B

AJR76963301 LG Air Conditioner Outer Condense Backorder LGE AJR76963301 View Details $28.39

View on Model

130410

AAN77149102 LG Air Conditioner Single Base As Backorder LGE AAN77149102 View Details $87.70

View on Model

130910

ABJ76367102 LG Air Conditioner Cabinet Assemb Backorder LGE ABJ76367102 View Details $87.70

View on Model

135301

MDX65152001 LG Grille Front Backorder LGE MDX65152001 View Details $48.13

View on Model

135303

MDX65152101 LG Air Conditioner Inlet Grille Backorder LGE MDX65152101 View Details $42.17

View on Model

135312

AEB75944502 LG Front Grille Assembly Backorder LGE AEB75944502 View Details $132.20

View on Model

135503

MCK69611503 LG Air Conditioner Cover Backorder LGE MCK69611503 View Details $11.65

View on Model

135523

MCK69433201 LG Air Conditioner Cover Backorder LGE MCK69433201 View Details $8.52

View on Model

145200

4520A20006A LG Air Conditioner Link Assembly Backorder LGE 4520A20006A View Details $3.64

View on Model

147580

MFH63703601 LG Air Conditioner Horizontal Lou Backorder LGE MFH63703601 View Details $8.52

View on Model

147582

MFH63603702 LG Air Conditioner Vertical Louve Backorder LGE MFH63603702 View Details $3.64

View on Model

147583

MFH63603701 LG Air Conditioner Vertical Louve Backorder LGE MFH63603701 View Details $3.64

View on Model

149980

MHN63582001 LG Air Conditioner Shroud Backorder LGE MHN63582001 View Details $15.11

View on Model

152500

MGB62082001 LG Air Conditioner Drain Pan Backorder LGE MGB62082001 View Details $19.35

View on Model

159830

ADQ75513301 LG Air Conditioner Filter Assembl Backorder LGE ADQ75513301 View Details $11.65

View on Model

235502

MCK69413201 LG Air Conditioner Cover Backorder LGE MCK69413201 View Details $8.52

View on Model

238310

MDD63022209 LG Escutcheon Backorder LGE MDD63022209 View Details $11.65

View on Model

249940

MBN64644302 LG Air Conditioner Control Case Backorder LGE MBN64644302 View Details $11.65

View on Model

249942

MBN66004701 LG Air Conditioner Outdoor Contro Backorder LGE MBN66004701 View Details $15.11

View on Model

249950

ABQ77202303 LG Air Conditioner Control Assemb Backorder LGE ABQ77202303 View Details $121.27

View on Model

261704

EBJ63570002 LG Air Conditioner Reactor Transf Backorder LGE EBJ63570002 View Details $74.27

View on Model

264110

EAD63469515 LG Air Conditioner Power Cord Ass Backorder LGE EAD63469515 View Details $106.37

View on Model

267110

AKB73598008 LG Remote Controller Assembly Backorder LGE AKB73598008 View Details $35.97

View on Model

346711

EAU64124102 LG Air Conditioner DC Motor Assem Backorder LGE EAU64124102 View Details $121.27

View on Model

349490

MFX62081901 LG Air Conditioner Orifice Backorder LGE MFX62081901 View Details $15.11

View on Model

349600

MAZ66864901 LG Motor Bracket Backorder LGE MAZ66864901 View Details $23.81

View on Model

352114

AJR73067216 LG Air Conditioner Discharge Tube Backorder LGE AJR73067216 View Details $37.13

View on Model

352115

Tube Assembly,Evaporator(In) LGE AJR76963102 Contact Us For Availability

View on Model

352380

MEA62571601 LG Air Guide Backorder LGE MEA62571601 View Details $9.13

View on Model

354210

5421A10047T LG Air Conditioner Evaporator Ass Backorder LGE 5421A10047T View Details $155.17

View on Model

435512

ACQ89565407 LG Outdoor Top Cover Assembly Backorder LGE ACQ89565407 View Details $24.18

View on Model

550140

MCQ62508905 LG Air Conditioner Compressor Dam Backorder LGE MCQ62508905 View Details $3.64

View on Model

554030

ACG73045010 LG Condenser Assembly Backorder LGE ACG73045010 View Details $155.17

View on Model

554160

TBZ38156201 LG Air Conditioner Compressor Set Backorder LGE TBZ38156201 View Details $299.82

View on Model

559011

5900A20015E LG Air Conditioner Axial Fan Backorder LGE 5900A20015E View Details $37.13

View on Model

559015

MDG58298301 LG Turbo Fan Backorder LGE MDG58298301 View Details $23.81

View on Model

649950

Case Assembly,Control(Outdoor) LGE ABQ77202203 Contact Us For Availability

View on Model

731273

AET74151702 LG Installation Part Assembly Set In Stock LGE AET74151702 View Details $53.37

View on Model

749740

4974A30067H LG Guide Backorder LGE 4974A30067H View Details $12.88

View on Model

749751

AEC72909208 LG Air Guide Assembly Backorder LGE AEC72909208 View Details $28.39

View on Model

HNMC13

EAD64825806 LG Harness,Multi Backorder LGE EAD64825806 View Details $28.39

View on Model

HNMD11

EAD63989014 LG Air Conditioner Multi Harness Backorder LGE EAD63989014 View Details $30.97

View on Model

HNMD12

EAD63989015 LG Air Conditioner Multi-Harness Backorder LGE EAD63989015 View Details $15.11

View on Model

HNMD21

EAD63989013 LG Air Conditioner Multi-Harness Backorder LGE EAD63989013 View Details $11.65

View on Model

HNMF11

EAD62745807 LG Air Conditioner Single Harness Backorder LGE EAD62745807 View Details $11.65

View on Model

HNMP13

EAD64825906 LG Air Conditioner Multi-Harness Backorder LGE EAD64825906 View Details $30.97

View on Model

HNMR12

EAD64766802 LG Air Conditioner Multi Harness Backorder LGE EAD64766802 View Details $11.65

View on Model

HNMS11

EAD64148701 LG Air Conditioner Single Harness Backorder LGE EAD64148701 View Details $37.13

View on Model

W4986

MDS64811404 LG Air Conditioner Gasket Backorder LGE MDS64811404 View Details $28.39

View on Model

W5210E

MJU62126805 LG Air Conditioner Form Tube Backorder LGE MJU62126805 View Details $8.52

View on Model

W48602

3H02932B LG Air Conditioner Clamp Spring I.D. Backorder LGE 3H02932B View Details $3.64

View on Model

×
