Model LG LW1012CR AC – Common Parts & Diagrams

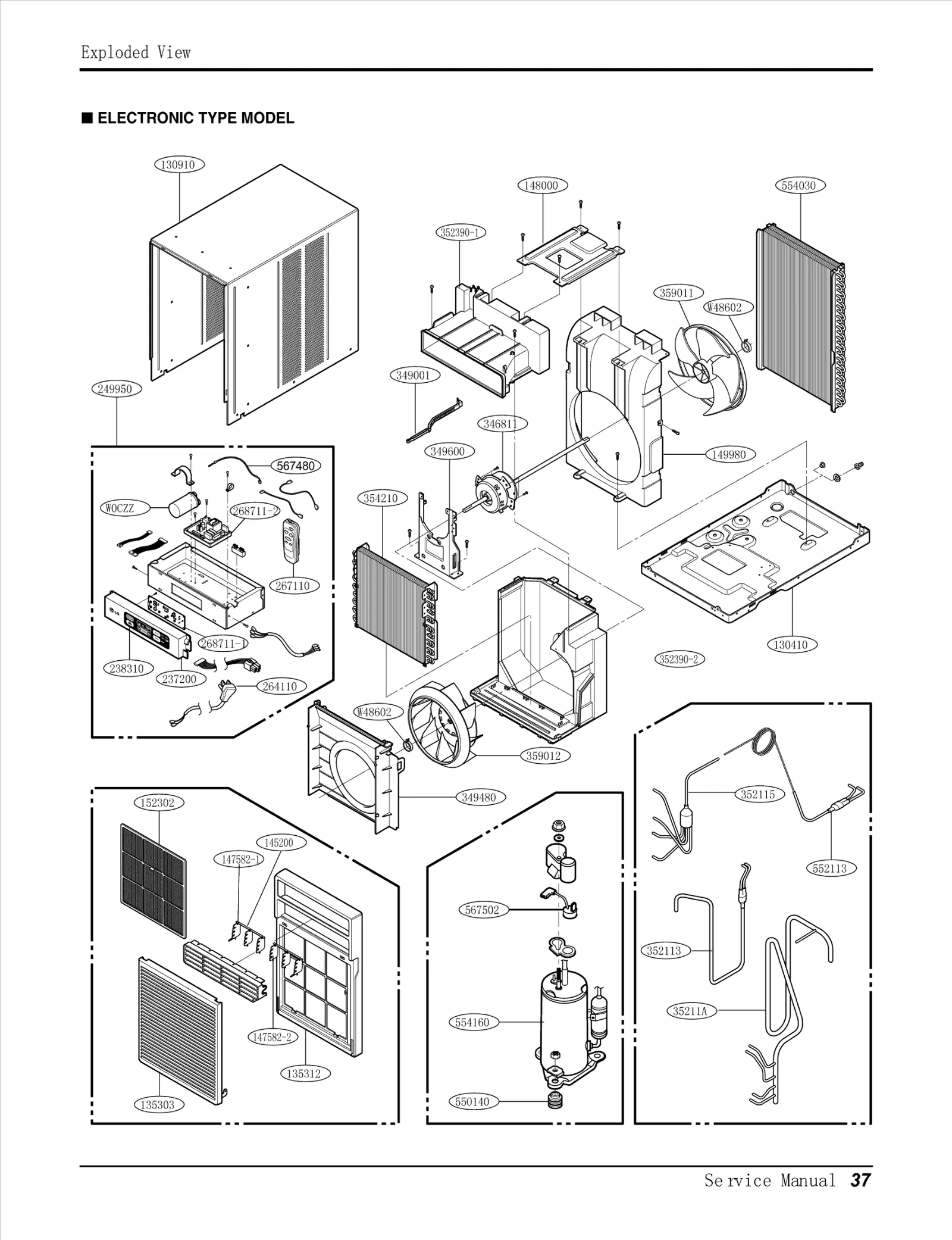

Diagram 0
Common parts from model LG LW1012CR AC
135303
Grille,Inlet LGE 3530A20056C Contact Us For Availability
135312
Grille Assembly,Front LGE 3531A20123G Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A20017A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20017B Contact Us For Availability
149980
SHROUD ASSEMBLY LGE 4999A20002A Contact Us For Availability
152302
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20012A Contact Us For Availability
237200
PANEL,CONTROL LGE 3720A20259A Contact Us For Availability
238310
ESCUTCHEON LGE 3831A20083B Contact Us For Availability
249950
Case,Control(Indoor) LGE MBN32756812 Contact Us For Availability
268711-1
PCB Assembly,Display LGE EBR30852601 Contact Us For Availability
268711-2
PCB Assembly,Main LGE EBR74780303 Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20069C Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20006A Contact Us For Availability
349480
ORIFICE LGE 4948A20012A Contact Us For Availability
352113
Tube Assembly,Discharge LGE 5211A20558P Contact Us For Availability
352390-1
AIR GUIDE ASSEMBLY LGE 5239A20007A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20115D Contact Us For Availability
359011
FAN,AXIAL LGE 5900A20026A Contact Us For Availability
359012
FAN,TURBO LGE 5900A20019A Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
552113
Tube Assembly,Capillary LGE AJR73706601 Contact Us For Availability
554030
Condenser Assembly,First LGE ACG73548201 Contact Us For Availability
554160
Compressor Set,China LGE TBZ35379401 Contact Us For Availability
W0CZZ
CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability
× ![]()
