  • LG LW1010ERY1 Parts List

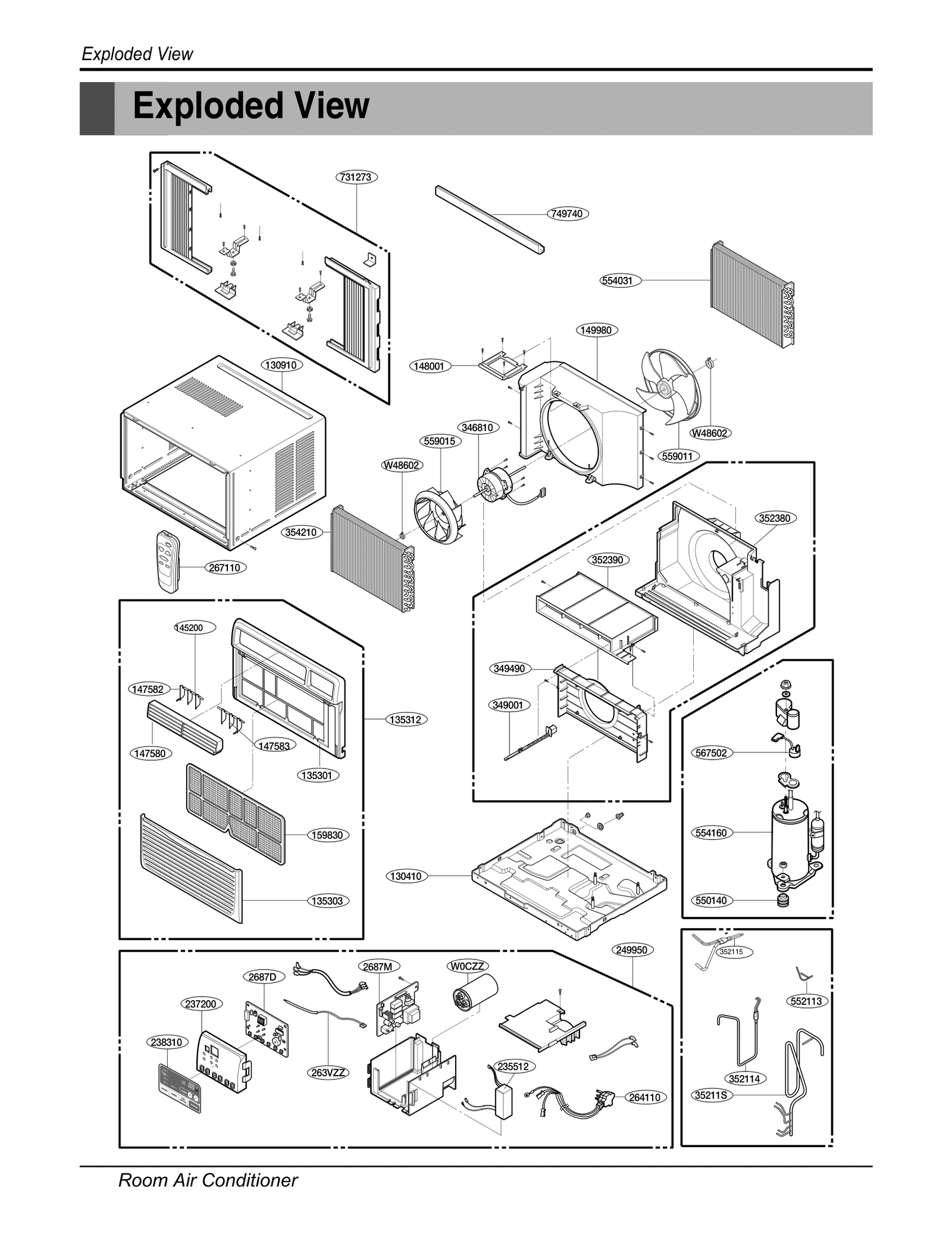

Model LG LW1010ERY1 AC – Common Parts & Diagrams

135312
Grille Assembly,Front
Grille Assembly,Front LGE 3531A11014D Contact Us For Availability
View on Model
147580
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A20066A Contact Us For Availability
View on Model
159830
FILTER ASSEMBLY,AIR CLEANER
FILTER ASSEMBLY,AIR CLEANER LGE 5231A20007A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A10111C Contact Us For Availability
View on Model
238310
ESCUTCHEON
ESCUTCHEON LGE 3831A10021L Contact Us For Availability
View on Model
346810
Motor,Unclassified
Motor,Unclassified LGE 4681A20069K Contact Us For Availability
View on Model
349001
DAMPER,VENTILATION
DAMPER,VENTILATION LGE 4900A20002A Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR33322508 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20099G Contact Us For Availability
View on Model
550140
BUSH ANTI VIBRATION QJ-COMP(96
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE AJR73083905 Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE ACG73164601 Contact Us For Availability
View on Model
554160
Compressor Set,China
Compressor Set,China LGE TBZ34781601 Contact Us For Availability
View on Model
567502
Overload Protect
Overload Protect LGE EAF42058828 Contact Us For Availability
View on Model
749740
Guide
Guide LGE 4974AR3262M Contact Us For Availability
View on Model
749740
GUIDE UPPER
GUIDE UPPER LGE 4974AR3262E Contact Us For Availability
View on Model
