Model LG LUV250C Ventilation – Common Parts & Diagrams

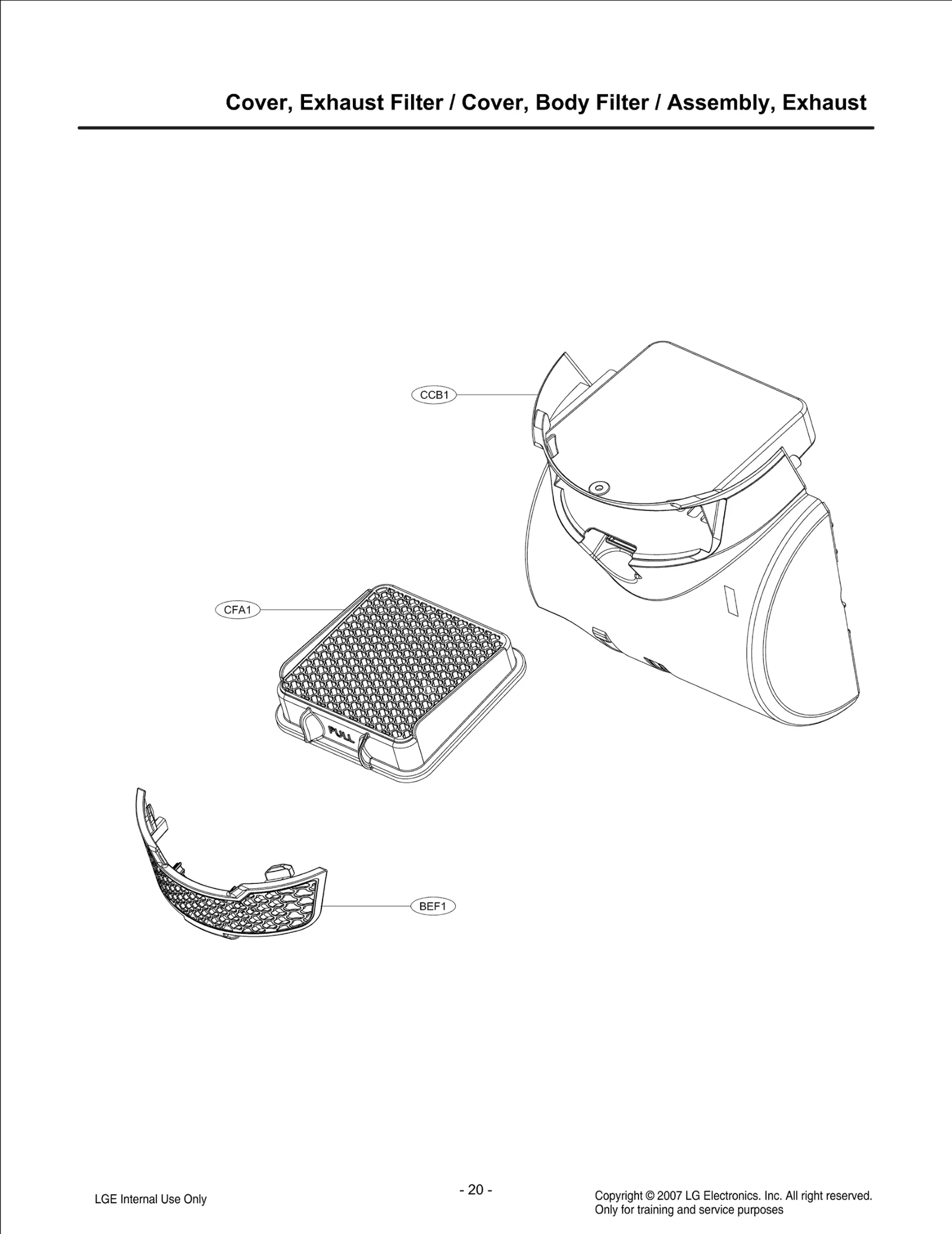

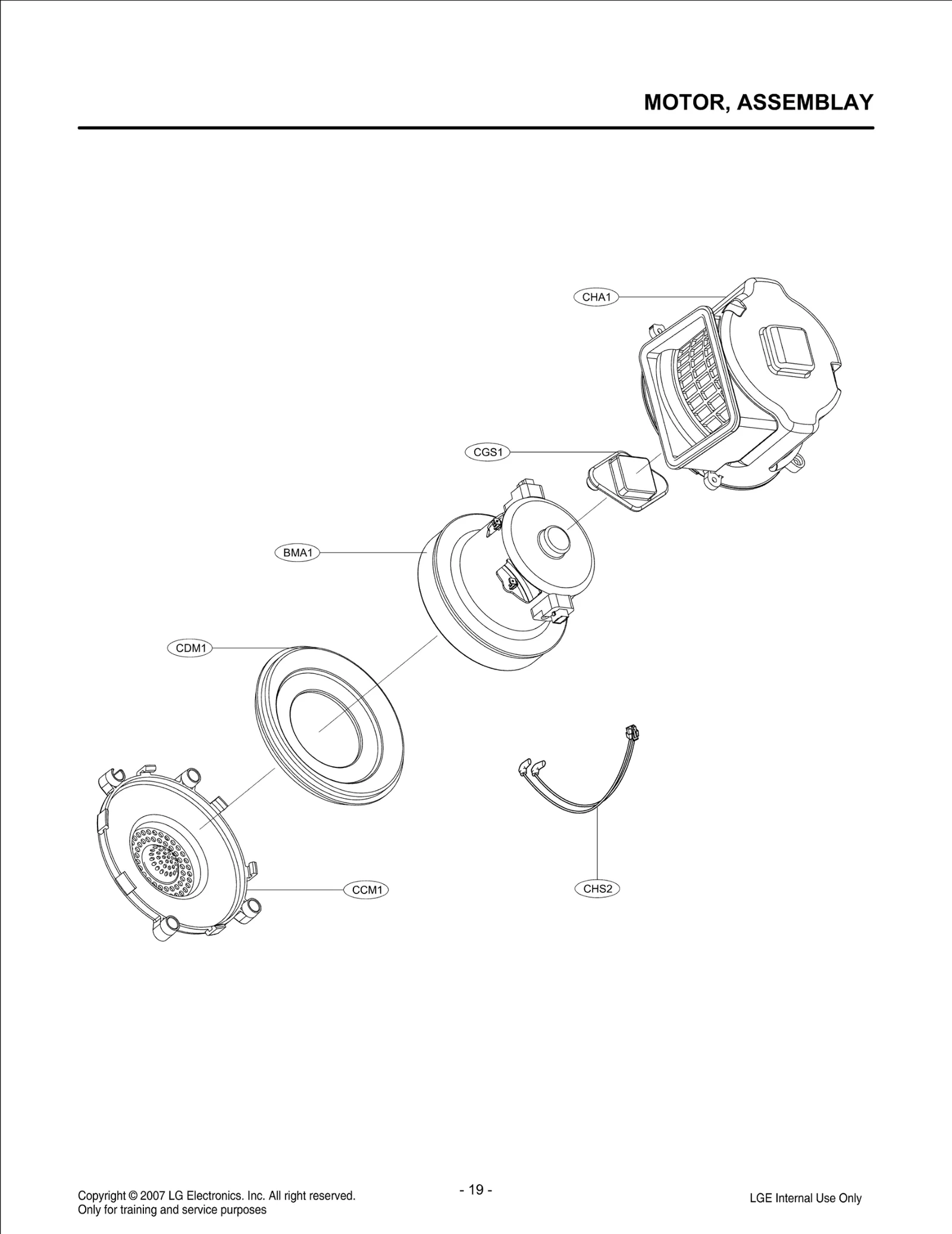

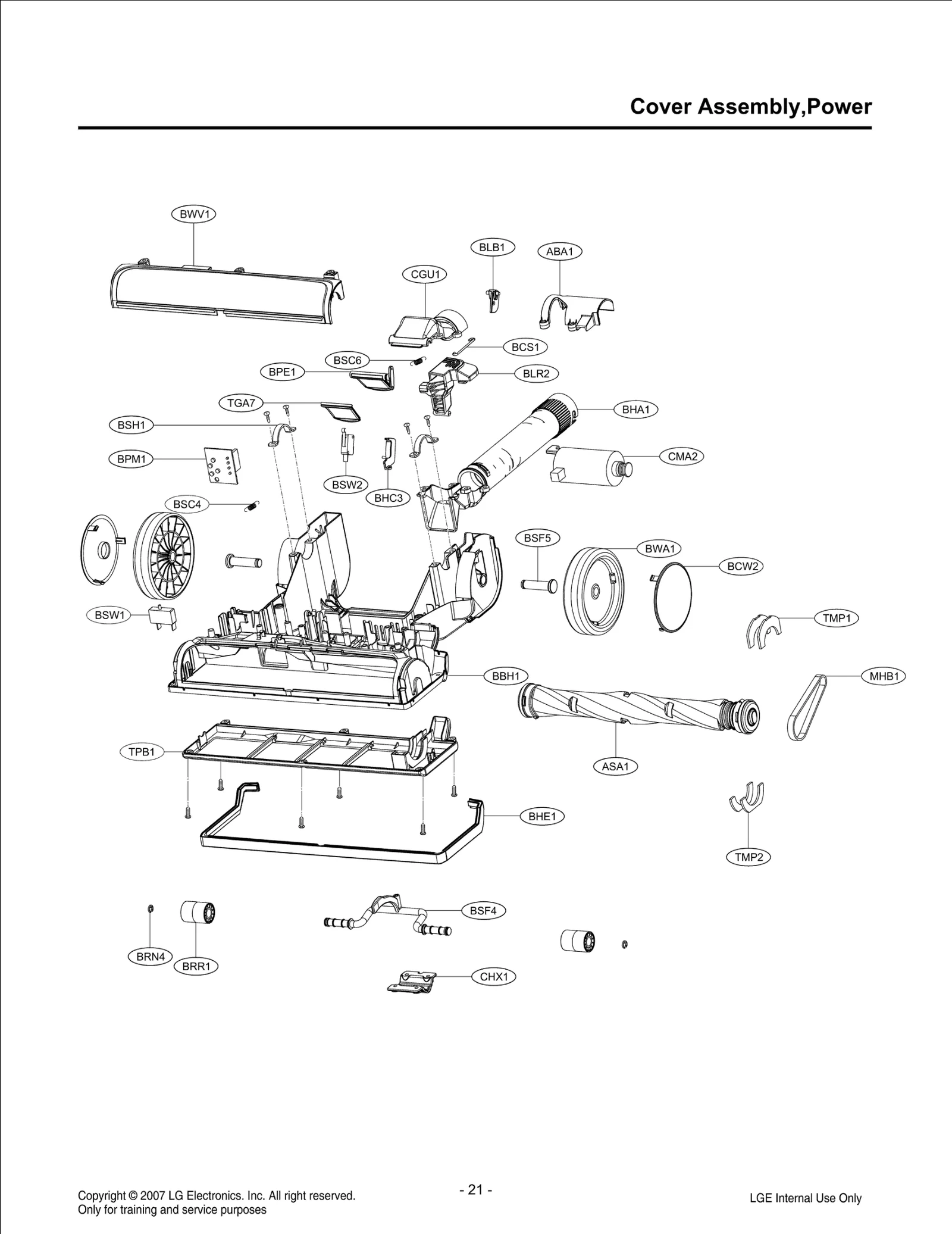

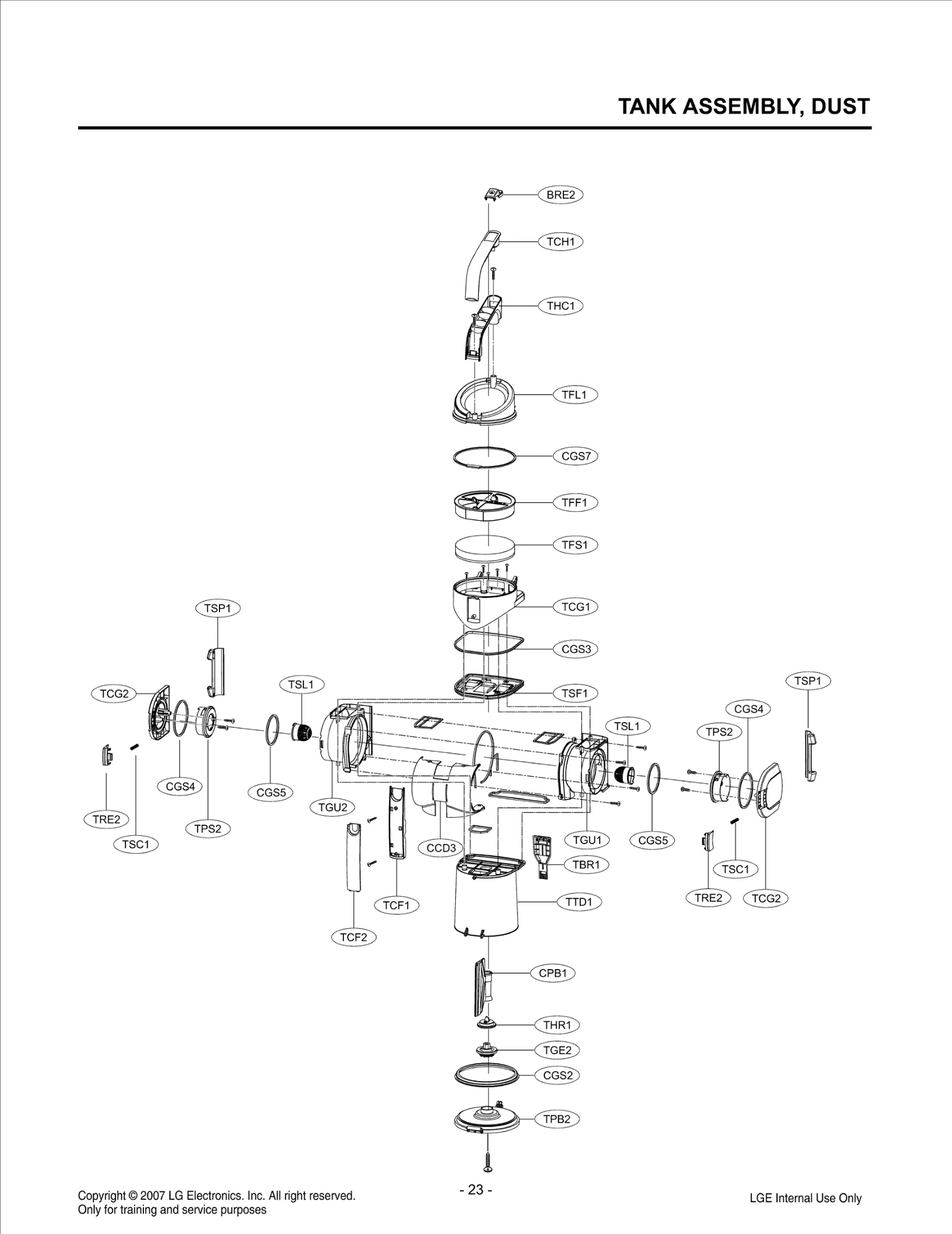

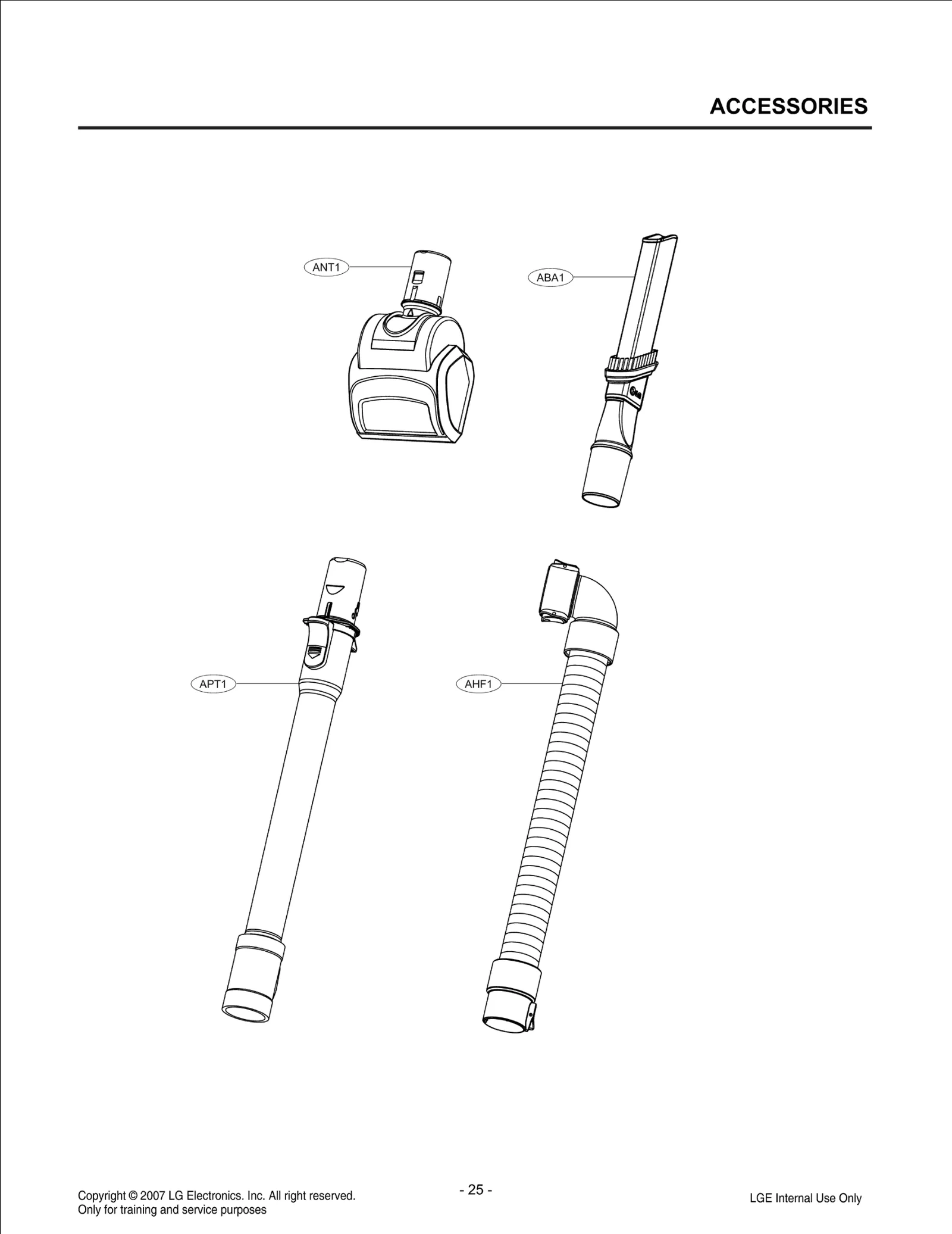

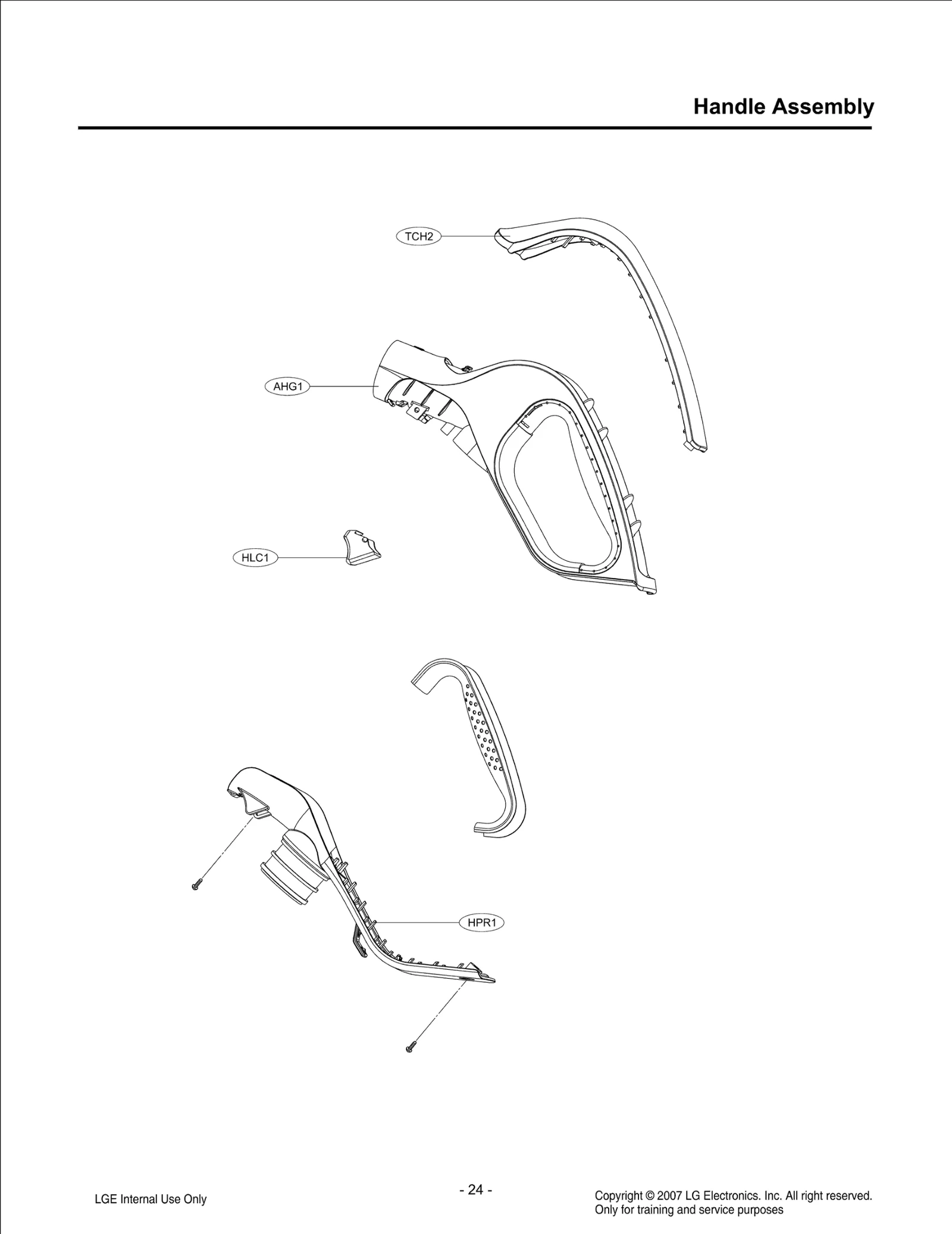

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Diagram 5
Diagram 6
Diagram 7

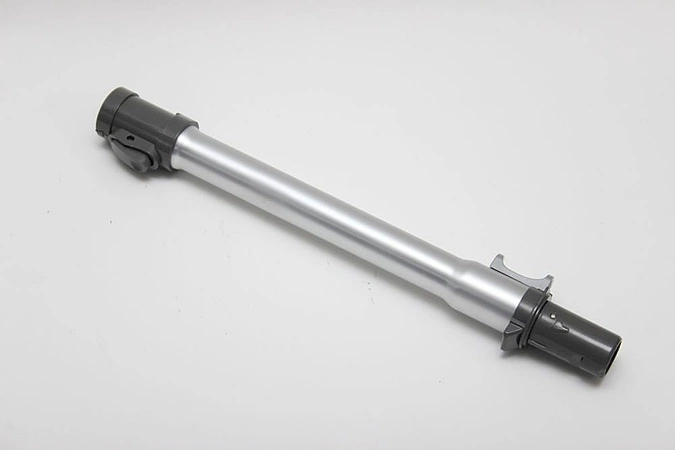

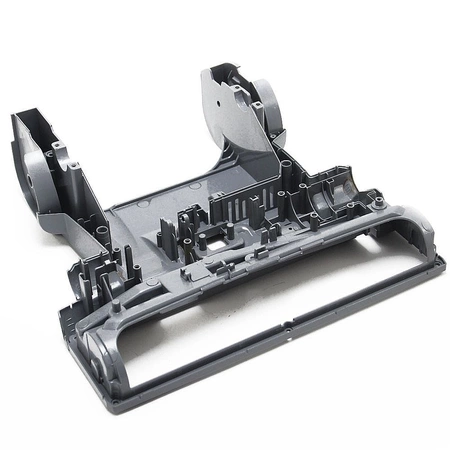

Common parts from model LG LUV250C Ventilation
ABA1
Bracket Assembly LGE ABA73829002 Contact Us For Availability
ABA1
Brush Assembly,Dust LGE ABC72909903 Contact Us For Availability
AHF1
Hose Assembly,Flexible LGE AEM73232902 Contact Us For Availability
AHG1
Handle,Grip LGE MEB62194302 Contact Us For Availability
ASA1
Shaft Assembly,Agitator LGE AHR73029701 Contact Us For Availability
BBC1
Button,Control LGE MBG63823201 Contact Us For Availability
BBS1
Switch Assembly LGE EBF61216201 Contact Us For Availability
BBS1
Switch Assembly LGE EBF60694603 Contact Us For Availability
BCD1
Cover,Decor LGE MCK66008602 Contact Us For Availability
BCR1
Bush,Cord LGE MBF62623901 Contact Us For Availability
BCS1
Connector,Shaft LGE MCD37392001 Contact Us For Availability
BCT1
Cover,Top LGE MCK66010002 Contact Us For Availability
BCW2
Cover,Wheel LGE MCK63728602 Contact Us For Availability
BEF1
Cover,Exhaust Filter LGE MCK66010103 Contact Us For Availability
BGA1
Guide Assembly,Air LGE AEC73257402 Contact Us For Availability
BGA2
Guide,Air LGE MEA62430302 Contact Us For Availability
BGA3
Guide,Air LGE MEA62431202 Contact Us For Availability
BGA4
Guide,Air LGE MEA62430202 Contact Us For Availability
BHA1
Hose Assembly,Connector LGE AEM73252902 Contact Us For Availability
BHB1
Holder,Button LGE MEG62479901 Contact Us For Availability
BHC1
Hanger,Cord LGE MEC62045002 Contact Us For Availability
BHC2
Holder,Cord LGE MEG62480002 Contact Us For Availability
BHC3
Holder,Cover LGE MEG62762201 Contact Us For Availability
BHE1
Bumper,Head LGE MBD61923802 Contact Us For Availability
BHP1
Holder,Pipe LGE MEG62481401 Contact Us For Availability
BHP2
Holder,Pipe LGE 4930FI3772G Contact Us For Availability
BHR2
HOLDER,CORD LGE 4930FI4669A Contact Us For Availability
BLB1
Lever,Bottom LGE MFC37419202 Contact Us For Availability
BLR2
Lever,Release LGE MFC62149602 Contact Us For Availability
BMA1
Motor Assembly,AC,Vacuum Cleaner LGE EAU61383001 Contact Us For Availability
BPA1
PCB Assembly,Main LGE EBR73408901 Contact Us For Availability
BPC1
Power Cord LGE EAD61517709 Contact Us For Availability
BPE1
Plate,Guide LGE MGJ62022101 Contact Us For Availability
BPM1
PCB Assembly,Power LGE EBR37489702 Contact Us For Availability
BPS1
Button,Power Switch LGE MBG63823101 Contact Us For Availability
BPT1
Pipe,Terminal LGE MGE62170602 Contact Us For Availability
BRE1
Button,Release LGE MBG63823301 Contact Us For Availability
BRE2
Button,Release LGE MBG62703601 Contact Us For Availability
BRN4
RING,E LGE 4350FI3787A Contact Us For Availability
BRR1
Roller LGE MHA62152801 Contact Us For Availability
BSC1
Spring,Coil LGE MHY62004106 Contact Us For Availability
BSC2
Spring,Coil LGE MHY62004002 Contact Us For Availability
BSC2
Spring,Coil LGE MHY62004105 Contact Us For Availability
BSC3
Spring,Coil LGE MHY62424501 Contact Us For Availability
BSC4
Spring,Coil LGE MHY62004108 Contact Us For Availability
BSC5
Spring,Coil LGE MHY62004104 Contact Us For Availability
BSC6
Spring,Coil LGE MHY62083901 Contact Us For Availability
BSF4
Shaft LGE MHJ62315901 Contact Us For Availability
BSF5
Shaft LGE MHJ62395501 Contact Us For Availability
BSH1
STRAP,HEAD LGE 4640FI4004A Contact Us For Availability
BSH2
Supporter,Holder LGE MJH62256502 Contact Us For Availability
BSW1
Switch Assembly LGE EBF38034401 Contact Us For Availability
BSW2
Switch Assembly LGE EBF37971301 Contact Us For Availability
BWA1
Wheel Assembly LGE AJW72990402 Contact Us For Availability
BWV1
Window,Viewing LGE MKC63659201 Contact Us For Availability
CBC1
Button,Control LGE MBG37846402 Contact Us For Availability
CBC2
Button,Control LGE MBG63825001 Contact Us For Availability
CCB1
Cover Assembly,Body LGE ACQ85466403 Contact Us For Availability
CCD1
Cover,Decor LGE MCK66008103 Contact Us For Availability
CCD3
Cover,Decor LGE MCK66010701 Contact Us For Availability
CCF1
Cover,Safety LGE MCK66258002 Contact Us For Availability
CCH1
Cover,Head LGE MCK66027802 Contact Us For Availability
CCM1
Cover,Motor LGE MCK66010202 Contact Us For Availability
CDA1
Damper Assembly LGE ACV72910002 Contact Us For Availability
CDM1
Damper,Motor Mount LGE MCQ66004901 Contact Us For Availability
CFA1
Filter Assembly,Exhaust LGE ADQ73233201 Contact Us For Availability

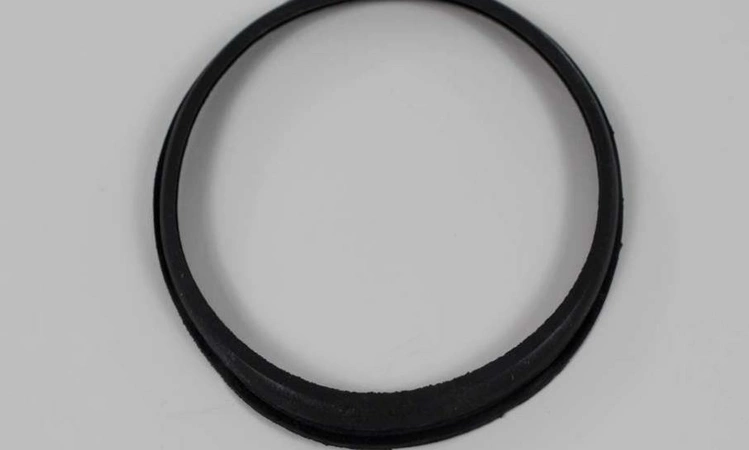

CGA1
Gasket,Sealing LGE MDS63230601 Contact Us For Availability
CGA2
Gasket,Sealing LGE MDS63230701 Contact Us For Availability
CGS1
Gasket,Sealing LGE MDS63230801 Contact Us For Availability
CGS3
Gasket,Sealing LGE MDS63231001 Contact Us For Availability
CGS4
Gasket LGE MDS62832901 Contact Us For Availability
CGS5
Gasket LGE MDS62833001 Contact Us For Availability
CGU1
Guide,Air LGE MEA62410502 Contact Us For Availability
CHA1
Housing Assembly,Motor LGE AEN73171503 Contact Us For Availability
CHC1
Holder,Accessory LGE MEG62063402 Contact Us For Availability
CHS1
Harness,Single LGE EAD60887402 Contact Us For Availability
CHS2
Harness,Single LGE EAD60887302 Contact Us For Availability
CHX1
Holder,Fixing LGE MEG62199701 Contact Us For Availability
CKC1
Knob,Control LGE MEY62193702 Contact Us For Availability
CKC2
Cover,Decor LGE MCK66027902 Contact Us For Availability
CMA1
Motor, AC Synchronous LGE 6549W1S013S Contact Us For Availability
CMA2
Motor Assembly,AC,Vacuum Cleaner LGE EAU38048001 Contact Us For Availability
CPB1
Plate Assembly LGE AGU73508402 Contact Us For Availability
HPR1
Plate,Rotation LGE MGJ62703402 Contact Us For Availability
MHB1
Belt LGE MAS37628302 Contact Us For Availability
TBR1
Lever,Release LGE MFC62170202 Contact Us For Availability
TCF1
Case,Front LGE MBN62263402 Contact Us For Availability
TCF2
Cover,Front LGE MCK66010901 Contact Us For Availability
TCG1
Cover,Guide LGE MCK66010602 Contact Us For Availability
TCG2
Cover,Guide LGE MCK66010802 Contact Us For Availability
TCH1
Cover,Handle LGE MCK66010402 Contact Us For Availability
TFF1
Frame,Filter LGE MDQ62637901 Contact Us For Availability
TFL1
Cover Assembly,Filter LGE ACQ85644601 Contact Us For Availability
TFR1
Cover,Front LGE MCK66008002 Contact Us For Availability
TFS1
Filter,Motor Safety LGE MDJ63006102 Contact Us For Availability
TGA7
Gasket LGE MDS37846501 Contact Us For Availability
TGE1
Gear LGE MDT61846901 Contact Us For Availability
TGE2
Gear LGE MDT62328301 Contact Us For Availability
TGU1
Guide,Air LGE MEA62431501 Contact Us For Availability
TGU2
Guide,Air LGE MEA62431401 Contact Us For Availability
THC1
Handle,Carrier LGE MEB62194502 Contact Us For Availability
THR1
Holder,Rotary LGE MEG62063501 Contact Us For Availability
TMP1
Mop LGE MFQ61922301 Contact Us For Availability
TMP2
Mop LGE MFQ61922101 Contact Us For Availability
TPB1
Plate Assembly,Bottom LGE AGU73529203 Contact Us For Availability
TPB2
Plate,Bottom LGE MGJ62703702 Contact Us For Availability
TPS2
Plate,Shield LGE MGJ62703502 Contact Us For Availability
TRE2
Button,Release LGE MBG63823502 Contact Us For Availability
TSC1
Spring,Coil LGE MHY62004101 Contact Us For Availability
TSF1
Supporter,Filter LGE MJH62256802 Contact Us For Availability
TSL1
Strainer,Inner LGE MJC61921802 Contact Us For Availability
TSP1
Supporter,Cover LGE MJH62256702 Contact Us For Availability
TTD1
Tank,Dust LGE MJM62084601 Contact Us For Availability
× ![]()
