Model Whirlpool LTA85AW WASHER – Common Parts & Diagrams
12 - SHIPPING MATERIALS

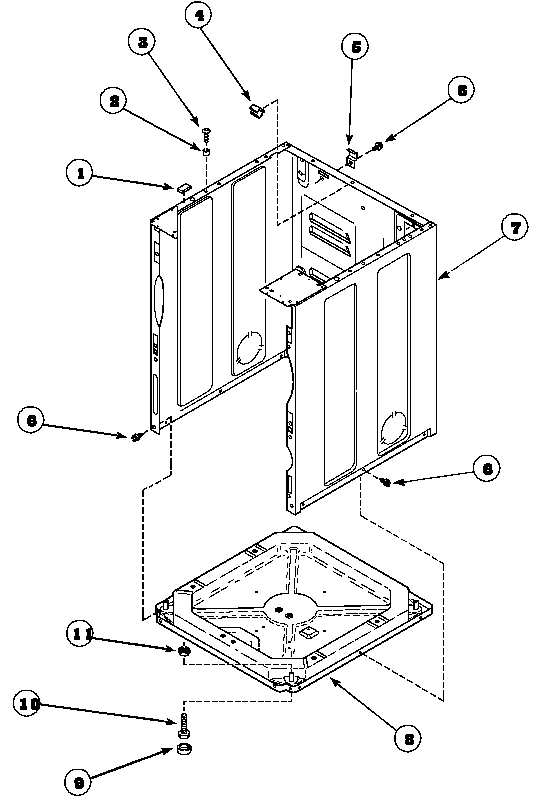

01 - CABINET AND BASE

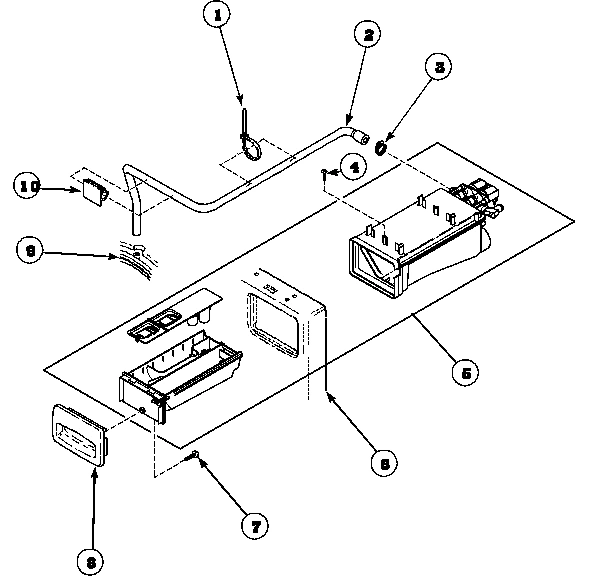

03 - DISPENSER ASSY

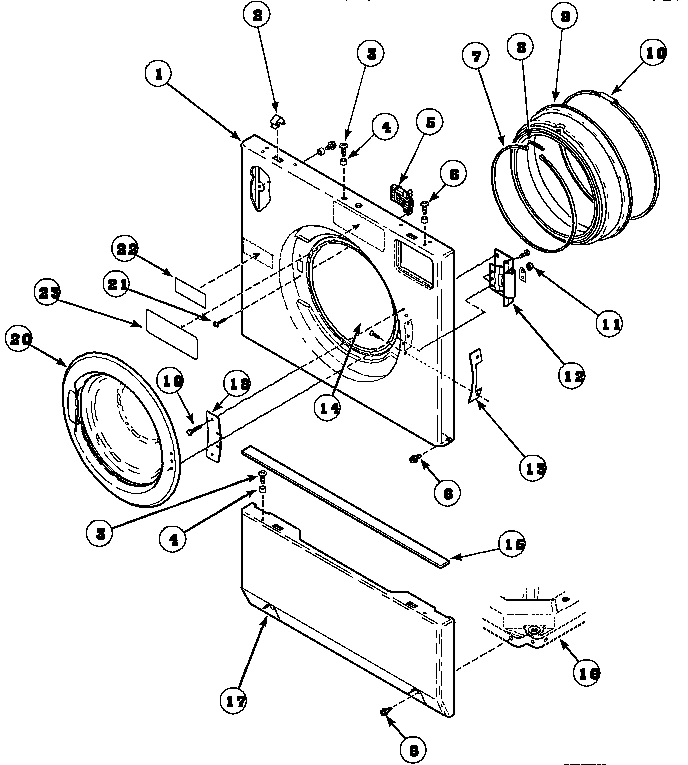

05 - FRONT PANEL, DOOR ASSY AND DOOR SEAL

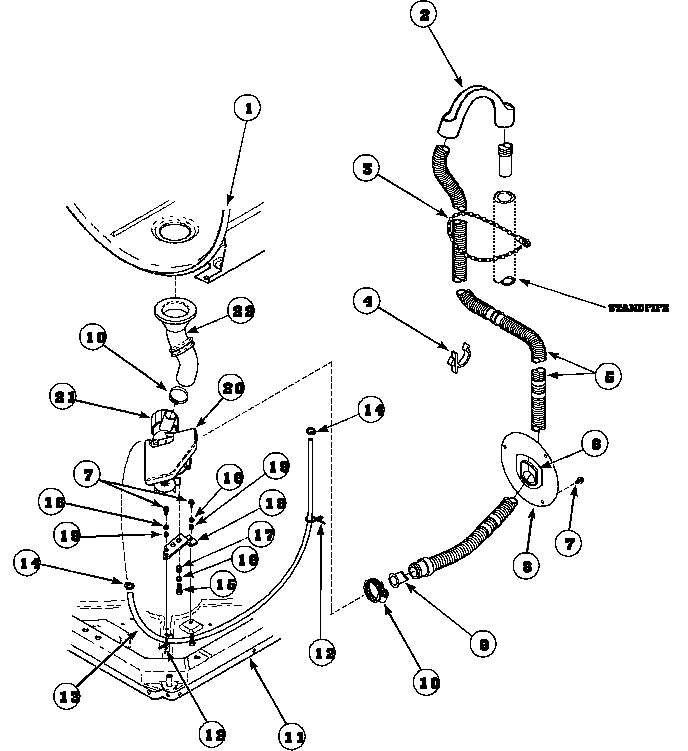

04 - DRAIN HOSE AND PUMP

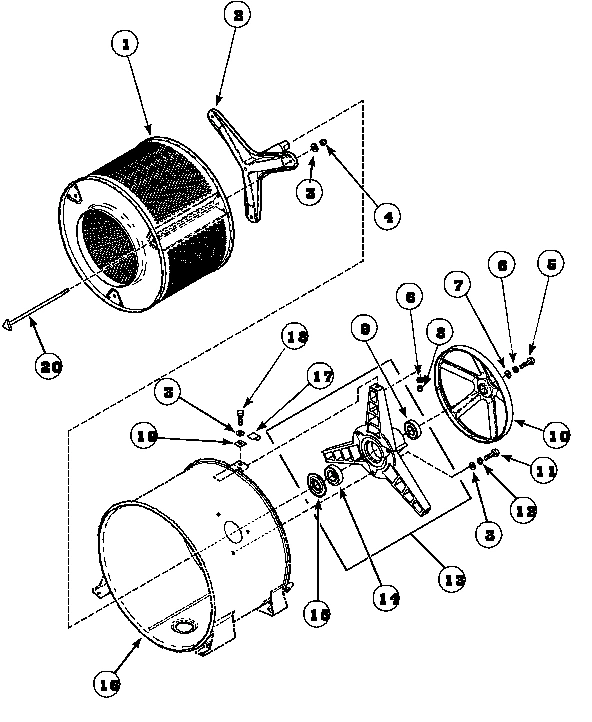

08 - INNER BASKET/TRUNNION/BRG HSG & PULLY

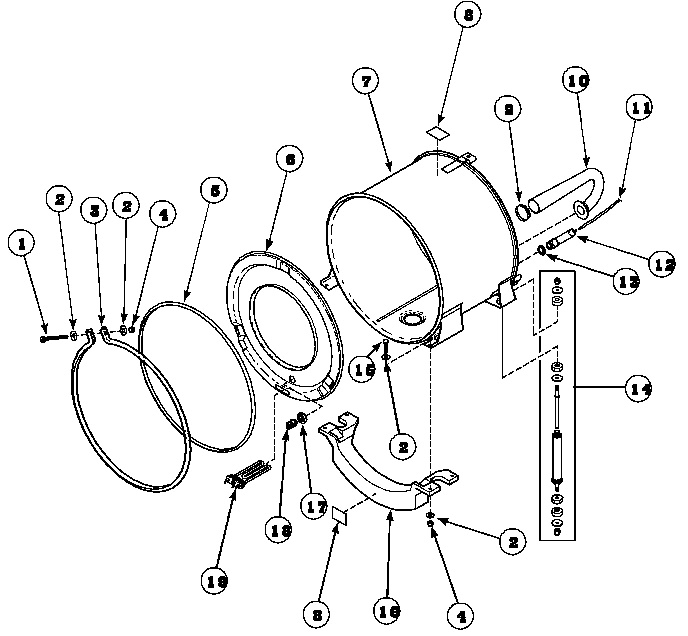

10 - OUTERTUB, FRONT AND CLAMP RING

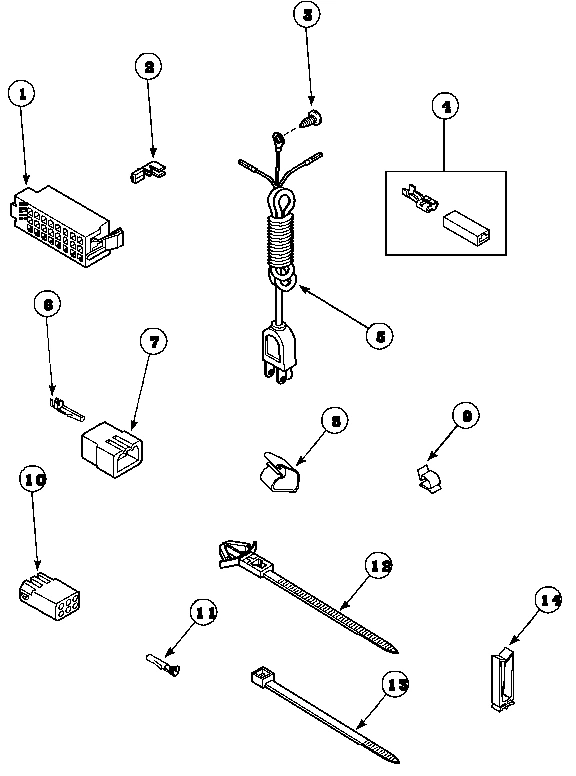

11 - POWER CORD AND TERMINALS

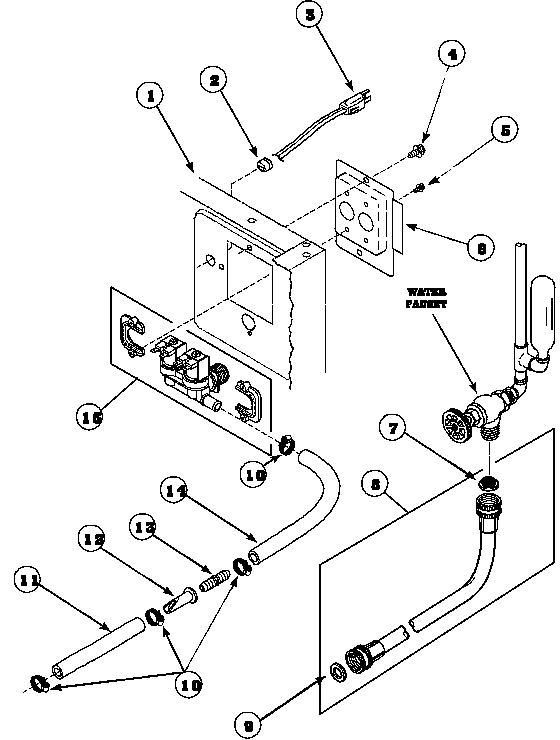

07 - INLET HOSE, MIXING VALVE & DISP HOSE

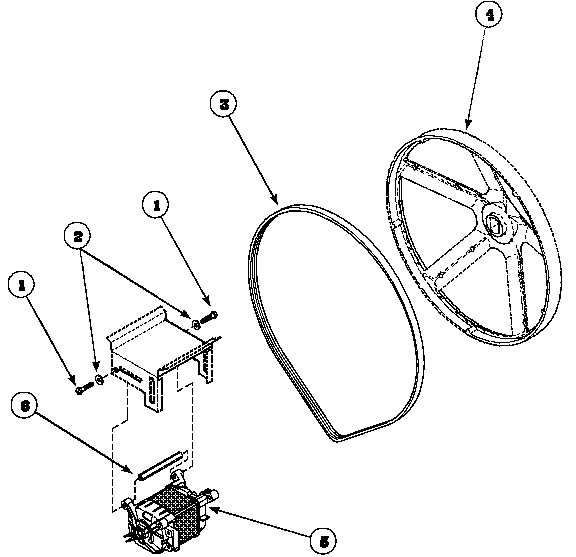

09 - MOTOR AND BELT

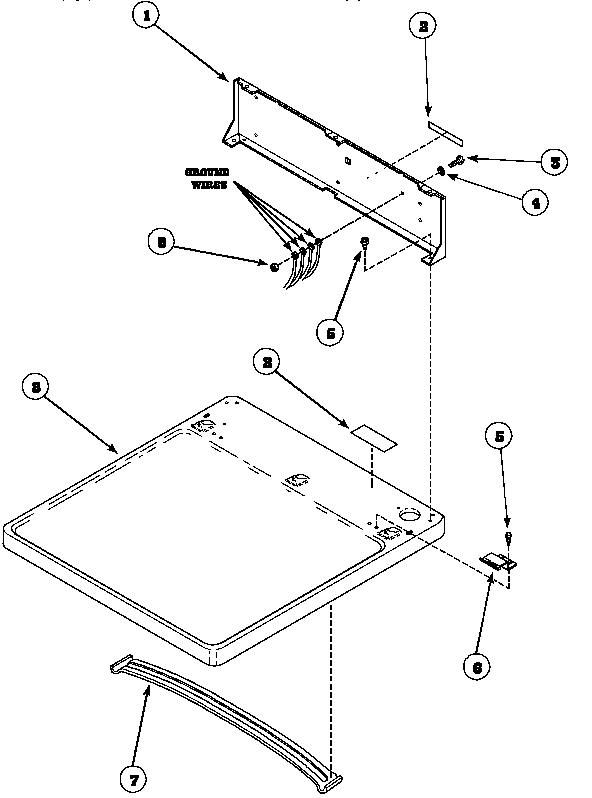

02 - CABINET TOP AND CONTROL HOOD REAR PANEL

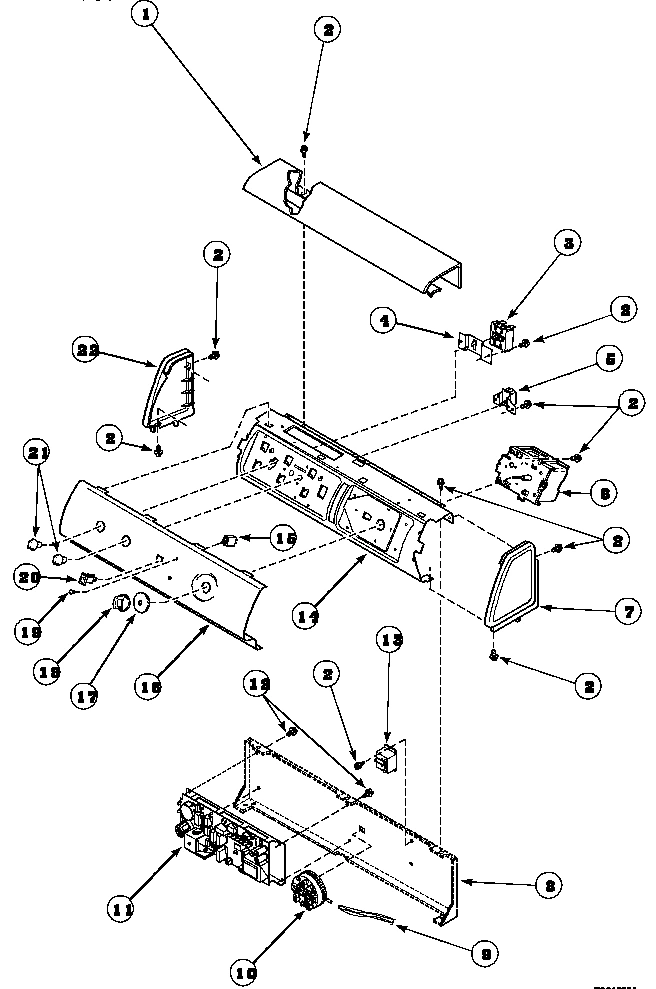

06 - GRAPHIC PANEL, CTRL MTG PLATE AND CTRLS

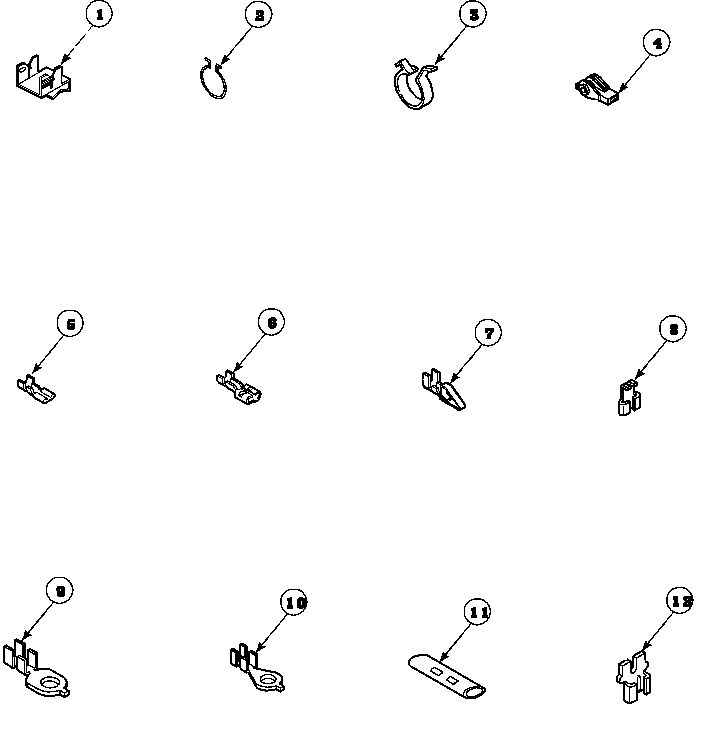

13 - TERMINALS
Common parts from model Whirlpool LTA85AW WASHER
1
PAD, BUMPER WPL Y56128 Contact Us For Availability
1
FRONT PANEL WPL 685306 Contact Us For Availability
1
INNER BASKET WPL 685005 Contact Us For Availability
1
SCREW,3/8-16UNCX4 FULL THREAD WPL 685842 Contact Us For Availability
1
HOUSING,R.H.-24 POSITI WPL 32746 Contact Us For Availability
1
HOUSING,LH -24 POSITION WPL 34123 Contact Us For Availability
1
SCREW,HHC 5/16-18UNCX1.0GR5 BL WPL 685839 Contact Us For Availability
1
TOP COVER WPL 503674 Contact Us For Availability
1
GROUND CLIP WPL Y00161 Contact Us For Availability
2
SCREW WPL 685840 Contact Us For Availability
2
HOSE,DISPENSER VALVE WPL 685717 Contact Us For Availability
2
SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability
2
ASSY,TRUNION WPL Y685212 Contact Us For Availability
2
WASHER,FLAT 3/8 THICK WPL 685812 Contact Us For Availability
2
WASHER,FLAT .344X.875X.063 SS WPL 685848 Contact Us For Availability
2
TERMINAL,FEMALE-MOLEX- WPL Y00188 Contact Us For Availability
2
STRAIN RELIEF WPL 21903 Contact Us For Availability
2
STICKER,DISCONNECT POW WPL 24903 Contact Us For Availability
2
LABEL,WARNING-DISCONNECT POWER WPL 500316 Contact Us For Availability
3
WASHER WPL 685835 Contact Us For Availability
3
STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability
3
RING, CLAMP WPL 685120 Contact Us For Availability
3
SCREW,10B-16 X 1/2 HEX WPL 52909 Contact Us For Availability
3
POWER CORD ALL WPL Y34458 Contact Us For Availability
3
BELT,DRIVE POLY V TY WPL 685616 Contact Us For Availability
3
SCREW,10-24 X 3/8 ROUND WPL 20267 Contact Us For Availability
3
SWITCH,TEMPERATURE 5 P WPL 35117 Contact Us For Availability
3
CLIP,WIRE WPL 61510 Contact Us For Availability
4
SHIPPING BRACKET WPL 685911 Contact Us For Availability
4
LOCATER, PANEL WPL 56079 Contact Us For Availability
4
SCREW,No.10-14X5/8 PLASTITE 48-2 WPL Y685830 Contact Us For Availability
4
CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability
4
LOCKNUT,3/8-16UNC SS304-NYLON WPL 685844 Contact Us For Availability
4
LOCKNUT,3/8-16 UNC BLACK OXIDE WPL 685845 Contact Us For Availability
4
PULLEY, CAST & MACHINE WPL Y685612 Contact Us For Availability
4
TERMINAL,INSULATED WPL 00234 Contact Us For Availability
4
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
4
BRACKET,TEMPERATURE WPL 685522 Contact Us For Availability
4
INSULATOR,BLUE WPL 70210 Contact Us For Availability
5
HINGE, TOP WPL 500003 Contact Us For Availability
5
BRACE SUSPENSION WPL 685907 Contact Us For Availability
5
DISPENSER,MOLDED W/V WPL 685711 Contact Us For Availability
5
ASSY,DOOR LATCH/SWIT WPL 685407 Contact Us For Availability
5
HOSE,DRAIN-WHT PLASTIC (NDEP) WPL 685730 Contact Us For Availability
5
SCREW,3/8-24UNFX1 LH NYLON WPL 685831 Contact Us For Availability
5
SEAL,OUTER TUB FRONT WPL 685123 Contact Us For Availability
5
MOTOR WPL 685617 Contact Us For Availability
5
SIGNAL,ROTARY WPL 500823 Contact Us For Availability
6
RELIEF, STRAIN WPL 32219 Contact Us For Availability
6
LOCKWASHER,3/8 EXT TYPE SS304 WPL 685850 Contact Us For Availability
6
FRONT,OUTER TUB WPL 685121 Contact Us For Availability
6
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
6
PLATE,MIXING VALVE WPL 685320 Contact Us For Availability
6
ROD,MOTOR MOUNT WPL 685629 Contact Us For Availability
6
CLIP, HOLD DOWN WPL 501241 Contact Us For Availability
6
TIMER,115/60 8 CYCLE WPL 685512 Contact Us For Availability
6
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
7
CABINET WPL Y685300 Contact Us For Availability
7
RING,WIRE CLAMP WPL Y685427 Contact Us For Availability
7
ASSY, OUTER TUB WPL 685002 Contact Us For Availability
7
WASHER,FLAT .406X1.5 WPL 685813 Contact Us For Availability
7
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
7
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
7
PLUG,1 CIRCUIT WPL 26302 Contact Us For Availability
7
BRACE, TOP WPL 56486 Contact Us For Availability
7
END CAP RIGHT WPL Y504008 Contact Us For Availability
8
SHIPPING CORD WPL Y685908 Contact Us For Availability
8
FRONT,DISPENSER DRAWER WPL 685715 Contact Us For Availability
8
SPRING,EXTENSION WPL Y685428 Contact Us For Availability
8
PLATE,STRAIN RELIEF WPL 685319 Contact Us For Availability
8
STICKER WPL 500049 Contact Us For Availability
8
LABEL, WARNING WPL 500314 Contact Us For Availability
8
CLIP,HARNESS HOLDER WPL 35521 Contact Us For Availability
8
PANEL,BACK-CONTROL WPL 685322 Contact Us For Availability
8
NO LONGER AVAILABLE WPL 500085 Contact Us For Availability
8
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
9
PREVENTOR-BACKFLOW-PUMP WPL 685733 Contact Us For Availability
9
BEARING,BALL-REAR WPL Y685602 Contact Us For Availability
9
CLAMP, HOSE 2.0 DIAM WPL 685725 Contact Us For Availability
9
TUBING,48 WPL 29214 Contact Us For Availability
9
CLIP,CABLE WPL 21036 Contact Us For Availability
9
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
9
NUT WPL 03673 Contact Us For Availability
10
LEG,LEVELING 3/8 UNC WPL 685800 Contact Us For Availability
10
CLIP,HOSE WPL 685736 Contact Us For Availability
10
SEAL CABLE TIE WPL 685509 Contact Us For Availability
10
HOSE, DETERGENT WPL 685701 Contact Us For Availability
10
RECEPTACLE,9 CIRCUIT WPL 26163 Contact Us For Availability
10
RECEPTACLE,MOLEX WPL 26301 Contact Us For Availability
10
RECEPTACLE,6 CIRCUIT WPL 26708 Contact Us For Availability
10
SWITCH,PRESSURE 3 LE WPL 685520 Contact Us For Availability
10
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
11
BASE,FRONT LOAD WPL Y685303 Contact Us For Availability
11
LOCKNUT,No.10-32 UNF-NYLON WPL 685846 Contact Us For Availability
11
SCREW,HHC 3/8-16UNC WPL 685809 Contact Us For Availability
11
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
11
HOSE,INLET-FRONT WPL 685734 Contact Us For Availability
11
BOARD,MOTOR CONTROL WPL 685503 Contact Us For Availability
11
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
12
ASSY, DOOR HINGE WPL 685019 Contact Us For Availability
12
TIE, WIRE-PUSH MOUNT WPL 38663 Contact Us For Availability
12
LOCKWASHER WPL M400014 Contact Us For Availability
12
PRESSURE BULB WPL 30907 Contact Us For Availability
12
PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability
12
SCREW,HHC 10-24 UNC X .50 WPL 685837 Contact Us For Availability
12
DOUBLE CONNECTOR WPL 29673 Contact Us For Availability
13
WIRE TIE WPL 55881 Contact Us For Availability
13
BRACKET,HINGE STOP WPL 685423 Contact Us For Availability
13
ASSY,HOSE-VENT WPL 685731 Contact Us For Availability
13
ASSY,BEARING HOUSING WPL 685001 Contact Us For Availability
13
GROMMET WPL 29175 Contact Us For Availability
13
UNION,BARBED NYLON 1/2 X 1/2 WPL Y685735 Contact Us For Availability
13
RELAY,CONTROL WPL 685521 Contact Us For Availability
14
ASSY,SHOCK ABSORBER WPL 685604 Contact Us For Availability
14
BEARING,BALL-FRONT WPL 685601 Contact Us For Availability
14
CLIP, HARNESS WPL 36274 Contact Us For Availability
14
HOSE,MIXING VALVE TO WPL 685709 Contact Us For Availability
14
PLATE, CONTROL MTG. WPL 685310 Contact Us For Availability
15
TAPE,FOAM WPL 685366 Contact Us For Availability
15
SCREW, METRIC-LOCK M6 WPL Y38096 Contact Us For Availability
15
SEAL,RADIAL LIP WPL 685603 Contact Us For Availability
15
SCREW,HHCS 3/8-16UNC X1.25GR5 WPL 685841 Contact Us For Availability
15
VALVE,WATER-MIXING 2 WPL 685707 Contact Us For Availability
16
WASHER,No.12 ZINC WPL 685849 Contact Us For Availability
16
WEIGHT,BALLAST WPL 685608 Contact Us For Availability
16
PANEL, GRAPHICS WPL 685514 Contact Us For Availability
17
CLIP, HOSE WPL 36985 Contact Us For Availability
17
PANEL, LOWER ACCESS WPL 503648 Contact Us For Availability
17
GROMMET,RUBBER .25`` ID WPL Y685834 Contact Us For Availability
17
GROMMET,THERMOSTAT WPL 685546 Contact Us For Availability
17
TIMER KNOB SKIRT WPL 36700 Contact Us For Availability
18
PLATE,HINGE WPL 685421 Contact Us For Availability
18
BRACKET,PUMP MOUNT WPL Y685705 Contact Us For Availability
18
THERMOSTAT WPL 685573 Contact Us For Availability
18
TIMER KNOB WPL 35333 Contact Us For Availability
19
SCREW,No.10-32 UNFX1.00 WPL Y685836 Contact Us For Availability
19
GROMMET,RUBBER .19`` ID WPL Y685833 Contact Us For Availability
19
PLATE,HOSE MOUNT WPL 685139 Contact Us For Availability
19
ELEMENT,HEATING W/GS WPL 685500 Contact Us For Availability
19
LENS,INDICATOR LIGHT-SHORT .16 WPL 685579 Contact Us For Availability
20
DOOR ASSEMBLY WPL Y685012 Contact Us For Availability
20
SHIELD, PUMP WPL 38067 Contact Us For Availability
20
ASSY,TENSION ROD WPL 685216 Contact Us For Availability
20
SWITCH, ROCKER WPL 38424 Contact Us For Availability
21
SCREW,No.8-16X5/8 PLASTITE 48-2 WPL 685829 Contact Us For Availability
21
PUMP,DRAIN WPL 685703 Contact Us For Availability
21
KNOB, TEMP WPL 36701 Contact Us For Availability
22
LABEL,DOOR LOCKED WPL 685921 Contact Us For Availability
22
HOSE, DRAIN WPL 685700 Contact Us For Availability
22
END CAP LEFT WPL Y504009 Contact Us For Availability
23
LABEL,DISPENSER WPL 685923 Contact Us For Availability
NI
HARNESS,WIRING-MOTOR WPL 685515 Contact Us For Availability
NI
HARNESS,WIRING-BASE WPL 685526 Contact Us For Availability
NI
HARNESS,WIRING-HOOD WPL Y685525 Contact Us For Availability
× ![]()
