Model LG LT1230HR – Common Parts & Diagrams

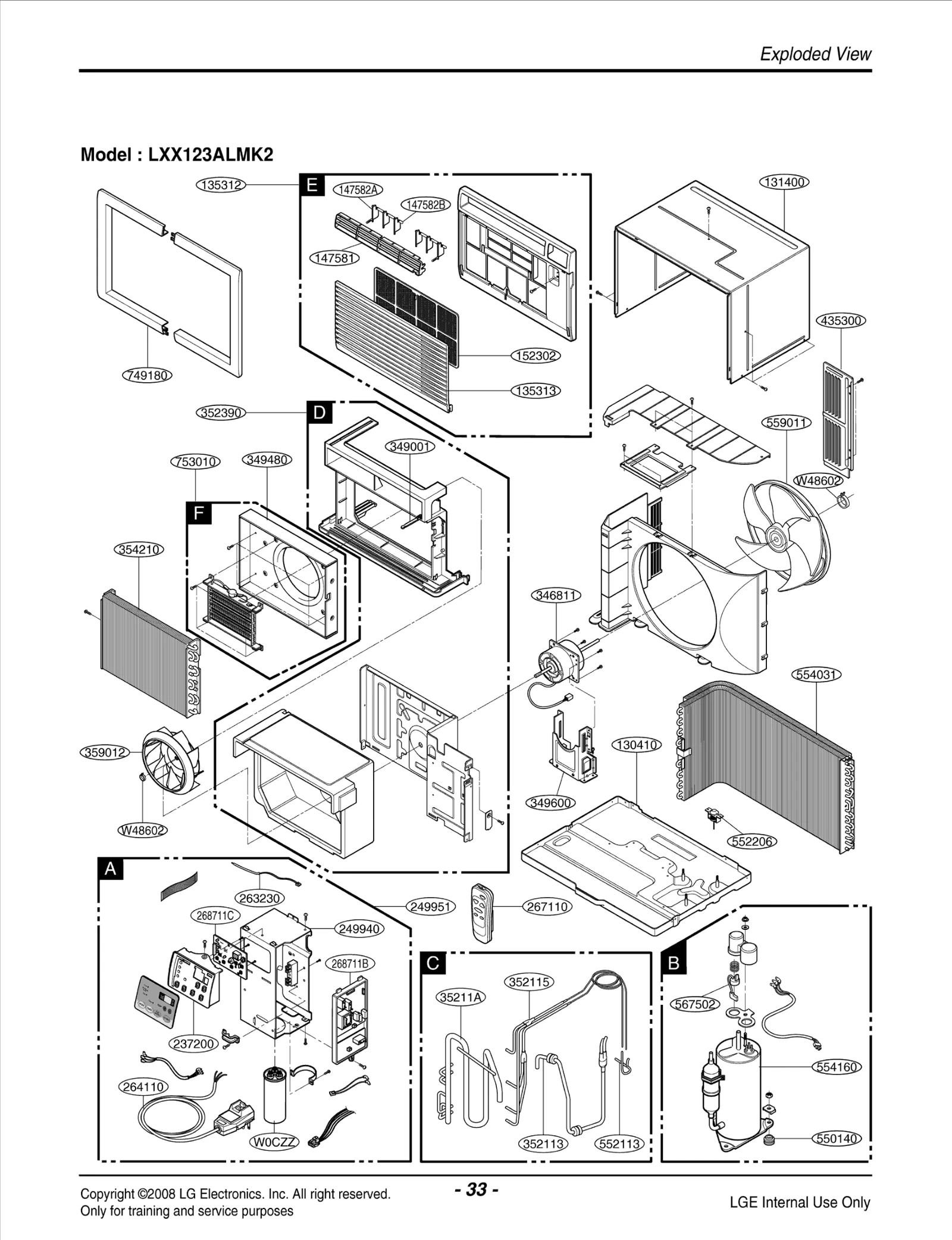

Diagram 0
Common parts from model LG LT1230HR
147582B
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
249940
Case,Control LGE 4994A10096A Contact Us For Availability
249951
Case Assembly,Control LGE 4995A20811A Contact Us For Availability
264110
POWER CORD ASSEMBLY LGE 6411A20048L Contact Us For Availability
267110
REMOTE CONTROLLER ASSEMBLY LGE 6711A90024G Contact Us For Availability
268711B
PWB(PCB) ASSEMBLY,MAIN LGE 6871A10188D Contact Us For Availability
268711C
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20802A Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20041M Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20001A Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A29024E Contact Us For Availability
352390
AIR GUIDE ASSEMBLY LGE 5239A10002G Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071J Contact Us For Availability
435300
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A20560L Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20040H Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKHK2AA Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
753010
HEATER ASSY,ELECTRIC LGE 5301A20011A Contact Us For Availability
× ![]()
