Model LG LT1030HR – Common Parts & Diagrams

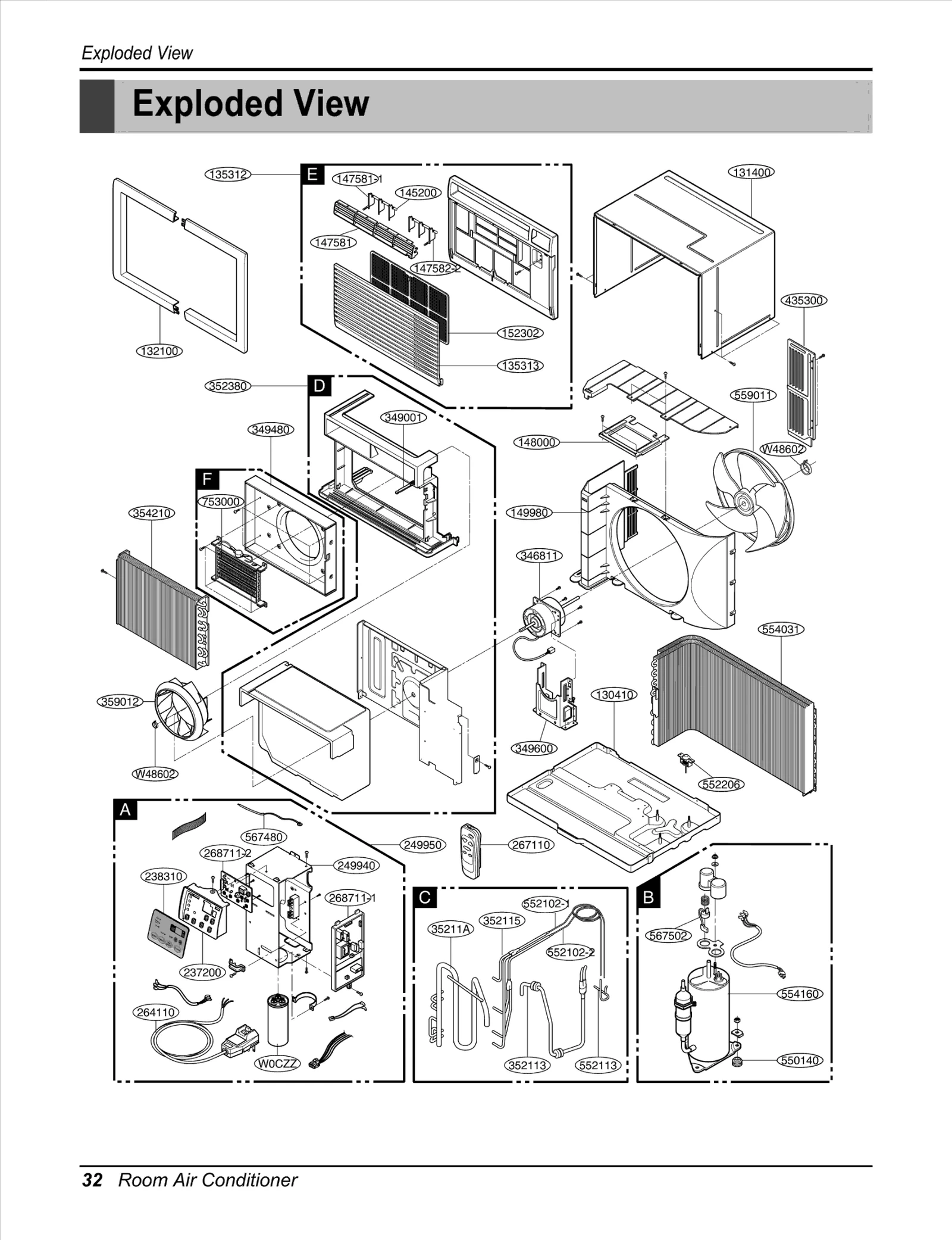

Diagram 0
Diagram 1
Common parts from model LG LT1030HR
130900
Cabinet LGE 3090A20003F Contact Us For Availability
135303
GRILLE,INLET LGE 3530A20020A Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
238310
Escutcheon LGE 3831A10044B Contact Us For Availability
249940
Case,Control LGE 4994A10096A Contact Us For Availability
268711-1
PCB Assembly,Main LGE EBR39264504 Contact Us For Availability
268711-2
PCB Assembly,Display LGE EBR30852201 Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20041C Contact Us For Availability
349001
DAMPER,VENTILATION LGE 4900A20001A Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352380
AIR GUIDE ASSEMBLY LGE 5239A10002G Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071J Contact Us For Availability
550140
BUSH ANTI VIBRATION QJ-COMP(96 LGE 4H00982C Contact Us For Availability
552102-2
Tube,Capillary Bending LGE 5210A22592L Contact Us For Availability
552113
TUBE ASSEMBLY,CONDENSER OUT LGE 5211A21809B Contact Us For Availability
554160
Compressor Set,China LGE TBZ31004601 Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
W52101
TUBE,CAPILLARY LGE 3H00716A Contact Us For Availability
× ![]()
