Model LG LT1030C – Common Parts & Diagrams
Diagram 0

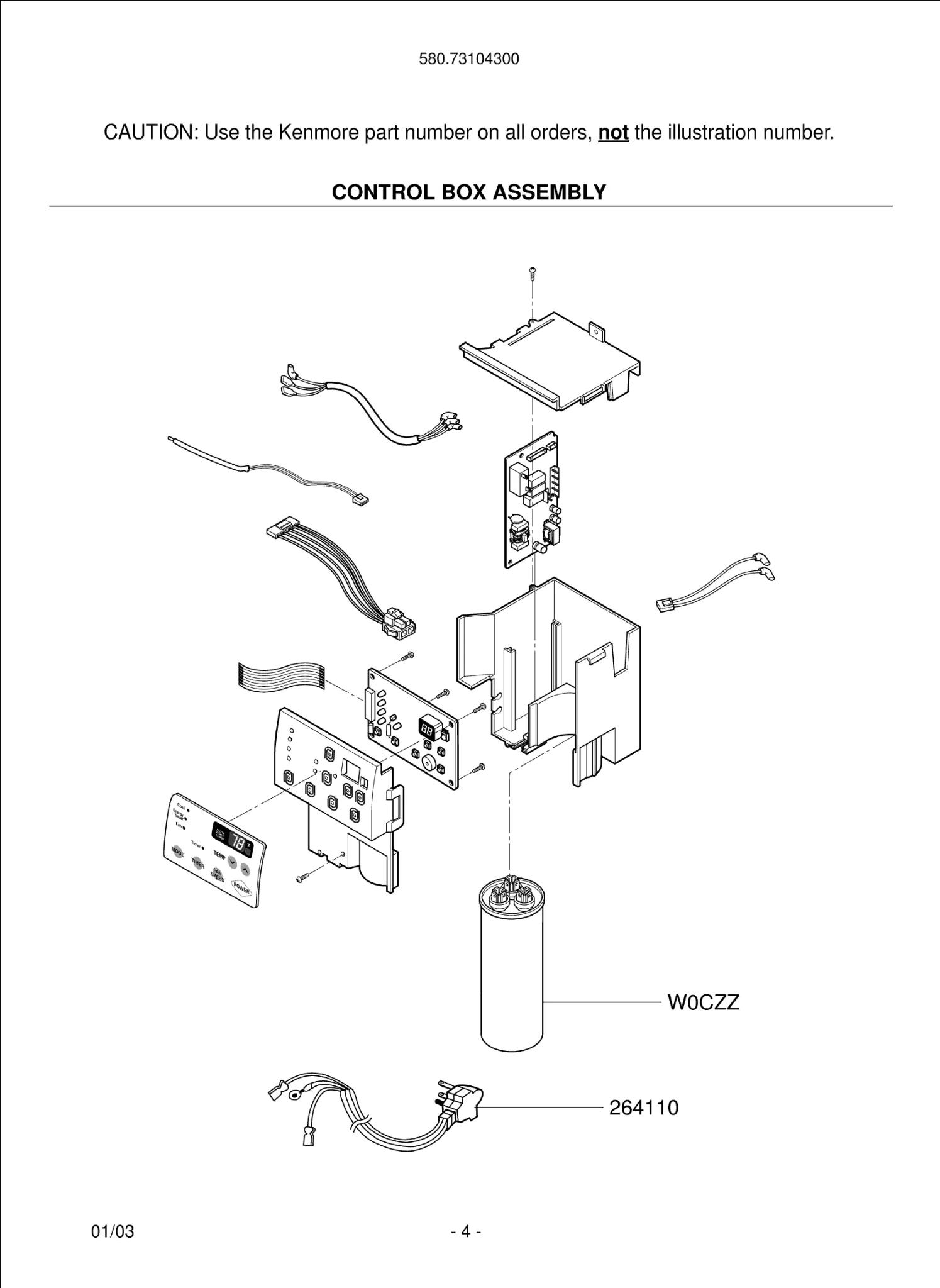

Diagram 1

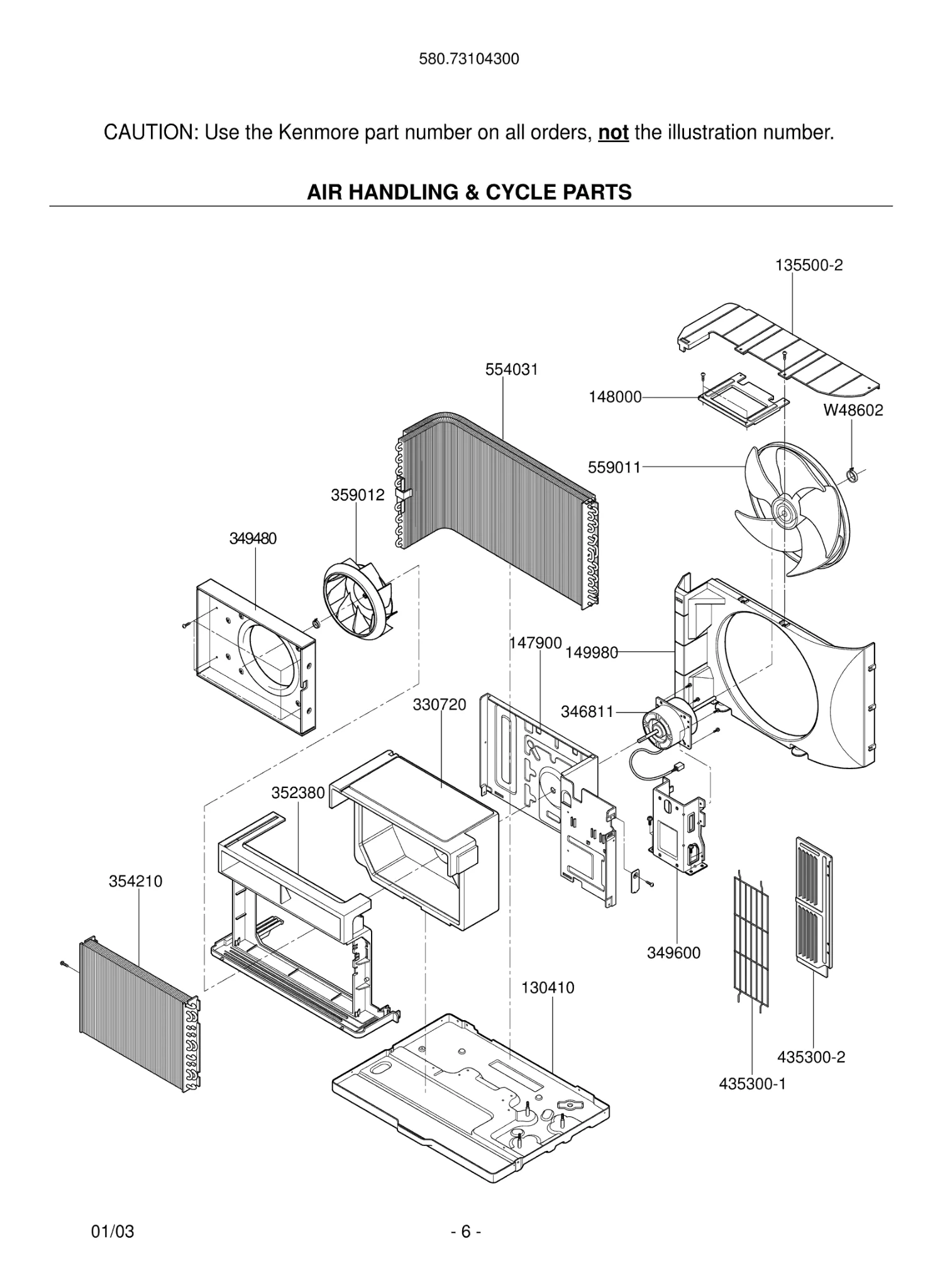

Diagram 2

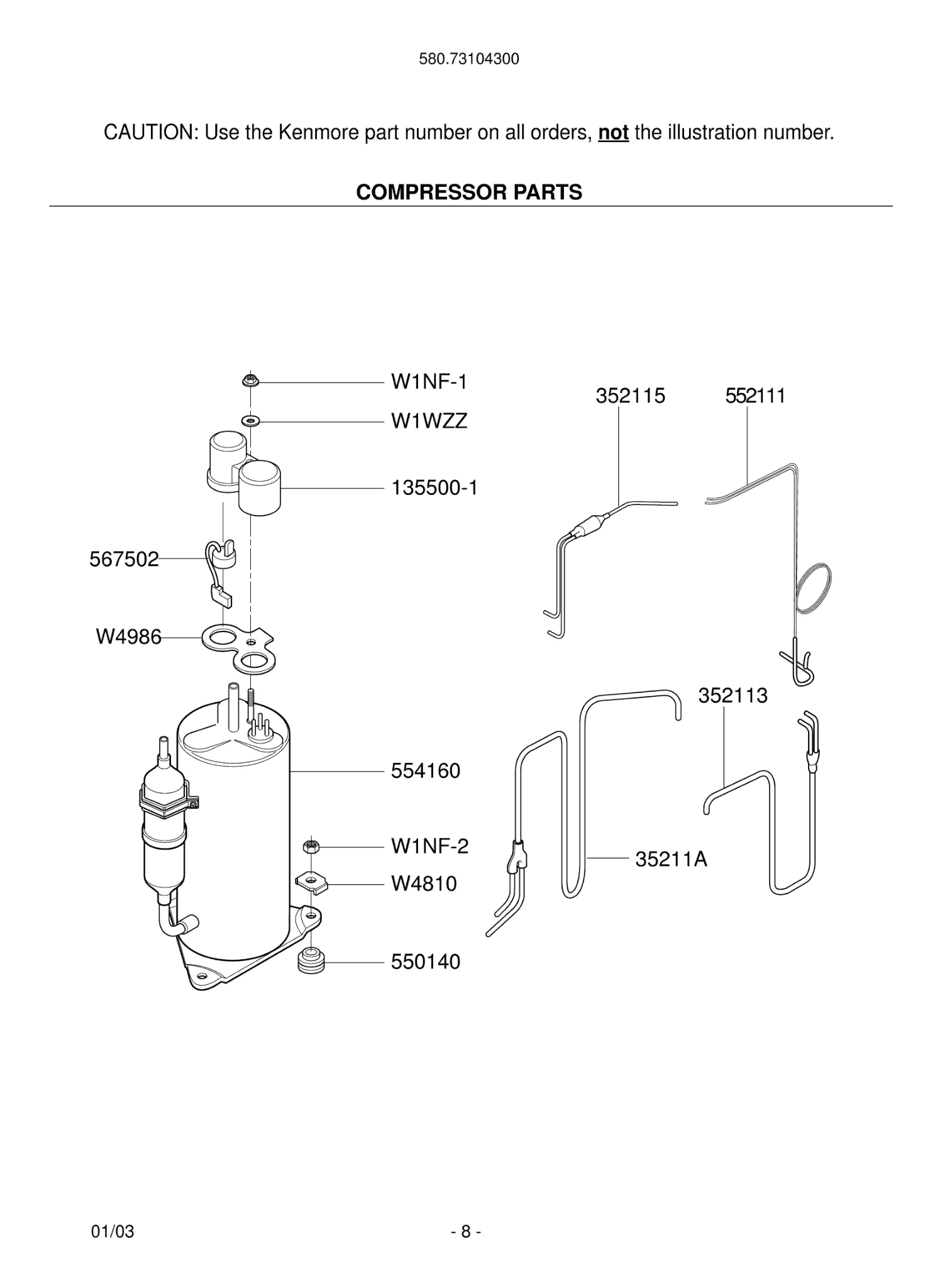

Diagram 3

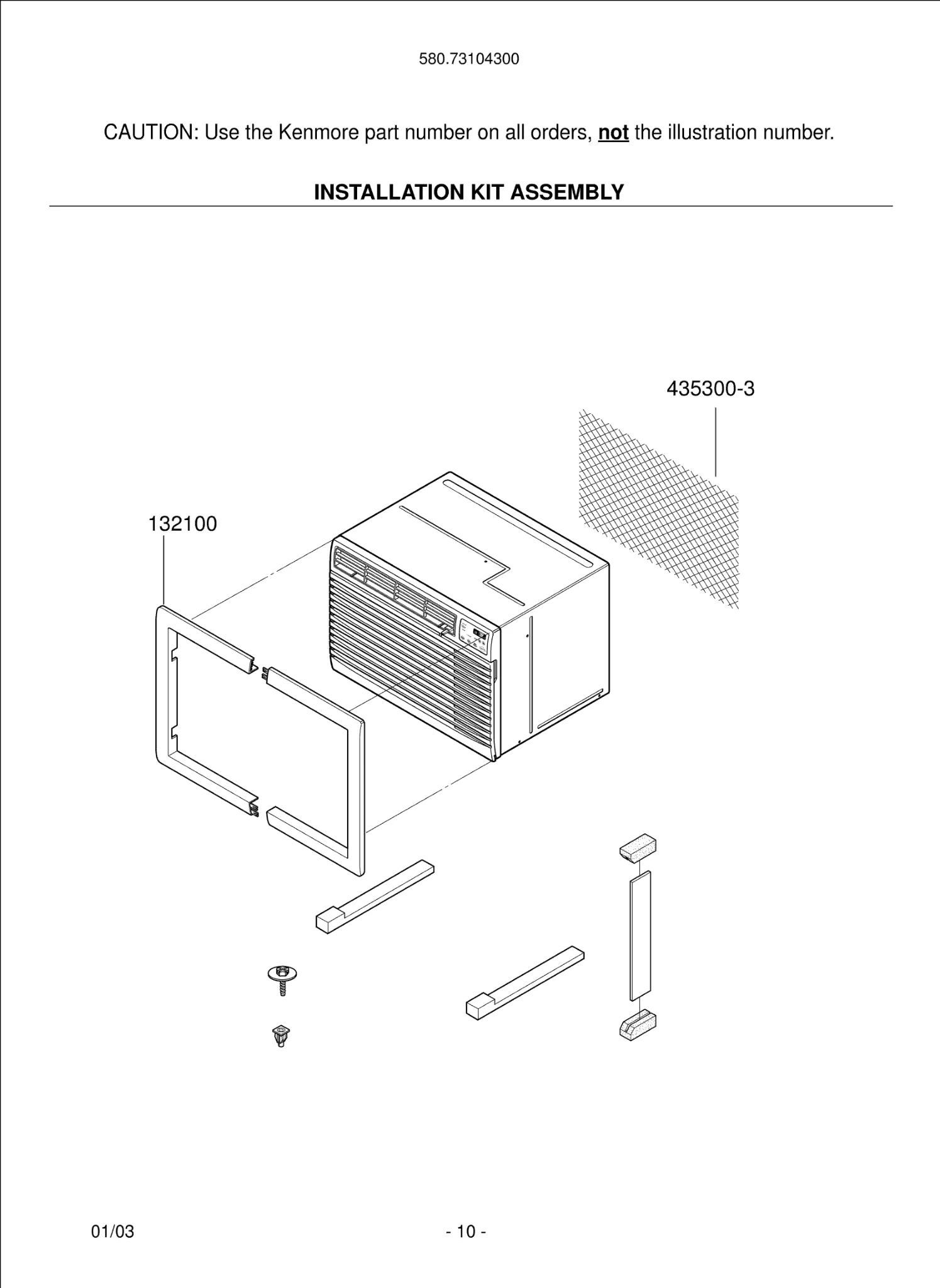

Diagram 4
Common parts from model LG LT1030C
35211A
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A20498B Contact Us For Availability
130410
BASE ASSEMBLY,SINGLE LGE 3041A10014V Contact Us For Availability
135500-1
COVER,TERMINAL LGE 3550U-L004A Contact Us For Availability
135500-2
COVER LGE 3550A20030B Contact Us For Availability
147582-1
LOUVER,VERTICAL LGE 4758A20009A Contact Us For Availability
147582-2
LOUVER,VERTICAL LGE 4758A20009B Contact Us For Availability
147900
BARRIER,SINGLE LGE 4790A20024B Contact Us For Availability
152302
FILTER(MECH),A/C LGE 5230A20007A Contact Us For Availability
330720
SCROLL LGE 3072A20003B Contact Us For Availability
346811
MOTOR ASSEMBLY,SINGLE LGE 4681A20044E Contact Us For Availability
349600
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352113
TUBE ASSEMBLY,DISCHARGE SINGLE LGE 5211A30588B Contact Us For Availability
352115
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20289C Contact Us For Availability
352380
AIR GUIDE LGE 5238A20005A Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20071E Contact Us For Availability
435300-1
GRILLE,REAR LGE 3530A30007A Contact Us For Availability
435300-2
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
552111
TUBE ASSEMBLY,CAPILLARY LGE 5211A20214L Contact Us For Availability
554031
CONDENSER ASSEMBLY,BENT LGE 5403A20040P Contact Us For Availability
554160
COMPRESSOR SET LGE 2520UKCK2BA Contact Us For Availability
559011
FAN "WC" CHASSIS LW-C1211/1011 LGE 5900AR1173A Contact Us For Availability
W1WZZ
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
× ![]()
