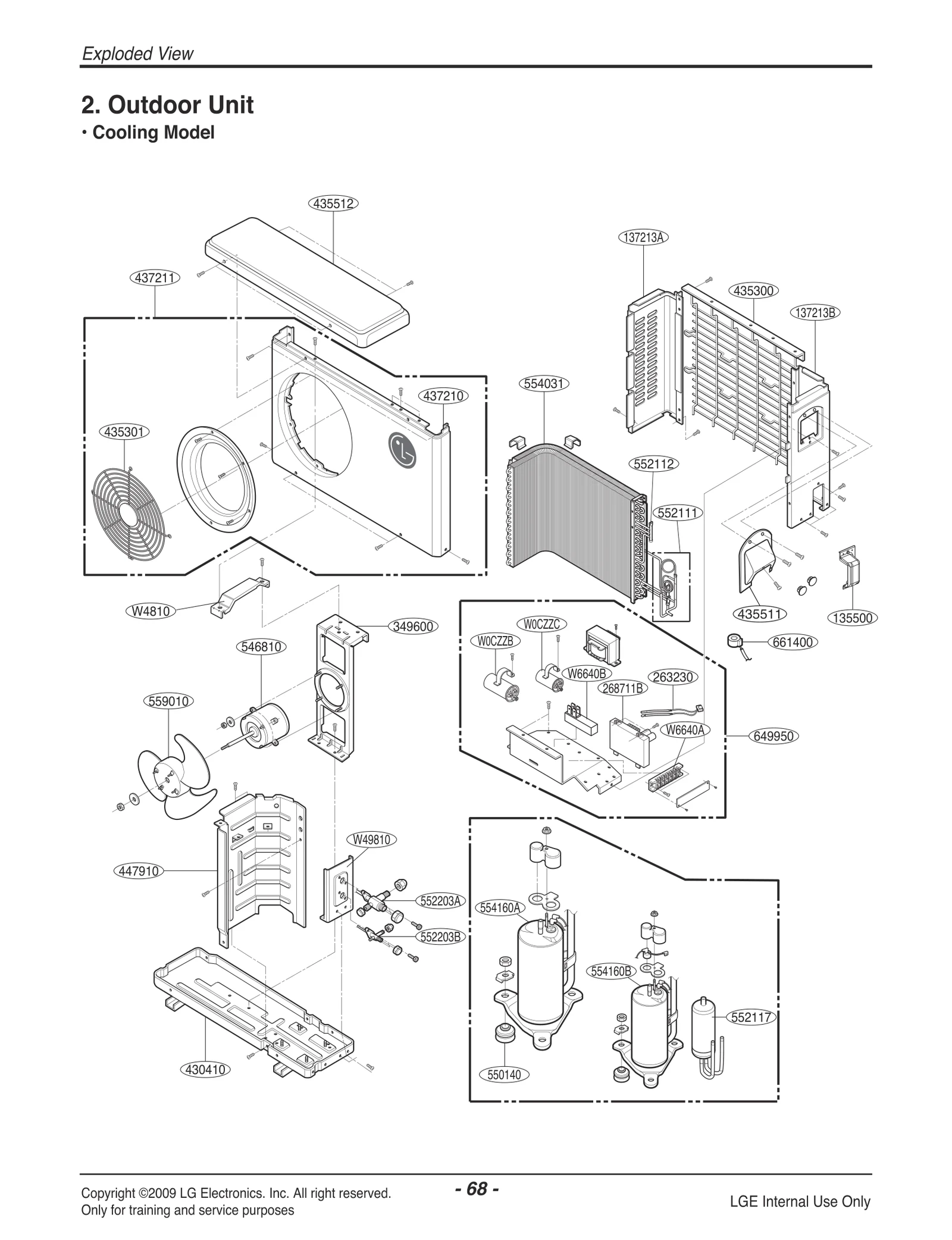

Model LG LSUC303MAA1 SINGLE SPLIT WALL – Common Parts & Diagrams

268711B
PWB(PCB) ASSEMBLY,MAIN(OUTDOOR
PWB(PCB) ASSEMBLY,MAIN(OUTDOOR LGE 6871A10184B Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE 3041AP2741Z Contact Us For Availability
View on Model
435300
GRILLE,REAR
GRILLE,REAR LGE 1A00208D Contact Us For Availability
View on Model
435511
COVER ASSY,CONTROL(OUTDOOR)
COVER ASSY,CONTROL(OUTDOOR) LGE 3550AR2886C Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE ACQ73019507 Contact Us For Availability
View on Model
437210
Panel Assembly,Front(Sub)
Panel Assembly,Front(Sub) LGE 1A00197F Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 4791A30004F Contact Us For Availability
View on Model
552111
TUBE ASSEMBLY,CAPILLARY
TUBE ASSEMBLY,CAPILLARY LGE 5211A20034X Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A20063A Contact Us For Availability
View on Model
552117
TUBE ASSEMBLY,SUCTION(OUTDOOR)
TUBE ASSEMBLY,SUCTION(OUTDOOR) LGE 5211A10032D Contact Us For Availability
View on Model
552203A
SERVICE VALVE
SERVICE VALVE LGE 2A00392E Contact Us For Availability
View on Model
552203A
VALVE,SERVICE
VALVE,SERVICE LGE 2A00392N Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2A00393A Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20040C Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2A00393H Contact Us For Availability
View on Model
554031
Condenser Assembly,Bending
Condenser Assembly,Bending LGE 6140AP2096A Contact Us For Availability
View on Model
554160A
COMPRESSOR SET
COMPRESSOR SET LGE 2520UHAK2AA Contact Us For Availability
View on Model
554160B
COMPRESSOR SET
COMPRESSOR SET LGE 2520UKVK2BA Contact Us For Availability
View on Model
559010
Fan Assembly,Propeller
Fan Assembly,Propeller LGE 1A00195G Contact Us For Availability
View on Model
649950
CONTROL BOX ASSEMBLY,OUTDOOR
CONTROL BOX ASSEMBLY,OUTDOOR LGE 4995A20383H Contact Us For Availability
View on Model
661400
COIL ASSEMBLY,EXPANSION
COIL ASSEMBLY,EXPANSION LGE 6140A30001L Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE 6640AP9107C Contact Us For Availability
View on Model
