Model LG LSUC121PMA SINGLE SPLIT FRAME TYPE AC – Common Parts & Diagrams

Common parts from model LG LSUC121PMA SINGLE SPLIT FRAME TYPE AC

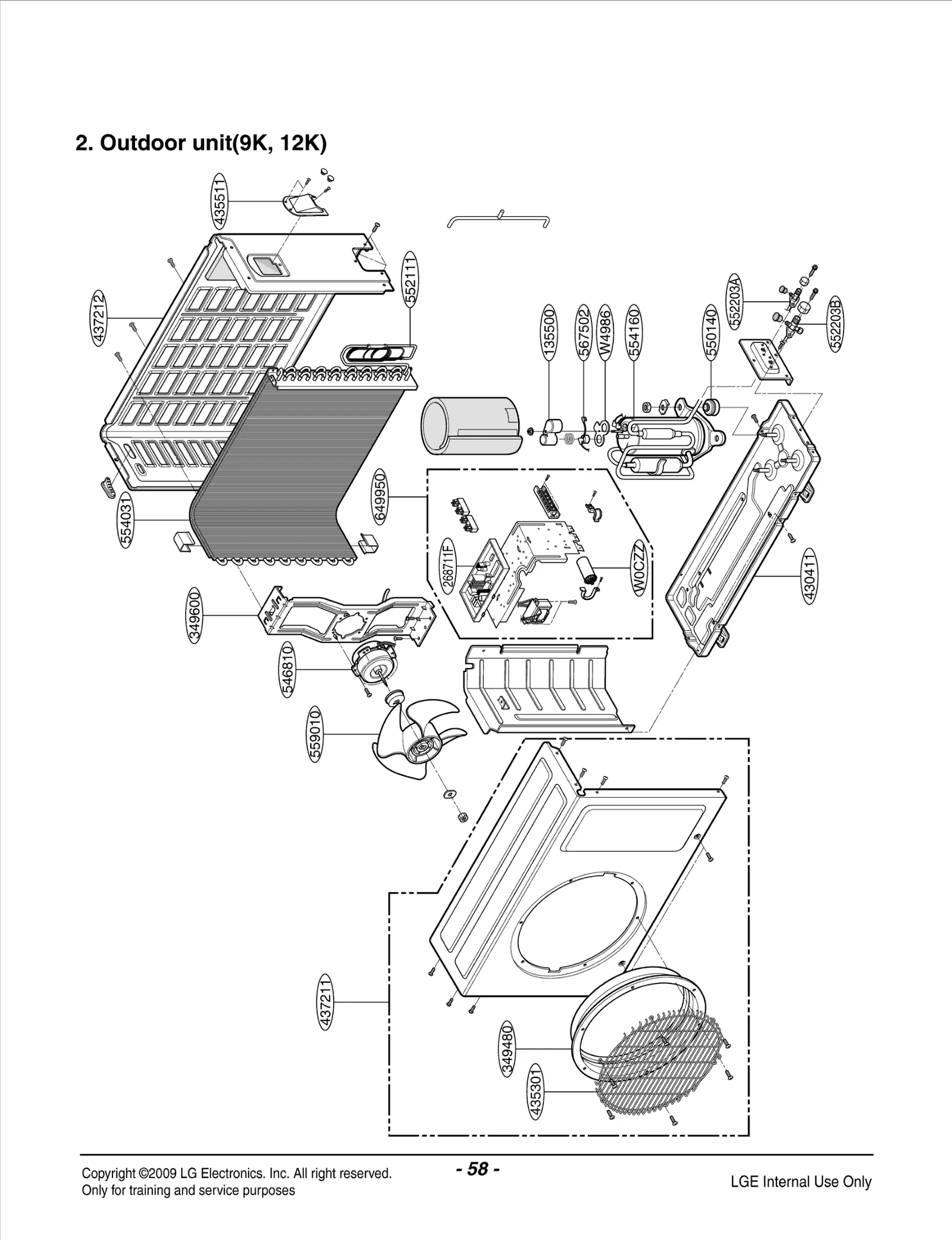

Diagram 0

Print

• This Diagram
• All Diagrams

237202

Panel,Front LGE 3720A10015B Contact Us For Availability

View on Model

268711F

6871A10036N LG PCB Main Assembly Backorder LGE 6871A10036N View Details $174.87

View on Model

349480

4948A20001A LG Orifice Backorder LGE 4948A20001A View Details $28.39

View on Model

430411

BASE ASSY,OUTDOOR LGE 3041A20008J Contact Us For Availability

View on Model

435301

MDX61846101 LG Discharge Grille Backorder LGE MDX61846101 View Details $37.13

View on Model

435511

Cover Assembly,Control(Outdoor) LGE 3551A10005C Contact Us For Availability

View on Model

437211

Panel Assembly,Front(Outdoor) LGE AGL32476424 Contact Us For Availability

View on Model

437212

Panel Assembly,Rear(Outdoor) LGE 3721A20026J Contact Us For Availability

View on Model

447910

BARRIER ASSY,OUTDOOR LGE 4791A30002F Contact Us For Availability

View on Model

546810

4681A20004R LG Air Conditioner Outdoor Fan Mo Backorder LGE 4681A20004R View Details $108.72

View on Model

549610

Bracket Assembly,Motor(Outdoor) LGE ABA73129801 Contact Us For Availability

View on Model

550140

4H00982E LG Compressor Damper In Stock LGE 4H00982E View Details $3.64

View on Model

552111

TUBE ASSEMBLY,CAPILLARY LGE 5211A20095J Contact Us For Availability

View on Model

552203A

Valve,Service LGE 5220A20003F Contact Us For Availability

View on Model

552203A

VALVE,SERVICE LGE 2H01890L Contact Us For Availability

View on Model

552203A

VALVE,SERVICE LGE 5220A20003B Contact Us For Availability

View on Model

552203B

VALVE,SERVICE LGE 2H02479N Contact Us For Availability

View on Model

552203B

VALVE,SERVICE LGE 2H02479H Contact Us For Availability

View on Model

552203B

VALVE,SERVICE LGE 5220A20005B Contact Us For Availability

View on Model

554031

CONDENSER ASSY,BENT LGE 5403A20019B Contact Us For Availability

View on Model

554160

COMPRESSOR SET LGE 2520UKWC2HA Contact Us For Availability

View on Model

559010

5901A10004A LG Fan Propeller Assembly Backorder LGE 5901A10004A View Details $41.02

View on Model

567502

6750U-L029A LG Overload Protector Backorder LGE 6750U-L029A View Details $15.11

View on Model

649950

CONTROL BOX ASSEMBLY,OUTDOOR LGE 4995A10038F Contact Us For Availability

View on Model

W0CZZ

CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability

View on Model

W4986

4986U-L001G LG Gasket Backorder LGE 4986U-L001G View Details $3.64

View on Model

W6640A

4G00103A LG Connector Terminal Block Backorder LGE 4G00103A View Details $23.81

View on Model

W6640B

3H00390B LG Air Conditioner Terminal Block Co Backorder LGE 3H00390B View Details $3.64

View on Model

W49810

4980A20006T LG Support Assembly Backorder LGE 4980A20006T View Details $8.52

View on Model

×
