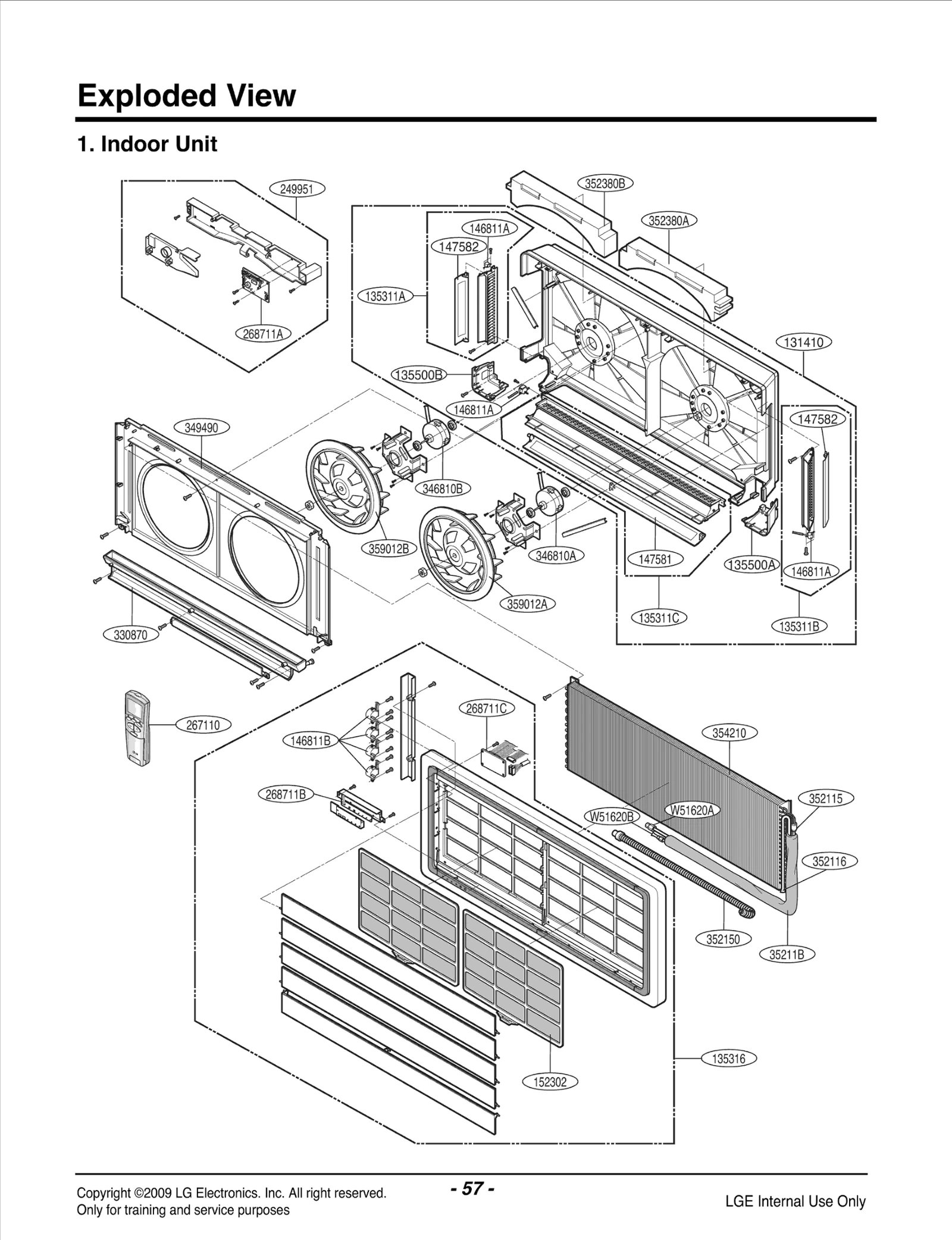

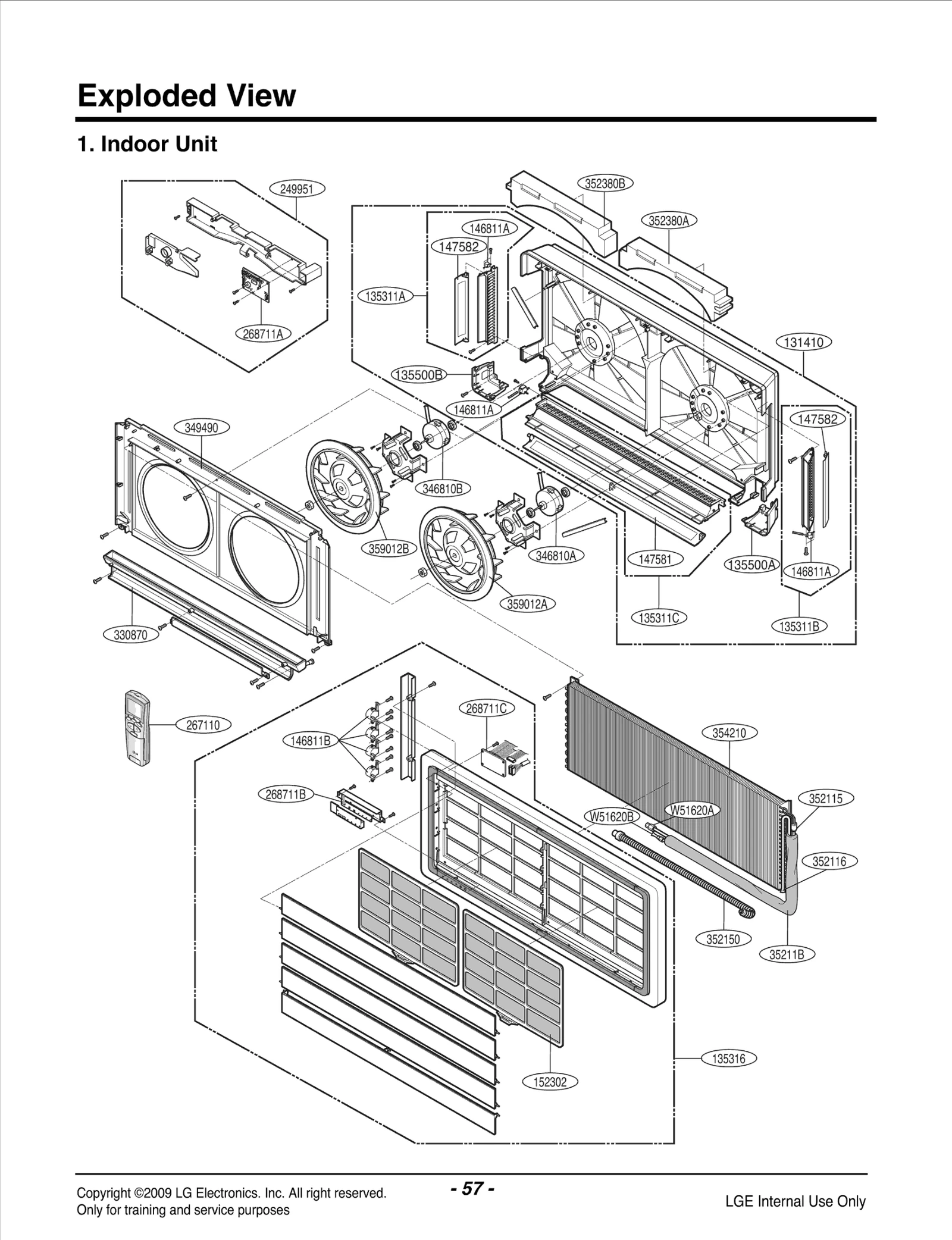

Model LG LSNC183VMA SINGLE SPLIT FRAME TYPE AC – Common Parts & Diagrams

131410
Chassis Assembly
Chassis Assembly LGE 3141A20008J Contact Us For Availability
View on Model
135311A
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A20124K Contact Us For Availability
View on Model
135311B
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A20124J Contact Us For Availability
View on Model
135311C
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 3531A20125G Contact Us For Availability
View on Model
135316
GRILLE ASSEMBLY,FRONT(INDOOR)
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10153S Contact Us For Availability
View on Model
135500A
COVER
COVER LGE 3550A20120B Contact Us For Availability
View on Model
135500B
COVER
COVER LGE 3550A20121B Contact Us For Availability
View on Model
146811A
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
146811A
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
146811B
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055C Contact Us For Availability
View on Model
147581
LOUVER,HORIZONTAL
LOUVER,HORIZONTAL LGE 4758A20033A Contact Us For Availability
View on Model
147582
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A20034A Contact Us For Availability
View on Model
152302
Filter,Air
Filter,Air LGE 5230A10006B Contact Us For Availability
View on Model
249951
CONTROL BOX ASSEMBLY,INDOOR
CONTROL BOX ASSEMBLY,INDOOR LGE 4995A20291W Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A20083R Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSEMBLY,MAIN
PWB(PCB) ASSEMBLY,MAIN LGE 6871A20387C Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20250B Contact Us For Availability
View on Model
268711C
PWB(PCB) ASSEMBLY,SUB
PWB(PCB) ASSEMBLY,SUB LGE 6871A20363C Contact Us For Availability
View on Model
330870
DRAIN PAN ASSEMBLY
DRAIN PAN ASSEMBLY LGE 3087A20013B Contact Us For Availability
View on Model
346810A
MOTOR ASSEMBLY,INDOOR
MOTOR ASSEMBLY,INDOOR LGE 4681A20047C Contact Us For Availability
View on Model
346810B
MOTOR ASSEMBLY,INDOOR
MOTOR ASSEMBLY,INDOOR LGE 4681A20047D Contact Us For Availability
View on Model
349490
ORIFICE ASSEMBLY
ORIFICE ASSEMBLY LGE 4949A20002A Contact Us For Availability
View on Model
352115
TUBE ASSEMBLY,EVAPORATOR IN
TUBE ASSEMBLY,EVAPORATOR IN LGE 5211A20302E Contact Us For Availability
View on Model
352116
TUBE ASSEMBLY,EVAPORATOR OUT
TUBE ASSEMBLY,EVAPORATOR OUT LGE 5211A20301F Contact Us For Availability
View on Model
352150
Hose Assembly,Drain
Hose Assembly,Drain LGE 5251A20011A Contact Us For Availability
View on Model
352380A
AIR GUIDE
AIR GUIDE LGE 5238A10009A Contact Us For Availability
View on Model
352380B
AIR GUIDE
AIR GUIDE LGE 5238A10010A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSEMBLY,FIRST
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20104A Contact Us For Availability
View on Model
359012A
FAN,TURBO
FAN,TURBO LGE 5900A00005A Contact Us For Availability
View on Model
359012B
FAN,TURBO
FAN,TURBO LGE 5900A00004A Contact Us For Availability
View on Model
W51620A
Socket,Flare
Socket,Flare LGE 3A00375D Contact Us For Availability
View on Model
W51620B
Socket,Flare
Socket,Flare LGE 3A00375F Contact Us For Availability
View on Model
