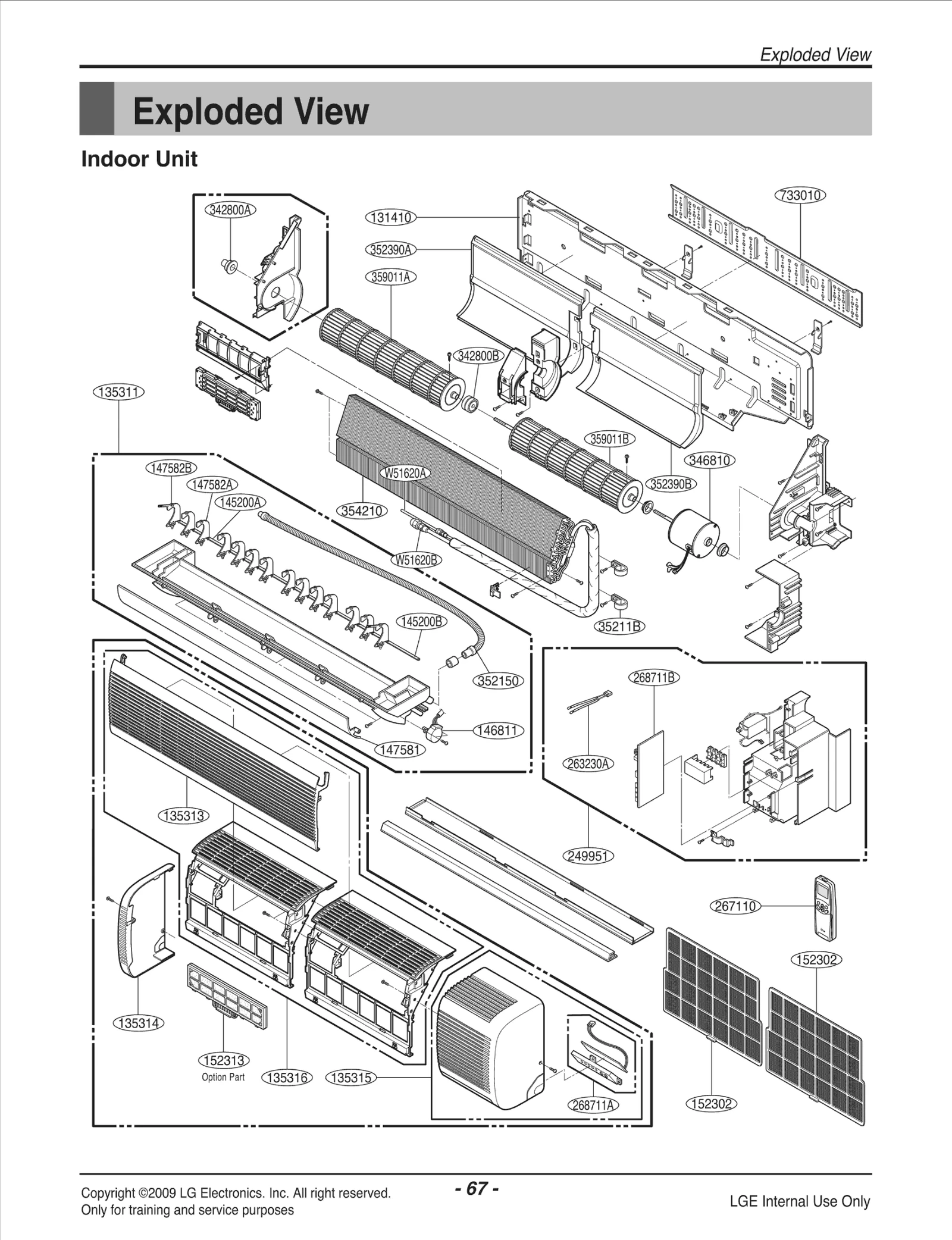

Model LG LSN301HE AC – Common Parts & Diagrams

131410
Chassis Assembly
Chassis Assembly LGE 3141A10001D Contact Us For Availability
View on Model
135311
GRILLE ASSEMBLY,DISCHARGE(INDO
GRILLE ASSEMBLY,DISCHARGE(INDO LGE 3531A10056L Contact Us For Availability
View on Model
135313
GRILLE ASSEMBLY,INLET
GRILLE ASSEMBLY,INLET LGE 3531A10060R Contact Us For Availability
View on Model
135314
GRILLE,INLET
GRILLE,INLET LGE 3530A20087A Contact Us For Availability
View on Model
135315
GRILLE ASSEMBLY,FRONT(SINGLE)
GRILLE ASSEMBLY,FRONT(SINGLE) LGE 3531A10250S Contact Us For Availability
View on Model
135316
GRILLE ASSEMBLY,FRONT(INDOOR)
GRILLE ASSEMBLY,FRONT(INDOOR) LGE 3531A10058B Contact Us For Availability
View on Model
145200A
Link
Link LGE 4520A30018A Contact Us For Availability
View on Model
145200B
Link
Link LGE 4520A30018B Contact Us For Availability
View on Model
146811
MOTOR ASSY
MOTOR ASSY LGE 4681AR2727B Contact Us For Availability
View on Model
147581
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A20003A Contact Us For Availability
View on Model
147582A
LOUVER,VERTICAL
LOUVER,VERTICAL LGE 4758A30018A Contact Us For Availability
View on Model
147582B
Louver,Vertical
Louver,Vertical LGE 4758A30019A Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A10001A Contact Us For Availability
View on Model
152313
FILTER ASSEMBLY,DEODORIZER
FILTER ASSEMBLY,DEODORIZER LGE 5231A20032F Contact Us For Availability
View on Model
249951
CONTROL BOX ASSEMBLY,INDOOR
CONTROL BOX ASSEMBLY,INDOOR LGE 4995A10115E Contact Us For Availability
View on Model
263230A
THERMISTOR ASSEMBLY INDOOR
THERMISTOR ASSEMBLY INDOOR LGE 6323A20002C Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSY
REMOTE CONTROLLER ASSY LGE 6711A20039N Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSY,DISPLAY
PWB(PCB) ASSY,DISPLAY LGE 6871A20108A Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSEMBLY,MAIN(DC)
PWB(PCB) ASSEMBLY,MAIN(DC) LGE 6871A20588A Contact Us For Availability
View on Model
342800A
BEARING
BEARING LGE 4280A20001A Contact Us For Availability
View on Model
346810
MOTOR ASSEMBLY,INDOOR
MOTOR ASSEMBLY,INDOOR LGE 4681A22002A Contact Us For Availability
View on Model
352150
HOSE ASSY,DRAIN
HOSE ASSY,DRAIN LGE 5251AR1222P Contact Us For Availability
View on Model
352390A
Guide Assembly,Air
Guide Assembly,Air LGE 5239A10001A Contact Us For Availability
View on Model
352390B
Guide Assembly,Air
Guide Assembly,Air LGE 5239A10001B Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A20058A Contact Us For Availability
View on Model
359011A
FAN ASSY,CROSS FLOW
FAN ASSY,CROSS FLOW LGE 5901AR2441F Contact Us For Availability
View on Model
359011B
FAN ASSY,CROSS FLOW
FAN ASSY,CROSS FLOW LGE 5901AR2441G Contact Us For Availability
View on Model
733010
PLATE ASSY,INSTALL
PLATE ASSY,INSTALL LGE 3301A10001A Contact Us For Availability
View on Model
W51620A
Socket,Flare
Socket,Flare LGE 3A00375A Contact Us For Availability
View on Model
W51620B
Socket,Flare
Socket,Flare LGE 3A00375B Contact Us For Availability
View on Model
