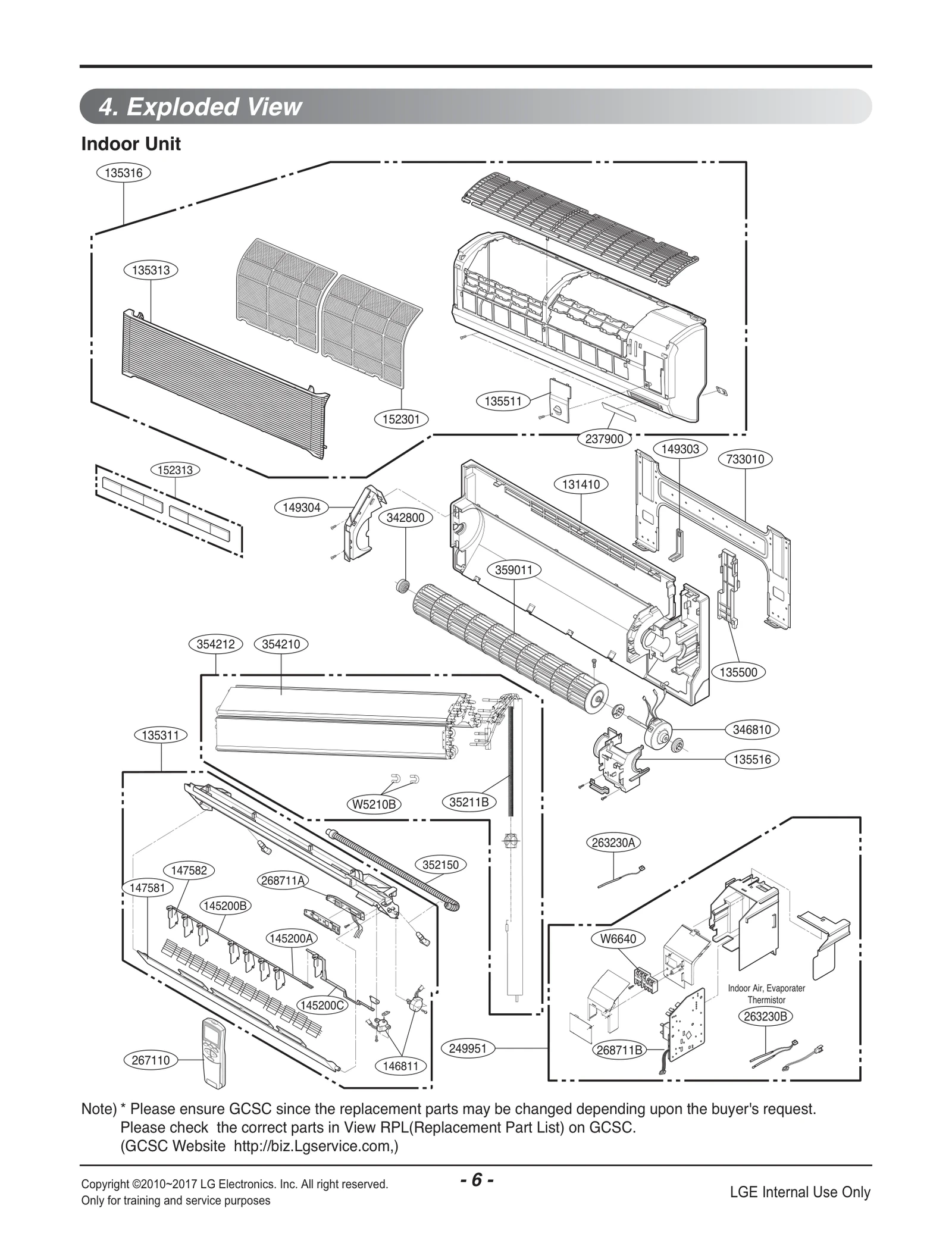

Model LG LSN246HV AC – Common Parts & Diagrams

135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE ACQ86372901 Contact Us For Availability
View on Model
135516
Cover Assembly,Motor
Cover Assembly,Motor LGE 3551A20154E Contact Us For Availability
View on Model
145200A
Link
Link LGE 4520A20033A Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
147581
Louver,Horizontal
Louver,Horizontal LGE 5990A20071B Contact Us For Availability
View on Model
147582
Louver,Vertical
Louver,Vertical LGE 5990A20050A Contact Us For Availability
View on Model
152301
Filter,Deodorizing
Filter,Deodorizing LGE 5230A20052J Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040V Contact Us For Availability
View on Model
237900
Window,Display
Window,Display LGE 3790A20130A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE ABQ74145905 Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE AKB32788918 Contact Us For Availability
View on Model
268711B
PCB Assembly,Main
PCB Assembly,Main LGE EBR35639421 Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091U Contact Us For Availability
View on Model
346810
Motor Assembly,DC
Motor Assembly,DC LGE 4681A20091J Contact Us For Availability
View on Model
346810
Motor, DC Indoor
Motor, DC Indoor LGE EAU37844701 Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20220A Contact Us For Availability
View on Model
354212
Evaporator Assembly,Final
Evaporator Assembly,Final LGE ADL34982603 Contact Us For Availability
View on Model
