  • LG LS240HE Parts List

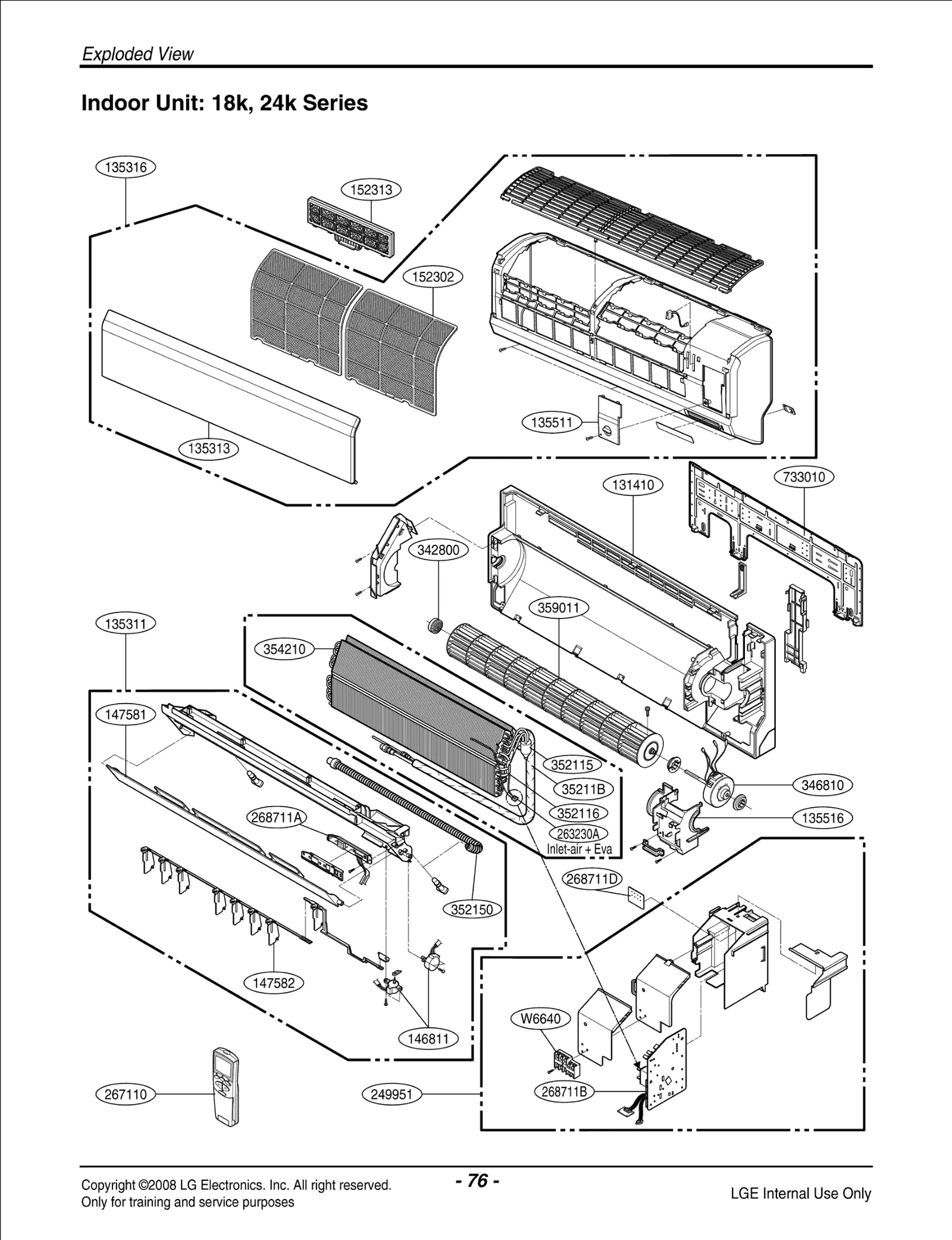

Model LG LS240HE – Common Parts & Diagrams

135516
Cover Assembly,Motor
Cover Assembly,Motor LGE 3551A20154A Contact Us For Availability
View on Model
137213A
PANEL ASSEMBLY,SIDE
PANEL ASSEMBLY,SIDE LGE 1A00202F Contact Us For Availability
View on Model
137213B
Panel Assembly,Side
Panel Assembly,Side LGE 3A02284N Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
147582
Louver,Vertical
Louver,Vertical LGE 5990A20050A Contact Us For Availability
View on Model
152302
Filter,Deodorizing
Filter,Deodorizing LGE 5230A20052A Contact Us For Availability
View on Model
152302
Filter,Deodorizing
Filter,Deodorizing LGE 5230A20052B Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040V Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040B Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A10205E Contact Us For Availability
View on Model
263230A
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20004N Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128C Contact Us For Availability
View on Model
268711D
PCB Assembly,Sub
PCB Assembly,Sub LGE 6871A20990D Contact Us For Availability
View on Model
268711F
PCB Assembly
PCB Assembly LGE 6871A10184F Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE 4681AR2295M Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE 5211A39010A Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20220A Contact Us For Availability
View on Model
359011
FAN ASSY,CROSS FLOW
FAN ASSY,CROSS FLOW LGE 5901AR2441D Contact Us For Availability
View on Model
359011
FAN ASSY,CROSS FLOW
FAN ASSY,CROSS FLOW LGE 5901AR2441E Contact Us For Availability
View on Model
430410
BASE ASSY,OUTDOOR
BASE ASSY,OUTDOOR LGE 3041AP2741G Contact Us For Availability
View on Model
435301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20007J Contact Us For Availability
View on Model
435511
COVER ASSY,CONTROL(OUTDOOR)
COVER ASSY,CONTROL(OUTDOOR) LGE 3551AR7184T Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL32105603 Contact Us For Availability
View on Model
447910
BARRIER ASSEMBLY,OUTDOOR
BARRIER ASSEMBLY,OUTDOOR LGE 4791A30004H Contact Us For Availability
View on Model
552112
Tube Assembly,Condenser(In)
Tube Assembly,Condenser(In) LGE 5211A34007A Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A34008C Contact Us For Availability
View on Model
552116
Tube Assembly,Reverse
Tube Assembly,Reverse LGE 5211A24108B Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20013A Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20013D Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 5220A20005C Contact Us For Availability
View on Model
554160C
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGHK2AA Contact Us For Availability
View on Model
554160E
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGKK2AA Contact Us For Availability
View on Model
561410
COIL ASSEMBLY,REVERSING VALVE
COIL ASSEMBLY,REVERSING VALVE LGE 6141AR3733R Contact Us For Availability
View on Model
567480F
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20002L Contact Us For Availability
View on Model
567502A
O.L.P
O.L.P LGE 6750U-L048A Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4995A20383L Contact Us For Availability
View on Model
W0CZZB
CAPACITOR 400/35 GA-1015LC 121
CAPACITOR 400/35 GA-1015LC 121 LGE 3A00988B Contact Us For Availability
View on Model
W6640A
Label,Terminal Block
Label,Terminal Block LGE 3850A20299Z Contact Us For Availability
View on Model
