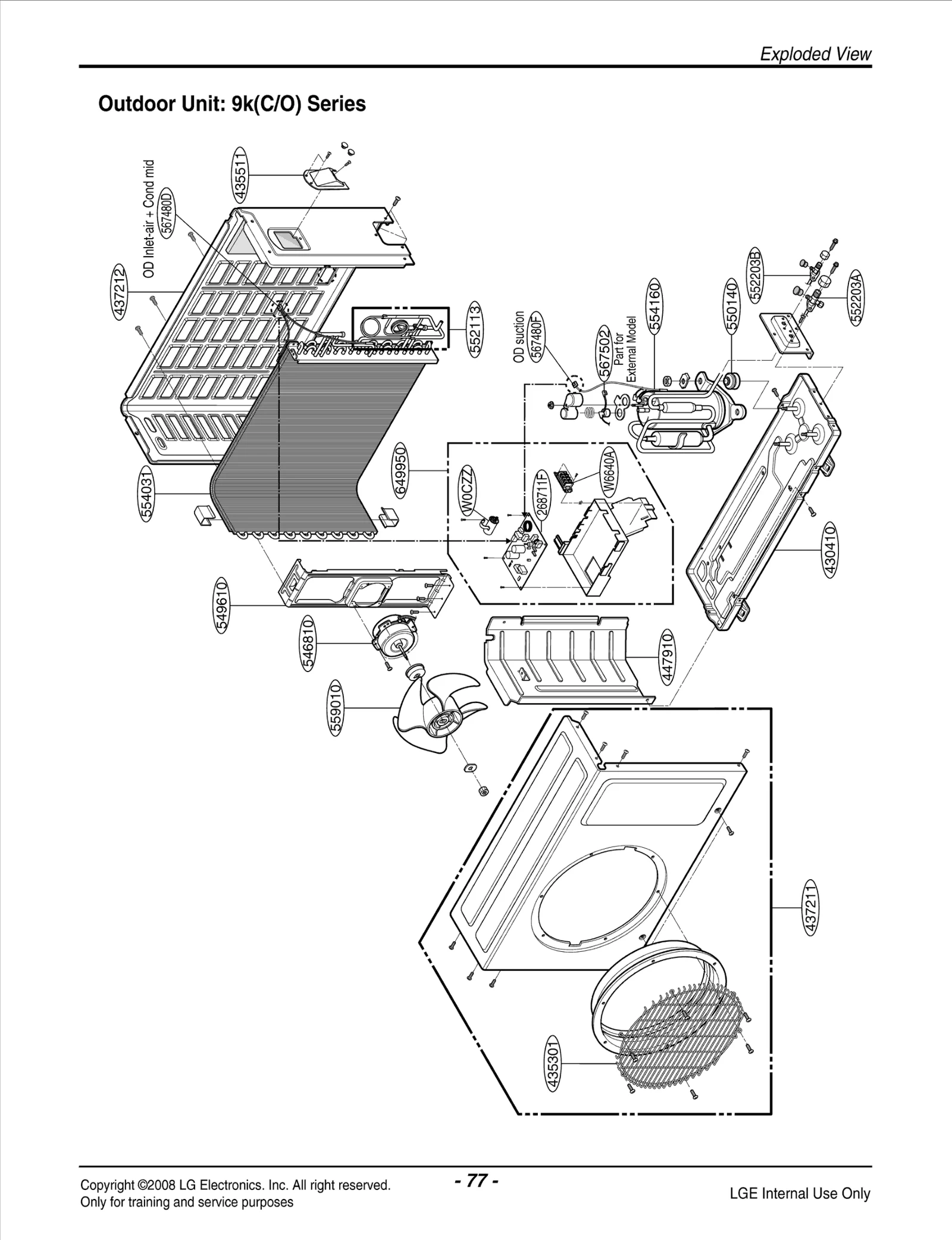

Model LG LS090CE.AWHAEUS SINGLE SPLIT WALL – Common Parts & Diagrams

135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A23003T Contact Us For Availability
View on Model
135511
Cover Assembly,Control(Indoor)
Cover Assembly,Control(Indoor) LGE 3551A30138J Contact Us For Availability
View on Model
146811
MOTOR ASSEMBLY,STEP
MOTOR ASSEMBLY,STEP LGE 4681A20055A Contact Us For Availability
View on Model
146811
Motor Assembly,DC,Stepping
Motor Assembly,DC,Stepping LGE 4681A20042E Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040A Contact Us For Availability
View on Model
152313
Filter Assembly,Deodorizer
Filter Assembly,Deodorizer LGE 5231A20040M Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995A10205C Contact Us For Availability
View on Model
263230A
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20004N Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20128A Contact Us For Availability
View on Model
268711D
PCB Assembly,Sub
PCB Assembly,Sub LGE 6871A20990B Contact Us For Availability
View on Model
268711F
PCB Assembly,Main
PCB Assembly,Main LGE 6871A20901A Contact Us For Availability
View on Model
342800
BEARING
BEARING LGE 4280A20004B Contact Us For Availability
View on Model
346810
Motor Assembly,AC,Indoor
Motor Assembly,AC,Indoor LGE 4681AR2295L Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE 5211A29010A Contact Us For Availability
View on Model
352116
Tube Assembly,Evaporator(Out)
Tube Assembly,Evaporator(Out) LGE 5211A22110A Contact Us For Availability
View on Model
352150
HOSE ASSEMBLY,DRAIN
HOSE ASSEMBLY,DRAIN LGE 5251A20011B Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20218A Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 5901A20017G Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 5901A20017F Contact Us For Availability
View on Model
430410
BASE ASSY,OUTDOOR
BASE ASSY,OUTDOOR LGE 3041A20008K Contact Us For Availability
View on Model
435301
GRILLE,DISCHARGE
GRILLE,DISCHARGE LGE 3530A20006G Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE 3551A10005C Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE AGL32476404 Contact Us For Availability
View on Model
437212
PANEL ASSEMBLY,REAR(OUTDOOR)
PANEL ASSEMBLY,REAR(OUTDOOR) LGE 3721A20026M Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE 4791A30002U Contact Us For Availability
View on Model
549610
Bracket,Motor
Bracket,Motor LGE 4960A10011B Contact Us For Availability
View on Model
552113
Tube Assembly,Condenser(Out)
Tube Assembly,Condenser(Out) LGE 5211A25032A Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20001V Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 2H02479H Contact Us For Availability
View on Model
552203B
VALVE,SERVICE
VALVE,SERVICE LGE 5220A20005B Contact Us For Availability
View on Model
552203B
Valve,Service
Valve,Service LGE 2H02479P Contact Us For Availability
View on Model
554031
CONDENSER ASSEMBLY,BENT
CONDENSER ASSEMBLY,BENT LGE 5403A20120B Contact Us For Availability
View on Model
554160
Compressor Set,Korea
Compressor Set,Korea LGE 2520UGDC2AA Contact Us For Availability
View on Model
567480F
THERMISTOR ASSEMBLY
THERMISTOR ASSEMBLY LGE 6323A20002L Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4995A21006P Contact Us For Availability
View on Model
733010
Plate Assembly,Installation
Plate Assembly,Installation LGE 3301A20020C Contact Us For Availability
View on Model
