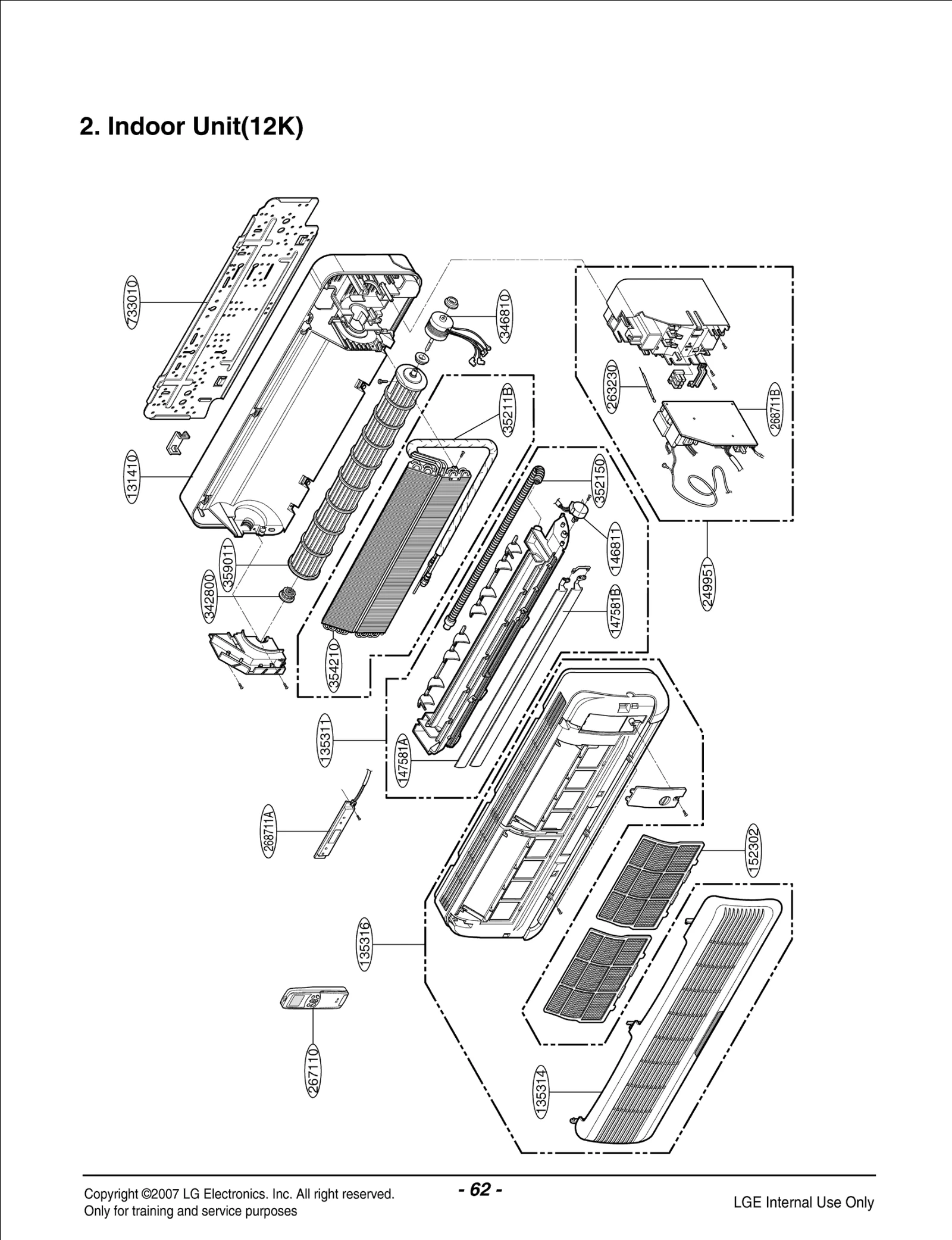

Model LG LS-L1210CL RAC-Mini Split Single – Common Parts & Diagrams

131410
CHASSIS ASSY
CHASSIS ASSY LGE 3141A20003B Contact Us For Availability
View on Model
135311
GRILLE ASSY,DISCHARGE(INDOOR)
GRILLE ASSY,DISCHARGE(INDOOR) LGE 3531A10023S Contact Us For Availability
View on Model
135314
GRILLE ASSEMBLY,INLET SUB
GRILLE ASSEMBLY,INLET SUB LGE 3531A20201A Contact Us For Availability
View on Model
135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A20200A Contact Us For Availability
View on Model
146811
MOTOR ASSY,STEP
MOTOR ASSY,STEP LGE 4681AR2727H Contact Us For Availability
View on Model
147581A
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A30006B Contact Us For Availability
View on Model
147581B
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A30007B Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5230A20004E Contact Us For Availability
View on Model
249951
CONTROL BOX ASSY,INDOOR
CONTROL BOX ASSY,INDOOR LGE 4995A20143N Contact Us For Availability
View on Model
261704
TRANSFORMER ASSY
TRANSFORMER ASSY LGE 6171AQ3198B Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003A Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711A20078A Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSY,DISPLAY
PWB(PCB) ASSY,DISPLAY LGE 6871A30009E Contact Us For Availability
View on Model
268711B
PWB(PCB) ASSY,MAIN
PWB(PCB) ASSY,MAIN LGE 6871A10035F Contact Us For Availability
View on Model
268711B
PWB (PCB) ASSY - MAIN
PWB (PCB) ASSY - MAIN LGE 6871A10035N Contact Us For Availability
View on Model
342800
BEARING
BEARING LGE 3H02821B Contact Us For Availability
View on Model
346810
MOTOR ASSY,DC
MOTOR ASSY,DC LGE 4681AR2295H Contact Us For Availability
View on Model
354210
Evaporator Assembly,First
Evaporator Assembly,First LGE 5421A20032H Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY, FIRST
EVAPORATOR ASSY, FIRST LGE 5421A20032K Contact Us For Availability
View on Model
359011
FAN ASSY,CROSS FLOW
FAN ASSY,CROSS FLOW LGE 5901AR6141C Contact Us For Availability
View on Model
430411
BASE ASSY,OUTDOOR
BASE ASSY,OUTDOOR LGE 3041A20008J Contact Us For Availability
View on Model
435511
COVER ASSY,CONTROL(OUTDOOR)
COVER ASSY,CONTROL(OUTDOOR) LGE 3551AR7184R Contact Us For Availability
View on Model
437210
Panel,Front
Panel,Front LGE 3720A10015B Contact Us For Availability
View on Model
437212
PANEL ASSEMBLY,REAR(OUTDOOR)
PANEL ASSEMBLY,REAR(OUTDOOR) LGE 3721A20026K Contact Us For Availability
View on Model
552111
TUBE ASSY,CAPILLARY
TUBE ASSY,CAPILLARY LGE 5211A20095F Contact Us For Availability
View on Model
552203A
VALVE,SERVICE
VALVE,SERVICE LGE 5220A20003B Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 5220A20003F Contact Us For Availability
View on Model
554031
CONDENSER ASSY,BENT
CONDENSER ASSY,BENT LGE 5403A20019B Contact Us For Availability
View on Model
554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UKWC2HA Contact Us For Availability
View on Model
649950
CONTROL BOX ASSY,OUTDOOR
CONTROL BOX ASSY,OUTDOOR LGE 4995A10038C Contact Us For Availability
View on Model
733010
PLATE INSTALLATION
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
View on Model
W0CZZ
CAPACITOR,DRAWING
CAPACITOR,DRAWING LGE 0CZZA20001N Contact Us For Availability
View on Model
W6920
Relay,Contact
Relay,Contact LGE 6920A90003G Contact Us For Availability
View on Model
W6920
Relay,Contact
Relay,Contact LGE 6920A90003A Contact Us For Availability
View on Model
