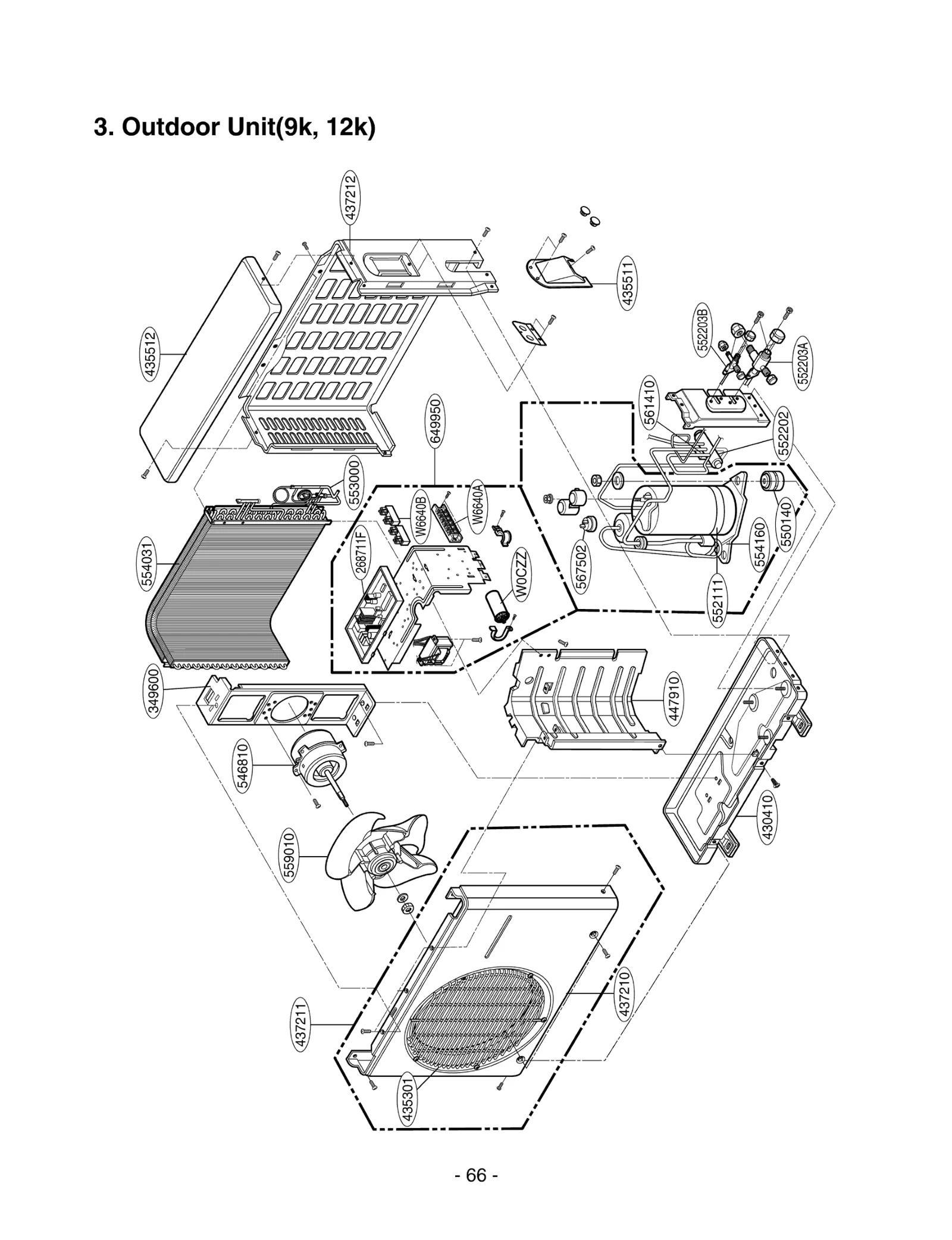

Model LG LS-C1210HN – Common Parts & Diagrams

131410
Cabinet Assembly
Cabinet Assembly LGE 3141AR2261B Contact Us For Availability
View on Model
135311
Grille Assembly,Discharge(Indoor)
Grille Assembly,Discharge(Indoor) LGE 5009AR1179K Contact Us For Availability
View on Model
135313
Grille Assembly,Inlet
Grille Assembly,Inlet LGE 5236AR1383F Contact Us For Availability
View on Model
135316
Grille Assembly,Front(Indoor)
Grille Assembly,Front(Indoor) LGE 3531A10020G Contact Us For Availability
View on Model
146811
MOTOR ASSY
MOTOR ASSY LGE 4681AR2727B Contact Us For Availability
View on Model
147581A
VANE
VANE LGE 5990AR3299C Contact Us For Availability
View on Model
147581B
VANE,-2
VANE,-2 LGE 5990AR3300A Contact Us For Availability
View on Model
152302
FILTER(MECH) AIR
FILTER(MECH) AIR LGE 5230AR1151A Contact Us For Availability
View on Model
249951
Case Assembly,Control(Indoor)
Case Assembly,Control(Indoor) LGE 4995AR1562A Contact Us For Availability
View on Model
267110
Remote Controller Assembly
Remote Controller Assembly LGE 6711AR2905J Contact Us For Availability
View on Model
268711A
PWB(PCB) ASSY
PWB(PCB) ASSY LGE 6047AQ3021E Contact Us For Availability
View on Model
268711C
PCB Assembly,Main
PCB Assembly,Main LGE 6871AQ2318C Contact Us For Availability
View on Model
268711F
PWB(PCB) ASSY,MAIN(O
PWB(PCB) ASSY,MAIN(O LGE 6871AQ1050H Contact Us For Availability
View on Model
342800
BEARING
BEARING LGE 3H02821B Contact Us For Availability
View on Model
346810
MOTOR ASSY
MOTOR ASSY LGE 4681AR2295C Contact Us For Availability
View on Model
349600
Bracket,Motor
Bracket,Motor LGE 2H02003B Contact Us For Availability
View on Model
352150
Hose Assembly,Drain
Hose Assembly,Drain LGE 5251AR1222C Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY
EVAPORATOR ASSY LGE 5421AR7064A Contact Us For Availability
View on Model
359011
Fan Assembly,Cross Flow
Fan Assembly,Cross Flow LGE 2H02426A Contact Us For Availability
View on Model
430410
Base Assembly,Outdoor
Base Assembly,Outdoor LGE 2H02079F Contact Us For Availability
View on Model
435301
Grille,Discharge
Grille,Discharge LGE 1H00840B Contact Us For Availability
View on Model
435511
Cover Assembly,Control(Outdoor)
Cover Assembly,Control(Outdoor) LGE 3551AR7184P Contact Us For Availability
View on Model
435512
Cover Assembly,Top(Outdoor)
Cover Assembly,Top(Outdoor) LGE 3H03465E Contact Us For Availability
View on Model
437210
Panel Assembly,Front(Sub)
Panel Assembly,Front(Sub) LGE 3721A20014F Contact Us For Availability
View on Model
437211
Panel Assembly,Front(Outdoor)
Panel Assembly,Front(Outdoor) LGE 2H02674G Contact Us For Availability
View on Model
437212
Panel Assembly,Rear(Outdoor)
Panel Assembly,Rear(Outdoor) LGE 1H00697Q Contact Us For Availability
View on Model
447910
Barrier Assembly,Outdoor
Barrier Assembly,Outdoor LGE AAM32982601 Contact Us For Availability
View on Model
546810
MOTOR ASSY,AC
MOTOR ASSY,AC LGE 4681AR1392J Contact Us For Availability
View on Model
552111
CAPILLARY ASSY
CAPILLARY ASSY LGE 5425AR6061A Contact Us For Availability
View on Model
552202
VALVE,REVERSING
VALVE,REVERSING LGE 5220AR3084E Contact Us For Availability
View on Model
552203A
Valve,Service
Valve,Service LGE 2H02150A Contact Us For Availability
View on Model
552203B
SERVICE VALVE
SERVICE VALVE LGE 2H01225D Contact Us For Availability
View on Model
553000
HEATER
HEATER LGE 5300AR2915D Contact Us For Availability
View on Model
554031
CONDENSER ASSY
CONDENSER ASSY LGE 5403AR6027B Contact Us For Availability
View on Model
554160
COMPRESSOR
COMPRESSOR LGE 5416AR2300T Contact Us For Availability
View on Model
561410
Solenoid
Solenoid LGE 6141AR3851D Contact Us For Availability
View on Model
649950
Case Assembly,Control(Outdoor)
Case Assembly,Control(Outdoor) LGE 4781AR1459J Contact Us For Availability
View on Model
733010
PLATE INSTALLATION
PLATE INSTALLATION LGE 1H00843A Contact Us For Availability
View on Model
