Model LG LRV590S – Common Parts & Diagrams

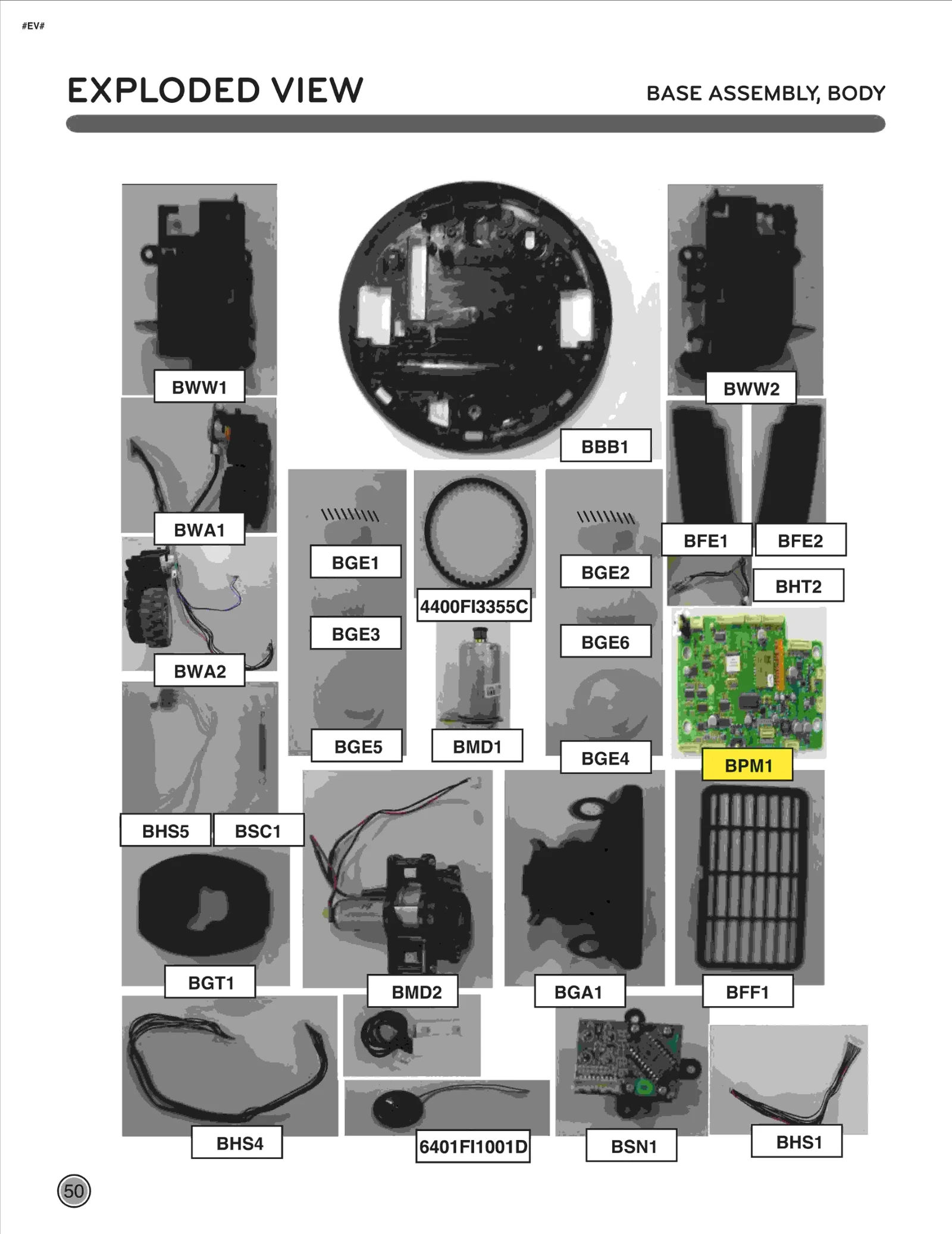

Diagram 0

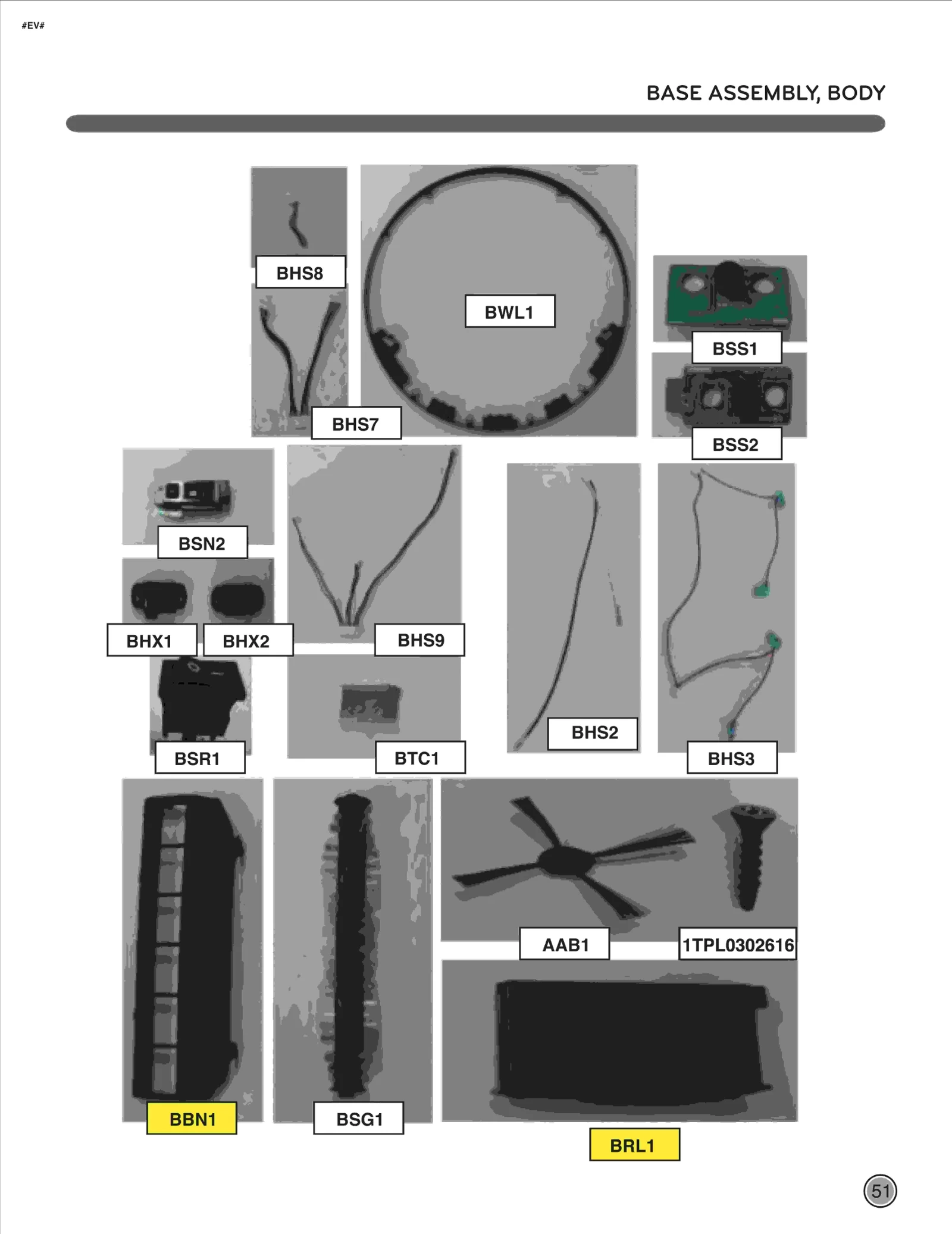

Diagram 1

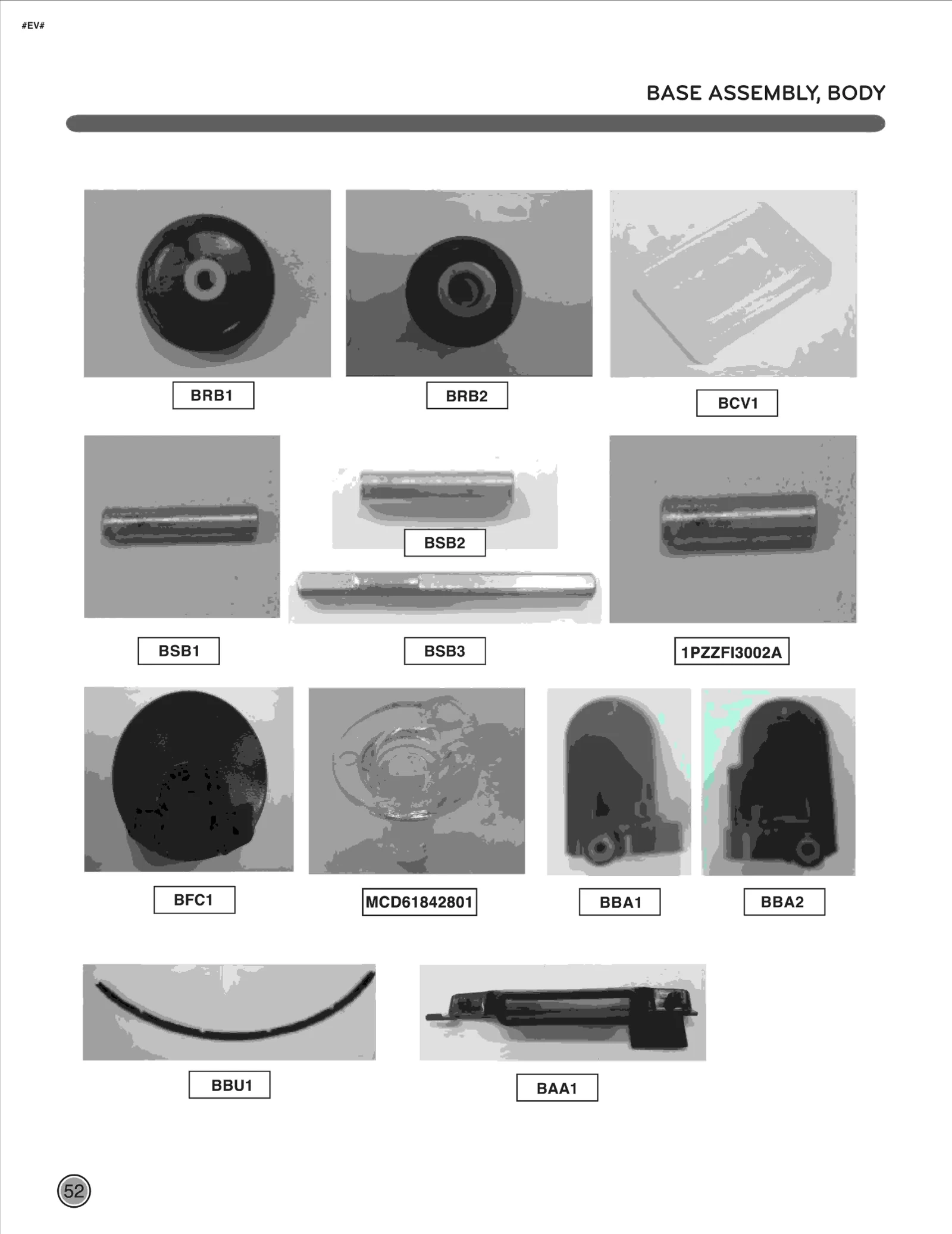

Diagram 2

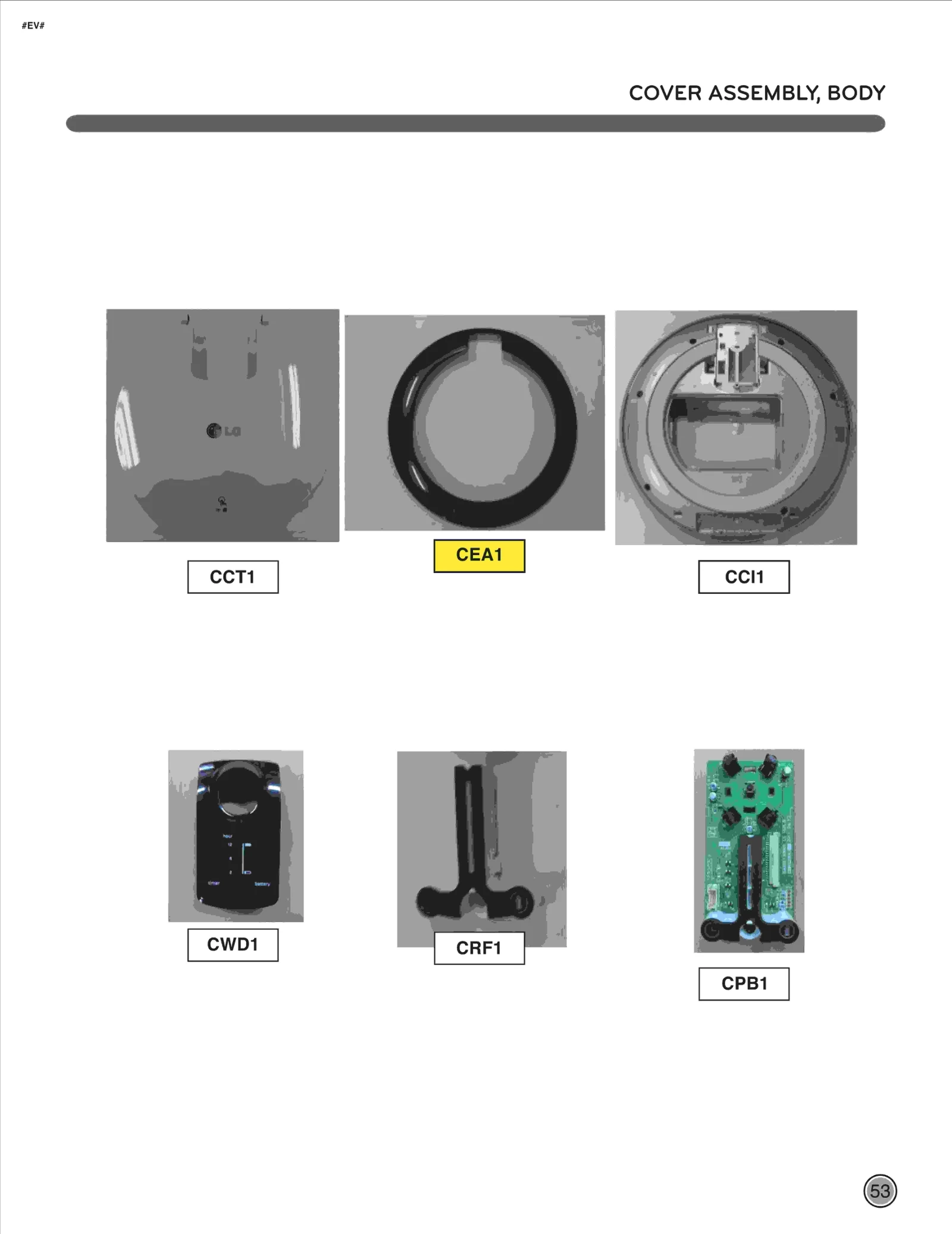

Diagram 3

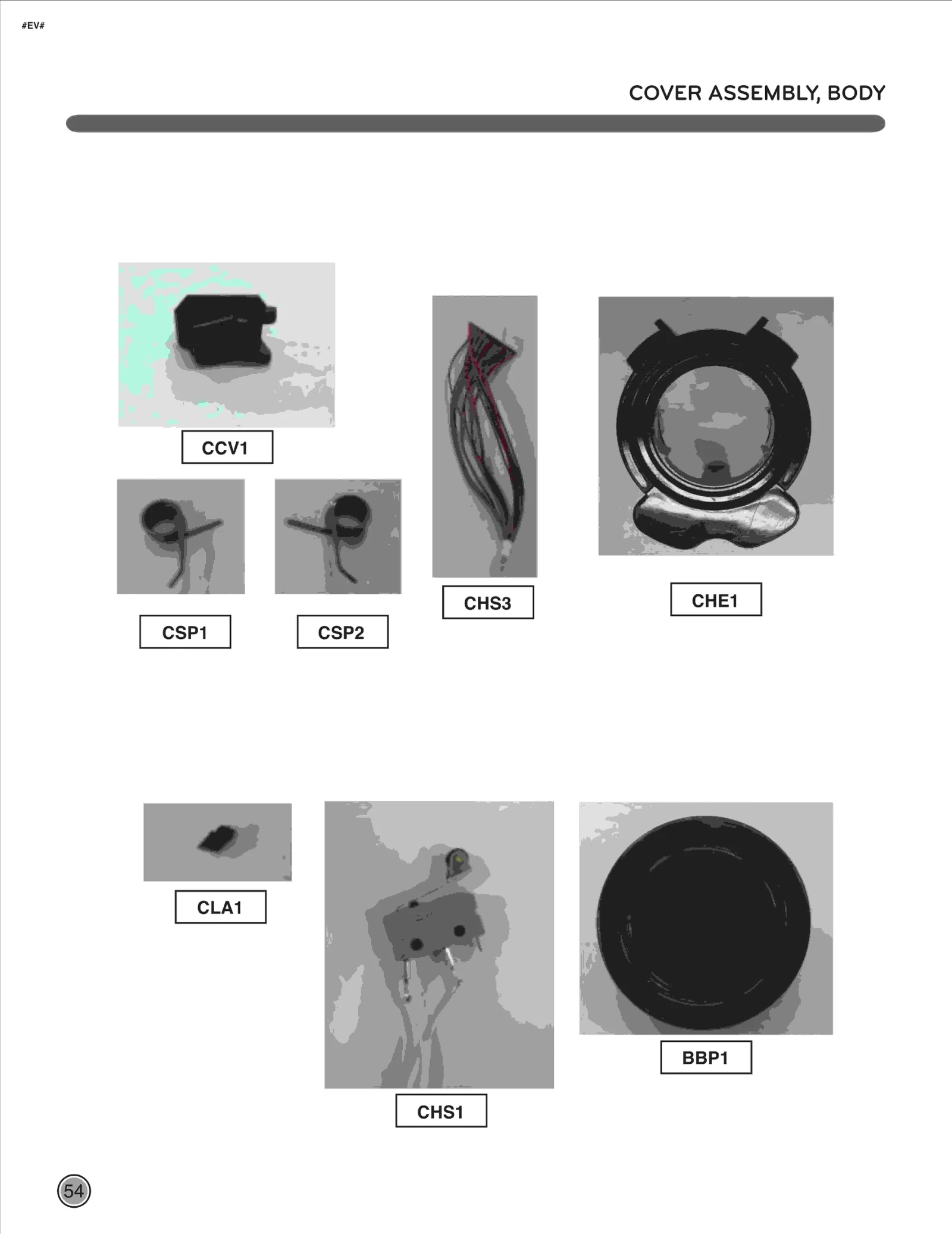

Diagram 4

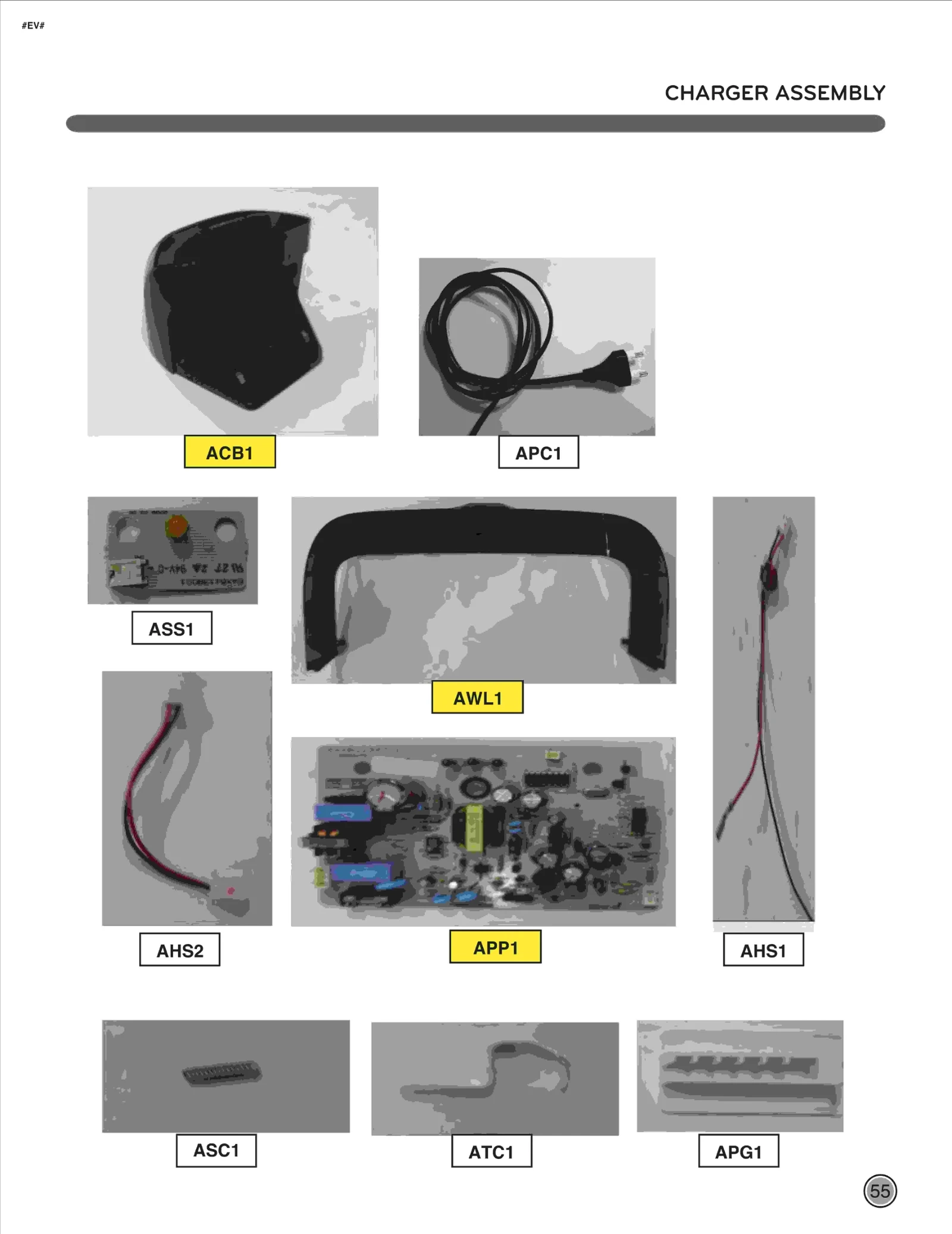

Diagram 5

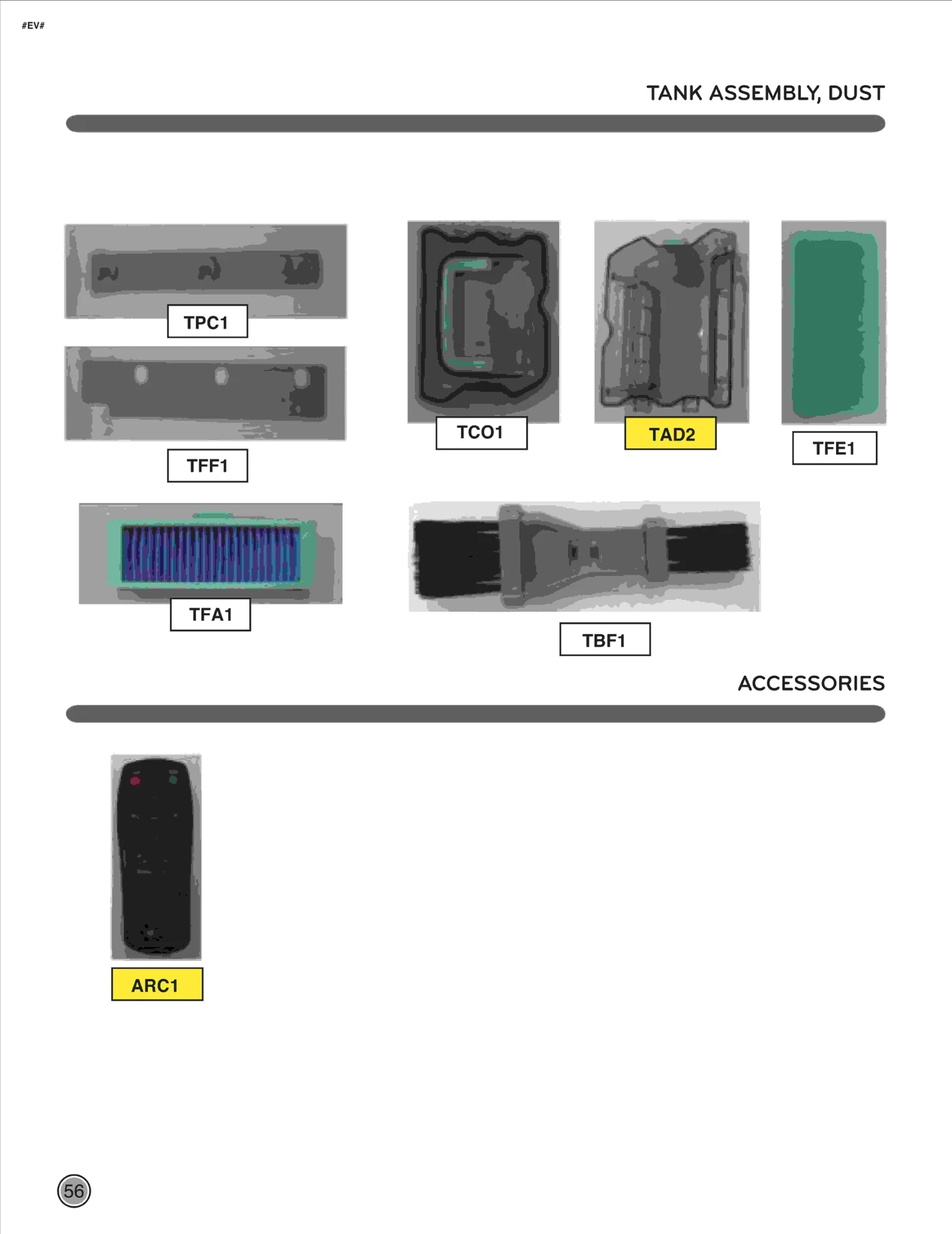

Diagram 6
Diagram 7
Common parts from model LG LRV590S
-
Harness,Single LGE EAD63289401 Contact Us For Availability
1PZZFI3002
Pin,Common LGE 1PZZFI3002A Contact Us For Availability
4400FI3355
Belt LGE 4400FI3355C Contact Us For Availability
6401FI1001
Speaker,Full Range LGE 6401FI1001D Contact Us For Availability
ACB1
Charger,Battery LGE EAY62750712 Contact Us For Availability
AHS1
Harness,Single LGE EAD60813301 Contact Us For Availability
AHS2
Harness,Single LGE EAD60813201 Contact Us For Availability
APG1
Plate,Guide LGE MGJ61912201 Contact Us For Availability
APP1
PCB Assembly,Power LGE EBR75205101 Contact Us For Availability
ARC1
Remote Controller Assembly LGE AKB66476113 Contact Us For Availability
ASC1
Spring,Coil LGE 4970FI3224P Contact Us For Availability
ASS1
PCB Assembly,Sub LGE EBR75145301 Contact Us For Availability
ATC1
Terminal,Contact LGE MJP61844901 Contact Us For Availability
BAA1
Guide Assembly,Air LGE AEC72914101 Contact Us For Availability
BBA1
Holder,Cover LGE MEG61875702 Contact Us For Availability
BBA2
Holder,Cover LGE MEG61875802 Contact Us For Availability
BBB1
Base,Body LGE MAM61850302 Contact Us For Availability
BBN1
Base Assembly,Nozzle LGE AAN74113602 Contact Us For Availability
BBP1
Button,Power Switch LGE MBG64346602 Contact Us For Availability
BBU1
Bumper,Body LGE MBD61883802 Contact Us For Availability
BCV1
Cover,Switch LGE MCK66272501 Contact Us For Availability
BFC1
Frame,Caster LGE MDQ61887101 Contact Us For Availability
BFE1
Filter,Exhaust LGE MDJ61935402 Contact Us For Availability
BFE2
Filter,Exhaust LGE MDJ61935401 Contact Us For Availability
BFF1
Frame,Filter LGE MDQ61886901 Contact Us For Availability
BGA1
Guide,Air LGE MEA61865501 Contact Us For Availability
BGE1
Gear LGE MDT61844401 Contact Us For Availability
BGE3
Gear LGE MDT61844601 Contact Us For Availability
BGE4
Gear LGE MDT61844701 Contact Us For Availability
BGE5
Gear LGE MDT61844801 Contact Us For Availability
BGE6
Gear LGE MDT61843901 Contact Us For Availability
BGT1
Gasket LGE MDS61952902 Contact Us For Availability
BHS1
Harness,Single LGE EAD60810501 Contact Us For Availability
BHS2
Harness,Single LGE EAD60809901 Contact Us For Availability
BHS3
Harness,Single LGE EAD60842001 Contact Us For Availability
BHS4
Harness,Single LGE EAD60811501 Contact Us For Availability
BHS5
Harness,Single LGE EAD60842110 Contact Us For Availability
BHS7
Harness,Single LGE EAD60810302 Contact Us For Availability
BHS8
Harness,Single LGE EAD60810201 Contact Us For Availability
BHS9
Harness,Single LGE EAD60809701 Contact Us For Availability
BHX1
Holder,Fixing LGE MEG61882301 Contact Us For Availability
BHX2
Holder,Fixing LGE MEG61875601 Contact Us For Availability
BMD1
Motor Assembly,DC LGE EAU61845201 Contact Us For Availability
BMD2
Motor Assembly,DC,Fan LGE EAU61865901 Contact Us For Availability
BPM1
PCB Assembly,Main LGE EBR75205001 Contact Us For Availability
BRL1
Rechargeable Battery,Lithium LGE EAC60766105 Contact Us For Availability
BRL1
Rechargeable Battery,Lithium Ion LGE EAC62218202 Contact Us For Availability
BSB2
Shaft LGE MHJ61848502 Contact Us For Availability
BSB3
Shaft LGE MHJ61848603 Contact Us For Availability
BSC1
Spring,Coil LGE 4970FI3224S Contact Us For Availability
BSG1
Shaft Assembly,Agitator LGE AHR72909401 Contact Us For Availability
BSN1
Sensor Assembly LGE EBD60662501 Contact Us For Availability
BSR1
Switch,Rocker LGE EBF60755202 Contact Us For Availability
BSS1
PCB Assembly,Sub LGE EBR75145101 Contact Us For Availability
BSS2
PCB Assembly,Sub LGE EBR75145001 Contact Us For Availability
BTC1
Terminal,Contact LGE MJP61844601 Contact Us For Availability
BWL1
Window,LED LGE MKC62155603 Contact Us For Availability
CCI1
Cover,Inner LGE MCK62265705 Contact Us For Availability
CCT1
Cover,Top LGE MCK62266222 Contact Us For Availability
CEA1
Decor Assembly LGE ACW72936115 Contact Us For Availability
CHE1
Holder,Sensor LGE MEG62883902 Contact Us For Availability
CHS1
Harness,Single LGE EAD60842102 Contact Us For Availability
CHS3
Harness,Single LGE EAD60813101 Contact Us For Availability
CLA1
Locker Assembly LGE AFK72909202 Contact Us For Availability
CPB1
PCB Assembly,Display LGE EBR75204802 Contact Us For Availability
CRF1
Reflector LGE MGW61844402 Contact Us For Availability
CSP1
Spring LGE MHY61869601 Contact Us For Availability
CSP2
Spring LGE MHY61869602 Contact Us For Availability
CWD1
Window,Display LGE MKC64302901 Contact Us For Availability
TAD2
Tank Assembly,Dust LGE AJL73011905 Contact Us For Availability
TBF1
Brush Assembly,Filter LGE ABC73090102 Contact Us For Availability
TFA1
Frame Assembly,Filter LGE ADV72968404 Contact Us For Availability
TFE1
Filter,Exhaust LGE MDJ62305401 Contact Us For Availability
TFF1
Plate,Cover LGE MGJ61912101 Contact Us For Availability
TPC1
Frame,Filter LGE MDQ61887001 Contact Us For Availability
W1SZ
Screw,Customized LGE 1SZZAP3564C Contact Us For Availability
× ![]()
