Model LG LRV5900 – Common Parts & Diagrams
Diagram 0

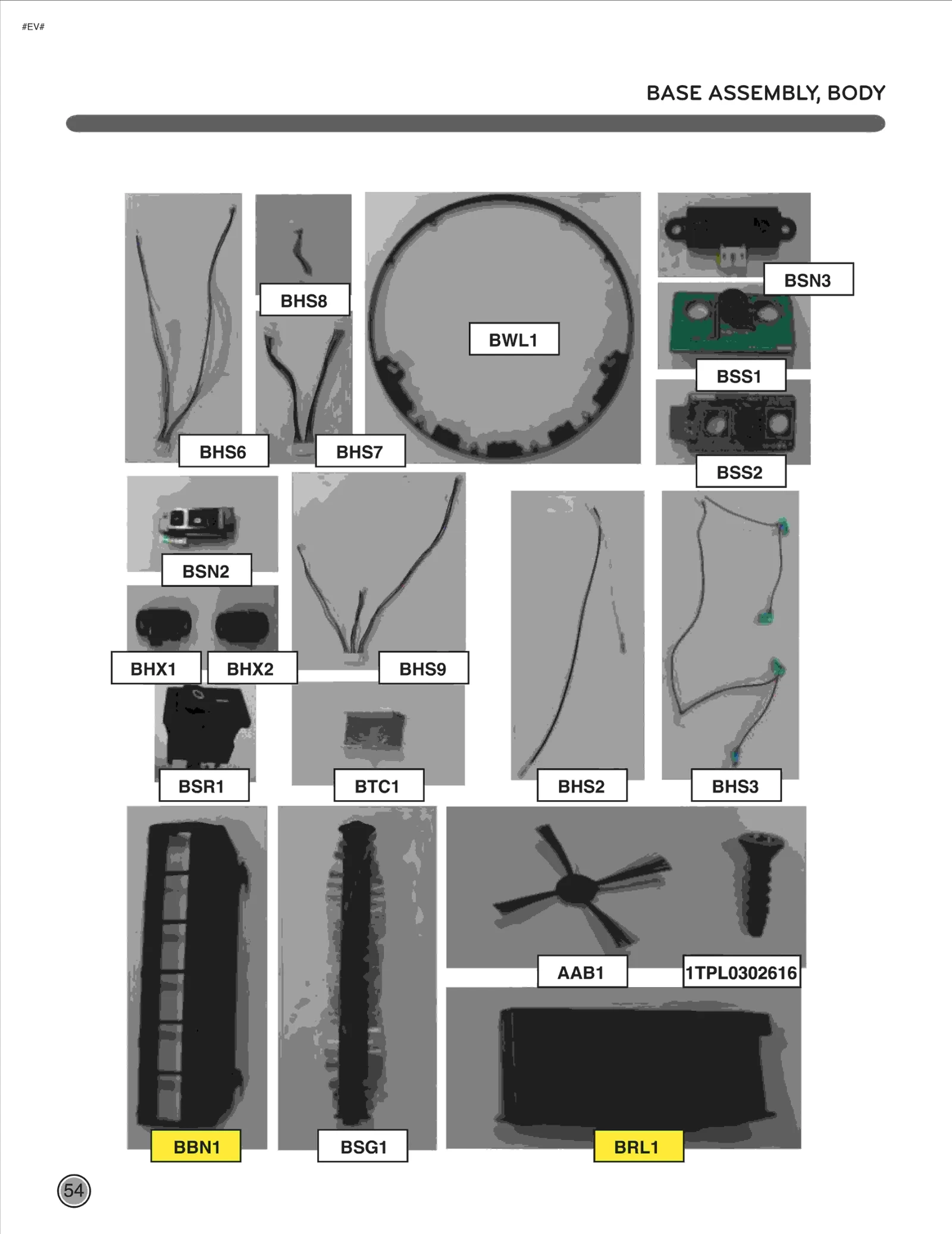

Diagram 1

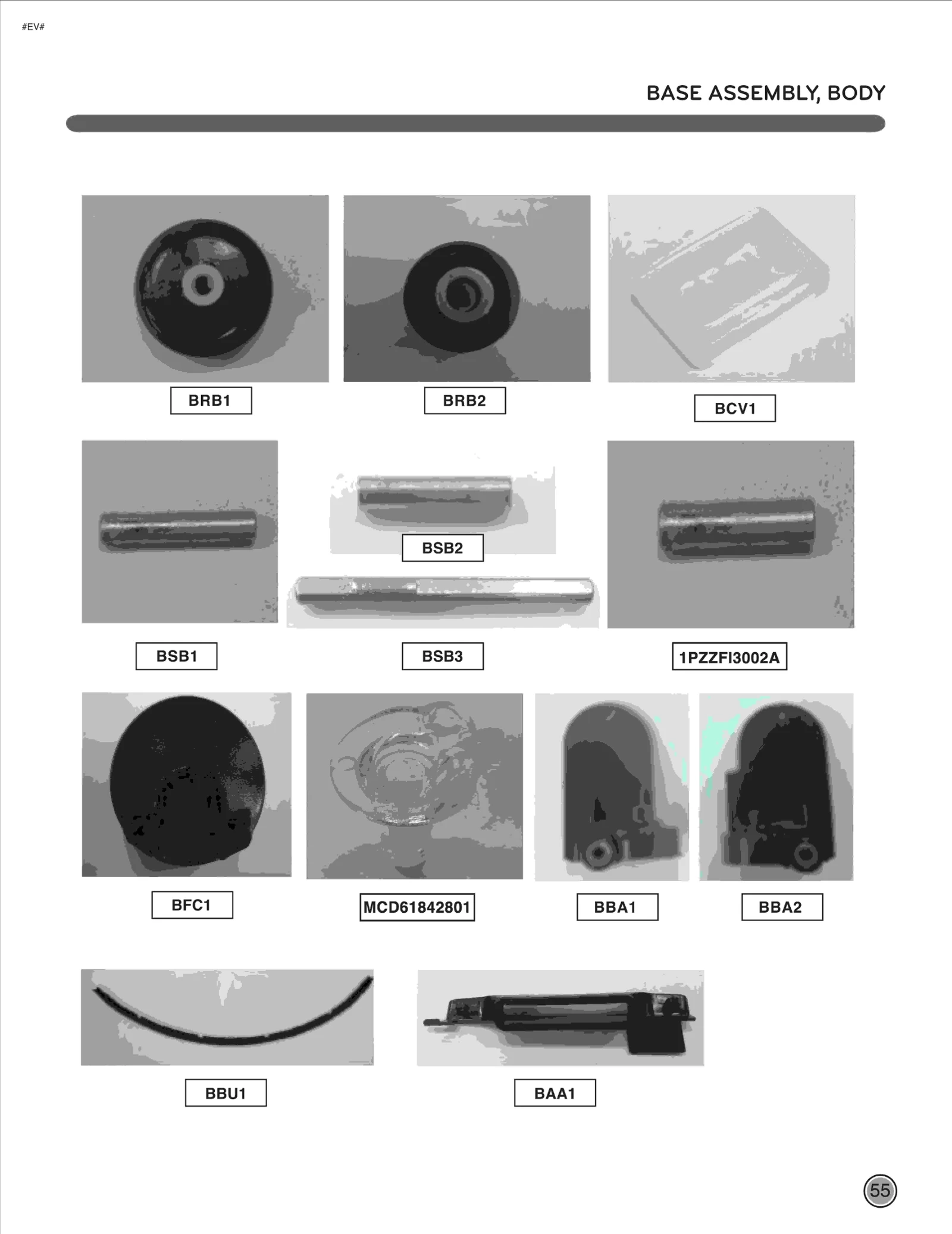

Diagram 2

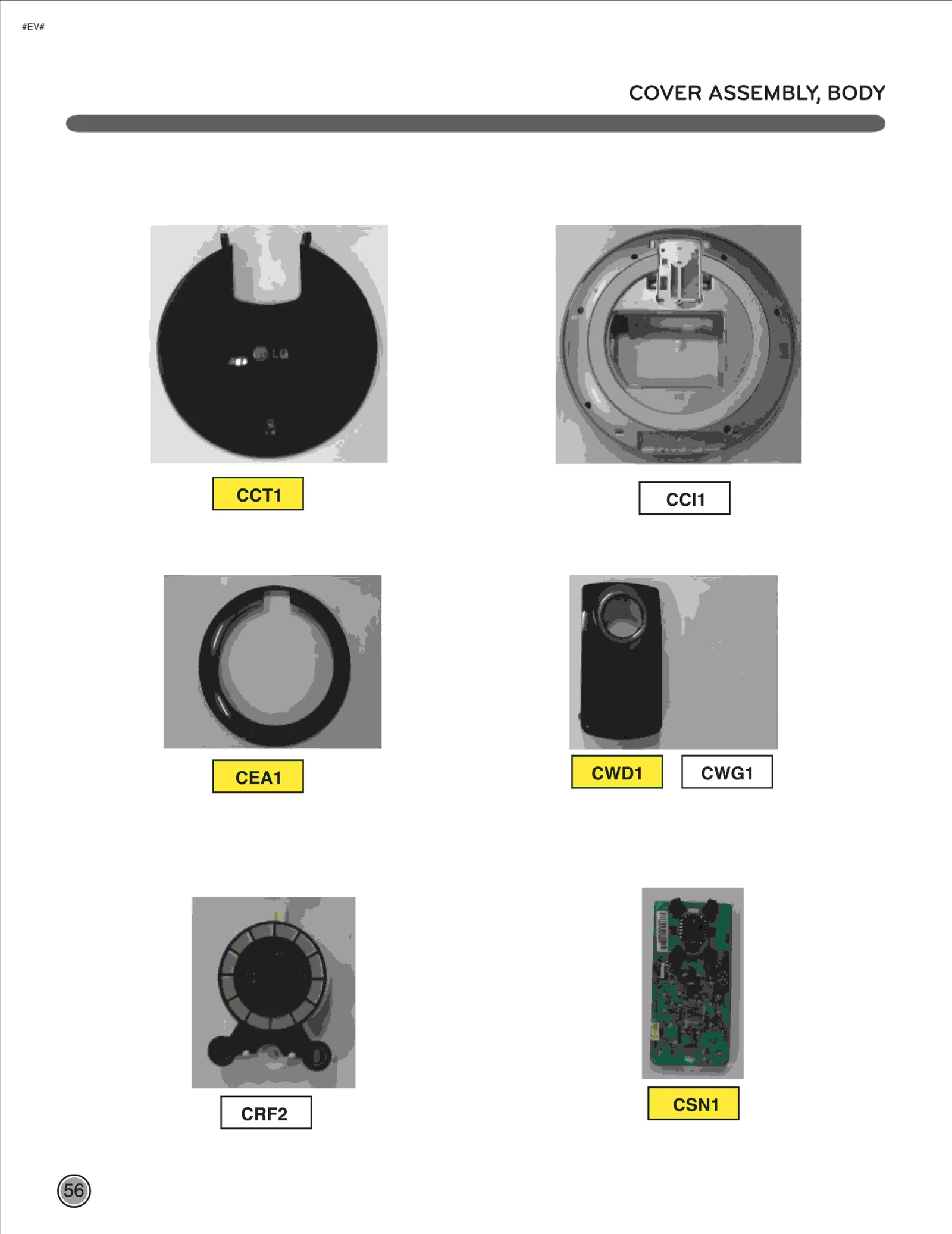

Diagram 3

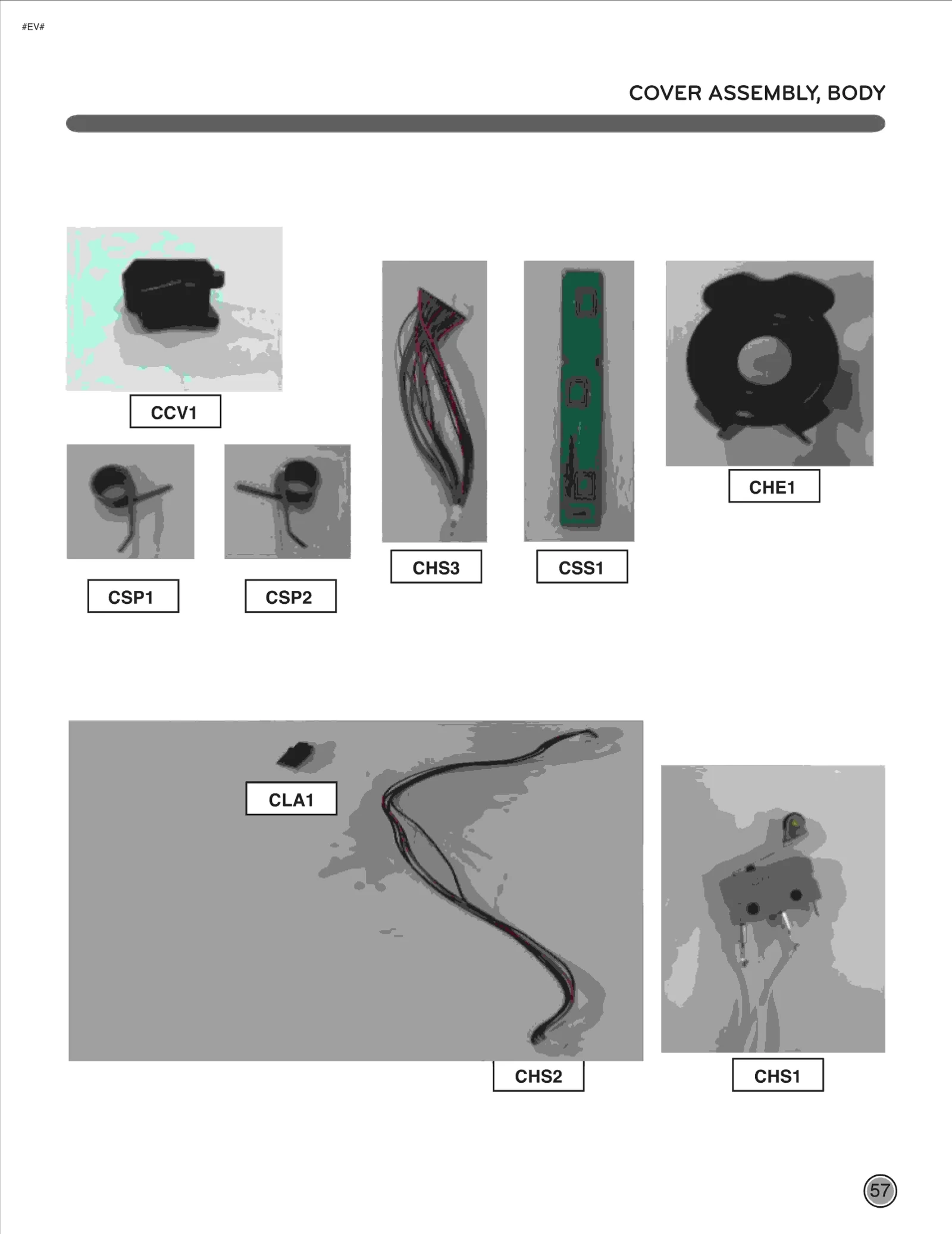

Diagram 4

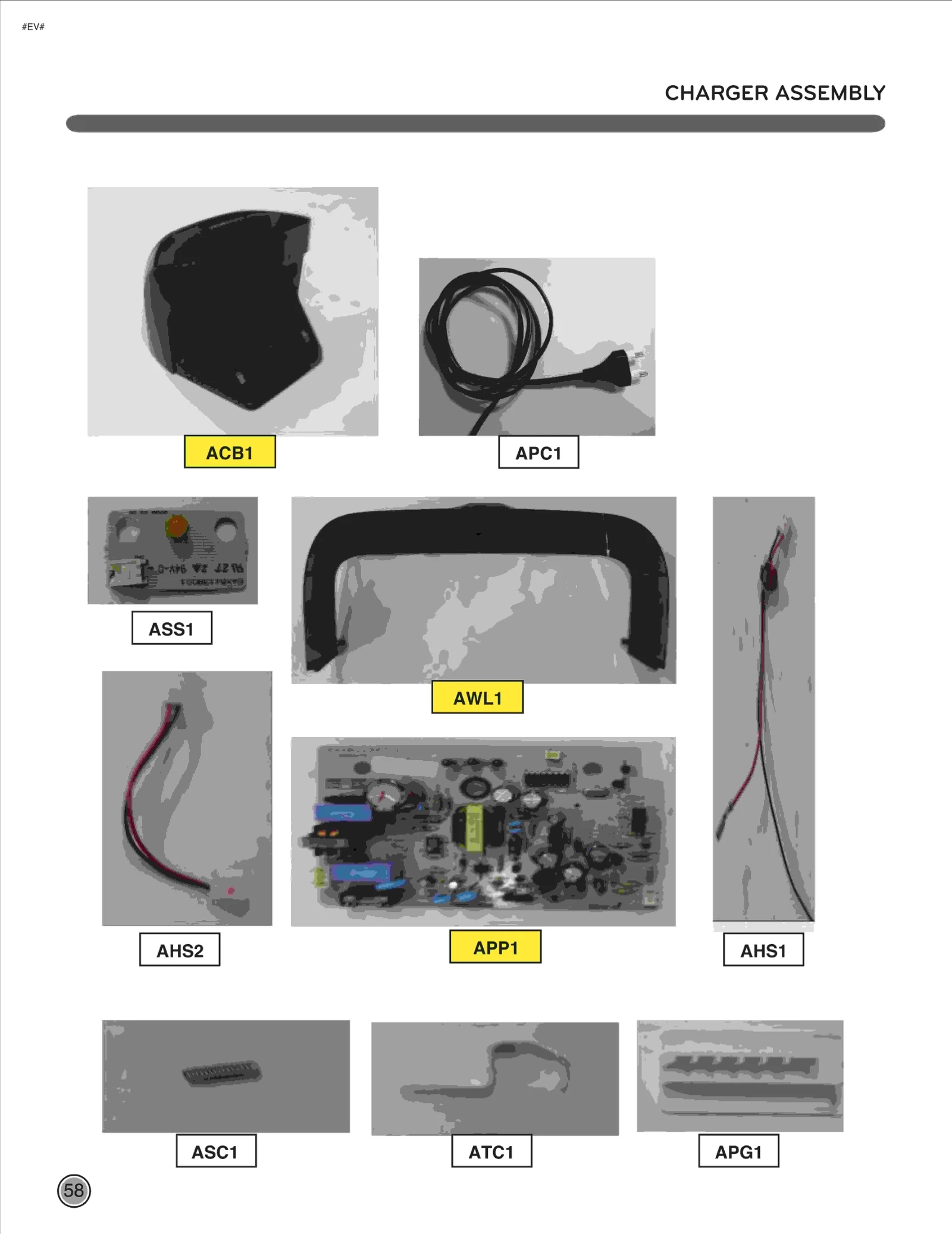

Diagram 5

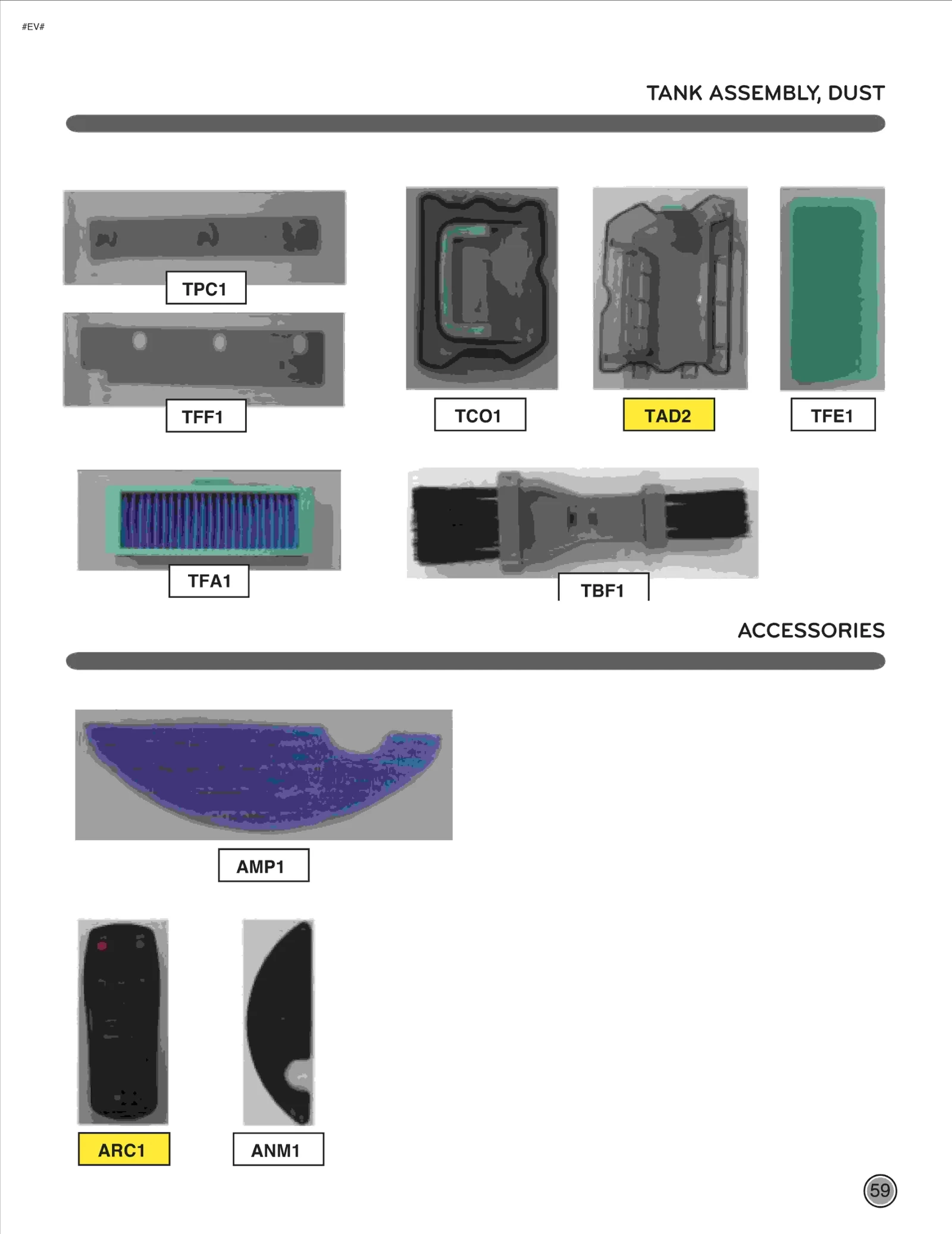

Diagram 6
Diagram 7
Common parts from model LG LRV5900
-
Harness,Single LGE EAD63289401 Contact Us For Availability
ACB1
Charger,Battery LGE EAY60751918 Contact Us For Availability
AHS1
Harness,Single LGE EAD60813301 Contact Us For Availability
AHS2
Harness,Single LGE EAD60813201 Contact Us For Availability
AMP1
Mop LGE MFQ61841301 Contact Us For Availability
ANM1
Nozzle Assembly,Mop LGE AGB72911315 Contact Us For Availability
APC1
Power Cord Assembly LGE EAD32961612 Contact Us For Availability
APG1
Plate,Guide LGE MGJ61912201 Contact Us For Availability
APP1
PCB Assembly,Power LGE EBR71400903 Contact Us For Availability
ARC1
Remote Controller Assembly LGE AKB66476107 Contact Us For Availability
ASC1
Spring,Coil LGE 4970FI3224P Contact Us For Availability
ASS1
PCB Assembly,Sub LGE EBR62995001 Contact Us For Availability
ATC1
Terminal,Contact LGE MJP61844901 Contact Us For Availability
AWL1
Window,LED LGE MKC62000902 Contact Us For Availability
BAA1
Guide Assembly,Air LGE AEC72914101 Contact Us For Availability
BBA1
Bracket Assembly LGE ABA72924001 Contact Us For Availability
BBA2
Bracket Assembly LGE ABA72924002 Contact Us For Availability
BBB1
Base,Body LGE MAM61850301 Contact Us For Availability
BBN1
Base Assembly,Nozzle LGE AAN73469102 Contact Us For Availability
BBU1
Bumper,Body LGE MBD61883801 Contact Us For Availability
BCT1
Bumper,Roller LGE MBD61842301 Contact Us For Availability
BCT1
Cover,Terminal LGE MCK62805303 Contact Us For Availability
BCT2
Cover,Terminal LGE MCK62805403 Contact Us For Availability
BCV1
Cover,Switch LGE MCK66272501 Contact Us For Availability
BFC1
Frame,Caster LGE MDQ61887101 Contact Us For Availability
BFE1
Filter,Exhaust LGE MDJ61935401 Contact Us For Availability
BFE2
Filter,Exhaust LGE MDJ61935402 Contact Us For Availability
BFF1
Frame,Filter LGE MDQ61886901 Contact Us For Availability
BGA1
Guide,Air LGE MEA61865501 Contact Us For Availability
BGE1
Gear LGE MDT62027102 Contact Us For Availability
BGE2
Gear LGE MDT62027101 Contact Us For Availability
BGE3
Gear LGE MDT61844601 Contact Us For Availability
BGE4
Gear LGE MDT61844701 Contact Us For Availability
BGE5
Gear LGE MDT61844801 Contact Us For Availability
BGE6
Gear LGE MDT61843901 Contact Us For Availability
BHS1
Harness,Single LGE EAD60810501 Contact Us For Availability
BHS2
Harness,Single LGE EAD60809901 Contact Us For Availability
BHS3
Harness,Single LGE EAD60842001 Contact Us For Availability
BHS4
Harness,Single LGE EAD60811501 Contact Us For Availability
BHS5
Harness,Single LGE EAD60842103 Contact Us For Availability
BHS6
Harness,Single LGE EAD60810401 Contact Us For Availability
BHS7
Harness,Single LGE EAD60810301 Contact Us For Availability
BHS8
Harness,Single LGE EAD60810201 Contact Us For Availability
BHS9
Harness,Single LGE EAD60809701 Contact Us For Availability
BHT1
Harness,Single LGE EAD60810502 Contact Us For Availability
BHT2
Harness,Single LGE EAD60809801 Contact Us For Availability
BHX1
Holder,Fixing LGE MEG61882301 Contact Us For Availability
BHX2
Holder,Fixing LGE MEG61875601 Contact Us For Availability
BMD1
Motor Assembly,DC LGE EAU60695601 Contact Us For Availability
BMD2
Motor Assembly,DC,Fan LGE EAU60696202 Contact Us For Availability
BPM1
PCB Assembly,Main LGE EBR62979923 Contact Us For Availability
BRL1
Rechargeable Battery,Lithium LGE EAC60766105 Contact Us For Availability
BRL1
Rechargeable Battery,Lithium Ion LGE EAC62218202 Contact Us For Availability
BSB2
Shaft LGE MHJ61848502 Contact Us For Availability
BSB3
Shaft LGE MHJ61848601 Contact Us For Availability
BSC1
Spring,Coil LGE 4970FI3224S Contact Us For Availability
BSG1
Shaft Assembly,Agitator LGE AHR72909401 Contact Us For Availability
BSM1
Sensor,Magnetic LGE EBD32644804 Contact Us For Availability
BSN1
Sensor Assembly LGE EBD60662501 Contact Us For Availability
BSN3
Sensor Assembly LGE 6501FI3002C Contact Us For Availability
BSR1
Switch,Rocker LGE EBF60755202 Contact Us For Availability
BSS1
PCB Assembly,Sub LGE EBR62993101 Contact Us For Availability
BTC1
Terminal,Contact LGE MJP61844601 Contact Us For Availability
BWA1
Wheel Assembly LGE AJW72909701 Contact Us For Availability
BWC2
Washer,Common LGE FAF30367601 Contact Us For Availability
BWL1
Window,LED LGE MKC62155602 Contact Us For Availability
BWW1
Cover,Wheel LGE MCK62265503 Contact Us For Availability
CCI1
Cover,Inner LGE MCK62265704 Contact Us For Availability
CCT1
Cover,Top LGE MCK62266211 Contact Us For Availability
CEA1
Decor Assembly LGE ACW72936106 Contact Us For Availability
CHE1
Holder,Sensor LGE MEG61876201 Contact Us For Availability
CHS1
Harness,Single LGE EAD60842102 Contact Us For Availability
CHS2
Harness,Single LGE EAD60813001 Contact Us For Availability
CHS3
Harness,Single LGE EAD60813101 Contact Us For Availability
CLA1
Locker Assembly LGE AFK72909202 Contact Us For Availability
CRF2
Reflector LGE MGW61845702 Contact Us For Availability
CSN1
Sensor Assembly LGE EBD60663106 Contact Us For Availability
CSP1
Spring LGE MHY61869601 Contact Us For Availability
CSP2
Spring LGE MHY61869602 Contact Us For Availability
CSS1
PCB Assembly,Sub LGE EBR62994001 Contact Us For Availability
CWD1
Window,Display LGE MKC62000703 Contact Us For Availability
CWG1
Window,Glass LGE MKC62038701 Contact Us For Availability
TAD2
Tank Assembly,Dust LGE AJL73011902 Contact Us For Availability
TCO1
Cover,Dust LGE MCK63607801 Contact Us For Availability
TFA1
Frame Assembly,Filter LGE ADV72968401 Contact Us For Availability
TFE1
Filter,Exhaust LGE MDJ62305401 Contact Us For Availability
TFF1
Frame,Filter LGE MDQ61887001 Contact Us For Availability
TPC1
Plate,Cover LGE MGJ61912101 Contact Us For Availability
× ![]()
