Model LG LRTPC1831NI – Common Parts & Diagrams

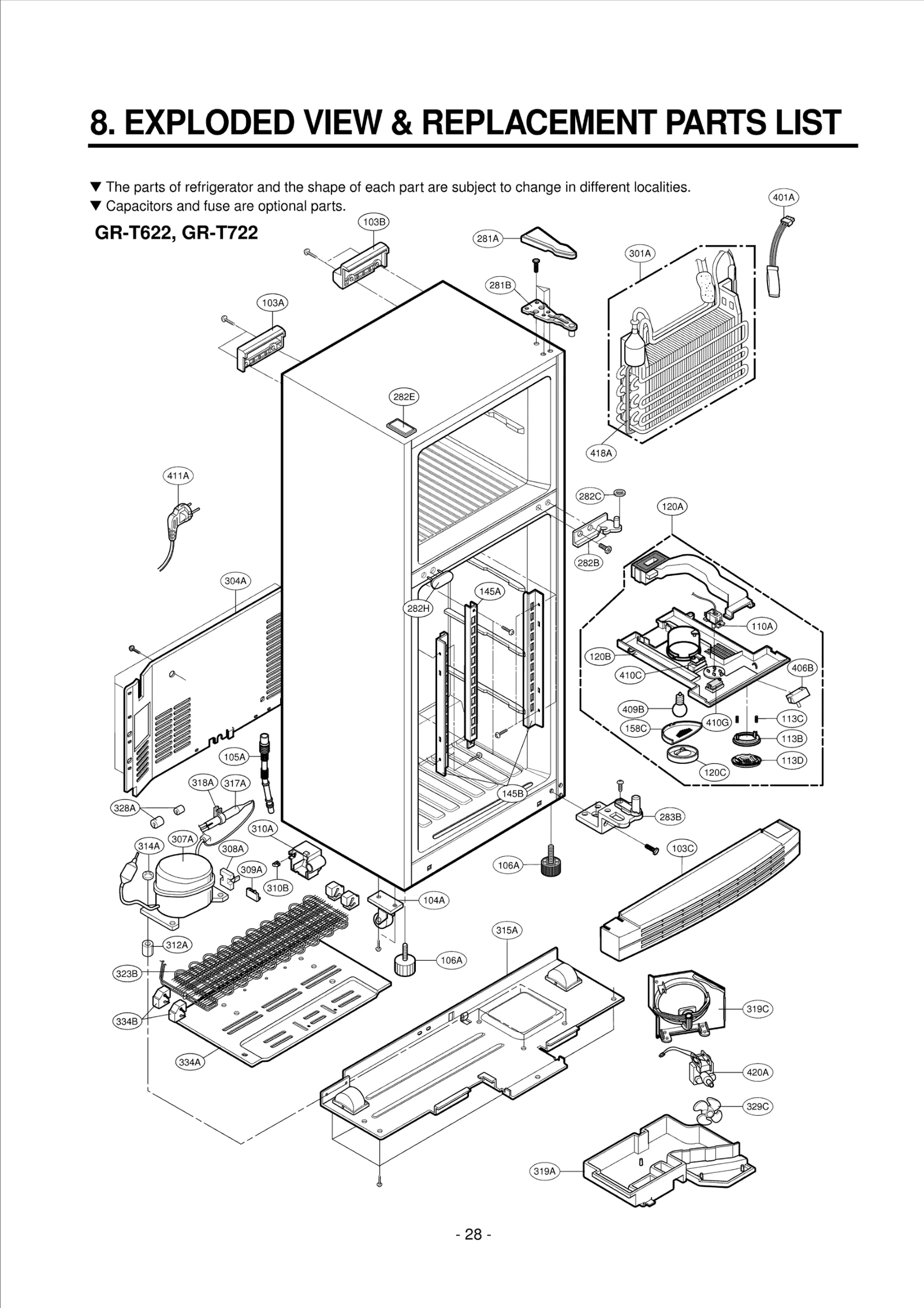

Diagram 0
Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG LRTPC1831NI
110C
KNOB,DAMPER LGE 4940JD1007C Contact Us For Availability
113D
GASKET LGE 4986JA2024A Contact Us For Availability
120A
CONTROL BOX ASSY,R LGE 4995JA1024K Contact Us For Availability
120B
Case,Control Refrigerator LGE 4994JD1037A Contact Us For Availability
120C
KNOB,DAMPER LGE 4940JD1006E Contact Us For Availability
131A
BANK,ICE LGE 5074JA1049A Contact Us For Availability
140A
SHELF ASSEMBLY,R LGE 5027JA1018Q Contact Us For Availability
140B
SHELF ASSEMBLY,R LGE 5027JA1028F Contact Us For Availability
140C
SHELF ASSY,NET LGE 5027JA2037D Contact Us For Availability
141A
SHELF ASSEMBLY,R LGE 5027JA1020Q Contact Us For Availability
141C
Shelf Assembly,Net LGE 5027JA2037H Contact Us For Availability
145A
HOLDER,SHELF LGE 4930JA2032A Contact Us For Availability
145B
HOLDER,SHELF LGE 4930JA2031A Contact Us For Availability
147A
BANK LGE 5074JA1008A Contact Us For Availability
149A
Shelf Assembly,Freezer LGE 5027JA2056A Contact Us For Availability
151A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1036G Contact Us For Availability
151B
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1036H Contact Us For Availability
151C
KNOB LGE 4940JA2012A Contact Us For Availability
151D
KNOB LGE 4940JA2011A Contact Us For Availability
154A
COVER ASSY,T/V LGE 3551JA1027D Contact Us For Availability
158B
HOLDER,LAMP LGE 4930JA1034A Contact Us For Availability
158C
COVER,LAMP LGE 3550JA2096A Contact Us For Availability
170A
TRAY,MEAT LGE 3390JD1050G Contact Us For Availability
200A
FREEZER DOOR ASSEMBLY LGE 3581JA1045Q Contact Us For Availability
201A
Door Foam Assembly,Freezer LGE 5433JA0076F Contact Us For Availability
203A
GASKET ASSEMBLY,DOOR LGE 4987JA1032W Contact Us For Availability
205A
BASKET,DOOR LGE 5004JD1110B Contact Us For Availability
210A
STOPPER,DOOR LGE 4620JA2011A Contact Us For Availability
211A
HANDLE ASSEMBLY LGE 3651JA2212A Contact Us For Availability
212A
FREEZER HANDLE LGE 3650JA2053A Contact Us For Availability
212G
MARK-name plate LGE 3846JD1007E Contact Us For Availability
230A
DOOR ASSEMBLY,R LGE 3581JA8475C Contact Us For Availability
231A
Door Foam Assembly,Refrigerator LGE 5433JA0077L Contact Us For Availability
233A
GASKET ASSEMBLY,DOOR LGE 4987JA1032X Contact Us For Availability
235A
TRAY,EGG LGE 3390JA1140A Contact Us For Availability
241B
BASKET ASSY,DOOR LGE 5005JA1001B Contact Us For Availability
241C
BASKET,DOOR LGE 5004JD1112B Contact Us For Availability
243A
STOPPER LGE 4620JA3010B Contact Us For Availability
244A
REFRIGERATOR HANDLE LGE 3650JA2054A Contact Us For Availability
244B
HANDLE DECORATION LGE 3650JA2055A Contact Us For Availability
244C
HANDLE DECORATION LGE 3650JA2056A Contact Us For Availability
281A
COVER,HINGE LGE 3550JA2132K Contact Us For Availability
281B
HINGE ASSY,U LGE 4775JA2031B Contact Us For Availability
281E
CAP,HINGE LGE 5006JA3054H Contact Us For Availability
282B
HINGE ASSY,C LGE 4774JA2005A Contact Us For Availability
282C
WASHER,PLAIN LGE 1WPZJA3007A Contact Us For Availability
282E
CAP,HINGE LGE 5006JA2011U Contact Us For Availability
282H
CAP,HINGE LGE 5006JA2020B Contact Us For Availability
283B
HINGE ASSY,L LGE 4775JA2026A Contact Us For Availability
301A
EVAPORATOR ASSY LGE 5421JA1032A Contact Us For Availability
304A
COVER,BACK-M/C LGE 3550JA1117A Contact Us For Availability
307A
COMPRESSOR,ASSEMBLY LGE 2521JA1006C Contact Us For Availability
308A
P.T.C LGE 6748JA3001A Contact Us For Availability
309A
O.L.P LGE 6750JA3001A Contact Us For Availability
310A
COVER,P.T.C LGE 3550JA2158A Contact Us For Availability
312A
RUBBER,SEAT LGE 5040JA3044A Contact Us For Availability
315A
COMP BASE ASSY,STD LGE 3103JA1015B Contact Us For Availability
318A
Holder,Drier LGE 4930JA3034B Contact Us For Availability
319A
TRAY,DRIP LGE 3390JA1115B Contact Us For Availability
319C
GUIDE,FAN LGE 4974JA1046B Contact Us For Availability
323B
CONDENSER ASSY,WIRE LGE 5403JA1026A Contact Us For Availability
329C
FAN ASSY LGE 5901JA1005B Contact Us For Availability
330B
SHROUD,F LGE 4998JA1010A Contact Us For Availability
332A
GRILLE ASSY,FAN LGE 3531JA1018L Contact Us For Availability
334A
COVER LGE 3550JA2095A Contact Us For Availability
334B
RUBBER LGE 5040JA3039A Contact Us For Availability
401A
CONTROL ASSY,DEF LGE 6615JB2003F Contact Us For Availability
404A
MOTOR ASSEMBLY,REF FAN LGE 4681JB1018P Contact Us For Availability
408A
Drawing,Assembly LGE 6621JB2005E Contact Us For Availability
409A
LAMP,INCANDESCENT LGE 6912JB2004F Contact Us For Availability
409B
LAMP,[INCANDESCENT] LGE 6912JB2004M Contact Us For Availability
410C
DEFROST TIMER LGE 6914JB2006G Contact Us For Availability
410G
CAPACITOR[M/R] LGE 0CBZJB2001E Contact Us For Availability
411A
POWER CORD ASSY LGE 6411JB1013B Contact Us For Availability
418A
HEATER,SHEATH LGE 5300JB1050R Contact Us For Availability
418B
Tray,Drain LGE 3390JA1116B Contact Us For Availability
420A
MOTOR ASSEMBLY,REF FAN LGE 4681JB1020G Contact Us For Availability
600B
Lever,Ice Maker LGE 4510JA2014B Contact Us For Availability
602A
HOLDER,BRACKET LGE 4930JA3090A Contact Us For Availability
607A
HOLDER,BRACKET LGE 4930JA3068A Contact Us For Availability
616E
TUBE,INJECT LGE 5210JA3021A Contact Us For Availability
618A
BRACKET LGE 4810JA3036A Contact Us For Availability
622A
RUBBER,INJECT LGE 5040JA3025A Contact Us For Availability
3391AT
TRAY ASSY,CAN STORAGE LGE 3391JA1045A Contact Us For Availability
× ![]()
