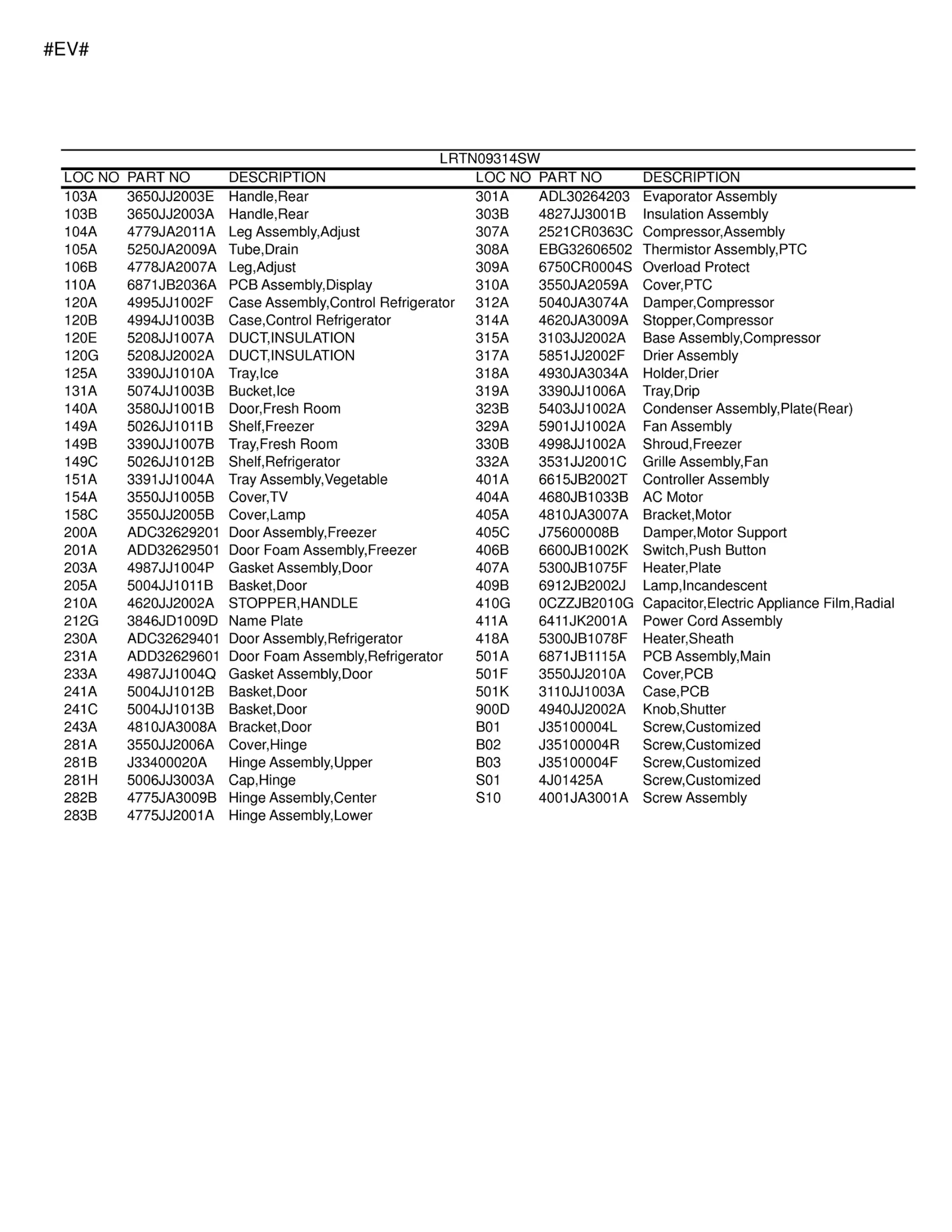

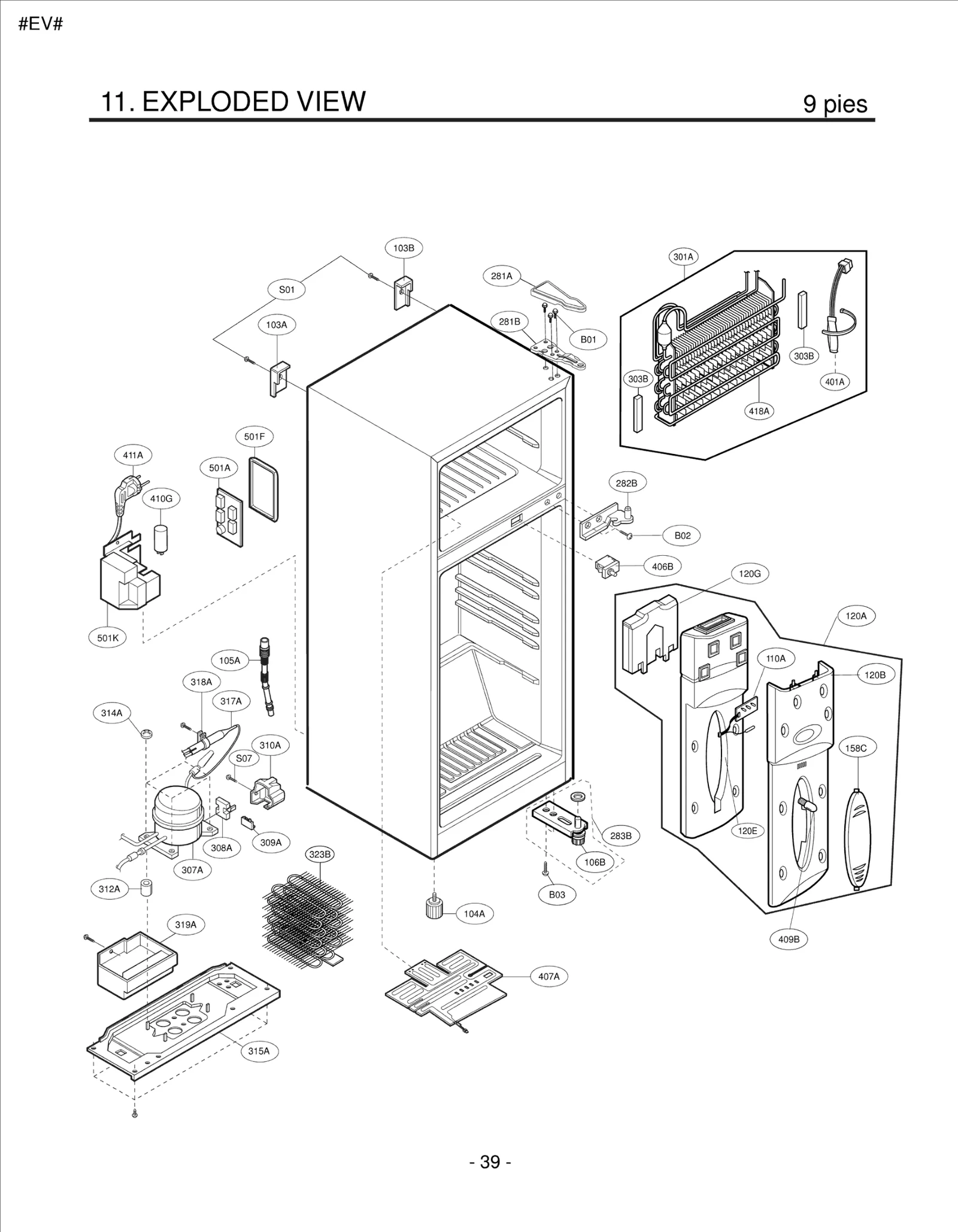

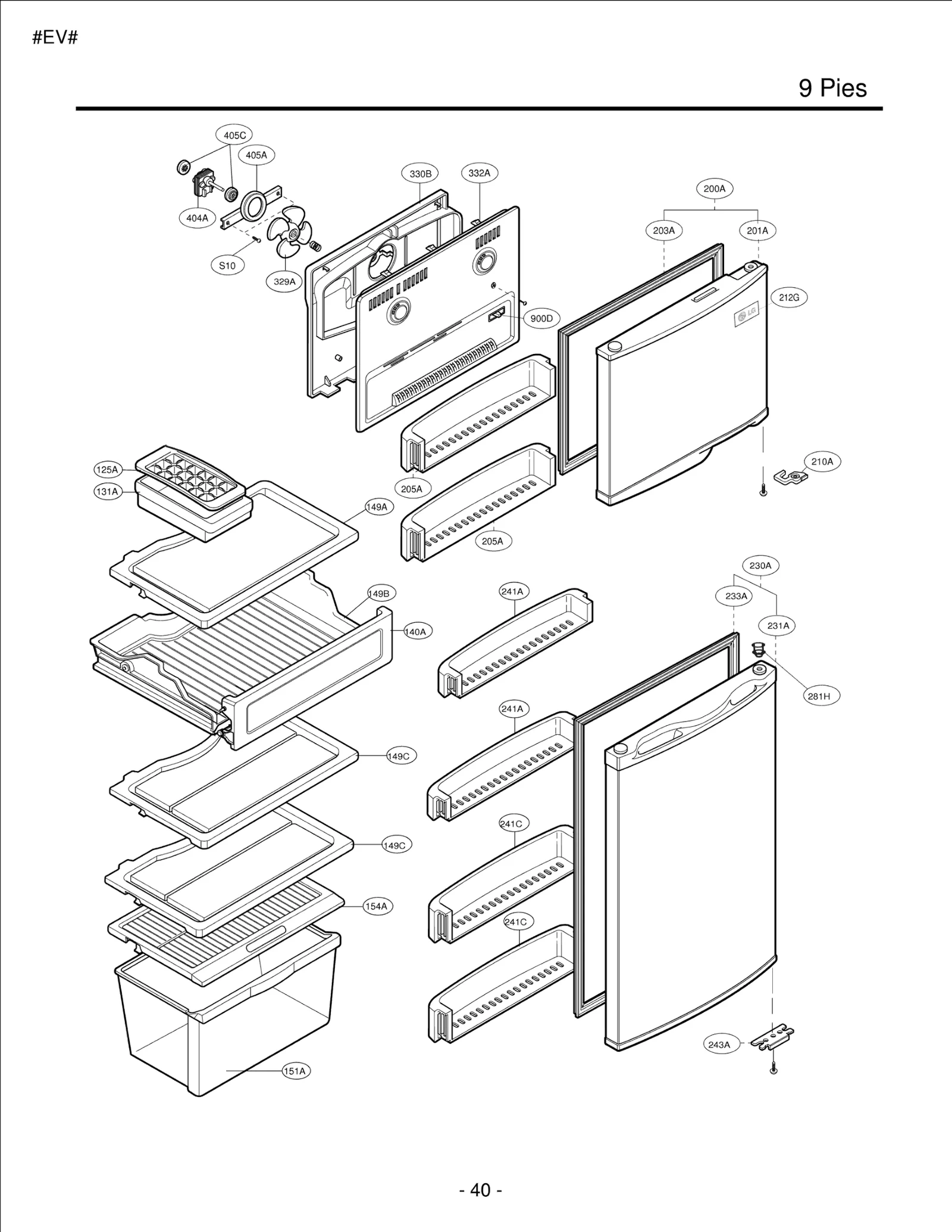

LG LRTN09314SW Parts List | Reliable Parts

103A

HANDLE, BACK LGE 3650JJ2003E Contact Us For Availability

View on Model

103B

HANDLE, BACK LGE 3650JJ2003A Contact Us For Availability

View on Model

104A

LEG ASSY,ADJUST LGE 4779JA2011A Contact Us For Availability

View on Model

105A

5250JA2009A LG Refrigerator Drain Tube Backorder LGE 5250JA2009A $7.08

View on Model

106B

Leg,Adjust Backorder LGE 4778JA2007A $65.22

View on Model

110A

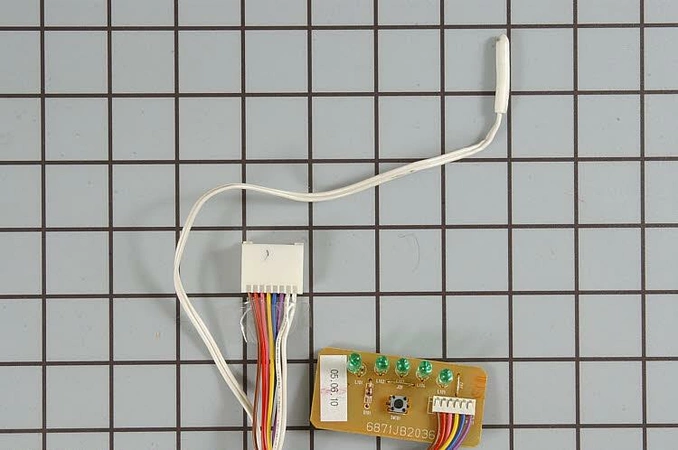

6871JB2036A LG Display PCB Assembly Backorder LGE 6871JB2036A $88.89

View on Model

120A

CASE ASSEMBLY,CONTROL REFRIGERATOR LGE 4995JJ1002F Contact Us For Availability

View on Model

120B

CONTROL BOX,R LGE 4994JJ1003B Contact Us For Availability

View on Model

120E

DUCT,INSULATION LGE 5208JJ1007A Contact Us For Availability

View on Model

120G

DUCT,INSULATION LGE 5208JJ2002A Contact Us For Availability

View on Model

125J

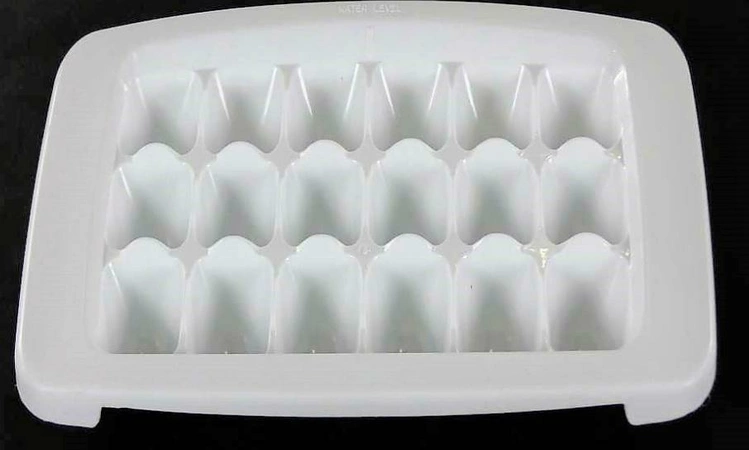

3390JJ1010A LG Refrigerator Ice Tray Backorder LGE 3390JJ1010A $26.61

View on Model

131A

Bucket,Ice LGE 5074JJ1003B Contact Us For Availability

View on Model

140A

DOOR,FRESH ROOM LGE 3580JJ1001B Contact Us For Availability

View on Model

149A

SHELF,F LGE 5026JJ1011B Contact Us For Availability

View on Model

149B

TRAY,FRESH ROOM LGE 3390JJ1007B Contact Us For Availability

View on Model

149C

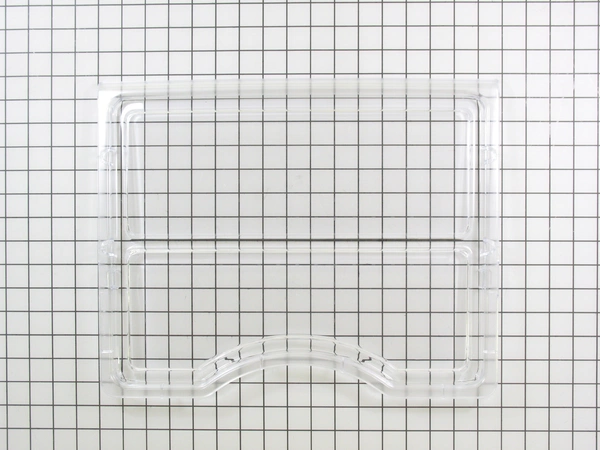

5026JJ1012B LG Refrigerator Shelf Backorder LGE 5026JJ1012B $102.25

View on Model

151A

TRAY ASSEMBLY,VEGETABLE LGE 3391JJ1004A Contact Us For Availability

View on Model

154A

COVER,T/V LGE 3550JJ1005B Contact Us For Availability

View on Model

158C

COVER,LAMP LGE 3550JJ2005B Contact Us For Availability

View on Model

200A

Door Assembly,Freezer LGE ADC32629201 Contact Us For Availability

View on Model

201A

Door Foam Assembly,Freezer LGE ADD32629501 Contact Us For Availability

View on Model

203A

GASKET ASSEMBLY,DOOR LGE 4987JJ1004P Contact Us For Availability

View on Model

205A

Basket,Door Backorder LGE 5004JJ1011B $54.35

View on Model

210A

STOPPER,HANDLE LGE 4620JJ2002A Contact Us For Availability

View on Model

212G

MFT62346510 LG Refrigerator Nameplate Backorder LGE MFT62346510 $26.61

View on Model

212G

MFT62346511 LG Refrigerator Nameplate In Stock LGE MFT62346511 $36.30

View on Model

212G

Name Plate LGE 3846JD1009D Contact Us For Availability

View on Model

230A

Door Assembly,Refrigerator LGE ADC32629401 Contact Us For Availability

View on Model

231A

Door Foam Assembly,Refrigerator LGE ADD32629601 Contact Us For Availability

View on Model

233A

4987JJ1004Q LG Door Gasket Assembly Backorder LGE 4987JJ1004Q $111.87

View on Model

241A

BASKET,DOOR LGE 5004JJ1012B Contact Us For Availability

View on Model

241C

BASKET,DOOR LGE 5004JJ1013B Contact Us For Availability

View on Model

243A

LGE 4810JA3008A LGE 4810JA3008A Contact Us For Availability

View on Model

281A

COVER,HINGE LGE 3550JJ2006A Contact Us For Availability

View on Model

281B

HINGE ASSEMBLY,U LGE J334-00020A Contact Us For Availability

View on Model

281H

5006JJ3003A LG Hinge Cap Backorder LGE 5006JJ3003A $7.08

View on Model

282B

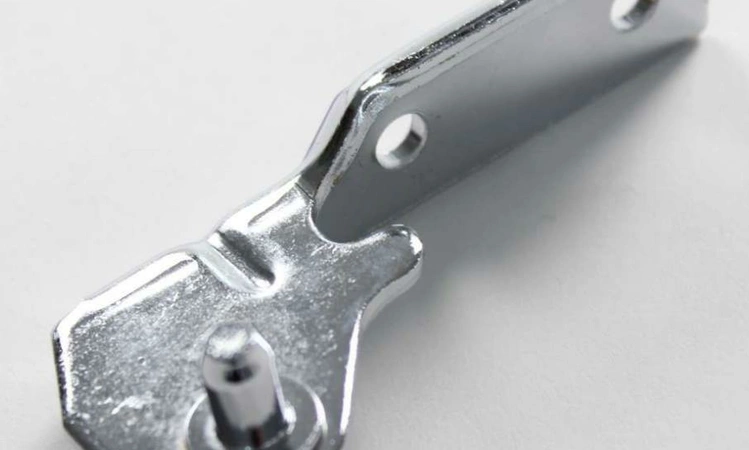

4775JA3009B LG Center Hinge Assembly Backorder LGE 4775JA3009B $41.86

View on Model

282B

Hinge Assembly,Center LGE 4775JA3009A Contact Us For Availability

View on Model

283B

HINGE ASSEMBLY,L LGE 4775JJ2001A Contact Us For Availability

View on Model

301A

Evaporator Assembly LGE ADL30264203 Contact Us For Availability

View on Model

303B

SPACER ASSEMBLY LGE 4827JJ3001B Contact Us For Availability

View on Model

307A

COMPRESSOR,ASSEMBLY LGE 2521CR0363C Contact Us For Availability

View on Model

308A

EBG32606502 LG Thermistor PTC Assembly Backorder LGE EBG32606502 $17.09

View on Model

309A

6750CR0004S LG Overload Protector Backorder LGE 6750CR0004S $109.26

View on Model

310A

COVER,P.T.C LGE 3550JA2059A Contact Us For Availability

View on Model

312A

Damper,Compressor LGE 5040JA3074A Contact Us For Availability

View on Model

314A

4620JA3009A LG Compressor Stopper Backorder LGE 4620JA3009A $7.08

View on Model

315A

COMP BASE ASSEMBLY,STD LGE 3103JJ2002A Contact Us For Availability

View on Model

317A

5851JJ2002F LG Dryer Assembly Backorder LGE 5851JJ2002F $39.98

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

319A

TRAY,DRIP LGE 3390JJ1006A Contact Us For Availability

View on Model

323B

CONDENSER ASSEMBLY,B/P LGE 5403JJ1002A Contact Us For Availability

View on Model

329A

FAN ASSY LGE 5901JJ1002A Contact Us For Availability

View on Model

330B

SHROUD,F LGE 4998JJ1002A Contact Us For Availability

View on Model

332A

GRILLE ASSEMBLY,FAN LGE 3531JJ2001C Contact Us For Availability

View on Model

401A

6615JB2002T LG Controller Assembly Backorder LGE 6615JB2002T $34.08

View on Model

404A

FAN MOTOR(MECHANICAL AREA) LGE 4680JB1033B Contact Us For Availability

View on Model

405A

4810JA3007A LG Motor Bracket Backorder LGE 4810JA3007A $7.08

View on Model

405C

J756-00008B LG Refrigerator Damper Motor Supp Backorder LGE J756-00008B $7.08

View on Model

406B

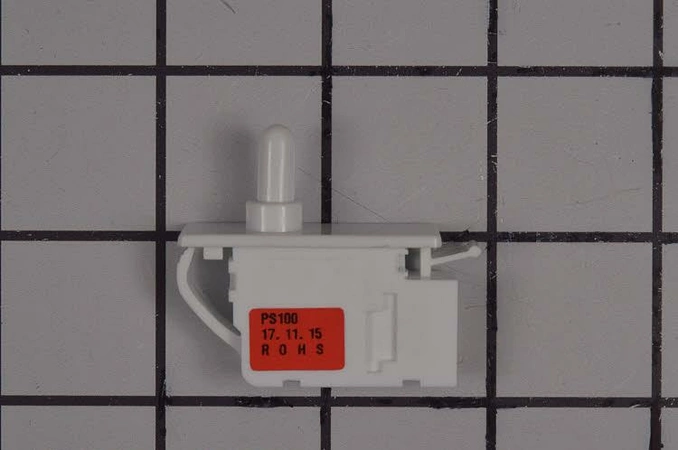

6600JB1002K LG Push Button Switch Backorder LGE 6600JB1002K $9.78

View on Model

407A

LGE 5300JB1075F LGE 5300JB1075F Contact Us For Availability

View on Model

409B

6912JB2002J LG Refrigerator Incandescent Lamp Backorder LGE 6912JB2002J $14.64

View on Model

410G

0CZZJB2010G LG Refrigerator Electric Capacito Backorder LGE 0CZZJB2010G $41.86

View on Model

411A

POWER CORD ASSEMBLY LGE 6411JK2001A Contact Us For Availability

View on Model

418A

HEATER,CORD-L LGE 5300JB1078F Contact Us For Availability

View on Model

419B

AEY72951601 LG Assembly Kit Backorder LGE AEY72951601 $121.25

View on Model

419B

LGE 5200JJ3003J LGE 5200JJ3003J Contact Us For Availability

View on Model

501A

6871JB1115A LG Refrigerator Main PCB Control Backorder LGE 6871JB1115A $93.59

View on Model

501F

COVER,PWB LGE 3550JJ2010A Contact Us For Availability

View on Model

501K

CASE,PWB LGE 3110JJ1003A Contact Us For Availability

View on Model

900D

KNOB,SHUTTER LGE 4940JJ2002A Contact Us For Availability

View on Model

B01

J351-00004L LG Customized Screw Backorder LGE J351-00004L $7.08

View on Model

B02

SCREW,DRAWING LGE J351-00004R Contact Us For Availability

View on Model

B03

SCREW,DRAWING LGE J351-00004F Contact Us For Availability

View on Model

S01

4J01425A LG Screw Customized Backorder LGE 4J01425A $7.08

View on Model

S10

4001JA3001A LG Refrigerator Screw Assembly Backorder LGE 4001JA3001A $7.08

View on Model
