Model LG LRSPC2331NI – Common Parts & Diagrams

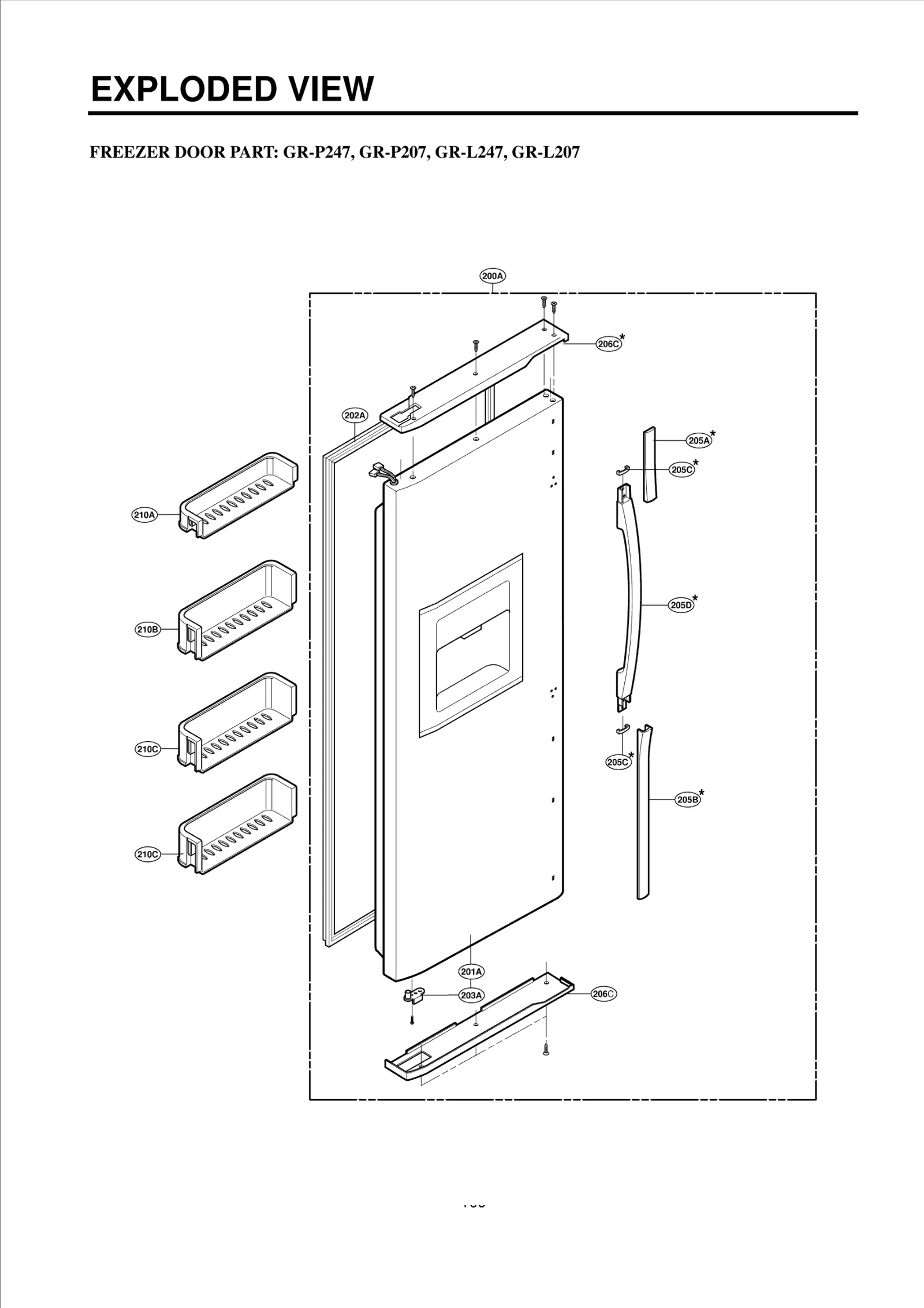

Diagram 0

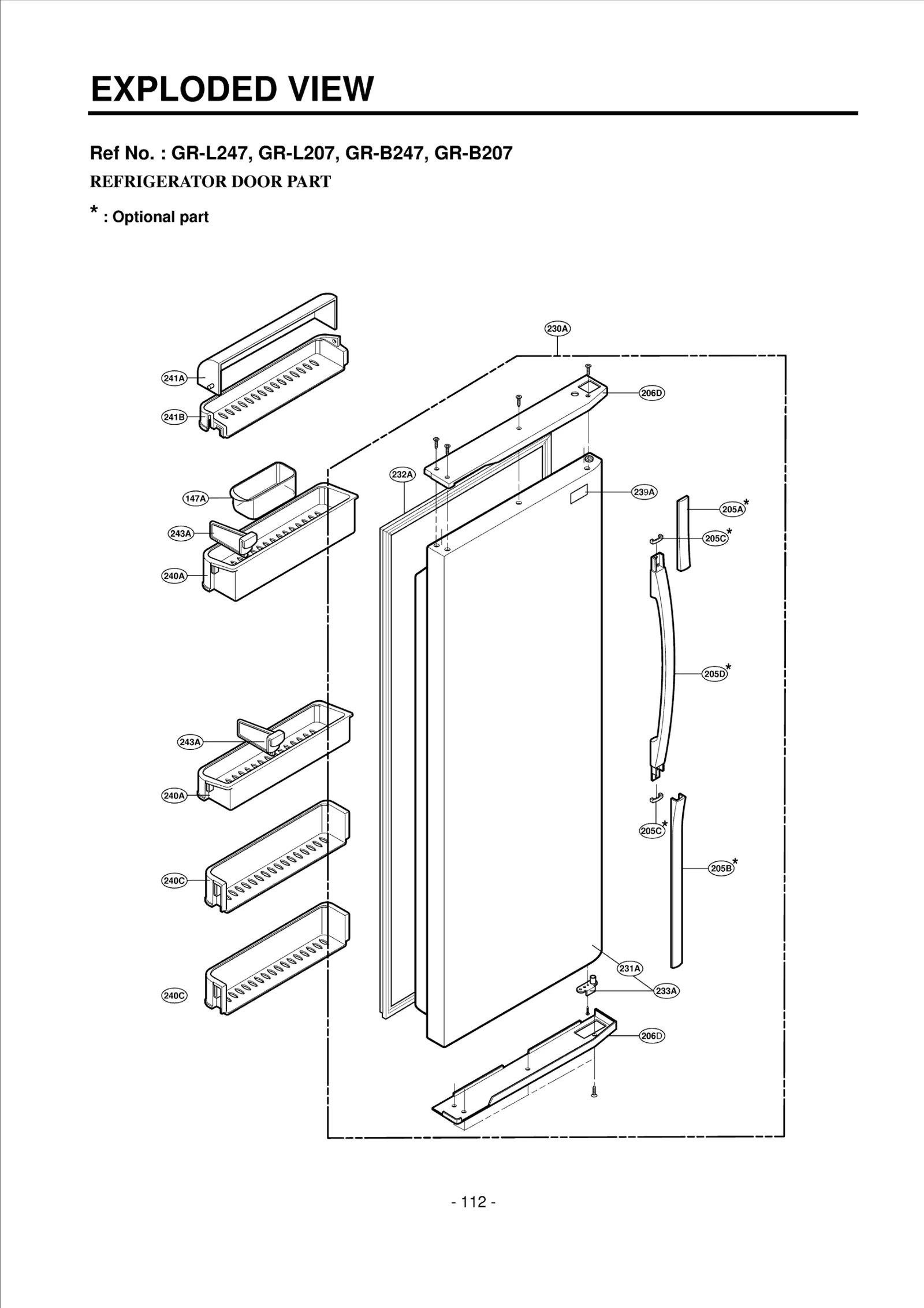

Diagram 1

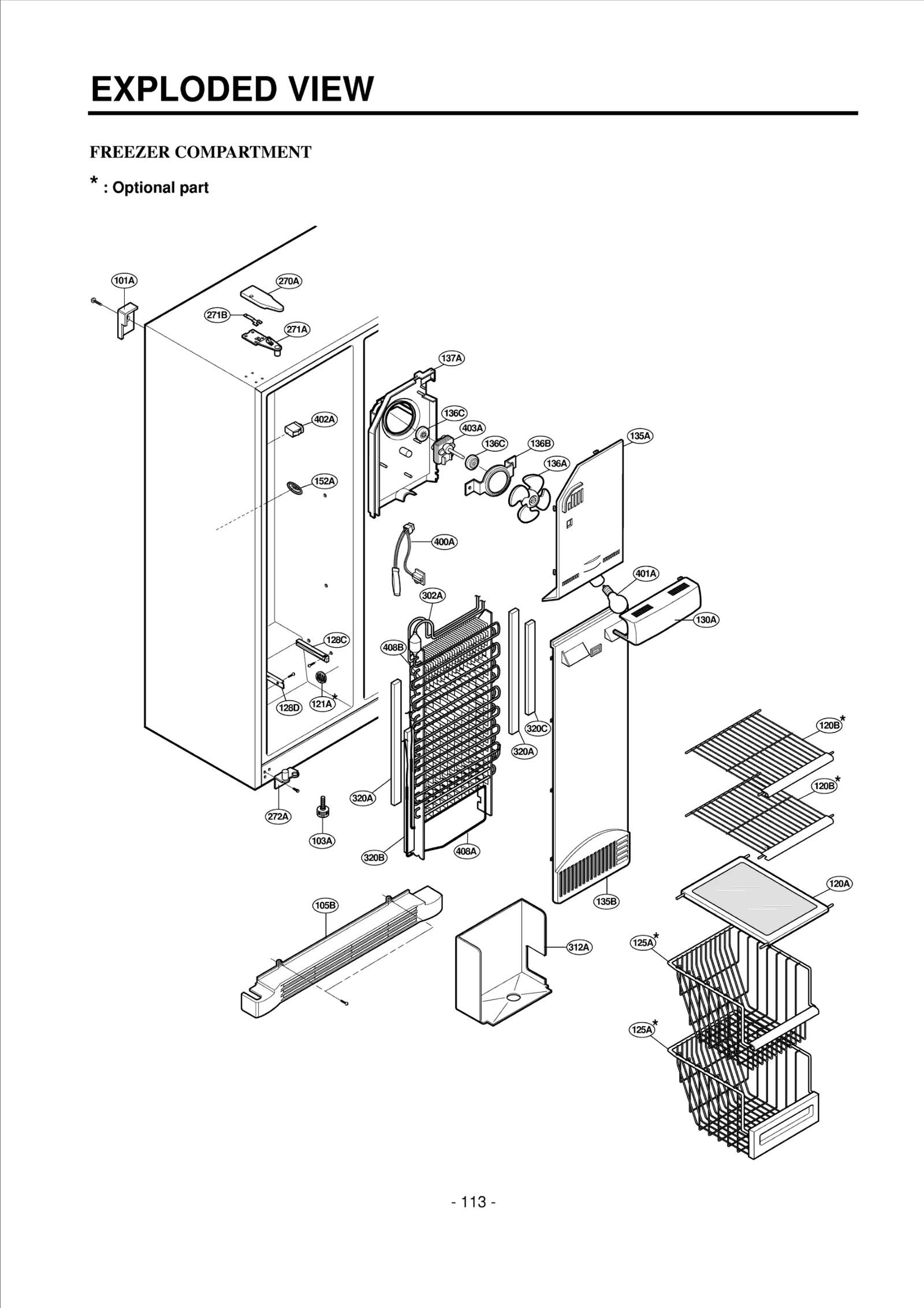

Diagram 2

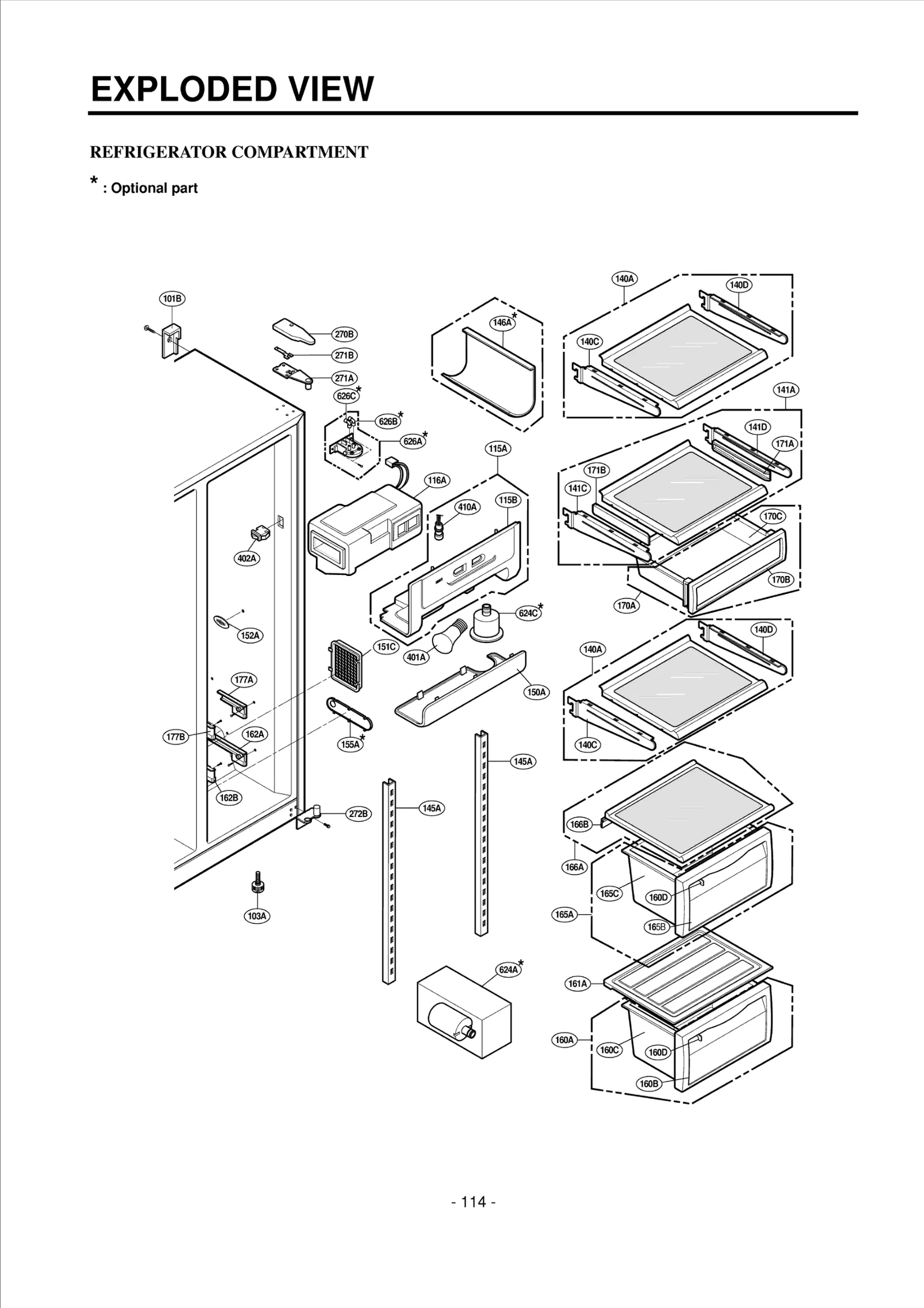

Diagram 3

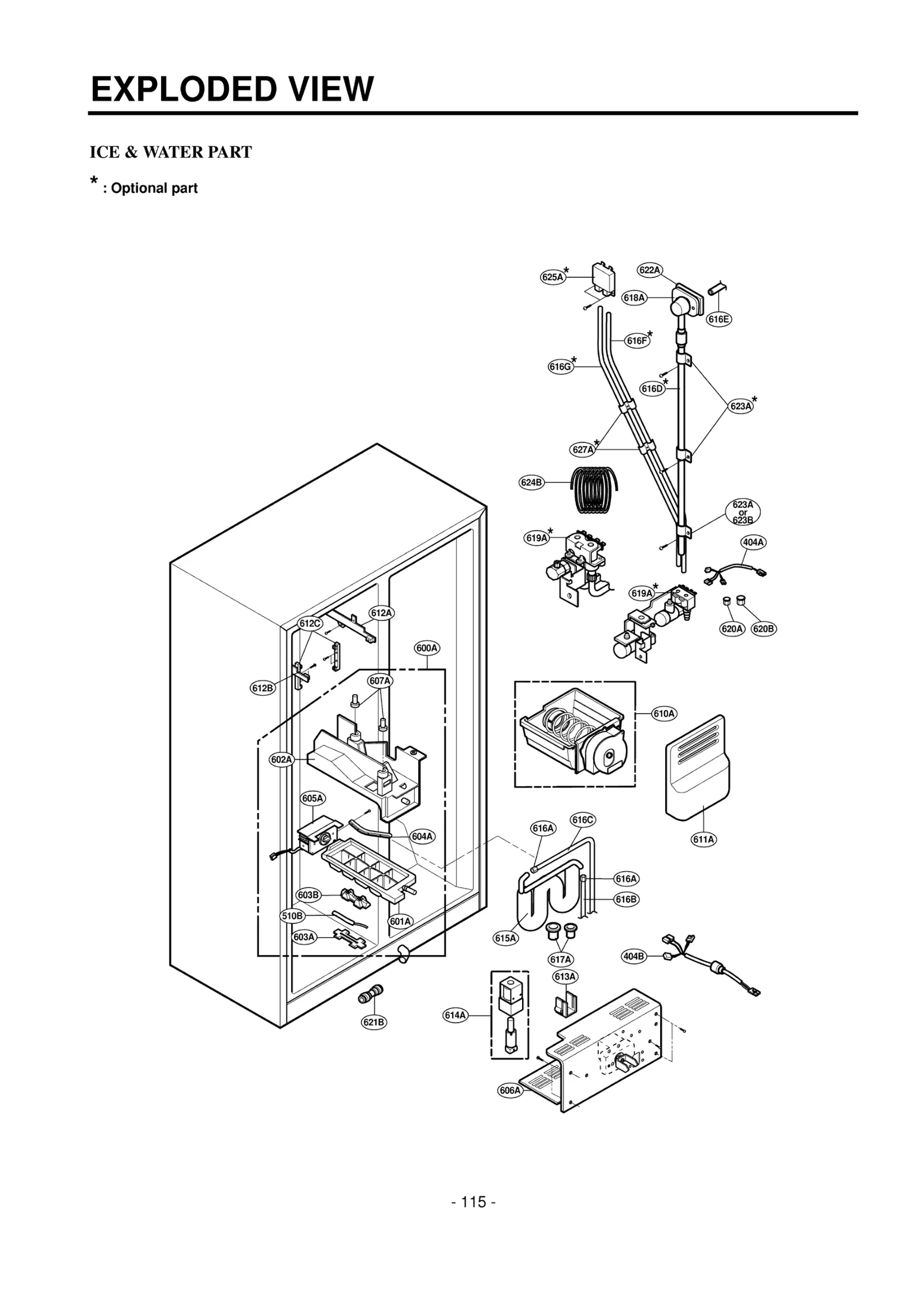

Diagram 4

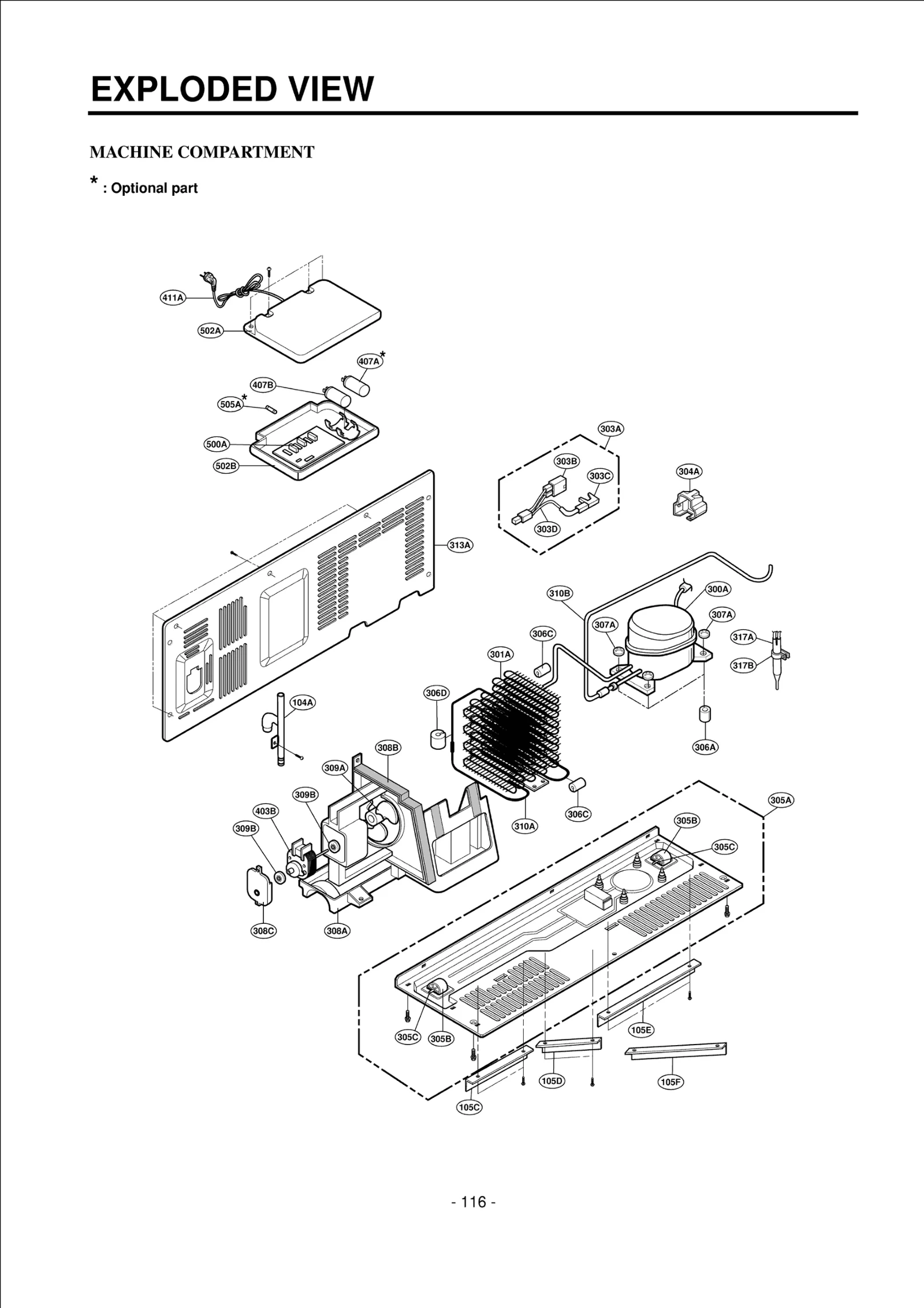

Diagram 5

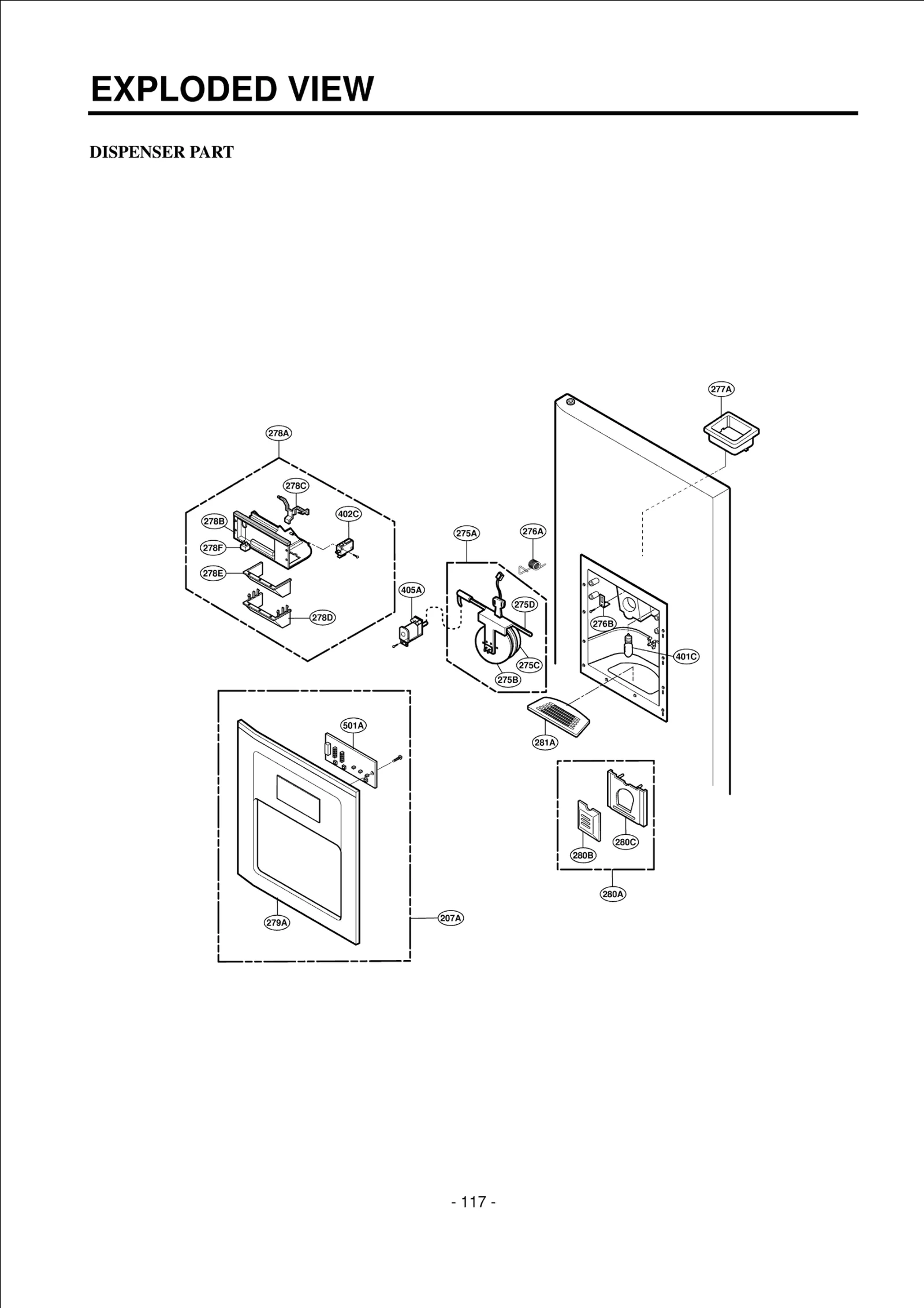

Diagram 6
Diagram 7
Common parts from model LG LRSPC2331NI
50
Box,Graphic LGE 3890JC2836D Contact Us For Availability
101B
HANDLE,BACK LGE 3650JA2025R Contact Us For Availability
105C
SKIRT,LOWER LGE 5070JA3002F Contact Us For Availability
105D
SKIRT,LOWER LGE 5070JA3002G Contact Us For Availability
105E
SKIRT,LOWER LGE 5070JA3002J Contact Us For Availability
105F
Skirt,Lower LGE 5070JA3002D Contact Us For Availability
115B
CONTROL BOX,R LGE 4994JD1036F Contact Us For Availability
116A
DUCT ASSEMBLY, INSULATION LGE 5209JA1011D Contact Us For Availability
136B
BRACKET ASSEMBLY,MOTOR LGE 4811JA2009A Contact Us For Availability
137A
SHROUD,F LGE 4998JA0024A Contact Us For Availability
140A
SHELF ASSEMBLY,R LGE 5027JA1013G Contact Us For Availability
140C
SHELF ASSEMBLY,NET LGE 5027JA2054C Contact Us For Availability
141A
SHELF ASSEMBLY,R LGE 5027JA1013H Contact Us For Availability
141B
Shelf Assembly,Refrigerator LGE 5027JA1035B Contact Us For Availability
141C
SHELF ASSEMBLY,NET LGE 5027JA2054B Contact Us For Availability
145A
HOLDER,SHELF LGE 4930JA2023B Contact Us For Availability
146A
WINE RACK LGE J469-00030A Contact Us For Availability
150A
COVER, LAMP LGE 3550JA1172A Contact Us For Availability
151C
COVER ASSEMBLY,DEODORIZER LGE 3551JA2053E Contact Us For Availability
152A
COVER,SENSOR LGE 3550JA2035D Contact Us For Availability
155A
CASE ASSY LGE 3111JA2007B Contact Us For Availability
160A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1033F Contact Us For Availability
160C
Tray,Vegetable LGE 3390JD1047F Contact Us For Availability
160D
KNOB,SHUTTER LGE 4940JA2008A Contact Us For Availability
161A
COVER,TRAY LGE 3550JA2091A Contact Us For Availability
162B
GUIDE ASSY,RAIL LGE 4975JA2012B Contact Us For Availability
165A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1035F Contact Us For Availability
165B
DECO,TRAY LGE 3806JD1021F Contact Us For Availability
165C
Tray,Vegetable LGE 3390JD1048E Contact Us For Availability
170A
TRAY ASSEMBLY,SNACK LGE 3391JA1034F Contact Us For Availability
170B
DECO,TRAY LGE 3806JA1027A Contact Us For Availability
171C
GUIDE ASSY,RAIL LGE 4975JA1012A Contact Us For Availability
171D
GUIDE ASSY,RAIL LGE 4975JA1012D Contact Us For Availability
177A
GUIDE ASSY,RAIL LGE 4975JA2003A Contact Us For Availability
177B
GUIDE ASSY,RAIL LGE 4975JA2003N Contact Us For Availability
206E
CAP DECO, F (BOTTOM) LGE 5078JA1033B Contact Us For Availability
206F
CAP DECO,R LGE 5078JA1034B Contact Us For Availability
206d
CAP DECO,R LGE 5078JA1034A Contact Us For Availability
207A
FRAME ASSEMBLY,DISPLAY LGE 3211JA1007W Contact Us For Availability
270A
COVER,HINGE LGE 3550JA1108H Contact Us For Availability
270B
COVER,HINGE LGE 3550JA1108G Contact Us For Availability
271A
HINGE ASSY,U LGE 4775JA2024A Contact Us For Availability
276A
SPRING LGE 4970JA3011A Contact Us For Availability
277A
COVER LGE 3550JA2067A Contact Us For Availability
278A
FUNNEL ASSEMBLY LGE 3017JA2001M Contact Us For Availability
278B
FRAME,FUNNEL LGE 3210JA1011J Contact Us For Availability
278C
LEVER LGE 4510JA3007A Contact Us For Availability
278D
FUNNEL LGE 4980JA2024H Contact Us For Availability
278E
RUBBER,FUNNEL LGE 5040JA2010D Contact Us For Availability
278F
SWITCH,ROCKER LGE 6600JB3002A Contact Us For Availability
280A
BUTTON ASSEMBLY LGE 3807JA3006P Contact Us For Availability
280B
BUTTON,LEVER LGE 5040JA2008D Contact Us For Availability
280C
HOLDER,BUTTON LGE 3806JA2019E Contact Us For Availability
281A
DECO,DRAIN LGE 3806JA2022F Contact Us For Availability
300A
RE-COMPRESSOR,ASSEMBLY LGE 2521JA1006B Contact Us For Availability
301A
CONDENSER ASSY,WIRE LGE 5403JA1024A Contact Us For Availability
303A
COVER ASSEMBLY,PTC LGE 3551JA2081B Contact Us For Availability
303C
O.L.P LGE 6750JA3001B Contact Us For Availability
304A
COVER,P.T.C LGE 3550JA2158A Contact Us For Availability
305A
COMP BASE ASSY LGE 3103JA1014B Contact Us For Availability
305B
ROLLER LGE 4580JA3024A Contact Us For Availability
308A
TRAY,DRIP LGE 3390JA1109A Contact Us For Availability
308B
GUIDE,FAN LGE 4974JA1053A Contact Us For Availability
308C
COVER,MOTOR LGE 3550JA2147A Contact Us For Availability
310A
PIPE,JOINT LGE 5200JA1019B Contact Us For Availability
310B
Pipe,Joint LGE 5200JA1009D Contact Us For Availability
312A
TRAY ASSY,DRAIN LGE 3391JA2016B Contact Us For Availability
313A
COVER ASSY,BACK-M/C LGE 3551JA1024A Contact Us For Availability
317B
Holder,Drier LGE 4930JA3034B Contact Us For Availability
401A
LAMP,[INCANDESCENT] LGE 6912JB2004M Contact Us For Availability
403B
MOTOR ASSEMBLY,REF FAN LGE 4681JB1017E Contact Us For Availability
404B
LEAD WIRE ASSY,JOINT LGE 6877JB2039E Contact Us For Availability
406A
POWER CORD ASSY LGE 6411JB1009B Contact Us For Availability
408A
HEATER,SHEATH LGE 5300JB1092D Contact Us For Availability
502A
Cover Assembly,PCB LGE 3551JA1101P Contact Us For Availability
502B
CASE,PWB LGE 3110JA1010A Contact Us For Availability
505A
FUSE,DRAWING LGE 3J02447C Contact Us For Availability
510B
SENSOR LGE 6500JB2004B Contact Us For Availability
600A
ICE MAKER ASSY LGE 5989JA1002A Contact Us For Availability
603B
INSULATION LGE 5410JA3011A Contact Us For Availability
604A
LEVER,ICE MAKER LGE 4510JA3003B Contact Us For Availability
606A
COVER ASSEMBLY,MOTOR LGE 3551JA1025K Contact Us For Availability
610A
BANK ASSY,ICE LGE 5075JA1008A Contact Us For Availability
611B
COVER,BANK ICE LGE 3550JD1021G Contact Us For Availability
612A
GUIDE,RAIL LGE 4974JA2023A Contact Us For Availability
612C
SUPPORTER,G/M LGE 4980JA2019B Contact Us For Availability
614A
SOLENOID ASSY,MAIN LGE 6421JA3001D Contact Us For Availability
614A
Solenoid Assembly LGE EBE60661303 Contact Us For Availability
615A
TANK,WATER LGE 4838JA1004A Contact Us For Availability
616A
NUT LGE 1NZZJA3006A Contact Us For Availability
616E
PIPE ASSEMBLY,INJECT LGE 5201JA3011E Contact Us For Availability
618A
RUBBER,INJECT LGE 5040JA2011A Contact Us For Availability
621B
CONNECTOR (MECH),TUBE LGE 4932JA3012B Contact Us For Availability
622A
BRACKET,COVER LGE 4810JA3059A Contact Us For Availability
625A
COVER,TUBE LGE 3550JA2184A Contact Us For Availability
626C
CONNECTOR (MECH),TUBE LGE 4932JA3009B Contact Us For Availability
OM
Manual,Owners LGE 3828JD8344X Contact Us For Availability
× ![]()
