Model LG LRSPC2051ST REF-SIDE BY SIDE – Common Parts & Diagrams
Diagram 0

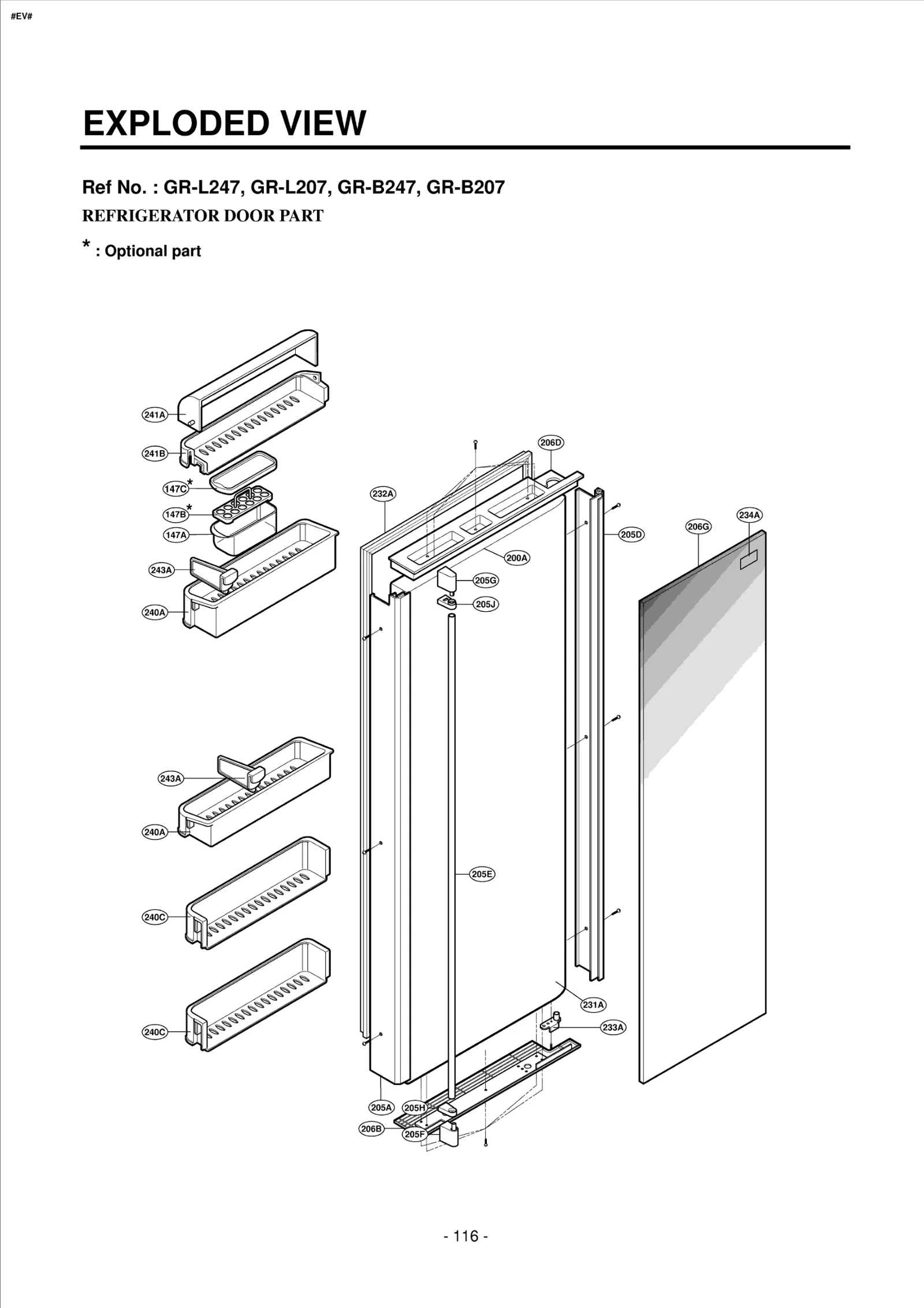

Diagram 1

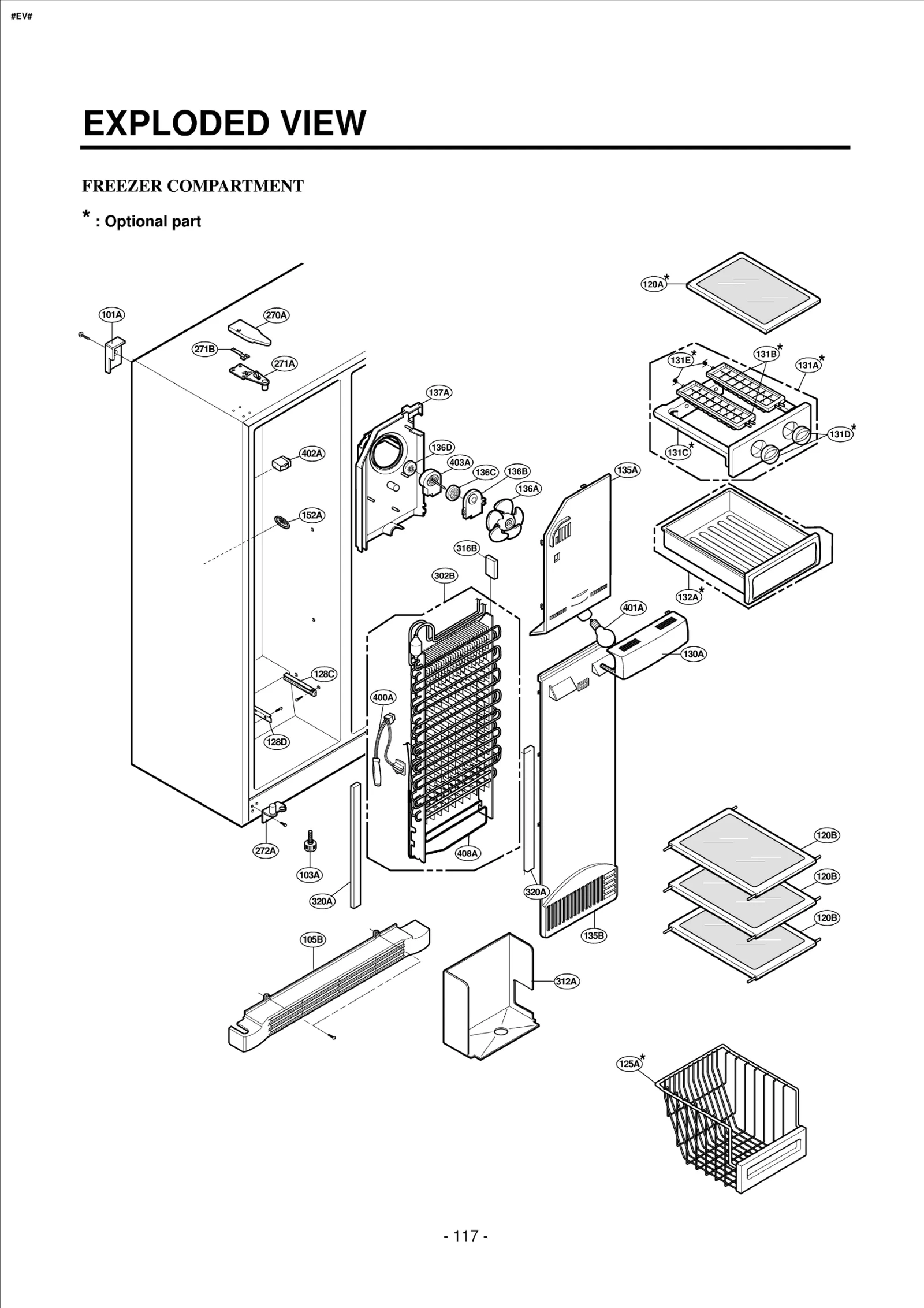

Diagram 2

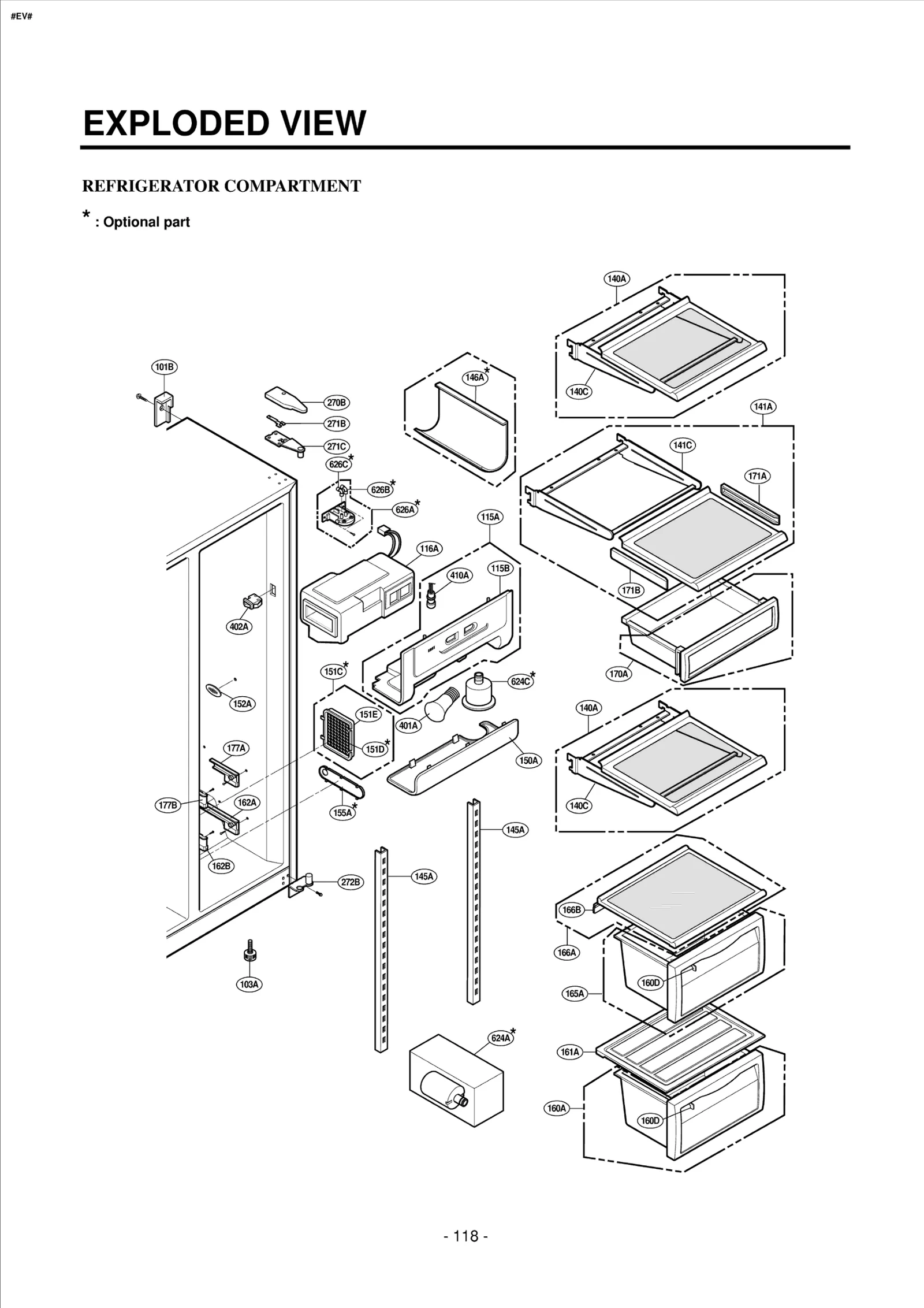

Diagram 3

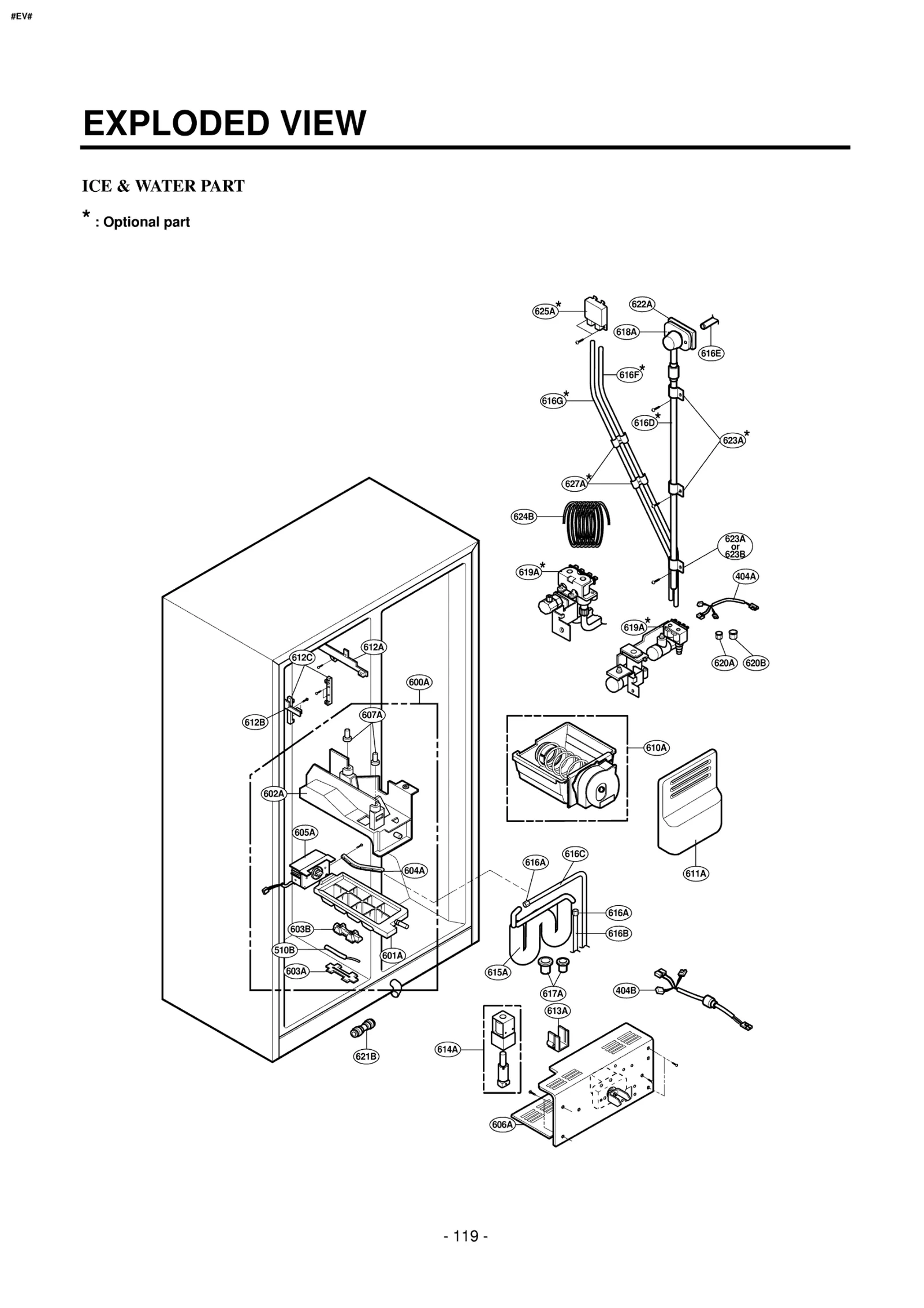

Diagram 4

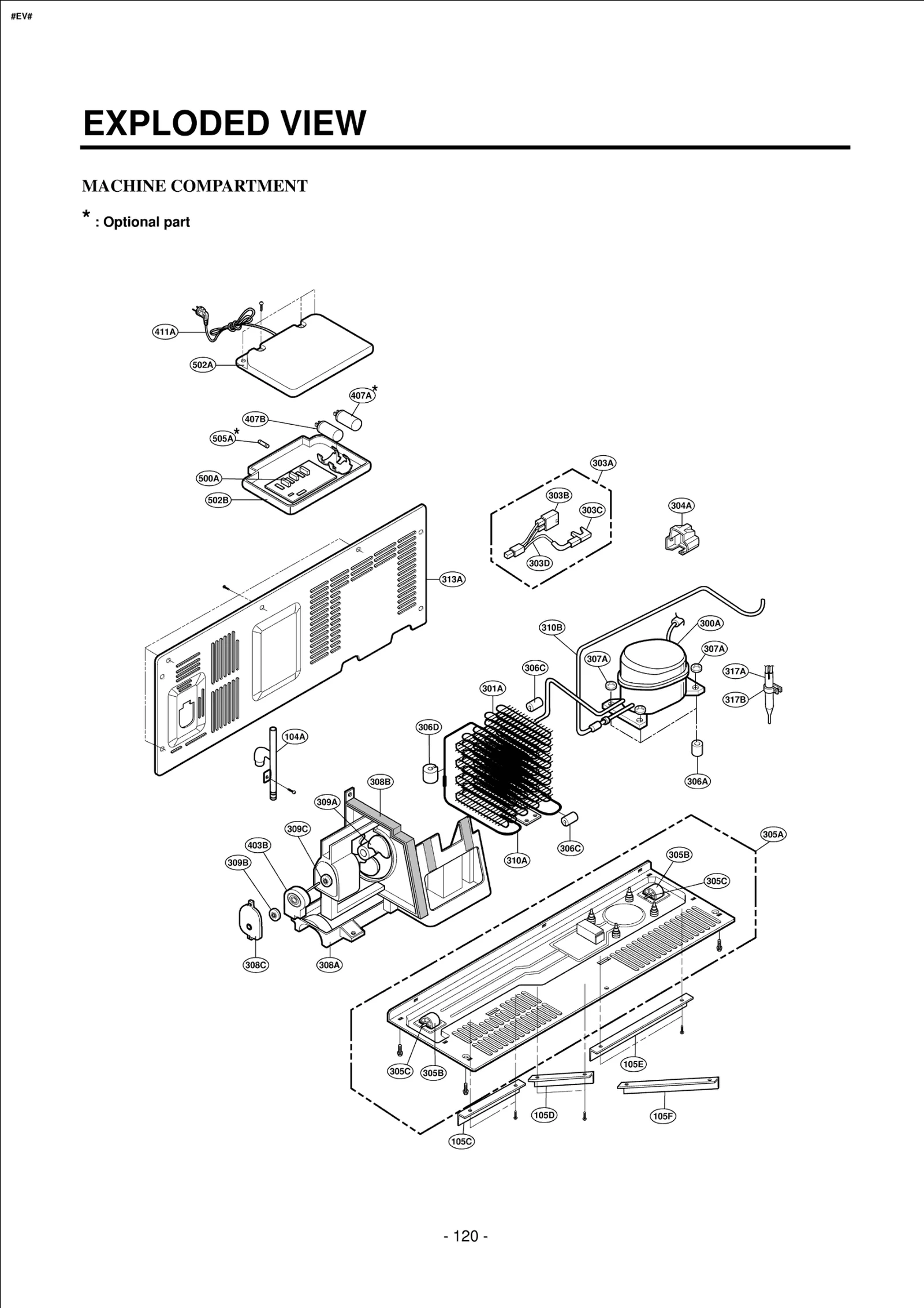

Diagram 5

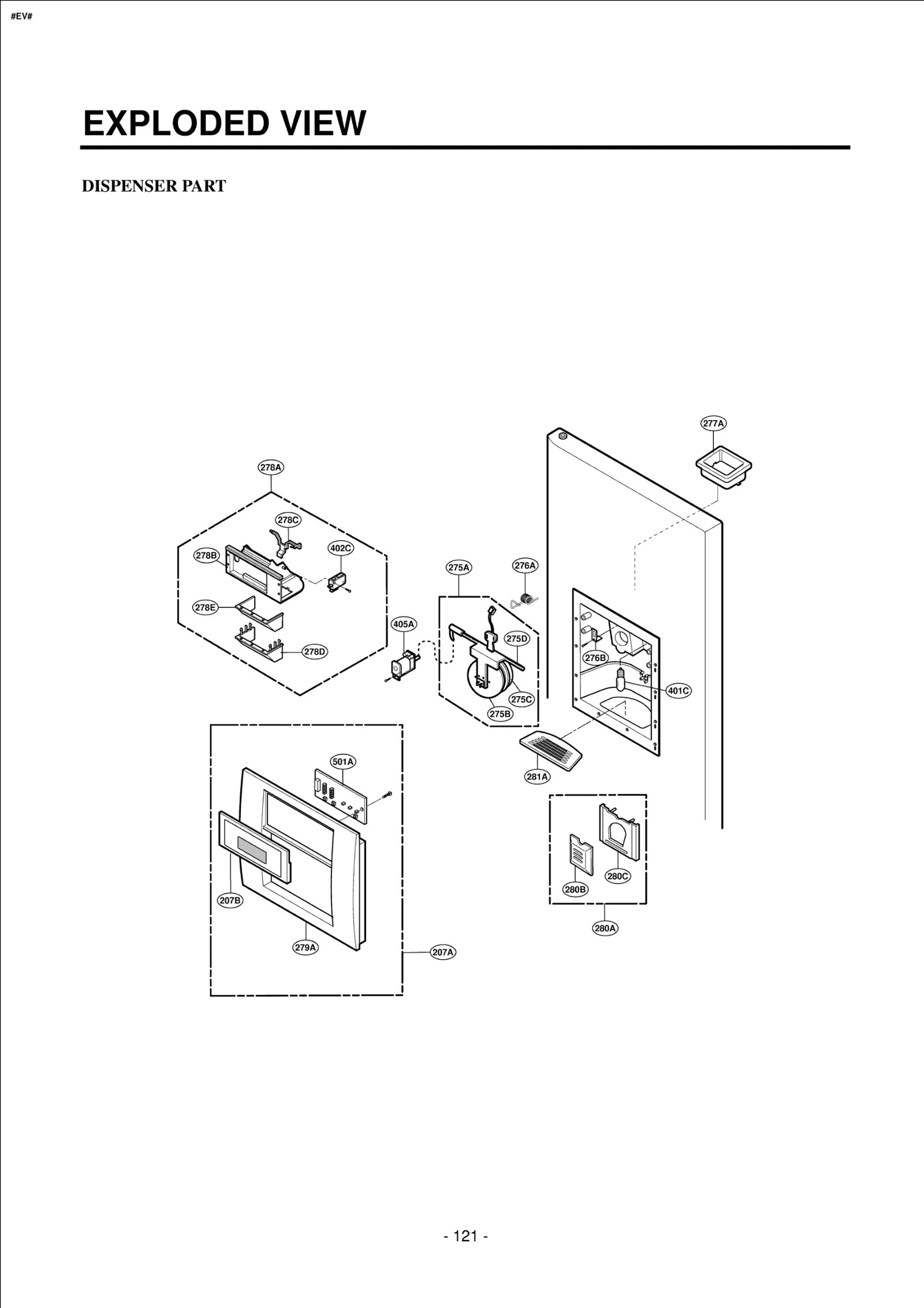

Diagram 6
Diagram 7
Common parts from model LG LRSPC2051ST REF-SIDE BY SIDE
101A
HANDLE,BACK LGE 3650JA3041J Contact Us For Availability
101B
HANDLE,BACK LGE 3650JA3041K Contact Us For Availability
103A
LEG ASSY,ADJUST LGE 4779JA3001B Contact Us For Availability
105B
COVER,LOWER LGE 3550JA0045A Contact Us For Availability
105C
SKIRT,LOWER LGE 5070JA3002F Contact Us For Availability
105D
SKIRT,LOWER LGE 5070JA3002G Contact Us For Availability
105E
SKIRT,LOWER LGE 5070JA3002J Contact Us For Availability
105F
Skirt,Lower LGE 5070JA3002E Contact Us For Availability
115B
CONTROL BOX,R LGE 4994JD1036F Contact Us For Availability
116A
DUCT ASSEMBLY, INSULATION LGE 5209JA1011D Contact Us For Availability
120A
SHELF ASSEMBLY,F LGE 5027JA2041D Contact Us For Availability
125A
TRAY ASSY,DRAWER LGE 3391JA1038A Contact Us For Availability
128C
GUIDE,RAIL LGE 4974JA1043A Contact Us For Availability
130A
COVER,LAMP LGE 3550JA1113A Contact Us For Availability
135A
GRILLE ASSY,FAN LGE 3531JA2013D Contact Us For Availability
135B
GRILLE ASSEMBLY,FAN LGE 3531JA2015E Contact Us For Availability
136A
FAN ASSEMBLY LGE 5901JA1011A Contact Us For Availability
137A
SHROUD ASSY,F LGE 4999JA2014A Contact Us For Availability
140A
SHELF ASSEMBLY,R LGE 5027JA1013J Contact Us For Availability
140C
SHELF ASSEMBLY,NET LGE 5027JA2054F Contact Us For Availability
141A
SHELF ASSEMBLY,R LGE 5027JA1013K Contact Us For Availability
141C
SHELF ASSEMBLY,NET LGE 5027JA2054E Contact Us For Availability
145A
HOLDER,SHELF LGE 4930JA2023B Contact Us For Availability
146A
WINE RACK LGE J469-00030A Contact Us For Availability
150A
COVER, LAMP LGE 3550JA1172A Contact Us For Availability
151E
COVER,DUCT LGE 3550JA2106A Contact Us For Availability
152a
COVER,SENSOR LGE 3550JA2035D Contact Us For Availability
155A
CASE ASSY LGE 3111JA2007B Contact Us For Availability
160A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1033E Contact Us For Availability
160C
TRAY,VEGETABLE LGE 3390JD1047G Contact Us For Availability
160D
KNOB,SHUTTER LGE 4940JA2008A Contact Us For Availability
161A
COVER LGE 3550JA2101A Contact Us For Availability
162B
GUIDE ASSY,RAIL LGE 4975JA2012B Contact Us For Availability
165A
TRAY ASSEMBLY,VEGETABLE LGE 3391JA1035E Contact Us For Availability
165C
TRAY,VEGETABLE LGE 3390JD1048F Contact Us For Availability
166A
COVER ASSEMBLY,TRAY LGE 3551JA1026M Contact Us For Availability
166B
GASKET,COVER TRAY LGE 4986JA3005B Contact Us For Availability
170A
TRAY ASSEMBLY,SNACK LGE 3391JA1034E Contact Us For Availability
170B
DECO,TRAY LGE 3806JA1027A Contact Us For Availability
171A
GUIDE ASSY,RAIL LGE 4975JA1012C Contact Us For Availability
171B
GUIDE ASSY,RAIL LGE 4975JA1012D Contact Us For Availability
177A
GUIDE ASSY,RAIL LGE 4975JA2003A Contact Us For Availability
177B
GUIDE ASSY,RAIL LGE 4975JA2003N Contact Us For Availability
205B
DECO,HANDLE LGE 3806JA1055B Contact Us For Availability
206H
PANEL ASSEMBLY,STAINLESS STEEL LGE 3721JA1001D Contact Us For Availability
207A
FRAME ASSEMBLY,DISPLAY LGE 3211JA1017H Contact Us For Availability
207B
DECO,CONTROL LGE 3806JA2029B Contact Us For Availability
230A
DOOR ASSEMBLY,R LGE 3581JA8378J Contact Us For Availability
234G
NAME PLATE,P(H) LGE 4140JD2001C Contact Us For Availability
243A
GUIDE,BOTTLE LGE 4974JA2026A Contact Us For Availability
270A
COVER,HINGE LGE 3550JA1186A Contact Us For Availability
271A
HINGE ASSEMBLY,U LGE 4775JA2049A Contact Us For Availability
275A
CAP ASSEMBLY,DUCT LGE 5007JA3006K Contact Us For Availability
275B
CAP,DUCT LGE 5006JA2012G Contact Us For Availability
275C
RUBBER,CAP LGE 5040JA3032A Contact Us For Availability
275D
LEVER,DISPENSER LGE 4510JA2006A Contact Us For Availability
276A
SPRING LGE 4970JA3011A Contact Us For Availability
276C
HOLDER,BUTTON LGE 3806JA2019K Contact Us For Availability
277A
COVER LGE 3550JA2067A Contact Us For Availability
278A
FUNNEL ASSEMBLY LGE 3017JA2001T Contact Us For Availability
278B
FRAME,FUNNEL LGE 3210JA1011P Contact Us For Availability
278C
LEVER LGE 4510JA3007A Contact Us For Availability
278D
FUNNEL LGE 4980JA2024K Contact Us For Availability
278E
RUBBER,FUNNEL LGE 5040JA2010A Contact Us For Availability
278F
SWITCH,ROCKER LGE 6600JB3002A Contact Us For Availability
279A
COVER,DISPENSER LGE 3550JA0044A Contact Us For Availability
280A
BUTTON ASSEMBLY LGE 3807JA3006S Contact Us For Availability
281A
DECO,DRAIN LGE 3806JA2022J Contact Us For Availability
282A
HINGE ASSEMBLY,L LGE 4775JA2056A Contact Us For Availability
290A
COVER,HINGE LGE 3550JA1186B Contact Us For Availability
291A
HINGE ASSEMBLY,U LGE 4775JA2050A Contact Us For Availability
292A
HINGE ASSEMBLY,L LGE 4775JA2056B Contact Us For Availability
300A
RE-COMPRESSOR,ASSEMBLY LGE 2521JA1006B Contact Us For Availability
301A
CONDENSER ASSY,WIRE LGE 5403JA1024A Contact Us For Availability
303A
COVER ASSEMBLY,PTC LGE 3551JA2081B Contact Us For Availability
303C
O.L.P LGE 6750JA3001B Contact Us For Availability
303D
CONNECTOR ASSEMBLY LGE 6877JB2040G Contact Us For Availability
304A
COVER,P.T.C LGE 3550JA2158A Contact Us For Availability
304B
STOPPER,CORD LGE 4620JA3014A Contact Us For Availability
305A
COMP BASE ASSY LGE 3103JA1014B Contact Us For Availability
305B
ROLLER LGE 4580JA3021A Contact Us For Availability
305C
PIN LGE 1PZZJA3003A Contact Us For Availability
306A
RUBBER,SEAT LGE 5040JA3062A Contact Us For Availability
308A
TRAY,DRIP LGE 3390JA1109A Contact Us For Availability
308B
GUIDE,FAN LGE 4974JA1053A Contact Us For Availability
308C
COVER,MOTOR LGE 3550JA2147A Contact Us For Availability
310A
PIPE,JOINT LGE 5200JA1019B Contact Us For Availability
312A
TRAY ASSY,DRAIN LGE 3391JA2016B Contact Us For Availability
313A
COVER ASSY,BACK-M/C LGE 3551JA1024A Contact Us For Availability
316A
RESTRAINER LGE 4J04330D Contact Us For Availability
401A
LAMP,INCANDESCENT LGE 6912JB2004C Contact Us For Availability
401C
LAMP,VACCUM LGE 6912JB2002G Contact Us For Availability
403A
MOTOR ASSEMBLY,REF FAN LGE 4681JB1017A Contact Us For Availability
403B
MOTOR ASSEMBLY,REF FAN LGE 4681JB1017B Contact Us For Availability
404B
LEAD WIRE ASSY,JOINT LGE 6877JB2074B Contact Us For Availability
408A
HEATER,SHEATH LGE 5300JB1092D Contact Us For Availability
410G
CAPACITOR,DRAWING LGE 0CZZJB2003G Contact Us For Availability
411A
POWER CORD ASSY LGE 6411JB1009B Contact Us For Availability
500A
PWB(PCB) ASSEMBLY,MAIN LGE 6871JB1104P Contact Us For Availability
502A
Cover Assembly,PCB LGE 3551JA1101P Contact Us For Availability
502A
COVER,PWB LGE 3550JA1068U Contact Us For Availability
505A
FUSE,DRAWING LGE 3J02447C Contact Us For Availability
510B
CONNECTOR ASSEMBLY,JOINT LGE 6877JB3015A Contact Us For Availability
600A
ICE MAKER ASSY LGE 5989JA1002A Contact Us For Availability
601A
TRAY,ICE LGE 3390JA1078A Contact Us For Availability
603B
INSULATION LGE 5410JA3011A Contact Us For Availability
604A
LEVER LGE 4510JA3003A Contact Us For Availability
606A
COVER ASSY,MOTOR LGE 3551JA1031D Contact Us For Availability
607A
HOLDER,BRACKET LGE 4930JA3037A Contact Us For Availability
610A
BANK ASSY,ICE LGE 5075JA1008B Contact Us For Availability
611A
COVER,BANK ICE LGE 3550JD1021H Contact Us For Availability
612A
GUIDE,RAIL LGE 4974JA2023A Contact Us For Availability
612C
SUPPORTER,G/M LGE 4980JA2019B Contact Us For Availability
614A
SOLENOID ASSY,MAIN LGE 6421JA3001D Contact Us For Availability
614A
Solenoid Assembly LGE EBE60661303 Contact Us For Availability
615A
TANK,WATER LGE 4838JA1004A Contact Us For Availability
616A
NUT LGE 1NZZJA3006A Contact Us For Availability
616E
PIPE ASSEMBLY,INJECT LGE 5201JA3011F Contact Us For Availability
617A
RUBBER,CAP LGE 5040JA3034A Contact Us For Availability
618A
BRACKET,COVER LGE 4810JA3059A Contact Us For Availability
620A
NUT,DRAWING LGE 1NZZJA3005A Contact Us For Availability
622A
RUBBER,INJECT LGE 5040JA2011A Contact Us For Availability
625A
COVER,TUBE LGE 3550JA2105A Contact Us For Availability
626C
CONNECTOR (MECH),TUBE LGE 4932JA3009B Contact Us For Availability
BOX
BOX,GRAPHIC LGE 3890JC2709Z Contact Us For Availability
KIT
PACKAGE ASSEMBLY,INSTALLATION LGE 3911JA3002A Contact Us For Availability
OM
LGE 3828JD8418P LGE 3828JD8418P Contact Us For Availability
× ![]()
