Model LG LP153CD3A AC – Common Parts & Diagrams

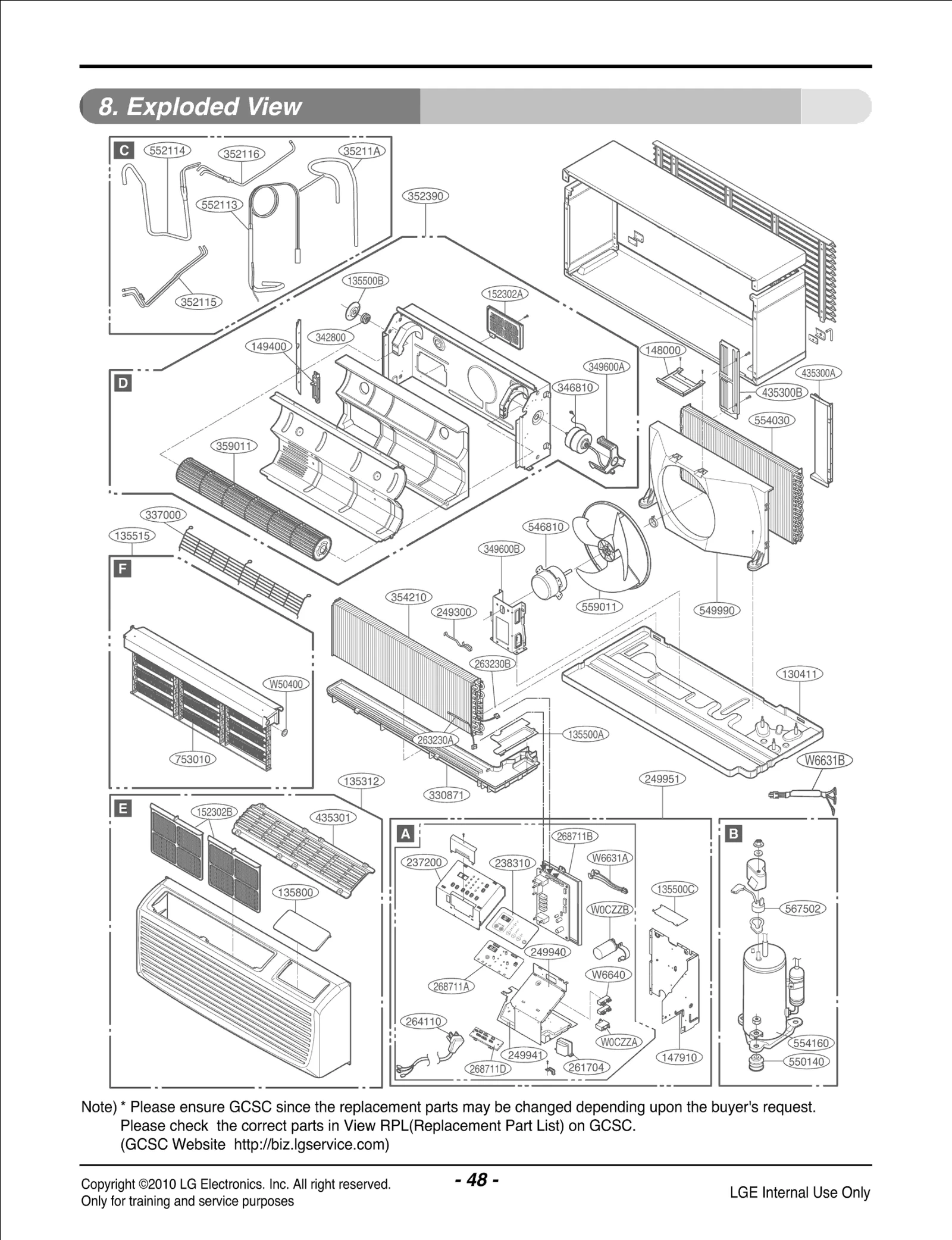

Diagram 0
Common parts from model LG LP153CD3A AC
135800
DOOR LGE 3580A20021B Contact Us For Availability
152302B
FILTER(MECH),A/C LGE 5230A20021A Contact Us For Availability
237200
Panel,Control LGE 3720A20710A Contact Us For Availability
268711A
PCB Assembly,Display LGE 6871A00085A Contact Us For Availability
268711B
PCB Assembly,Main LGE 6871A00084P Contact Us For Availability
330871
DRAIN PAN ASSEMBLY LGE 3087A20033A Contact Us For Availability
337000
Mesh,Metal LGE 3700A20009B Contact Us For Availability
346810
Motor Assembly,AC,Indoor LGE 4681A20064N Contact Us For Availability
349600A
MOUNT,MOTOR LGE 4960A20032A Contact Us For Availability
349600B
MOUNT,MOTOR LGE 4960A20005A Contact Us For Availability
352390
Guide Assembly,Air LGE 5239A10019H Contact Us For Availability
354210
EVAPORATOR ASSEMBLY,FIRST LGE 5421A20118C Contact Us For Availability
435300A
GRILLE,REAR LGE 3530A30015A Contact Us For Availability
435300B
GRILLE,REAR LGE 3530A30002A Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530A20040B Contact Us For Availability
546810
MOTOR ASSEMBLY,OUTDOOR LGE 4681A20200A Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE 5211A24129W Contact Us For Availability
552114
Tube Assembly,Discharge(Outdoor) LGE AJR30135605 Contact Us For Availability
554030
Condenser Assembly,First/OBSOLETE PART/SEE GC LGE 5403A20076H Contact Us For Availability
753010
Heater Assembly,Electric LGE 5301A20036E Contact Us For Availability
753010
Heater Assembly,Electric LGE 5301A20036B Contact Us For Availability
W6631A
Harness,Multi LGE 6631A20305E Contact Us For Availability
× ![]()
